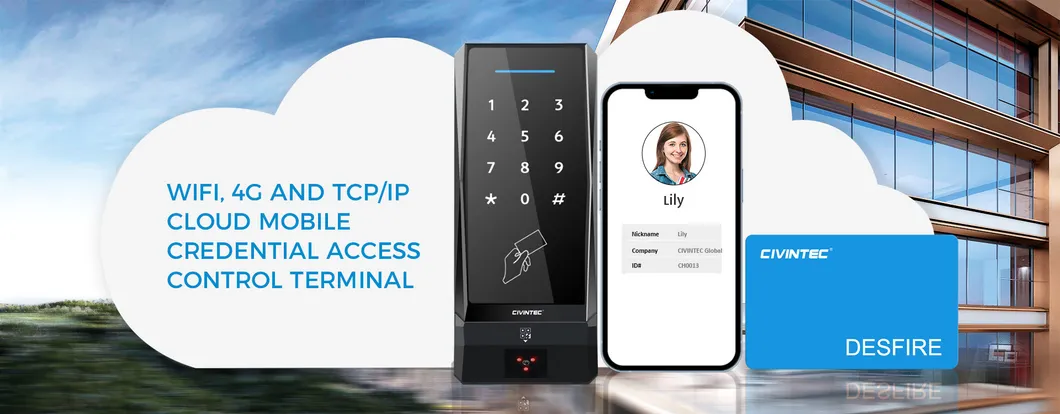

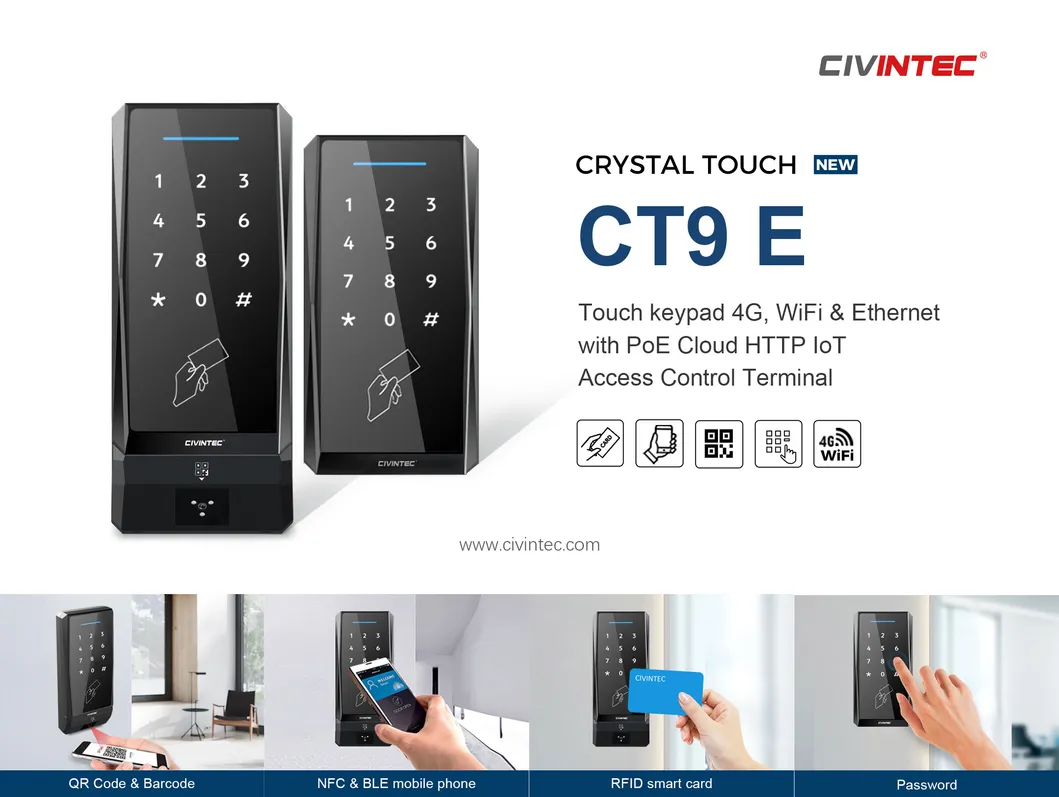

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless WiFi, 4G, and TCP/IP Ethernet. It is perfectly suited for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions.
It supports 5-in-1 multiple access credential technologies: touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Features | CT9 E Specifications |
|---|---|
| IDENTIFICATION TECHNOLOGIES | |
| RFID Contactless Cards | 125KHz ProX, EM; 13.56MHz Mifare Classic, Ultralight, Plus, DESFire EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |
| Barcode / QR Scanner | 1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39, and mainstream barcodes |
| INTERFACE & COMMUNICATION | |
| Interfaces | TCP/IP (RJ45), 4G, WiFi 2.4GHz (802.11b/g/n), RS485, Wiegand Input |

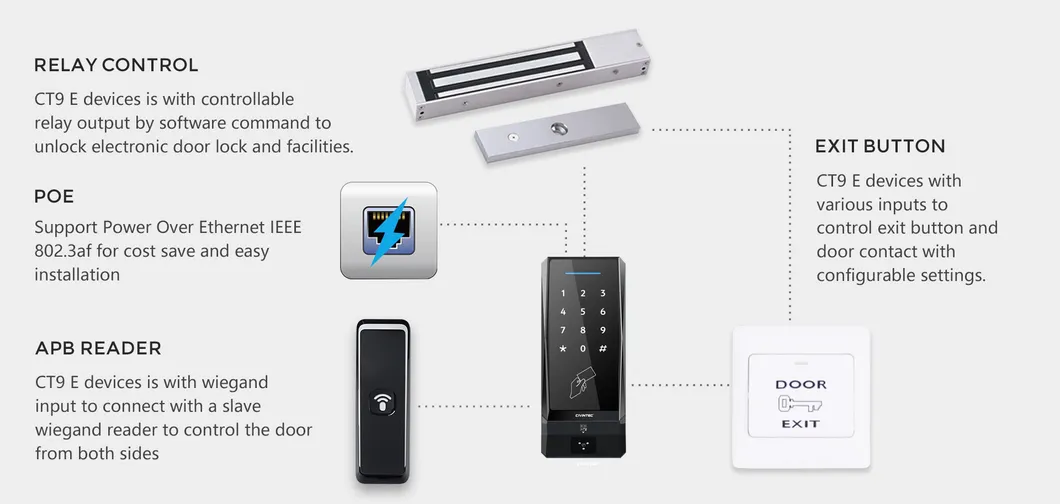

| I/O Ports | Door contact, Exit button, Buzzer control, Fire alarm, Tamper switch, 1~2 relay outputs |
| GENERAL SYSTEM | |
| Operating System | LINUX |
| Keypad | 12-digit Touch keypad with backlit |
| Memory Capacity | Unlimited Online / 10,000 Users & 50,000 Logs Offline |
| Protection Class | IP65 electric epoxy potted, UV resistant |
* Specifications are subject to change without notice.

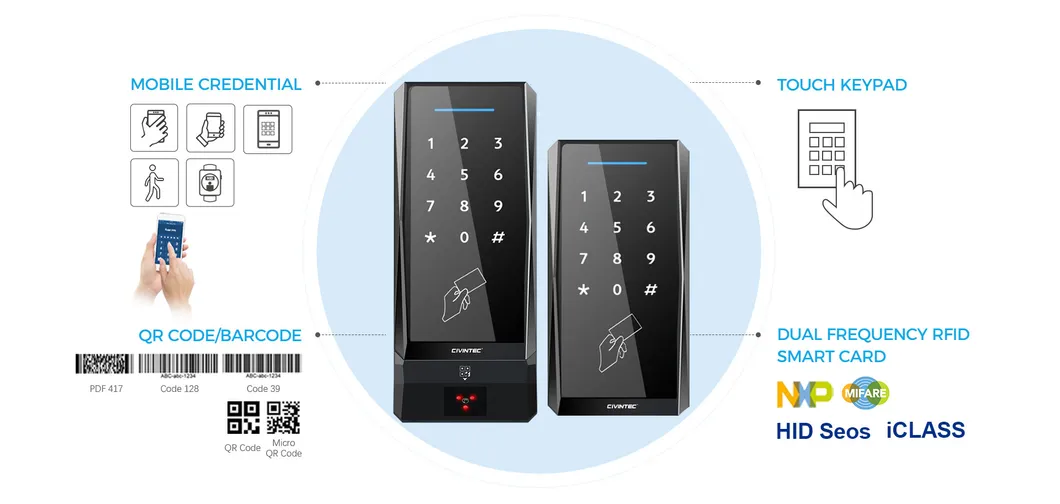

Incorporates 5-in-1 technology including touch keypad, dual RFID frequencies, mobile credentials (BLE/NFC), and QR code scanning for comprehensive visitor management.

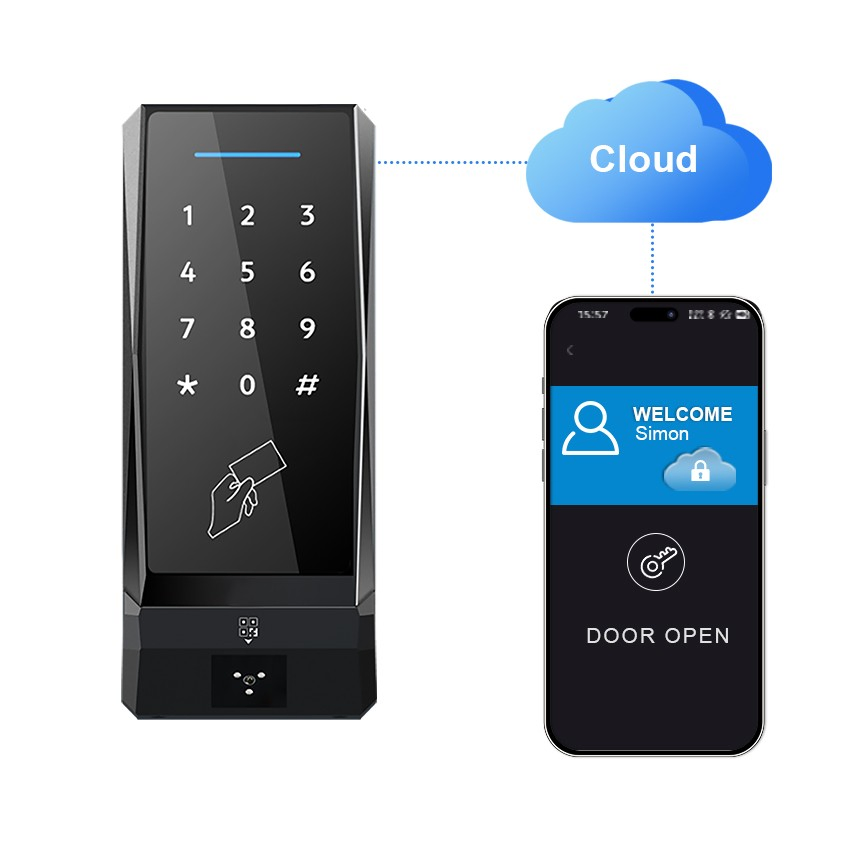

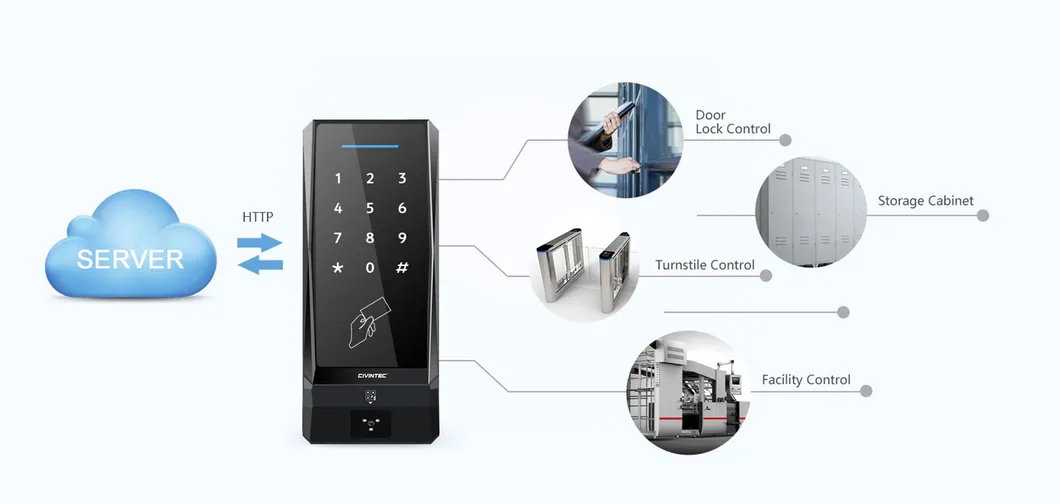

Bi-directional communication via standard HTTP & HTTPs between the CT9 E terminal and the server allows for secure remote door control and IoT facility management.

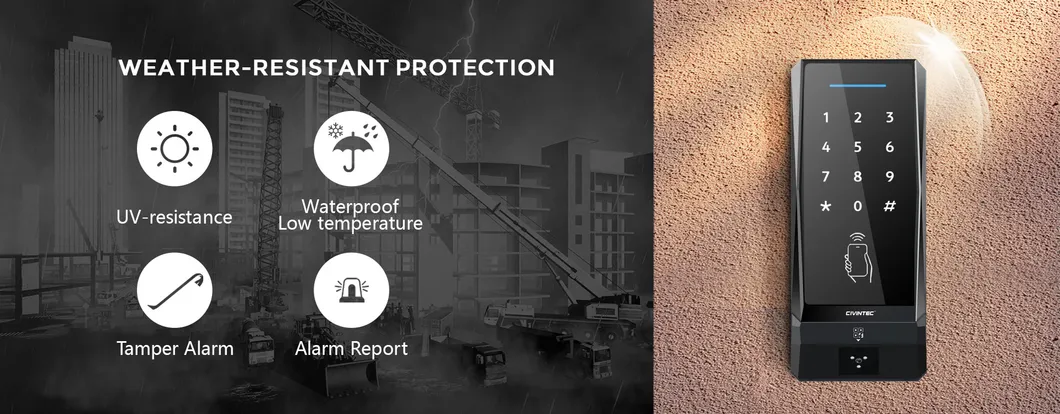

With an IP65 rating, the device is resistant to rain, dust, and strong sunlight. It is designed for reliable performance in low temperatures and rugged outdoor environments.
