Zigbee 3.0 CCT RGBW RGB Controller LED Strip Smart Dimmable WiFi LED Dimmer Work with Tuya Gateway Hue Bridge Smartthings Bridge Controller

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Overview & Specifications

Model
KDY-L-Controller
Certification
CCC, CE, RoHS
Voltage
DC 12V-24V
Max Load Power
360W
Output Current
15A Max

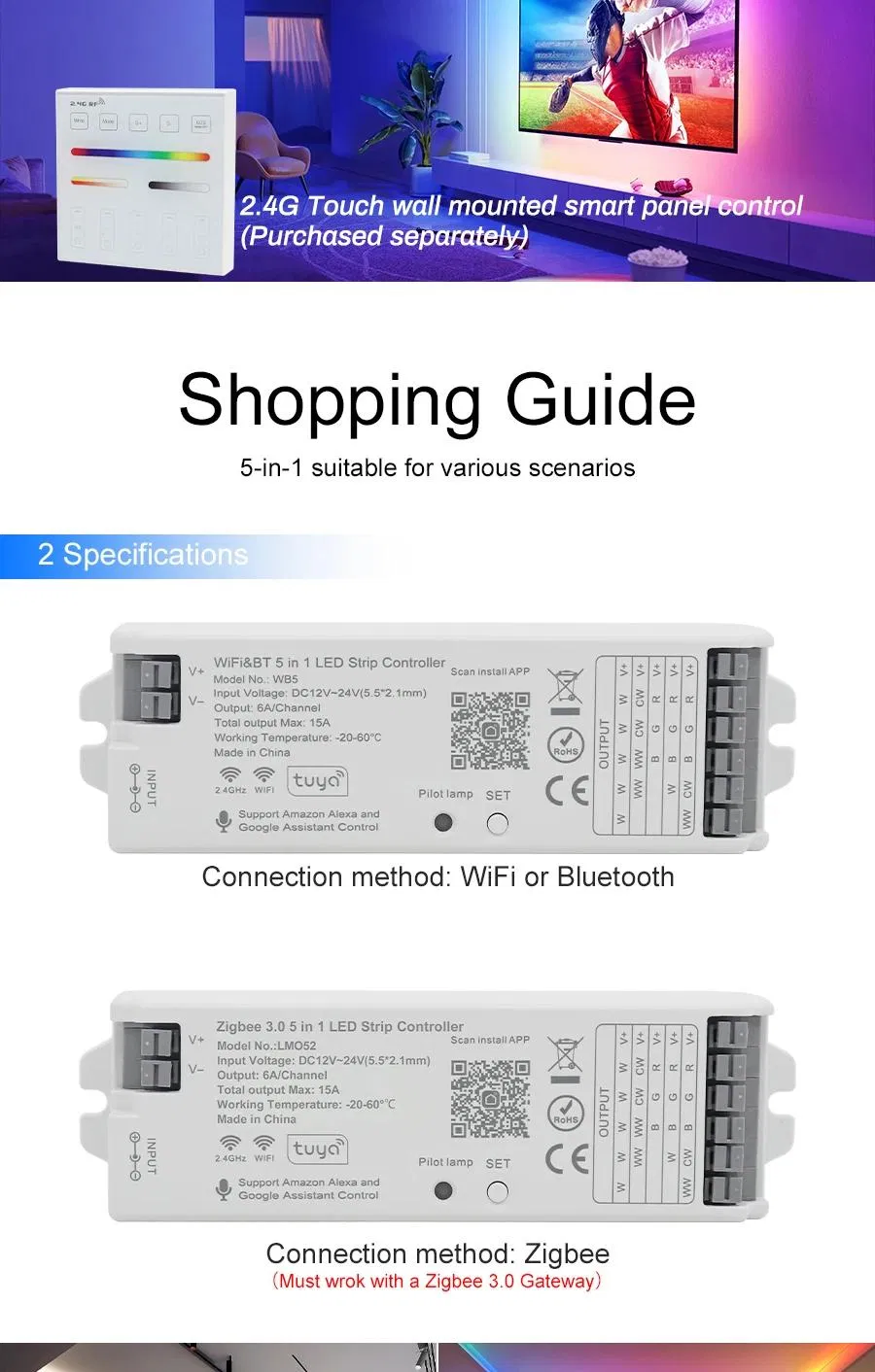

Connection Mode
WiFi / Bluetooth Mesh / Zigbee 3.0
Compatibility
Android, iOS (Tuya / Smart Life)
Distance
50-100M
Support IC
WS2812, WS2811, SK6812, etc.
Working Temp
-20~60°C
💡

Product Description

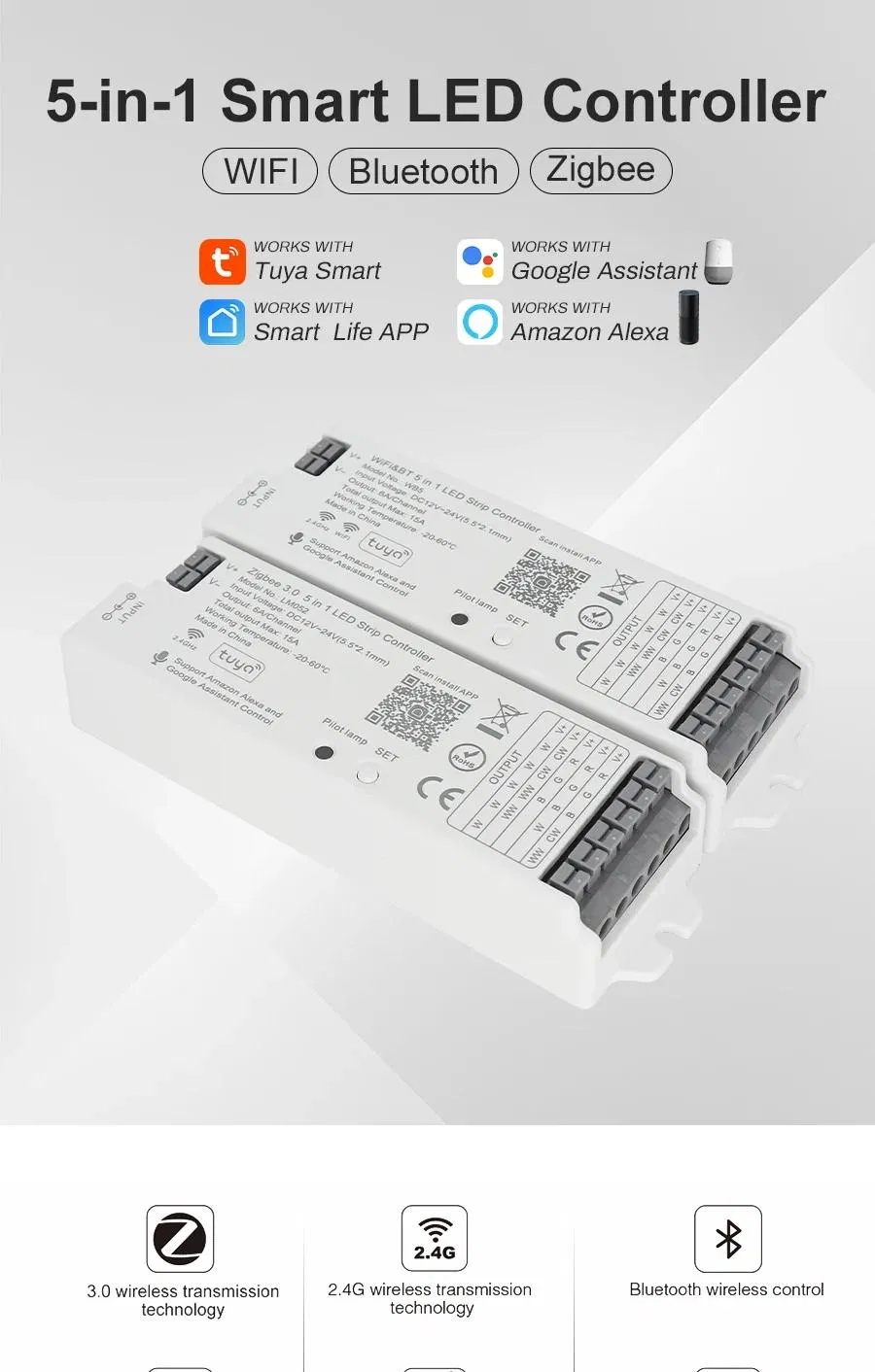

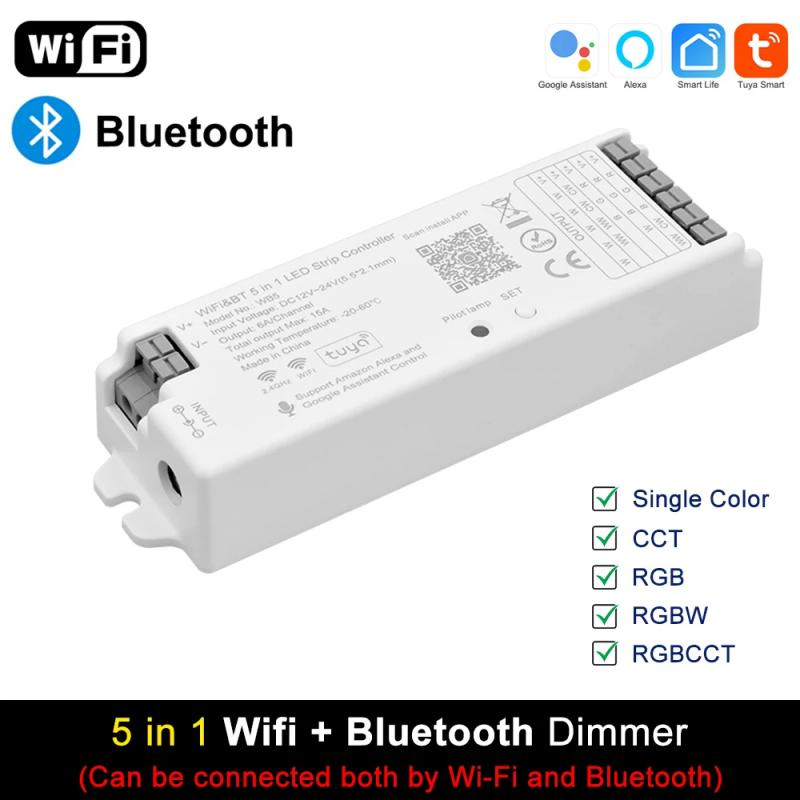

5-in-1 Smart LED Dimmer: A versatile intelligent controller supporting multiple output modes including Single Color, CCT, RGB, RGBW, and RGBCCT. Compatible with both SMD and COB LED strips via PWM control.

  • Support Alexa and Google Assistant voice control
  • Operates on DC12~24V safety voltage
  • 6A per channel output (15A Total Max)
  • Smart Life or Tuya App integration

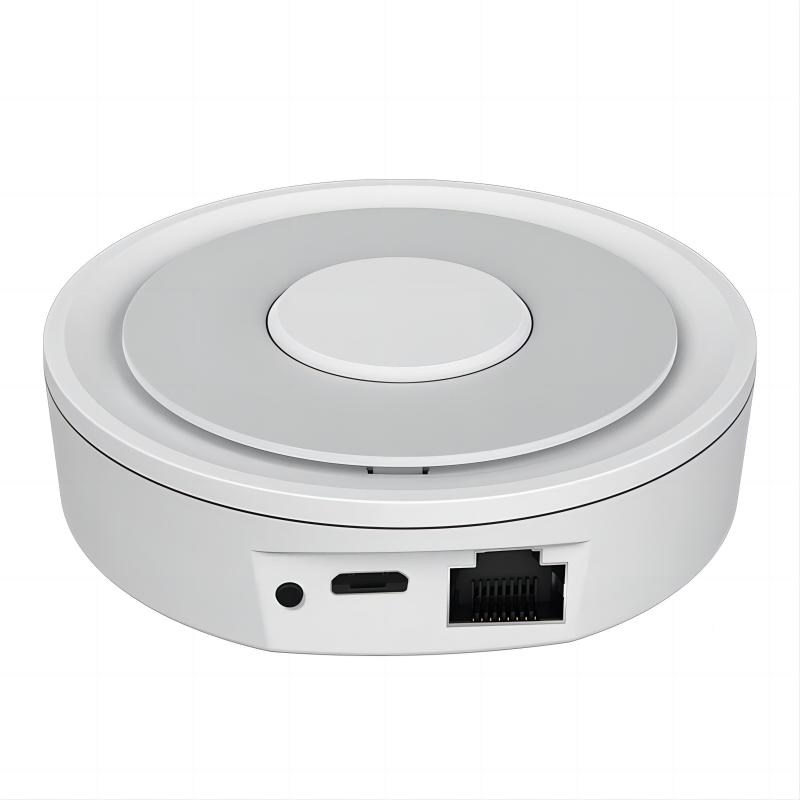

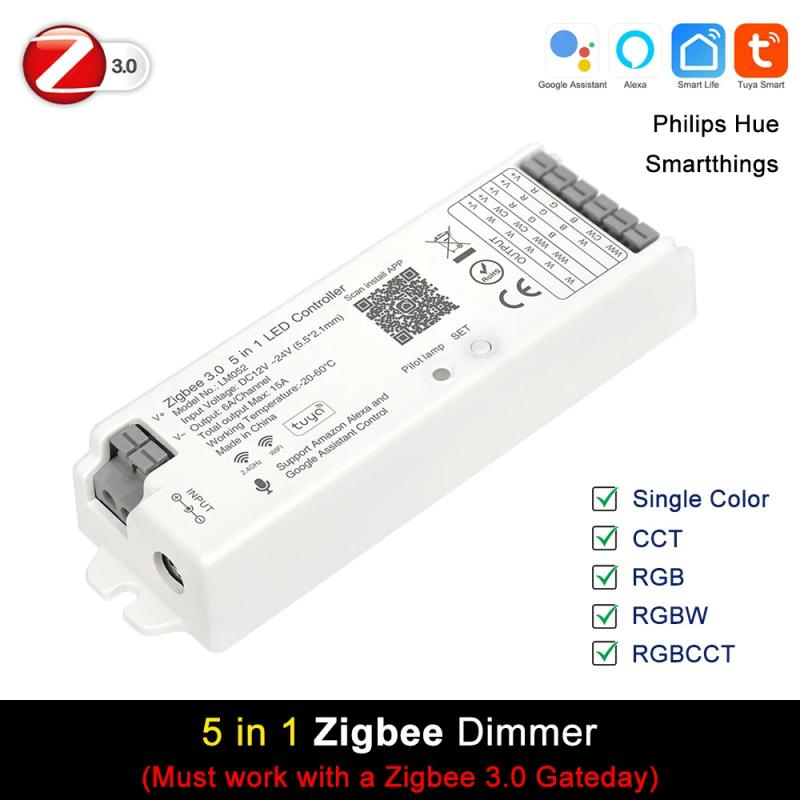

Note: The Zigbee version requires a Zigbee 3.0 Gateway (Hub) for internet connectivity.
⚙️

Operation Guide

[Link and Unlink to Device] Long press "SET" for 3 seconds. When the purple pilot lamp blinks, the device enters Link/Unlink and Smart Link mode.

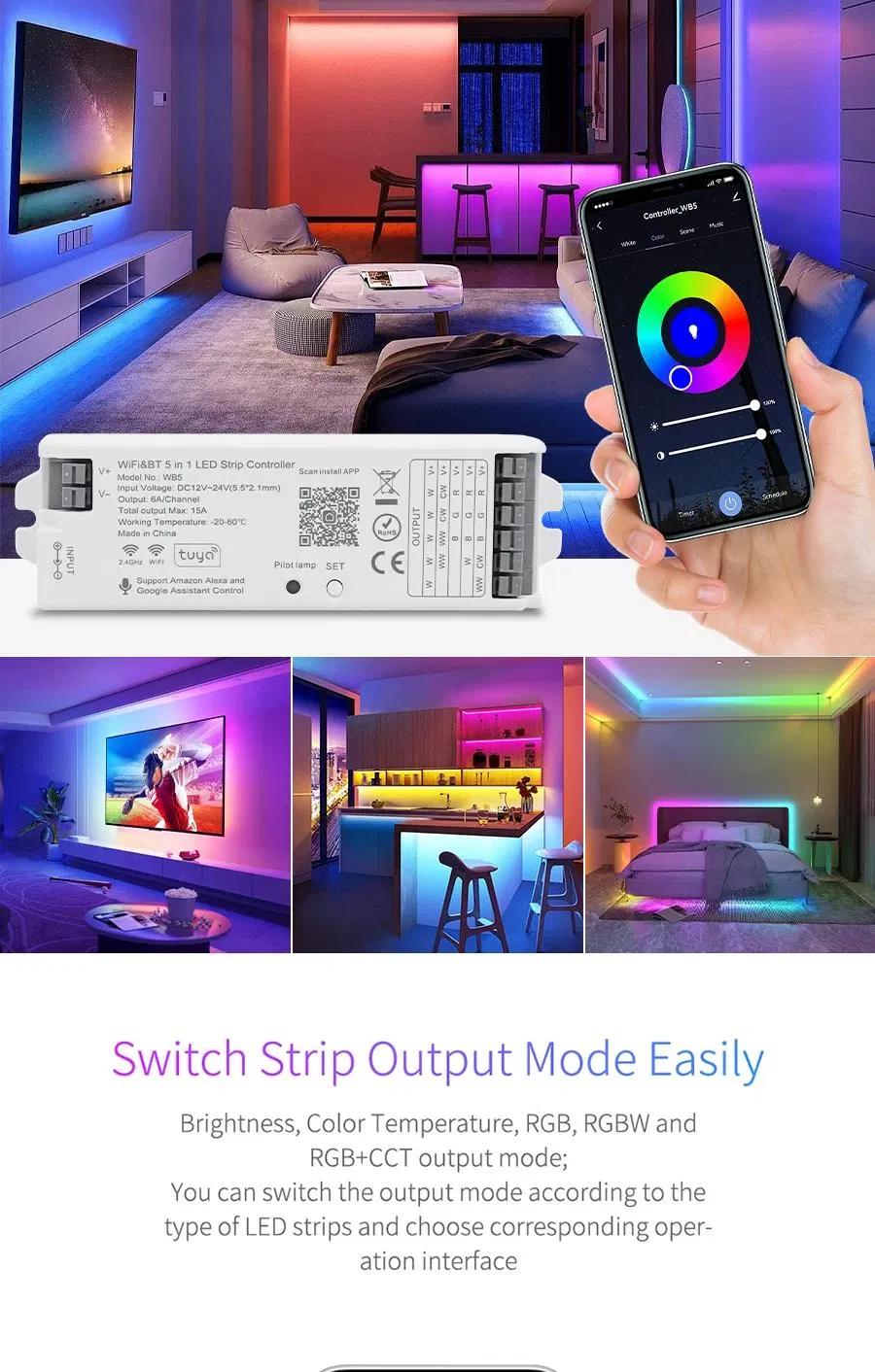

[Switching Output Mode] Short press the "SET" button to switch. Flickering colors indicate modes:
• White: Single Color | Yellow: CCT | Red: RGB | Green: RGBW | Blue: RGBCCT
⚠️

Important Attention

  • Ensure input voltage matches the controller (DC 12-24V only).
  • Avoid use in direct sunlight, moist environments, or high-temperature areas.
  • Do not use near large metal areas or strong magnetic fields to maintain control distance.
  • Non-professionals should not dismantle the device.

Frequently Asked Questions

Q1: What types of LED strips can this controller handle? It supports all PWM based strips, including Single Color, CCT, RGB, RGBW, and RGBCCT SMD/COB strips.
Q2: What is the required working voltage? The controller operates on DC 12V to 24V. Please do not exceed 24V as it will damage the device.
Q3: Do I need a specific hub for the Zigbee version? Yes, the Zigbee variant requires a Zigbee 3.0 Gateway (Hub) to connect to the Smart Life or Tuya App.
Q4: How do I change the output mode for different strips? Simply short press the "SET" button. The pilot light color will change to indicate the current mode (e.g., Red for RGB, Blue for RGBCCT).
Q5: Can I control the lights with voice commands? Yes, this controller supports voice control via Amazon Alexa and Google Assistant when connected through the app.
Q6: What is the maximum load current supported? The controller supports up to 6A per channel, with a maximum total output of 15A.
