12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
1 / 5
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A
12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A

12V 230V 2000W Bi-Directional Inverter Charger with RCD Max Charging Current 80A

Customization: Available
Nature of Source Flow: Passive inverter
Certification: ISO9001, RoHS, CE, SAA, FCC and E-MARK
Send Inquiry

Product Description

Basic Specifications

Model NO.
LF-BIC2000
Output Power
2000W
Grid Type
off-Grid Inverter
Output Type
Single
Wave String
Pure Sine Wave
Peak Power
4000W
Max Charging
80A
Efficiency
90%
Output Frequency
50/60Hz
Weight
5.9kg
Warranty
2 Years
Dimensions
388mm X 287mm X 110mm

Product Description

2000W Pure Sine Wave Inverter-charger
  • ⚡
    UPS function: Dual power supply, 0.03s switching.
  • 🔋
    Battery Compatibility: Compatible with LiFeP04/ AGM/GEL/FLD/PGM.
  • ⚙️
    Adjustable Levels: Five current levels (10A, 20A, 40A, 60A, 80A).
  • 🖥️
    LCD Display: Clear status monitoring on digital screen.

Detailed Product Photos

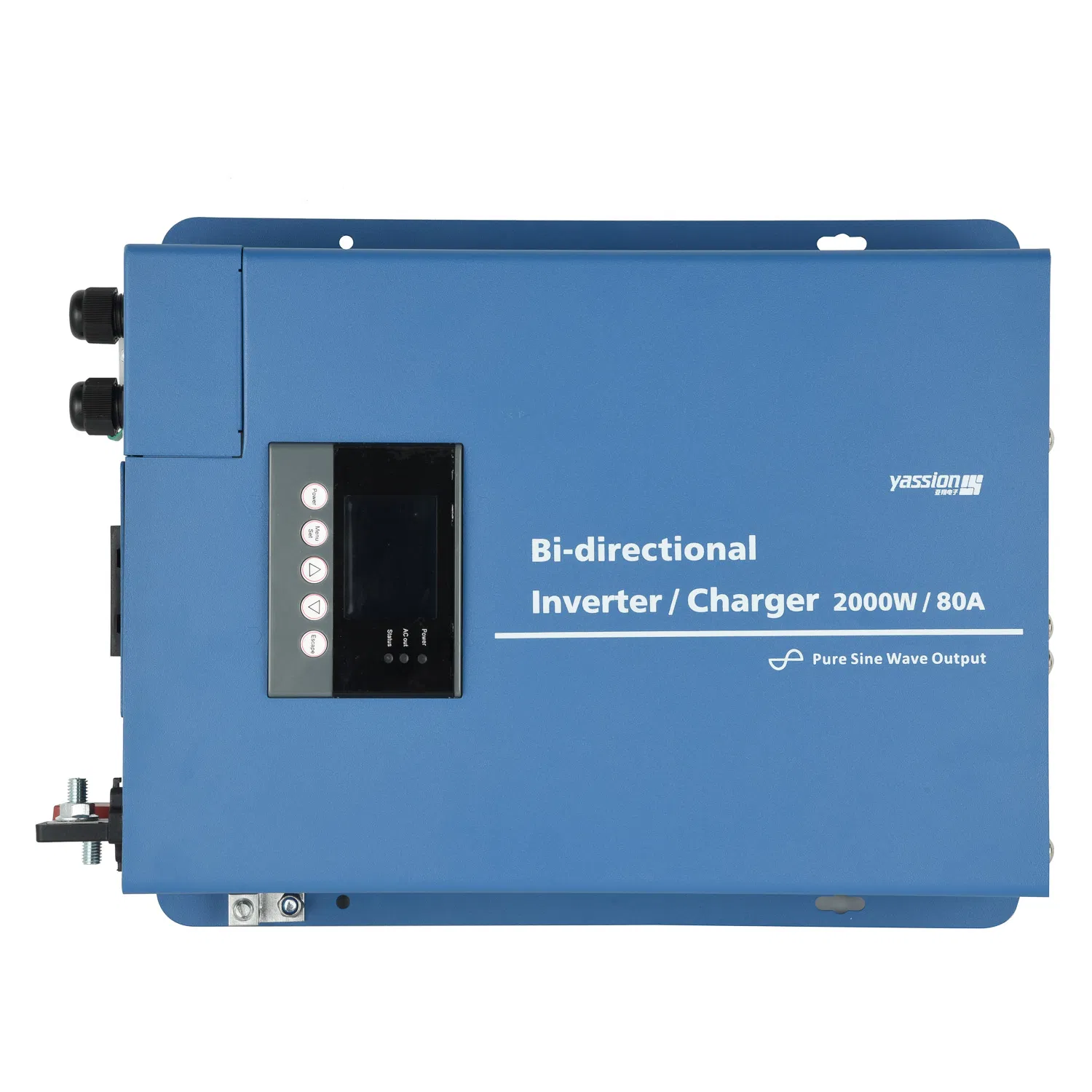

Inverter Charger Front View

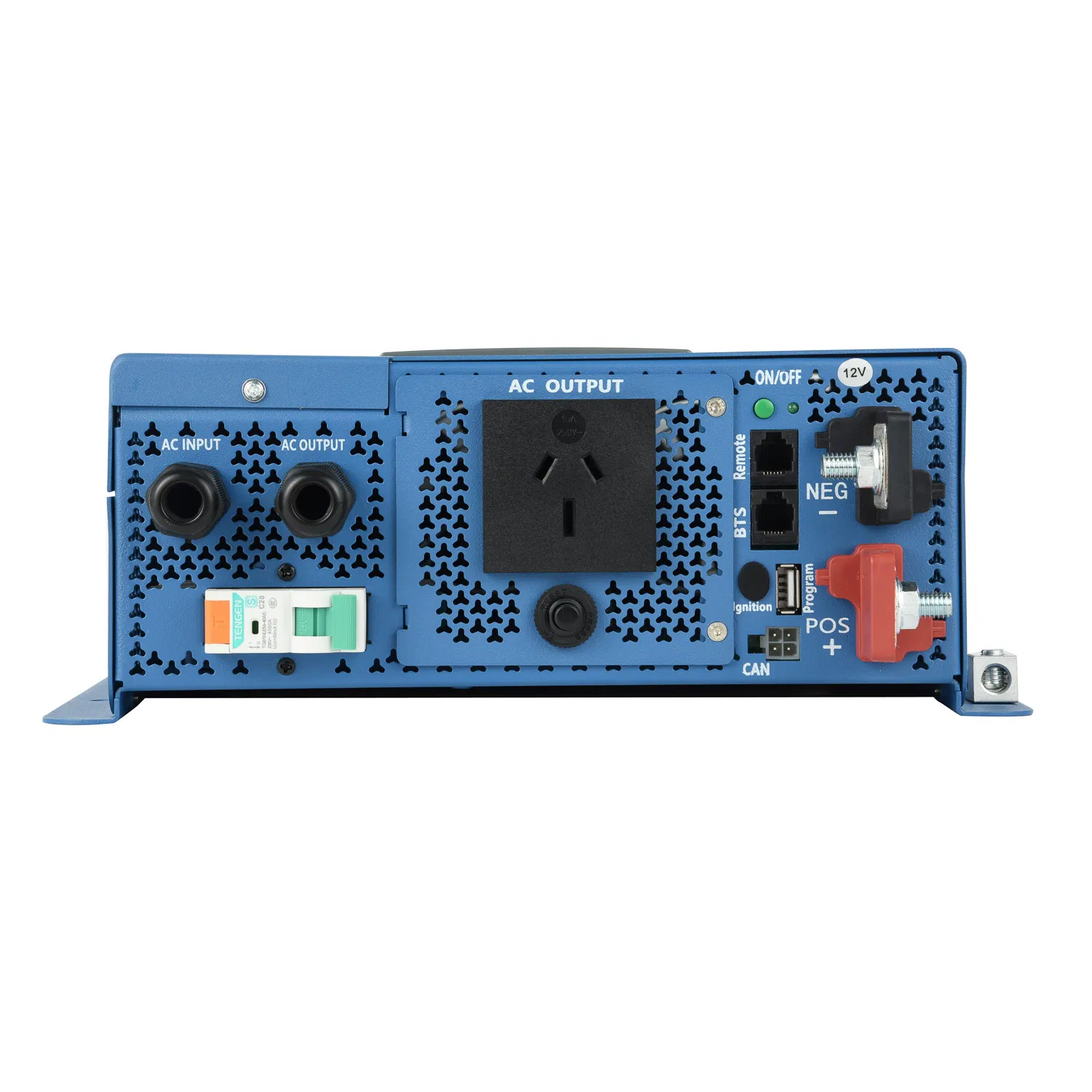

Inverter Charger Interface
Inverter Charger Internal

Product Parameters

SPECIFICATIONS 12V model 24V model 48V model 12V model 24V model 48V model
Voltage Group 120V model 230V model
Continuous AC Power 2000W
AC Surge Power (Peak) 4000W
AC Output Frequency 60 Hz 50 Hz
Nominal DC Input 12.5 VDC 25 VDC 50 VDC 12.5 VDC 25 VDC 50 VDC
Efficiency 90% typical 94% typical 90% typical 94% typical
UPS Transfer Time <30ms (Utility to Inverter) / <20ms (Inverter to Utility)

Certifications & Production

Safety Certifications
CE Certification
Factory Overview
Core Advantages

Frequently Asked Questions

What is the switching speed of the UPS function?
The inverter charger features a dual power supply system with a seamless transfer time of 0.03 seconds (Utility to Inverter) to ensure your equipment stays powered without interruption.
Which battery types are compatible with this device?
It is fully compatible with a wide range of batteries, including LiFeP04 (Lithium), AGM, GEL, Flooded (FLD), and PGM batteries.
Can I adjust the charging current?
Yes, the device offers five adjustable current levels (10A, 20A, 40A, 60A, and 80A) to suit different battery capacities and charging needs.
What is the peak power of the 2000W model?
The 2000W model provides a peak surge power of up to 4000W, allowing it to handle high-startup current loads effectively.
Does it provide a pure sine wave output?
Yes, it provides a Pure Sine Wave output with a Total Harmonic Distortion (THD) of less than 5% (typically 2.5%), which is safe for sensitive electronics.
What safety certifications does the product hold?
The product is designed to meet rigorous standards and holds certifications such as CE, ETL (UL 458/CSA C22.2), and FCC Part 15 Class B compliance.
