1MW 1000kw Hybrid Solar Inverter PCS1000 Bi Directional PV Inverter Battery Inverter for Commercial and Industrial

📊 Overview & Basic Info

Model

PCS1000

Source Flow

Active Inverter

Phase

Three Phase

Output Power

1000kW

Certification

SAA, CE, ROHS, ISO9001, CCC

Inverter Type

DC/AC Bi-Directional

Efficiency

99.5%

Protection

IP20

Output Voltage

400V

Communication

RS485 / CAN

Input Voltage

600-900V

Parallel Capacity

Up to 4 units

⚙️ Product Details

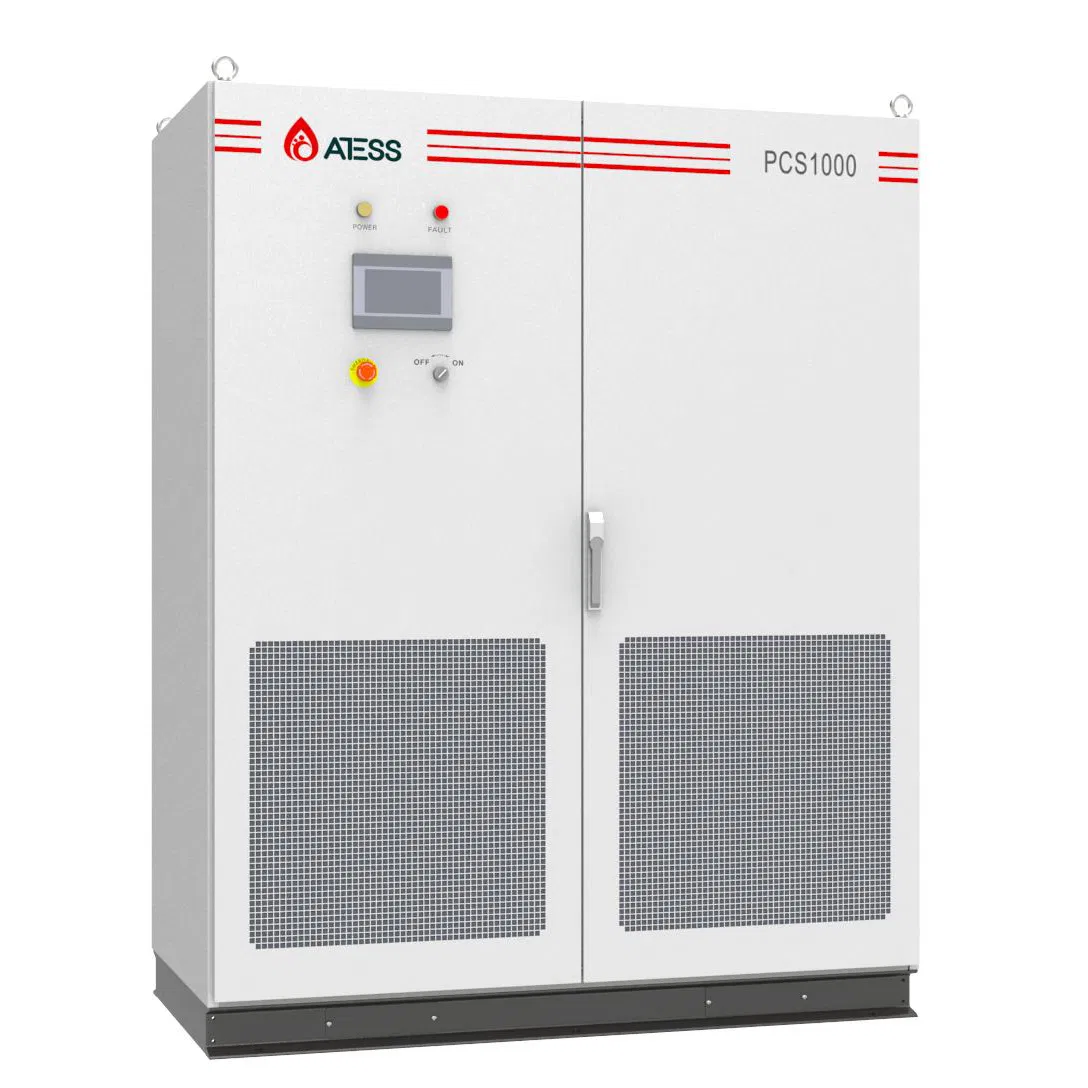

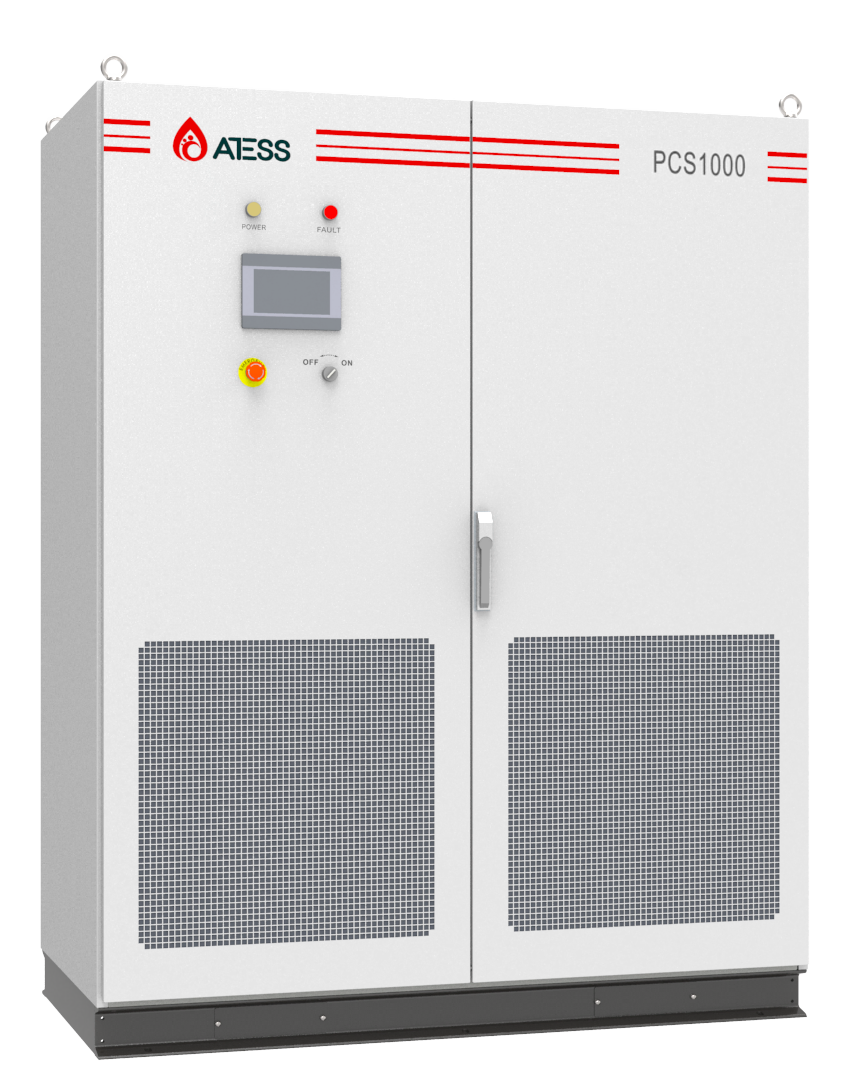

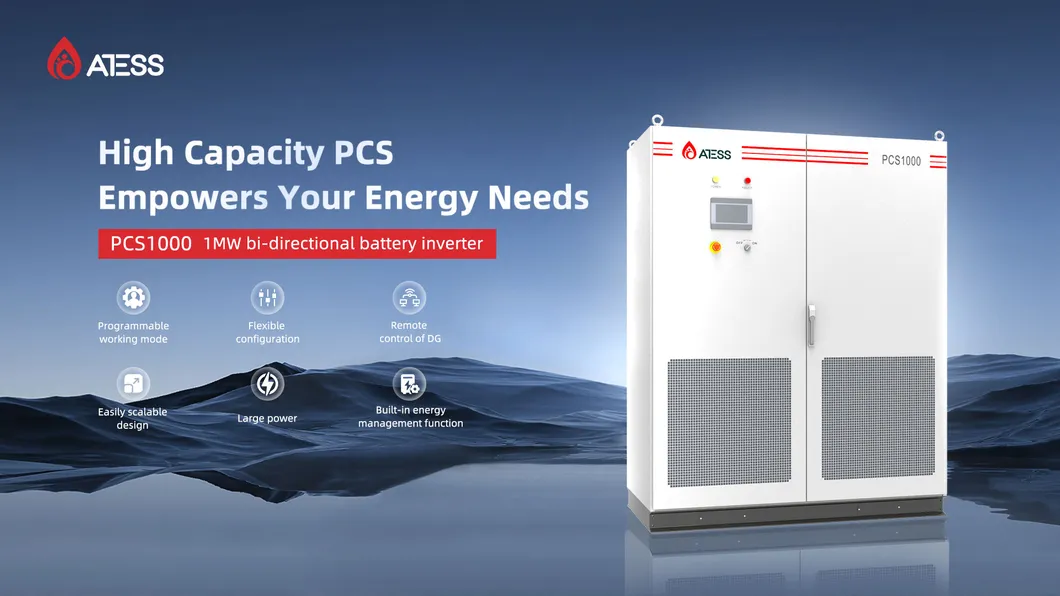

1MW 1000kW Hybrid Solar Inverter PCS1000 Bi-Directional PV Inverter for Commercial and Industrial Applications

The PCS1000 bidirectional model is designed for the commercial and industrial segments. It has the capacity to accept 1,000 kW of DC power from both a battery and a PV system, converting it to 1,000 kW of AC power. This applies to both off-grid and on-grid conditions.

Max Paralleling up to 4 units
Programmable working modes for various scenarios
Integrated Touchscreen LCD for easy monitoring
Support remote control of Diesel Generators (DG)
Flexible configuration for custom energy solutions

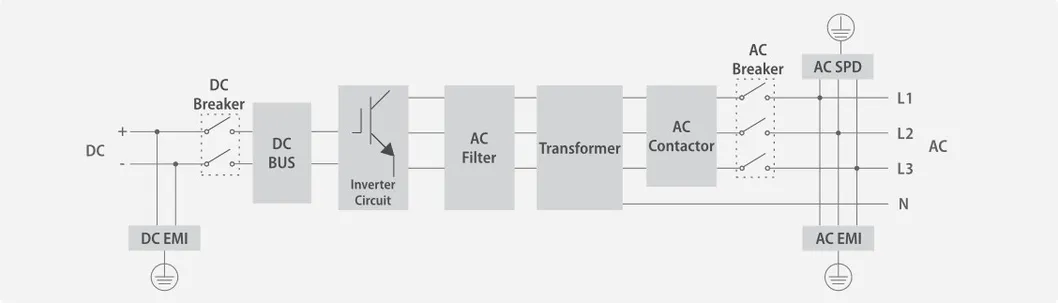

Block Diagram & Architecture

📋 Technical Specifications

Model	PCS100	PCS250	PCS500	PCS630	PCS1000
AC (On Grid)
Rated Power	100kW	250kW	500kW	630kW	1000kW
Apparent Power	110kVA	275kVA	550kVA	693kVA	1100kVA
Rated Voltage	400V	400V	400V	400V	400V
Rated Current	144A	361A	722A	909A	1443A
AC (Off Grid)
THDU	≤2% linear	≤2% linear	≤2% linear	≤2% linear	≤2% linear
Overload Capability	110%-10 mins; 120%-1 min
General Information
Max Efficiency	97.10%	97.30%	98.50%	98.50%	99.00%
Dimensions (W/H/D) mm	1100/1890/850	1600/2080/850	1200/1900/800	1200/1900/800	1510/1900/850
Weight (kg)	820kg	1465kg	870kg	900kg	1500kg

💡 Related Components

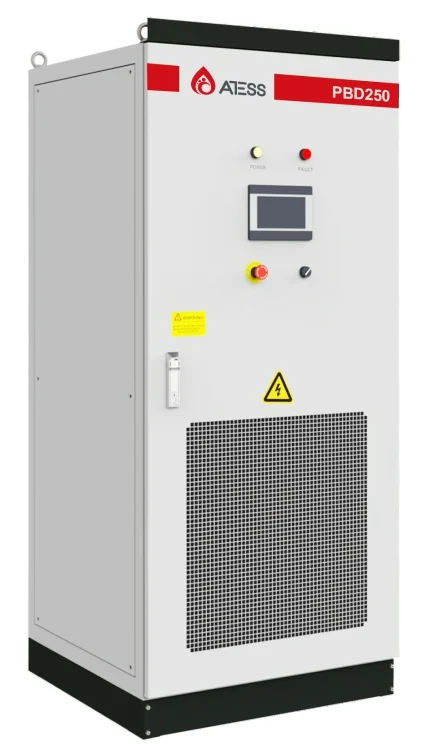

PBD250 DC to DC MPPT Controller

High-level DC to DC MPPT solar charge controller, optimized for large-scale solar projects using the PCS series.

Max PV Power: 250kW
MPPT Range: 350V~850V
Modular & Transformerless design
Up to 5 MPPT inputs

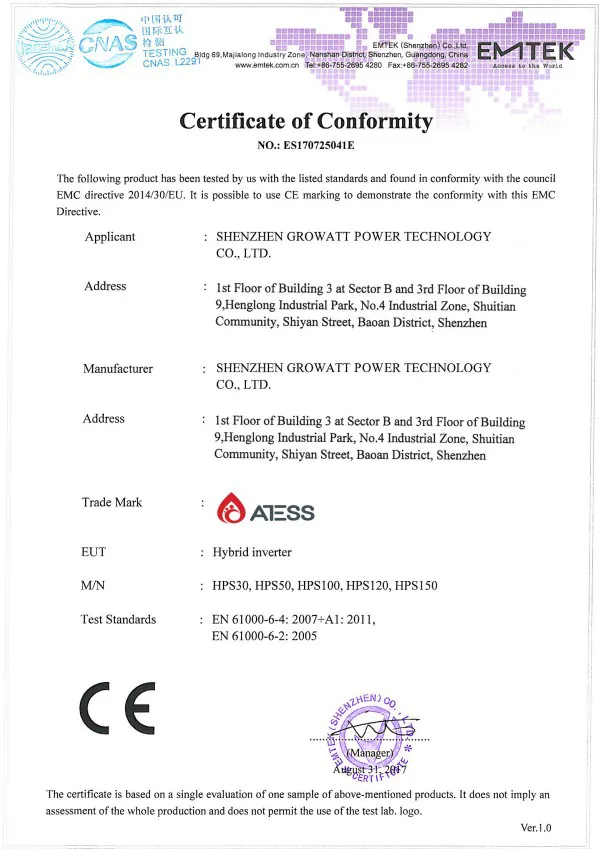

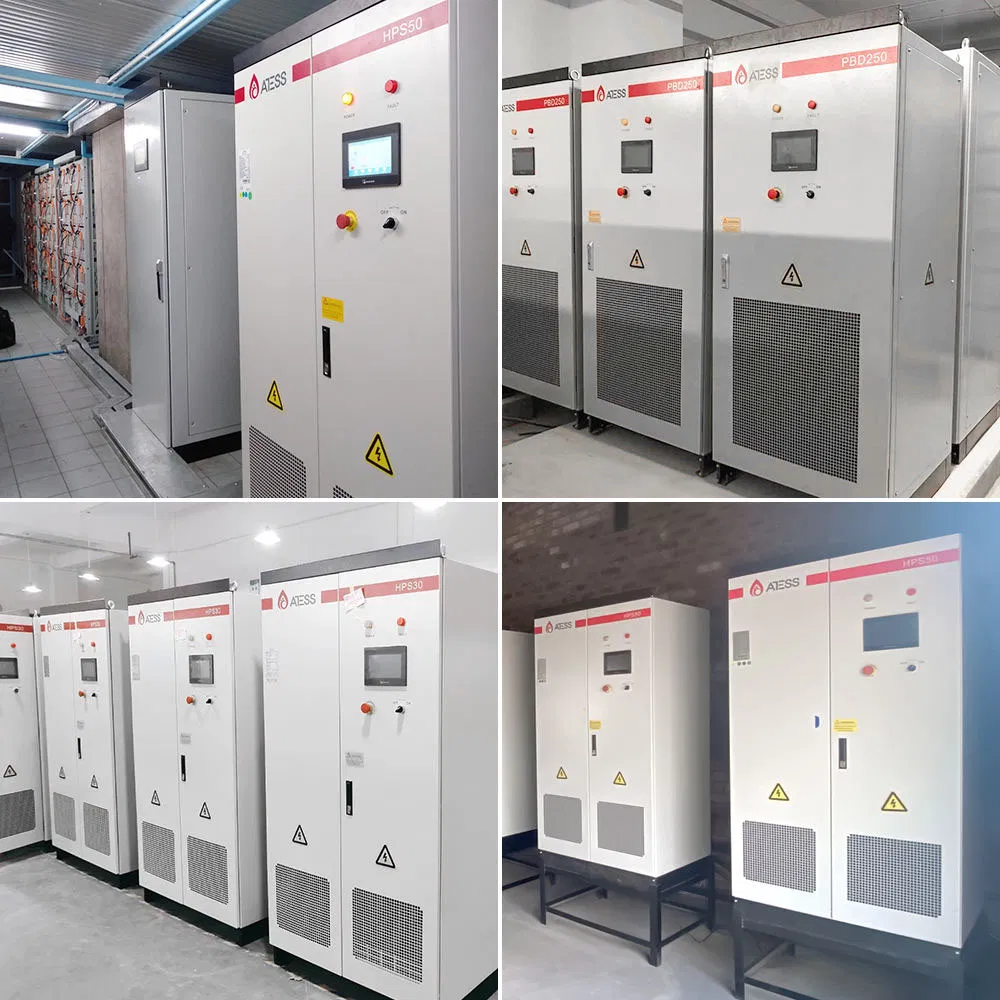

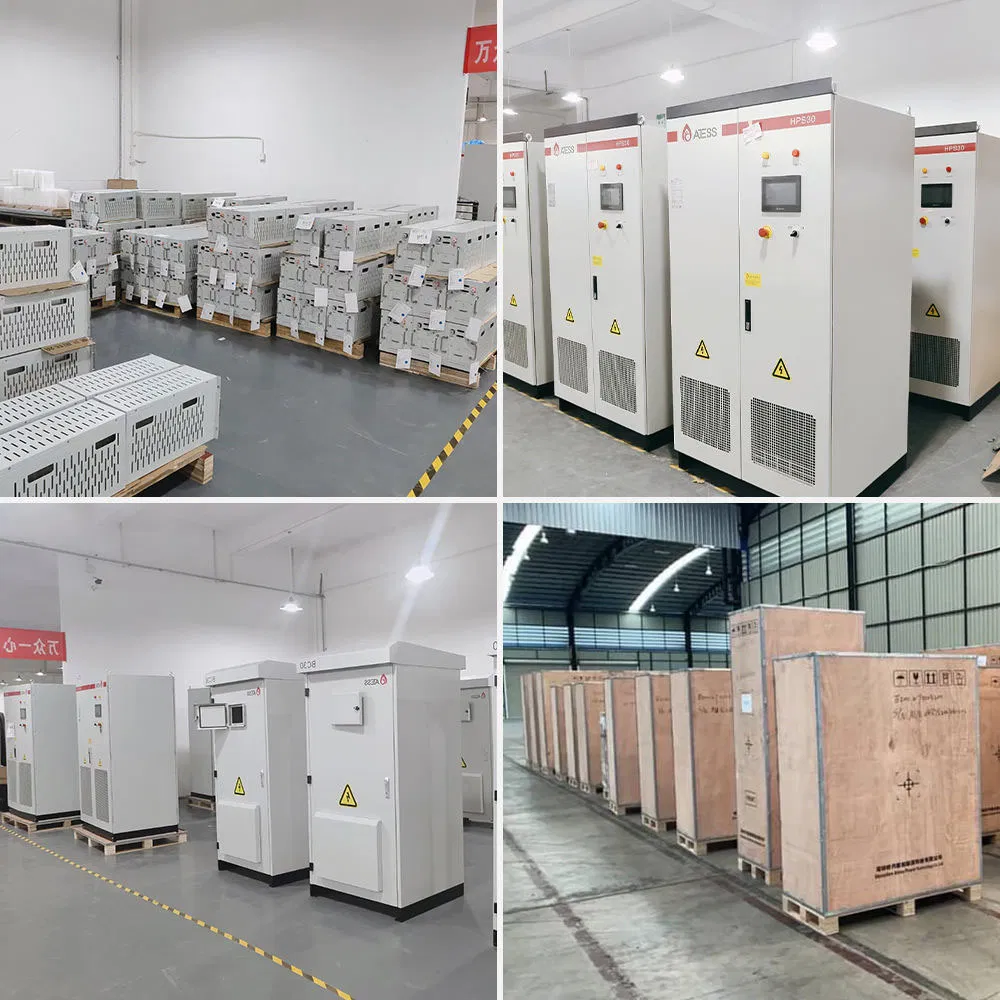

🌍 Project Showcase & Certificates

❓ Frequently Asked Questions

1. What is the main application for the PCS1000 hybrid inverter?

The PCS1000 is specifically designed for large-scale Commercial and Industrial (C&I) energy storage systems, supporting both on-grid and off-grid operations.

2. Can I expand the system capacity by connecting multiple units?

Yes, the system supports paralleling of up to 4 units, allowing for a total capacity of up to 4MW in a single configuration.

3. What is the peak efficiency of this inverter?

The PCS1000 model achieves a high inverter efficiency of up to 99% (maximum general efficiency rated at 98.5%-99% depending on load conditions).

4. Does it include a built-in transformer?

Built-in transformers are available for the smaller PCS100 and PCS250 models. For the PCS500, PCS630, and PCS1000, they are generally transformerless to maximize efficiency.

5. What communication protocols are supported for monitoring?

The inverter supports RS485 and CAN communication protocols, ensuring compatibility with most industrial energy management systems.

6. Is it suitable for harsh environments?

The unit is rated IP20 for indoor installation and operates effectively in temperatures ranging from -25°C to +55°C with forced-air cooling.
