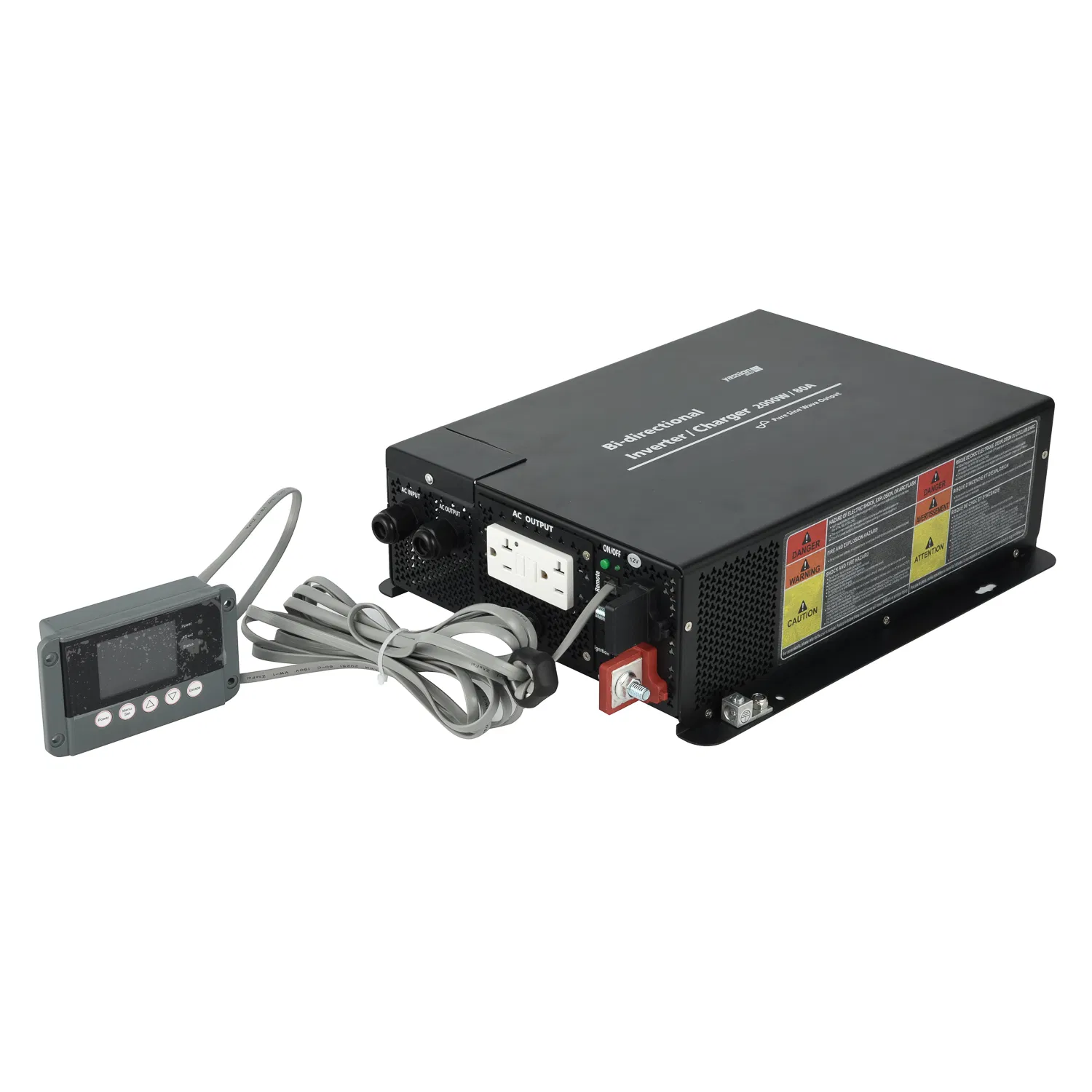

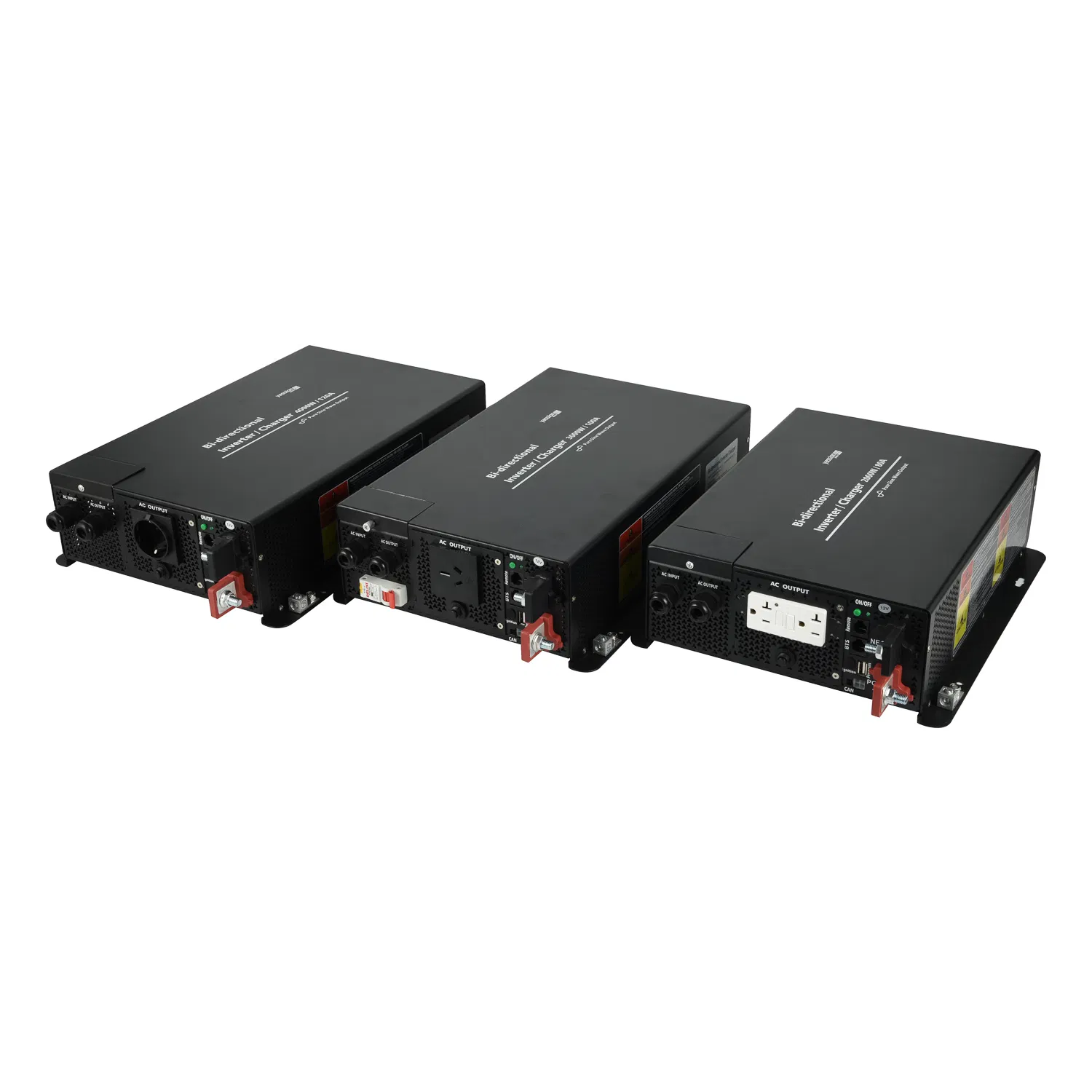

2000W Pure Sine Wave Bi-Directional Inverter Charger 10A~80A Adjustable Current Charger

Customization:	Available
Nature of Source Flow:	Passive inverter
Certification:	ISO9001, RoHS, CE, SAA, FCC and E-MARK

i

Basic Information

Model NO.

LF-BIC2000

Output Power

2000W

Grid Type

off-Grid Inverter

Output Type

Single

Peak Power

4000W

Max Charging Current

80A

Output Waveform

Pure Sine Wave

Efficiency

90%

Battery Type

Gel, Flooded, AGM, Lithium, Use

Dimensions

387.9mm X 287mm X 110mm

Weight

5.9kg

Warrenty

2 Years

★

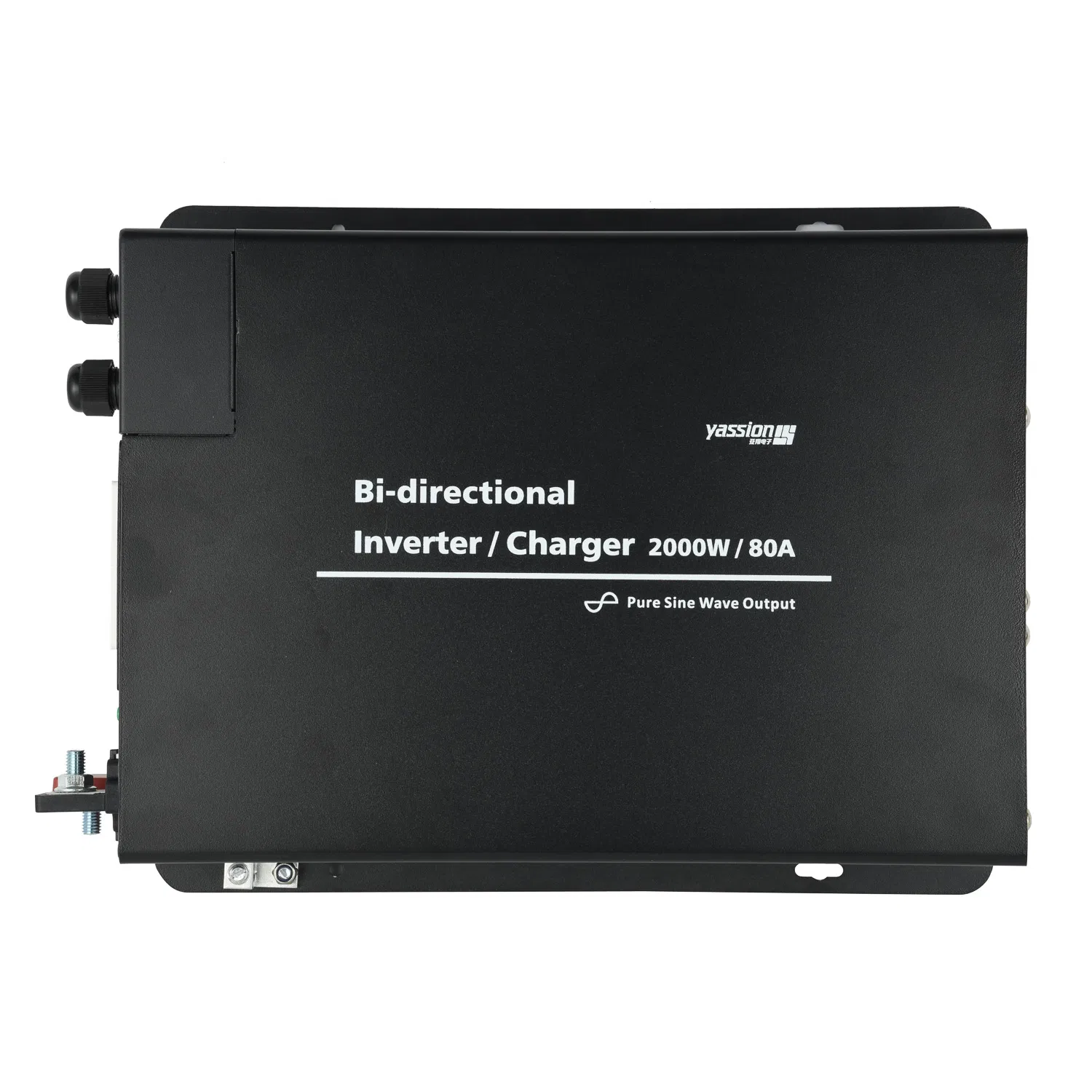

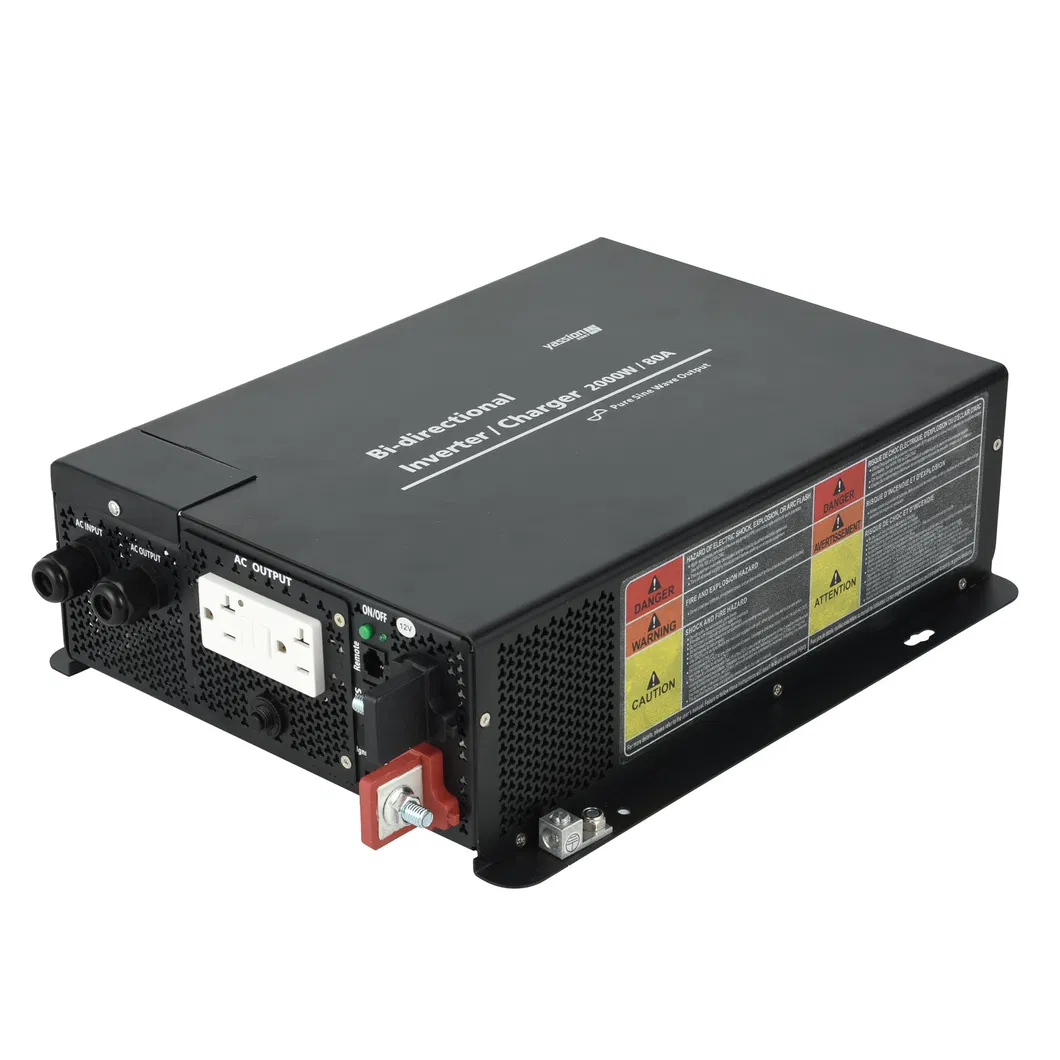

2000W Bi-directional Inverter / Charger

✔
Max 80A Charge and 2000W Inverter 2 IN 1: Inverter chargers save installation space, simplify connection operations and reduce wiring harness costs, making them more suitable for home and RV, trailer, truck, boat, mobile business, etc.
✔
Charge And Use At The Same Time: When the grid fails, it automatically switches the grid power to the battery to provide uninterruptible power to the load. Adjustable current sizes can be selected for charging batteries of different capacities.
✔
Multi-Battery Compatibility: Compatible with almost all popular 12-volt battery types (LiFePO4, GEL, FLD, AGM). Adjustable charging current from 10A to 80A.
✔

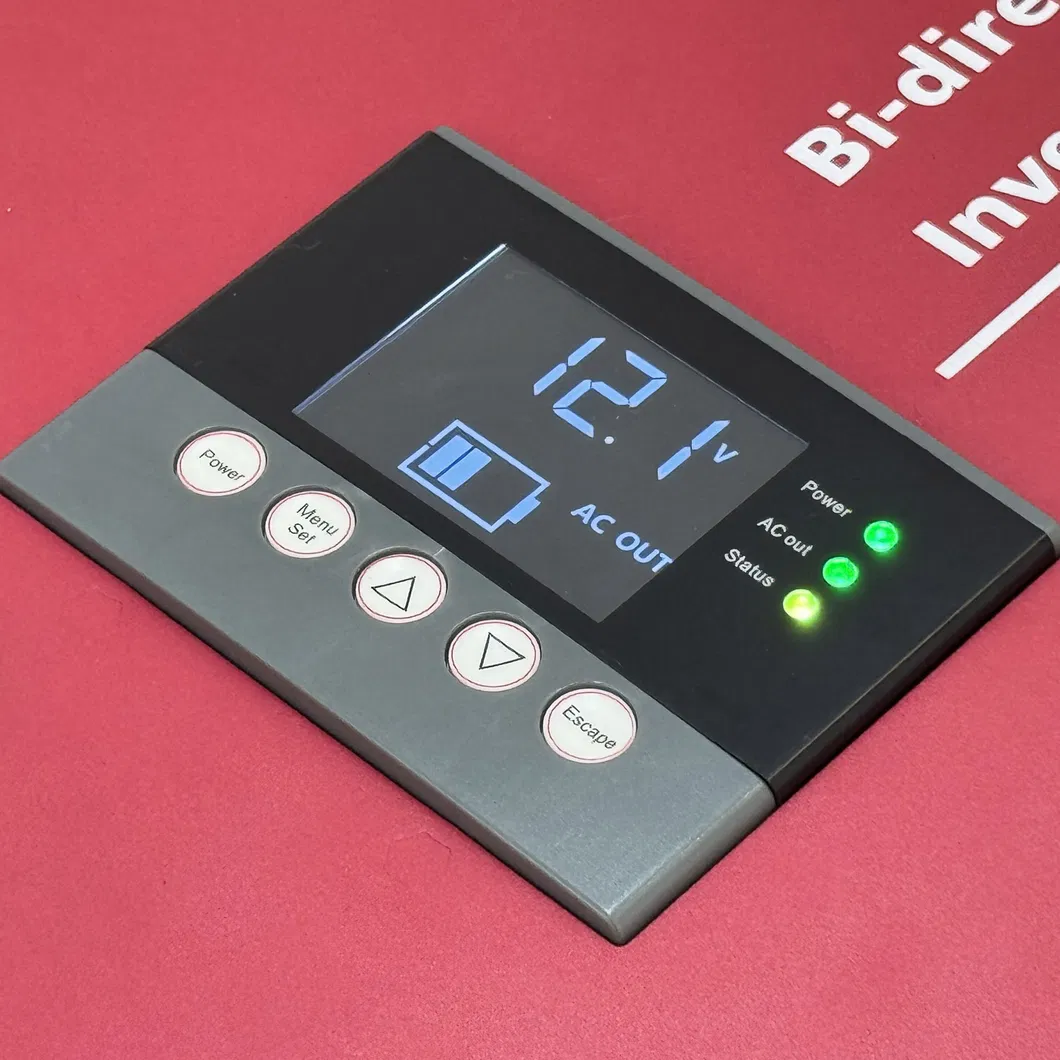

LCD Real-time Monitoring: Features an integrated LCD display on top for viewing and setting modes, providing real-time status of the battery, inverter, and load.

📷

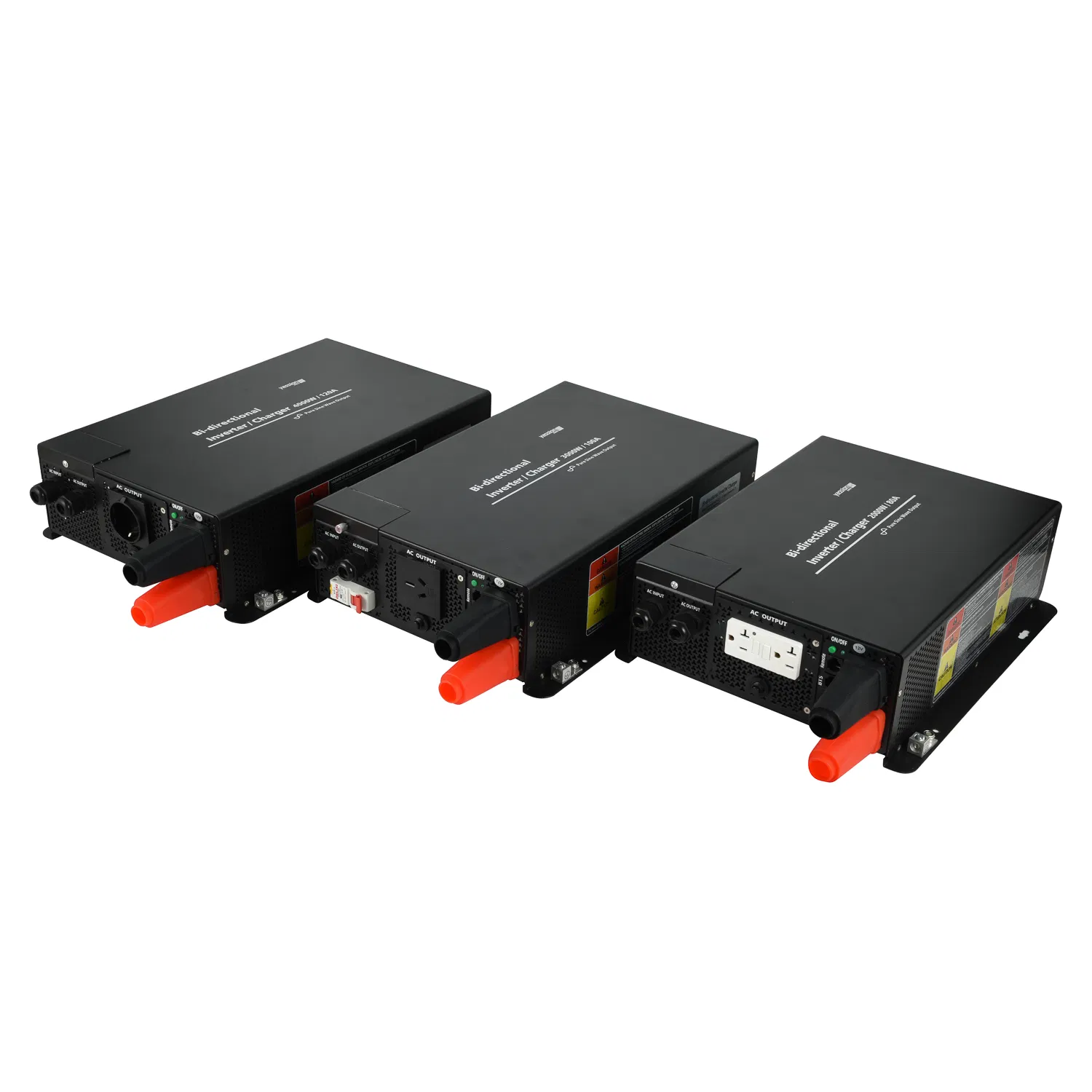

Detailed Product Gallery

⚙

Product Parameters

SPECIFICATIONS	120V Model (12V/24V/48V)			230V Model (12V/24V/48V)
Continuous Output	2000W
Surge Power (Peak)	4000W
Output Voltage/Freq	110-130 VAC / 60 Hz			220-240 VAC / 50 Hz
DC Input Voltage	12.5 VDC	25 VDC	50 VDC	12.5 VDC	25 VDC	50 VDC
Efficiency (Typical)	90%	90%	94%	90%	90%	94%
Charger Current Max	80A	40A	30A	80A	40A	30A
Transfer Time	< 30ms (Utility to Inverter) / < 20ms (Inverter to Utility)

🛡

Safety & Advantages

?

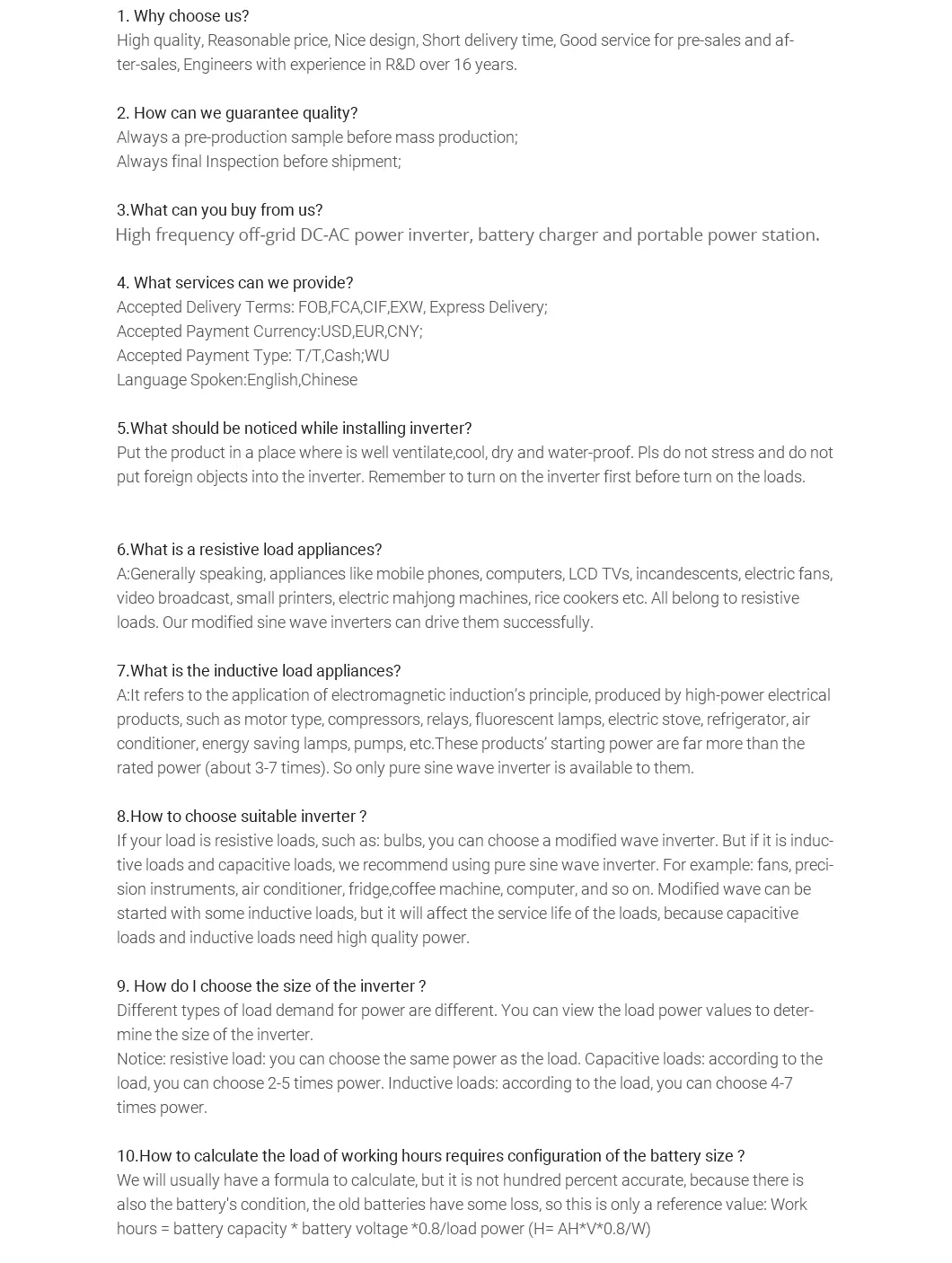

Frequently Asked Questions

Q1: What is the benefit of the 2-in-1 bi-directional design?

It combines a 2000W inverter and an 80A charger into one unit, saving installation space and reducing wiring complexity for RVs, trucks, and boats.

Q2: Which battery types can I use with this charger?

It is compatible with 12V Lithium (LiFePO4), GEL, AGM, and Flooded batteries. You can customize the charging profile based on your battery type.

Q3: Does this unit provide uninterruptible power (UPS function)?

Yes. When the grid fails, it automatically switches from utility power to battery power in less than 30ms to keep your devices running.

Q4: Can I adjust the charging current?

Absolutely. For the 12V model, the charging current is adjustable between 10A and 80A to suit different battery capacities.

Q5: Is the output wave safe for sensitive electronics?

Yes, it produces a Pure Sine Wave with less than 5% THD, which is identical to or cleaner than the power from the utility grid.

Q6: What certifications does this product hold?

The product is designed to meet high safety standards, including CE, cETLus, UL 458, and FCC Part 15 Class B compliance.
