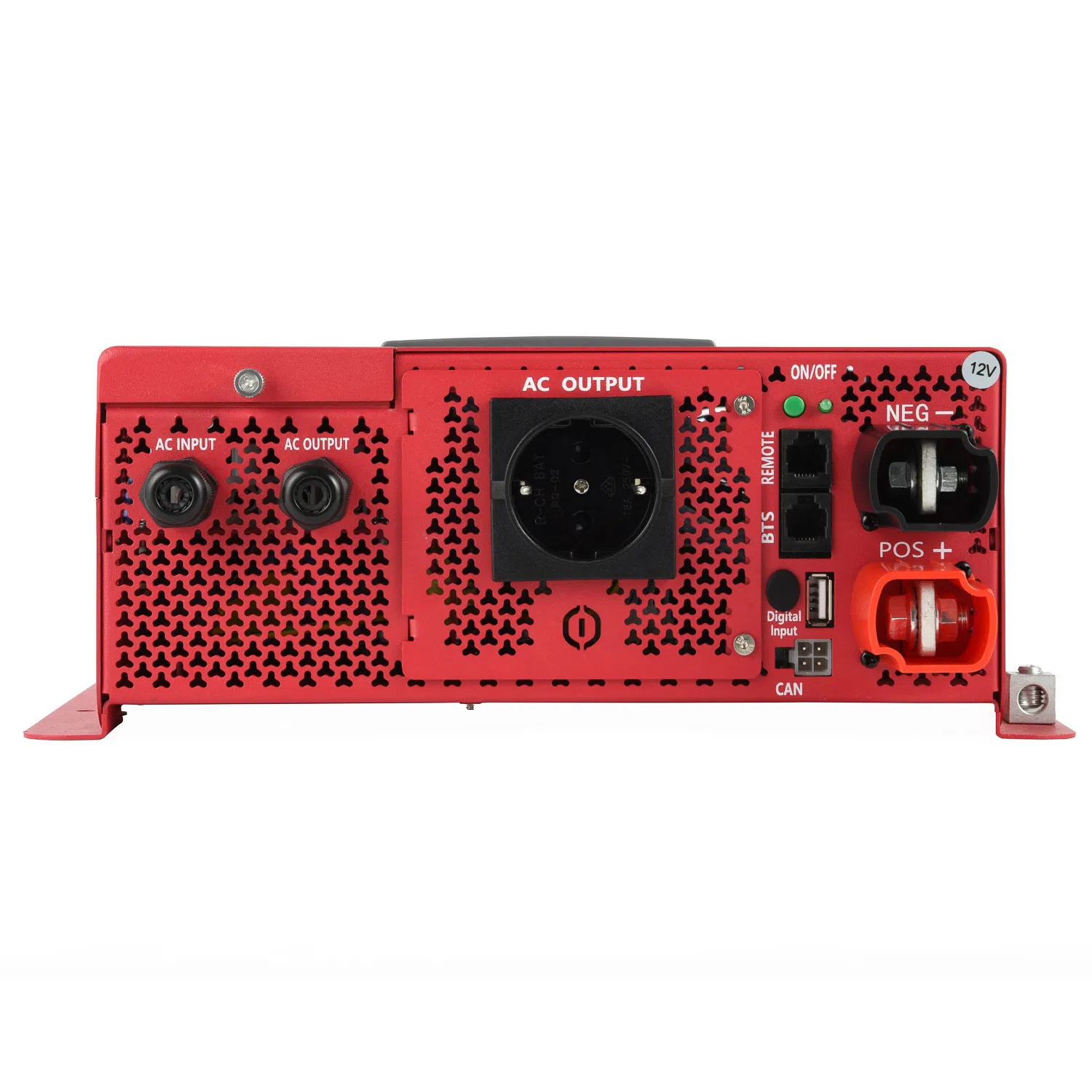

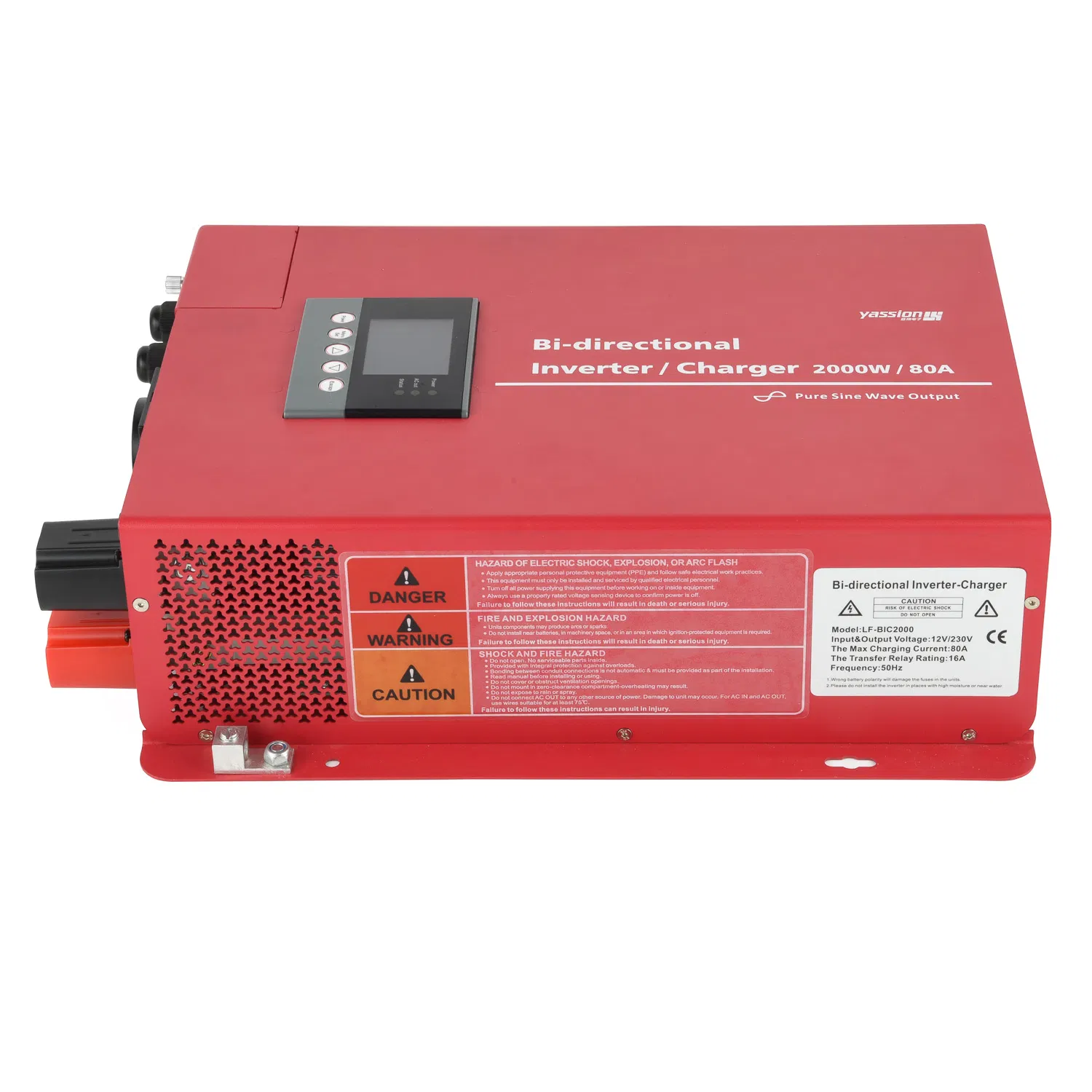

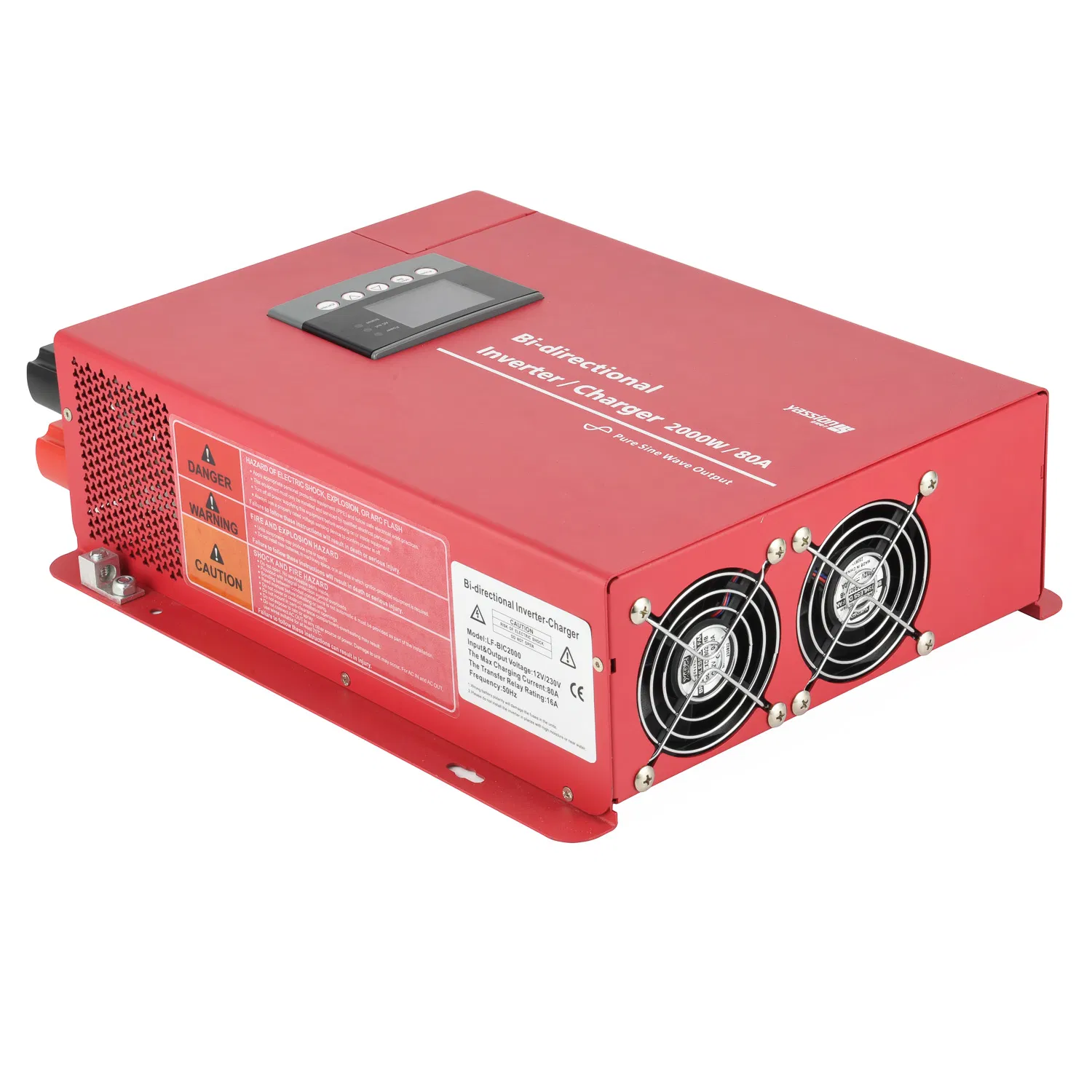

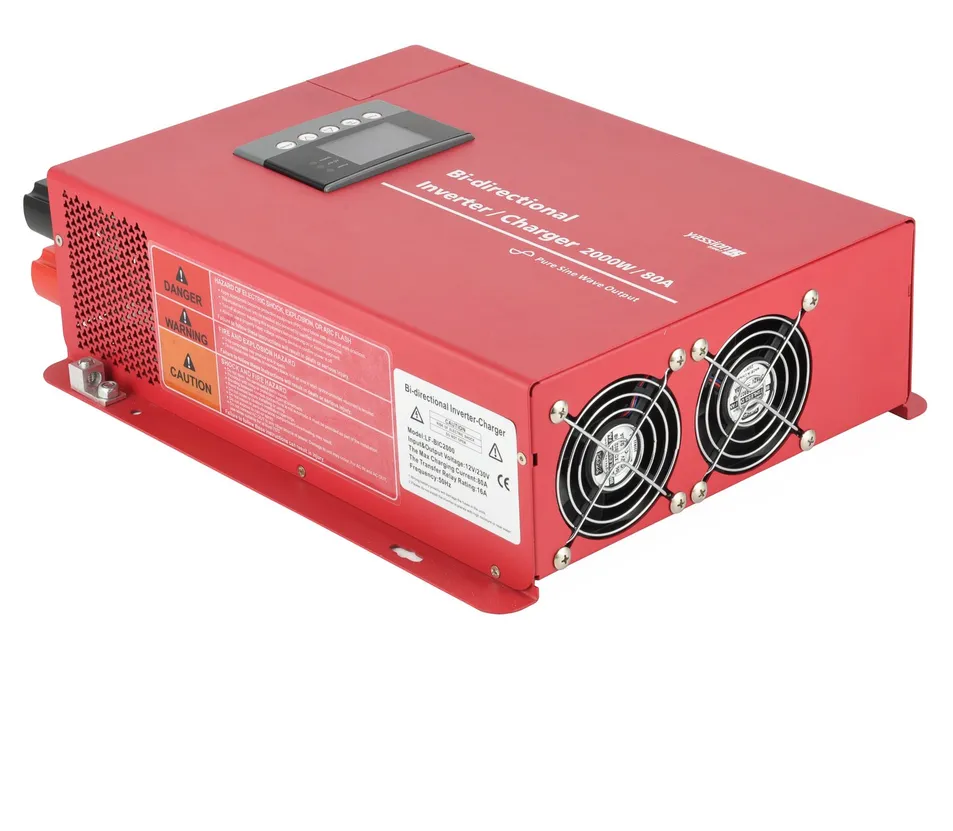

Best Seller Remote Display Bi-Directional Inverter with Battery Charger

1 / 5

Best Seller Remote Display Bi-Directional Inverter with Battery Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LF-BIC

Output Power

>1000W

Grid Type

Off-Grid Inverter

Output Type

Single

Circuit Topologies

Full-Bridge Type

Wave String

Sine Wave Inverter

Peak Power

4000W

Max Charging Current

80A / 120A Selectable

Efficiency

90% - 94%

Battery Type

Gel, Flooded, AGM, Lithium, LiFePO4

Warranty

2 Years

Dimensions

388mm X 287mm X 110mm

Core Features

⚡Max charging current up to 120A (Charge and use simultaneously)

🔋Power Saving shut down function & selectable voltage/frequency

🛡️Six types of protection for safer electricity use

🔄UPS function: Dual power supply with 0.03S fast switching

📱Remote Display for unit information and comprehensive settings

Technical Specifications

SPECIFICATIONS	120V Model (12V/24V/48V)			230V Model (12V/24V/48V)
Continuous AC Output	2000W
AC Surge Power (Peak)	4000W
AC Output Voltage	110-130 VAC / 60 Hz			220-240 VAC / 50 Hz
DC Input Range	10.5 - 16.0 VDC	21 - 32 VDC	42 - 63 VDC	10.5 - 16.0 VDC	21 - 32 VDC	42 - 63 VDC
Efficiency (Typical)	90%	90%	94%	90%	90%	94%
Transfer Time	Utility to Inverter: <30ms \| Inverter to Utility: <20ms
Charging Voltage	13.5-14.8V	27-29.6V	54-59.2V	13.5-14.8V	27-29.6V	54-59.2V

Product Gallery

Frequently Asked Questions

What is an inverter-UPS and how does it work?

An inverter converts DC power (from batteries/solar) into standard AC power for appliances. The UPS feature adds automatic switching during grid outages and charges the battery when utility power is available.

What is the advantage of Pure Sine Wave output?

Pure sine wave mimics utility power perfectly. It is essential for sensitive electronics, motors, and audio/video equipment to prevent noise, heat, and potential damage common with modified sine waves.

How do I choose the right inverter wattage?

Calculate the continuous power (total watts of all running devices) and the startup/surge power (initial burst for motors/pumps). We recommend picking an inverter 20-30% above your estimated load.

What kind of batteries are recommended?

Deep cycle batteries are strongly recommended for repeated discharge/recharge cycles. Ensure the battery voltage (12V, 24V, 48V) matches the inverter's input requirement.

Does the inverter include safety protections?

Yes, our units feature multiple protections: overload, short-circuit, over-temperature, and under/over-voltage protection, along with cooling fans and status displays.

Can it be used in RVs, boats, or off-grid systems?

Absolutely. Our models are designed for mobile and off-grid applications. Just ensure proper ventilation, mounting safety, and sufficient battery capacity for your specific environment.
