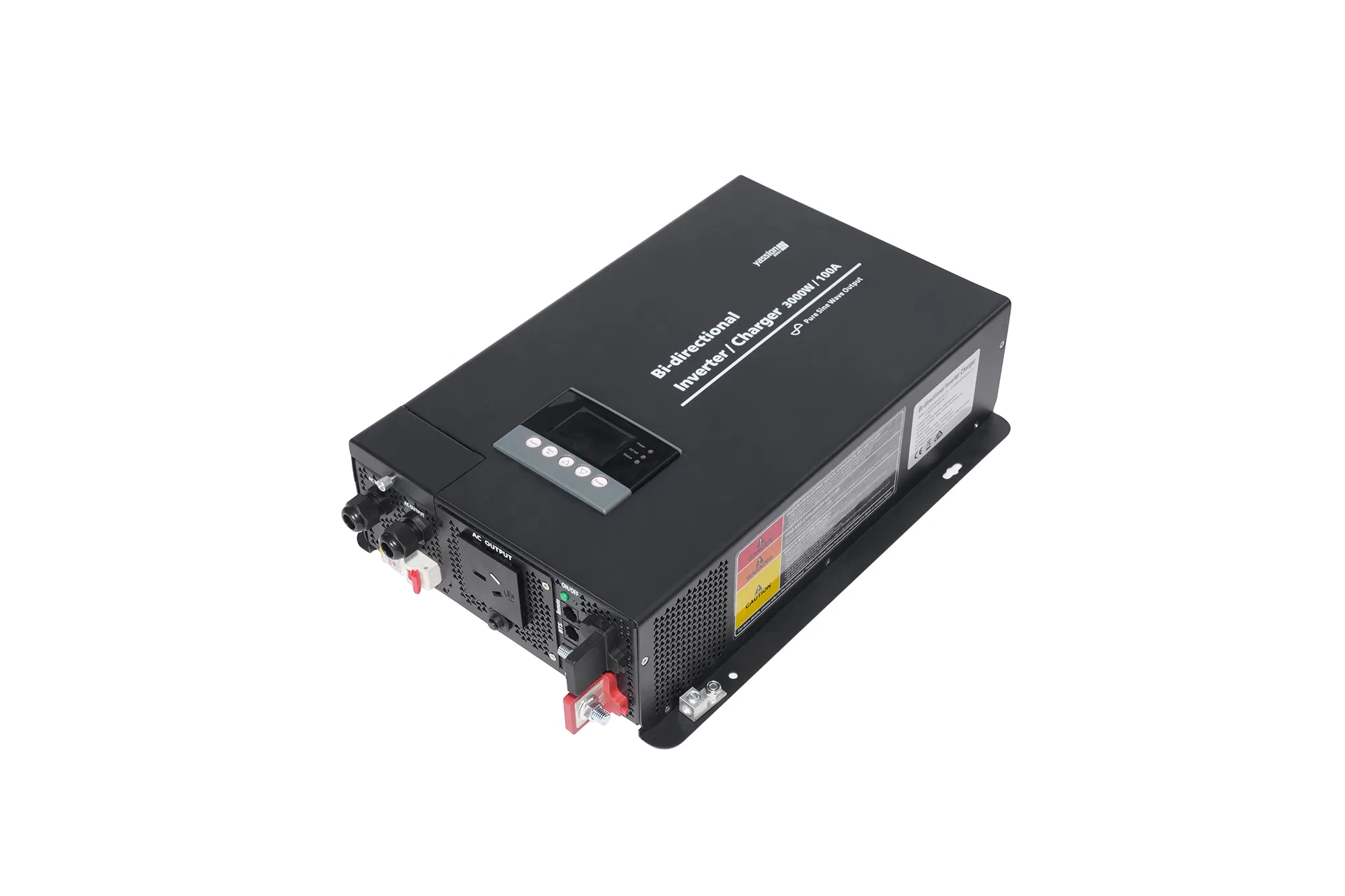

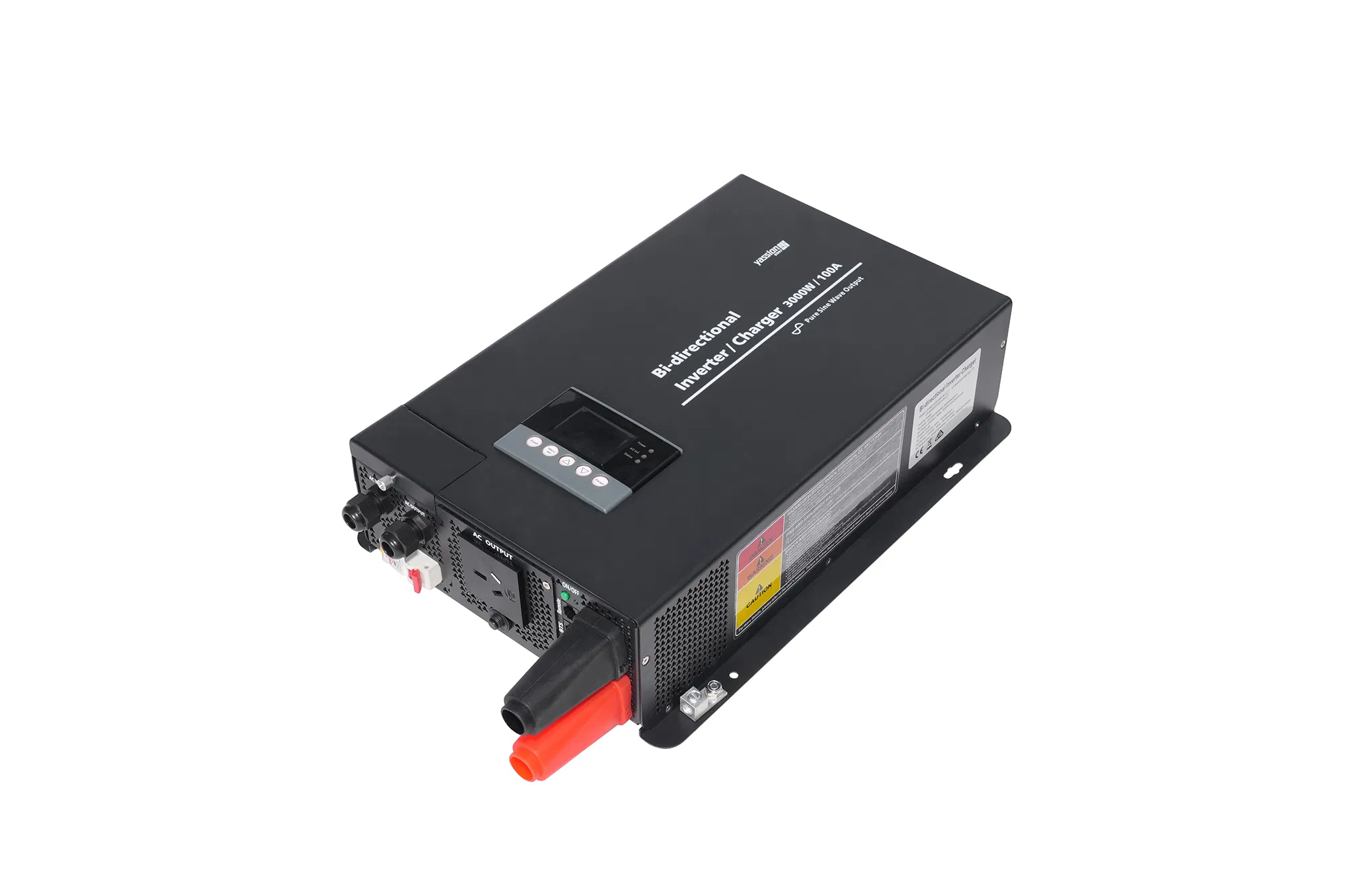

3000W Bi-directional Inverter Charger
What's in the box: A 3000w Bi-directional inverter charger and a user manual.
| SPECIFICATIONS | 120V Model | 230V Model | ||||
|---|---|---|---|---|---|---|
| 12V | 24V | 48V | 12V | 24V | 48V | |
| Inverter | ||||||
| Continuous AC Power | 3000W | |||||
| AC Output Voltage/Freq | 110-130 VAC / 60 Hz | 220-240 VAC / 50 Hz | ||||
| AC Surge Power (Peak) | 6000W | |||||
| Efficiency (Typical) | 90% | 94% | 90% | 94% | ||
| Charger | ||||||
| Max Charging Current | 100A | 50A | 40A | 100A | 50A | 40A |
| Battery Type | Gel, Flooded, AGM, Lithium, Power Supply | |||||
| Physical | ||||||
| Net Weight | 7.4kg | |||||
| Dimensions (L x W x H) | 433mm x 287mm x 110mm | |||||
This bi-directional inverter provides 3000W of continuous pure sine wave power and can handle surge power up to 6000W.
The charger is highly versatile and supports Gel, Flooded, AGM, and Lithium batteries, and can also function as a power supply.

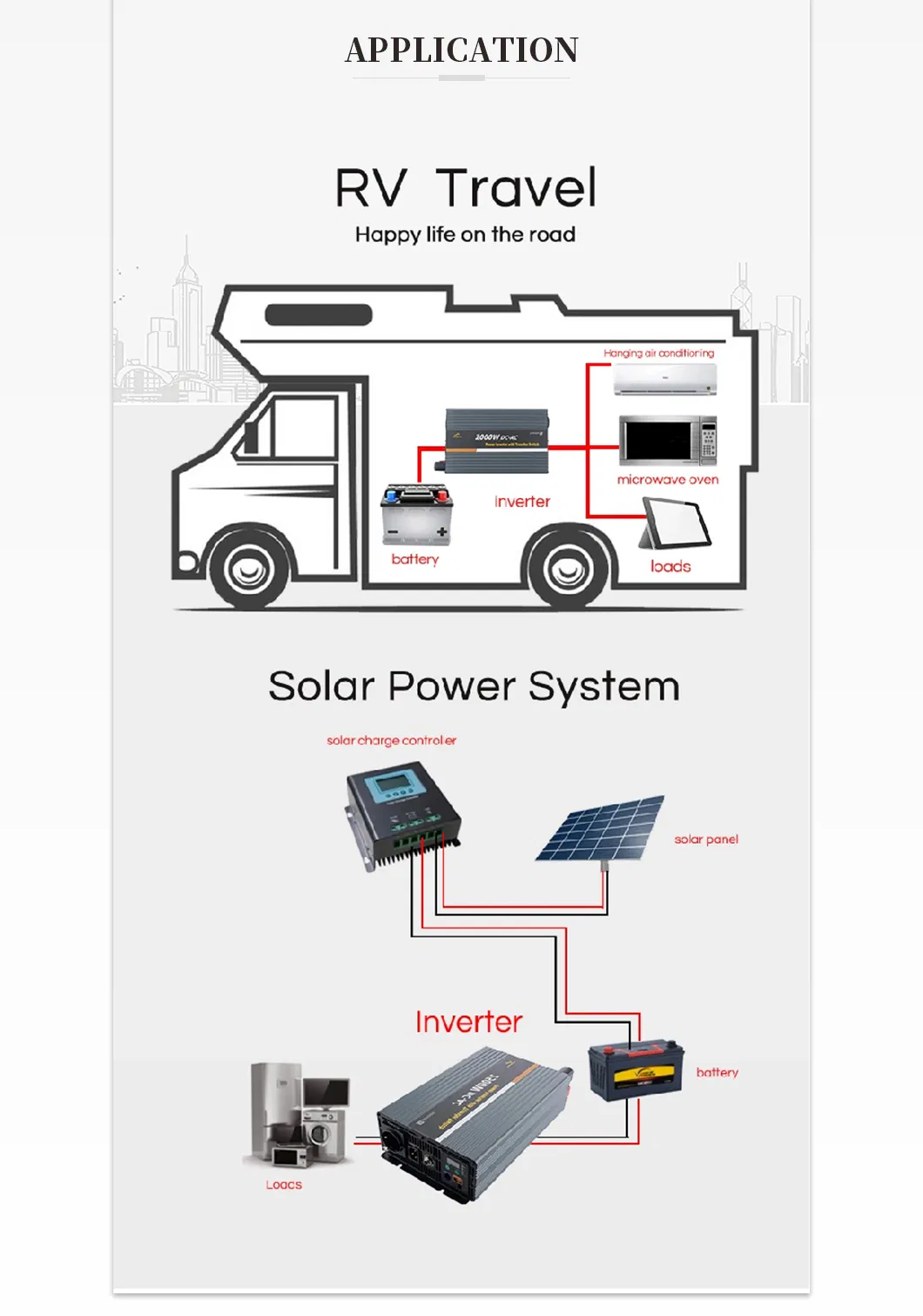

The inverter quickly and automatically switches between city (shore) power and battery power. When shore power is available, it powers the loads directly while simultaneously recharging the connected batteries.

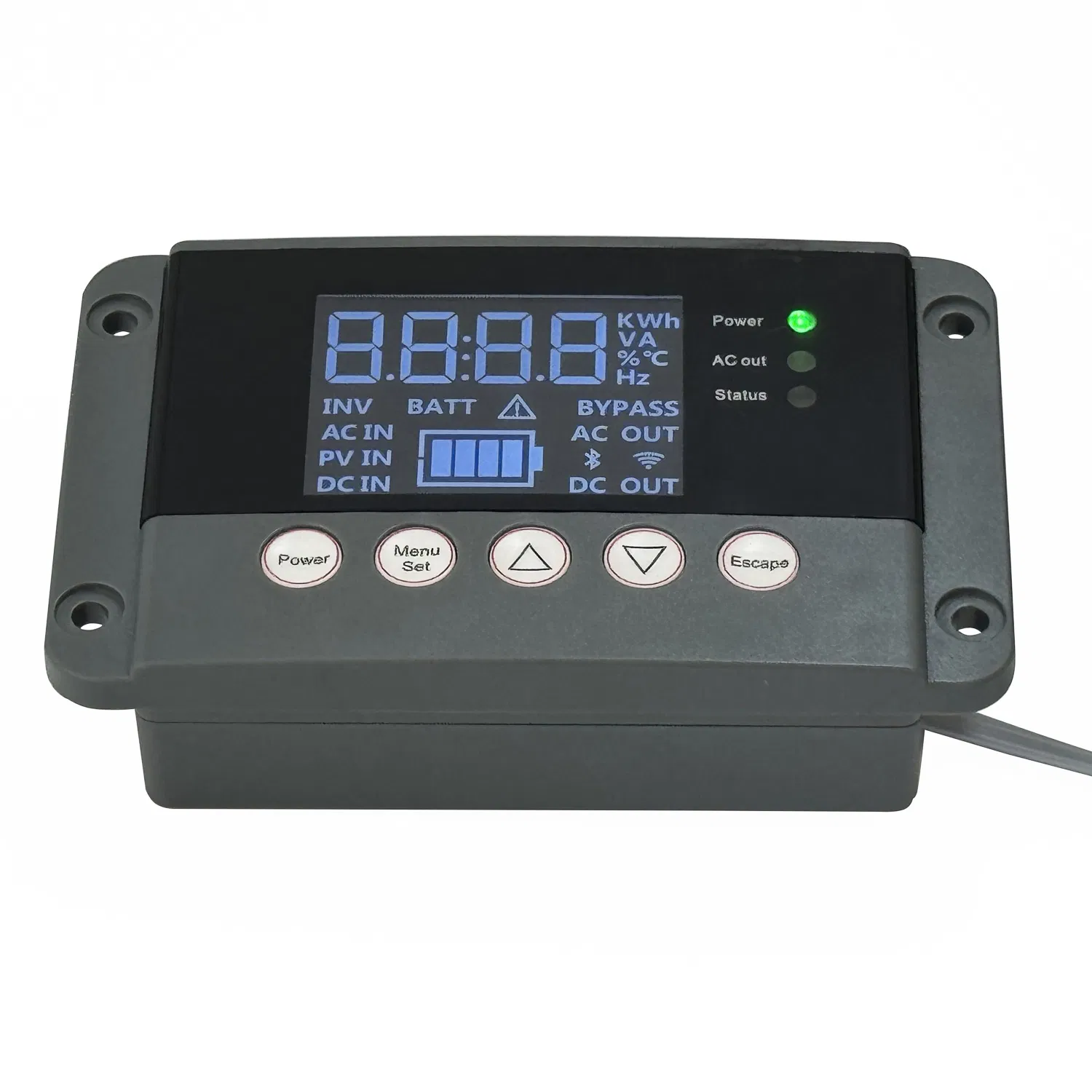

The LED display shows real-time DC and AC voltage, output power, remaining battery capacity, and diagnostic codes if the unit enters protection mode.
The inverter typically operates at 90% to 94% efficiency depending on the model (12V, 24V, or 48V), ensuring minimal energy loss during conversion.

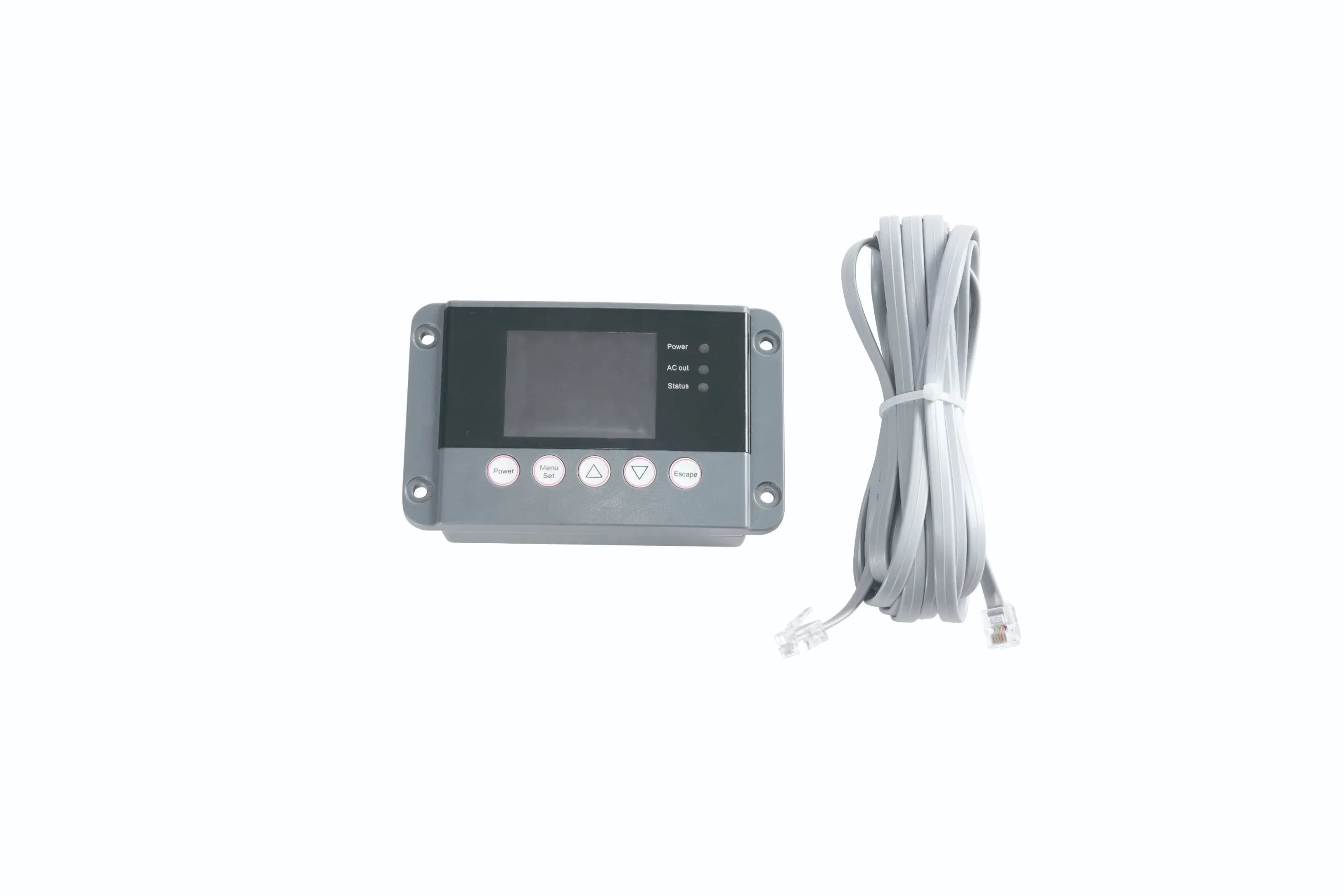

The unit is equipped with a CAN-BUS port, BTS port, USB programming port, ignition port, and a remote panel port for comprehensive system monitoring.
