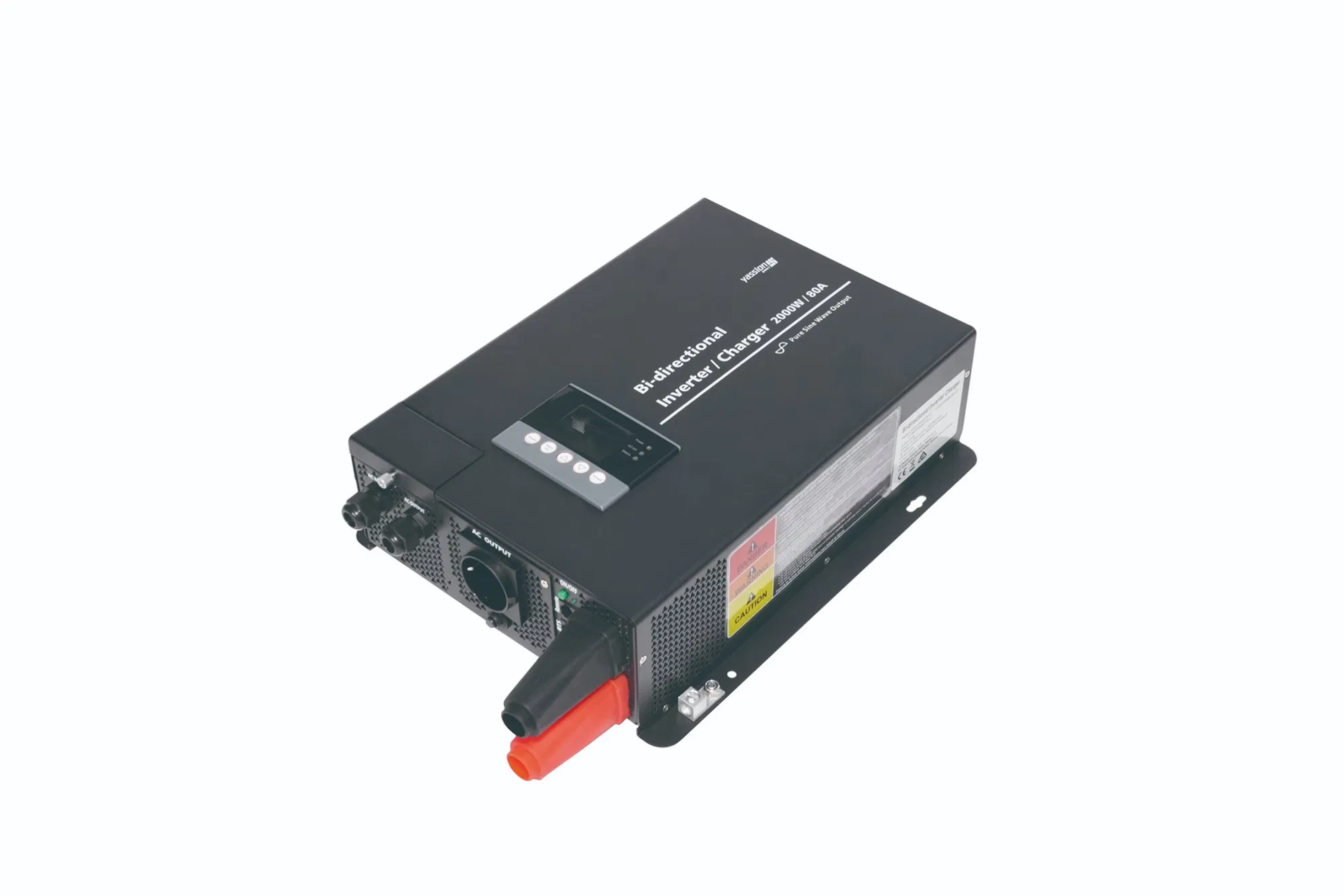

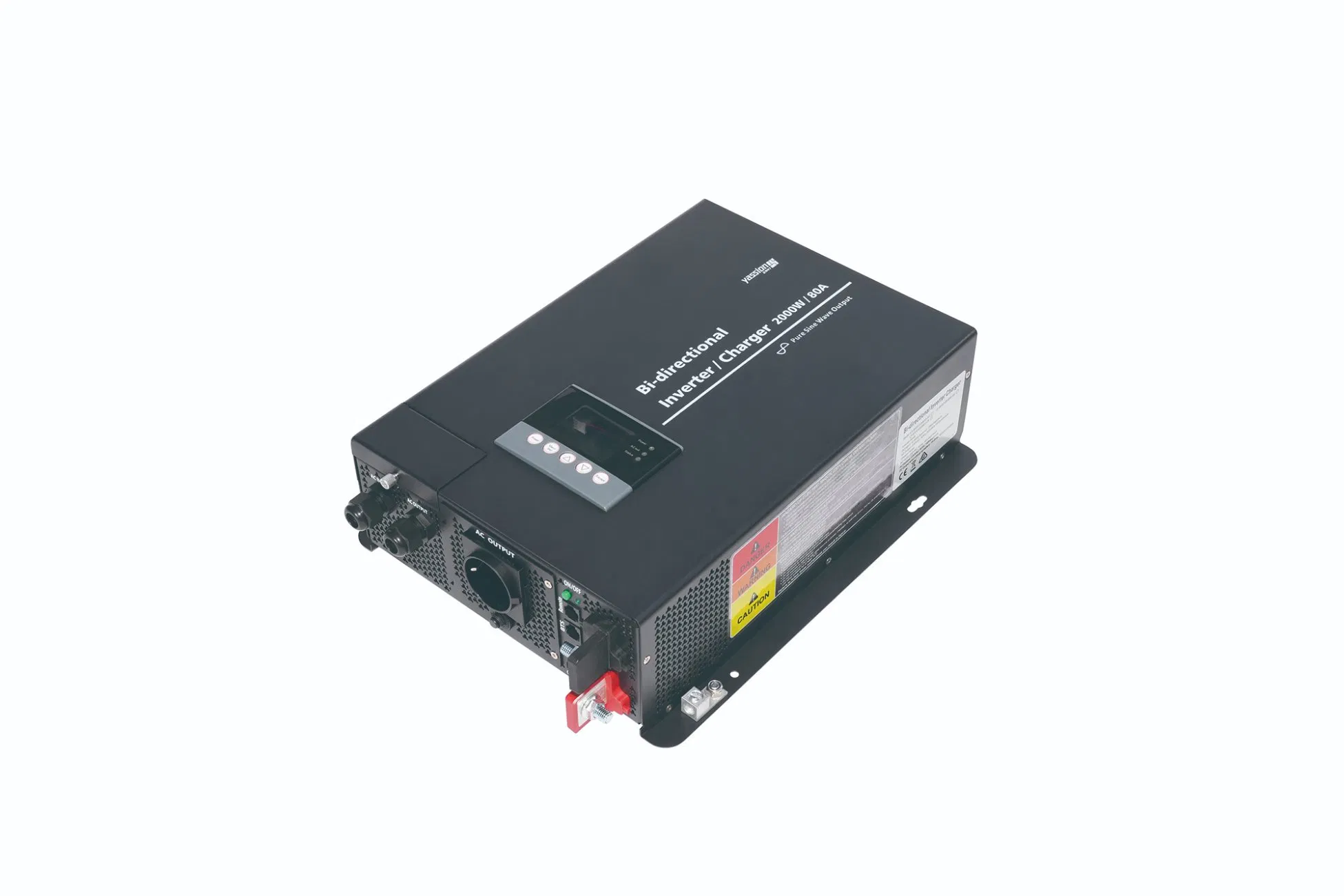

Bi-Directional Inverter Charger 2000W 12VDC 230VAC for RV for Camping

Basic Information

Model NO.

LF-BIC01200802

Output Power

2000W

Grid Type

off-Grid Inverter

Output Type

Single

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Type

DC/AC Inverters

Weight

6.4kg

Peak Power

4000W

Max Charging Current

80A

Output Waveform

Pure Sine Wave

Battery Type

Gel, Flooded, AGM, Lithium, Use, Power Supply

Warranty

2 Years

Efficiency

90%

Product Description

The Sinewave Inverter-Charger includes the items listed below:

Inverter-Charger base unit
Owner's manual

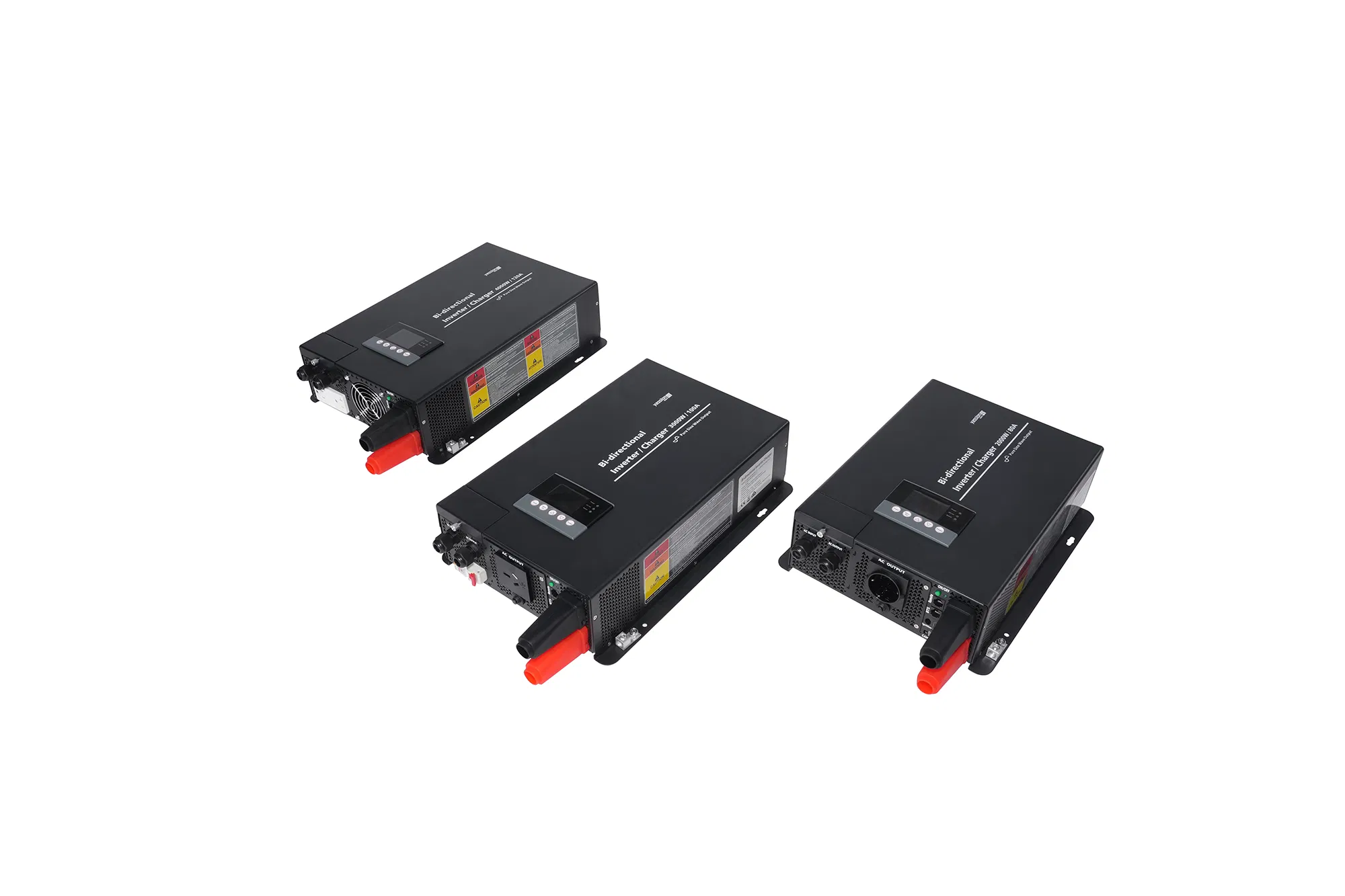

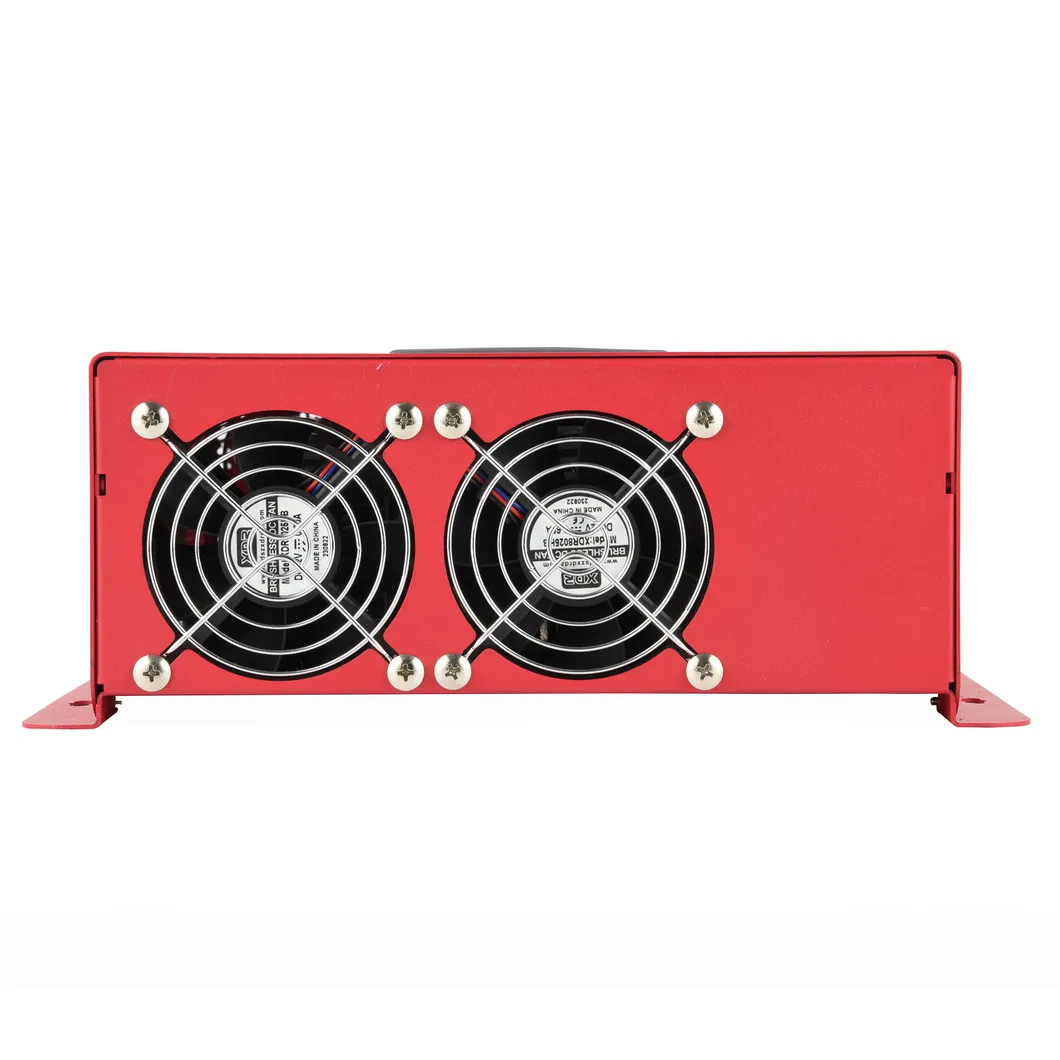

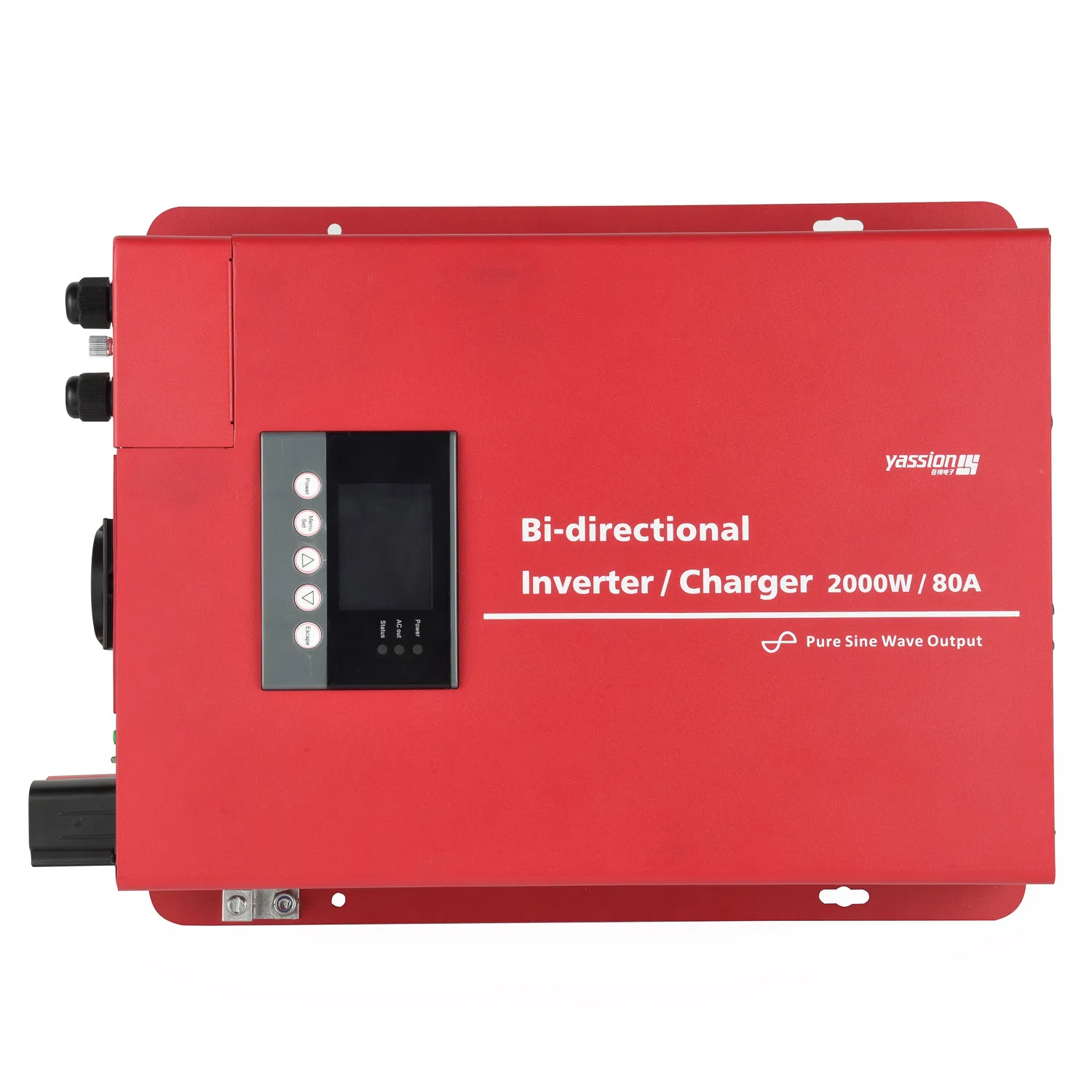

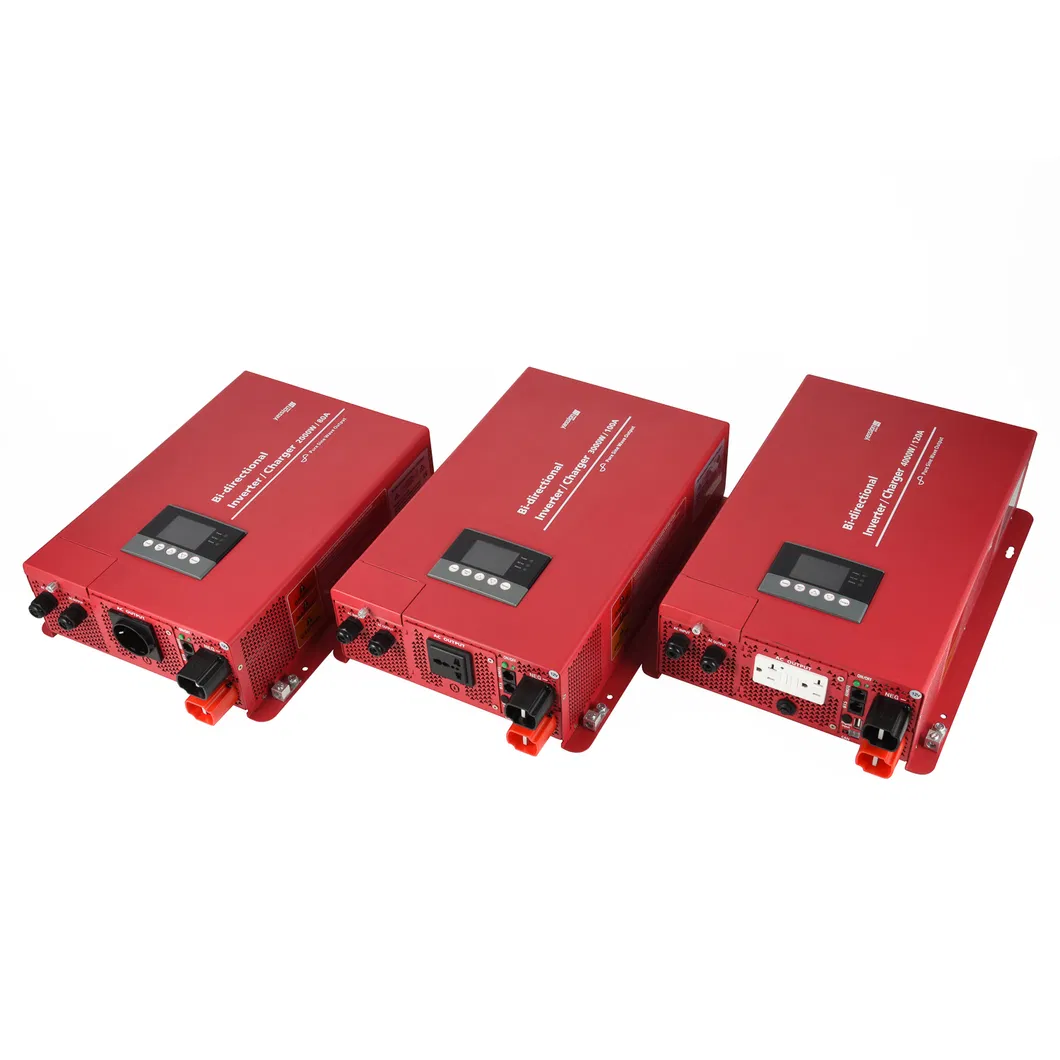

Detailed Photos

Product Parameters

SPECIFICATIONS	12V model	24V model	48V model	12V model	24V model	48V model
SPECIFICATIONS	120V model			230V model
Inverter
Continuous AC Power	2000W
AC Output Current	16.7A max			8.7A max
AC Surge Power (Peak)	4000W
AC Output Voltage	100/110/120VAC (50/60Hz)			220/230/240VAC (50/60Hz)
Nominal DC Input	12.5 VDC	25 VDC	50 VDC	12.5 VDC	25 VDC	50 VDC
AC Transfer Switch
Utility to Inverter	<30ms
Inverter to Utility	<20ms
Charger
Charging Voltage	13.5-14.8V	27-29.6V	54-59.2V	13.5-14.8V	27-29.6V	54-59.2V
Charger Current (Max)	80A	40A	30A	80A	40A	30A

Certifications

Our Advantages

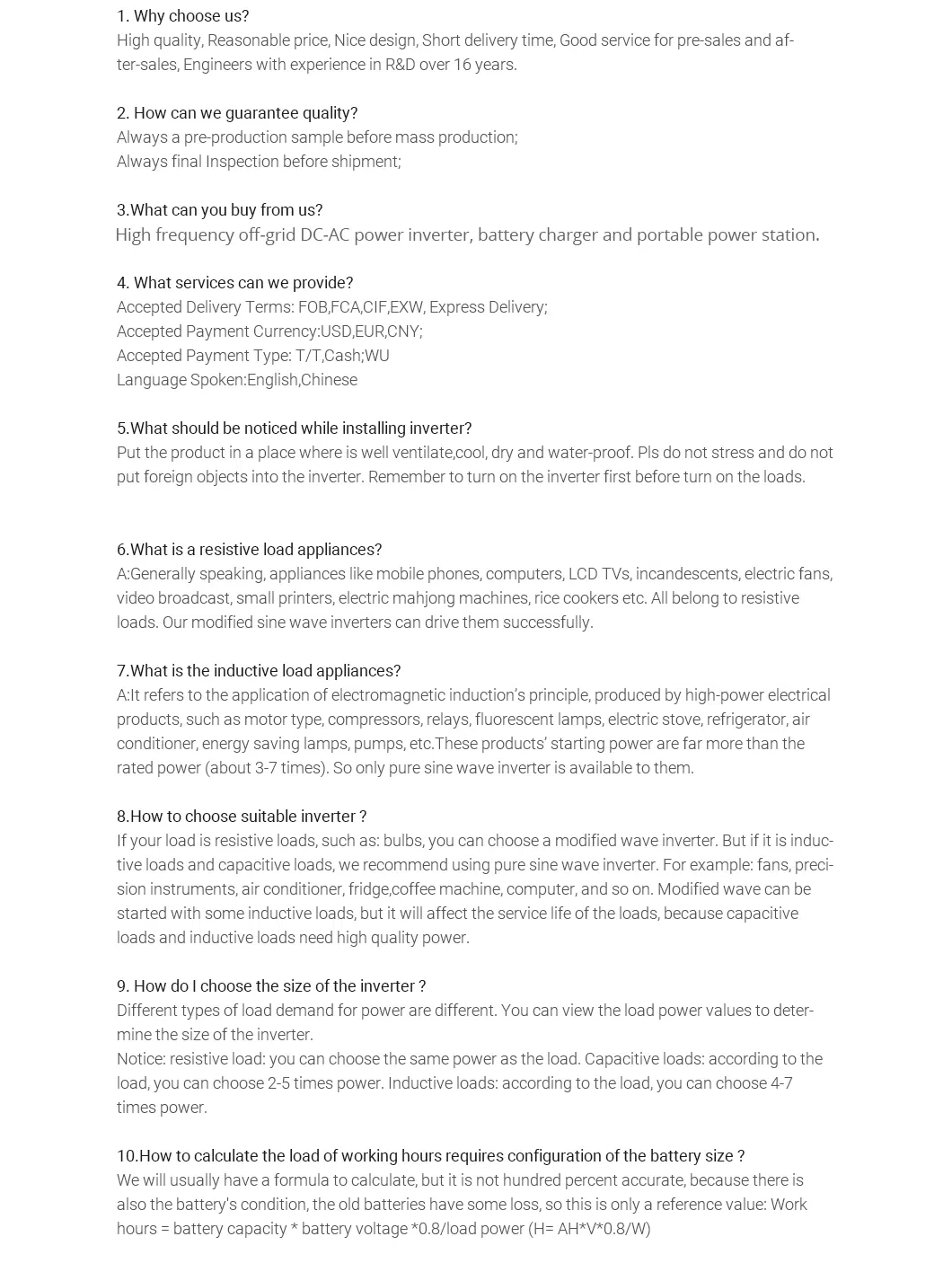

Frequently Asked Questions

What is the peak surge power capacity of this inverter?

This 2000W inverter charger features a peak surge power of up to 4000W, allowing it to handle high-startup loads.

What types of batteries are compatible with the charging function?

The device is compatible with a wide range of batteries, including Gel, Flooded, AGM, and Lithium batteries. It also features a specific Power Supply mode.

Can I adjust the output frequency and voltage?

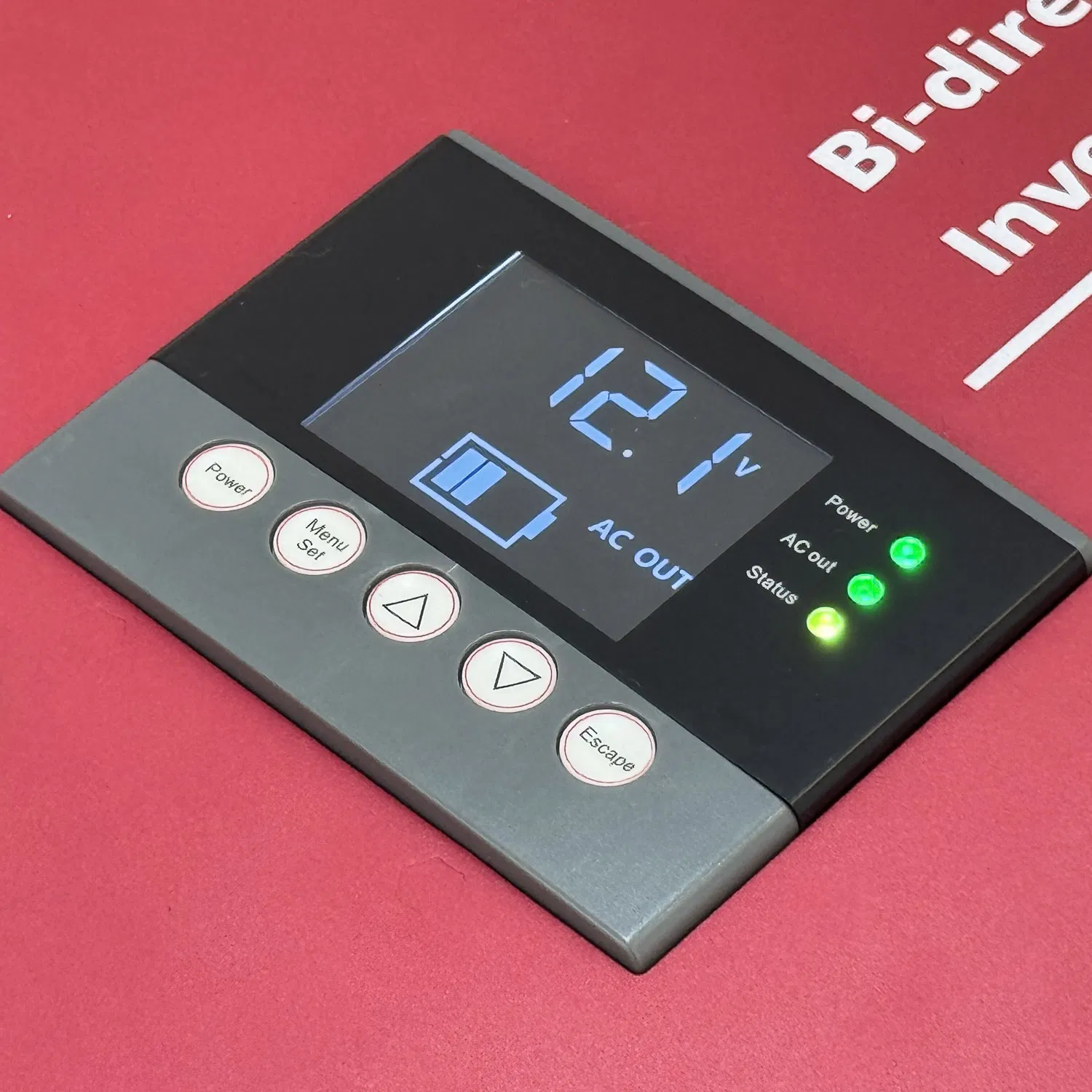

Yes, the AC output voltage (100-120V or 220-240V depending on the model) and frequency (50Hz/60Hz) can be set by the user via the display panel.

How fast is the automatic transfer between utility and battery power?

The nominal transfer time from utility to inverter is less than 30ms, and from inverter to utility is less than 20ms, ensuring minimal interruption to your appliances.

What is the warranty period for this product?

This product comes with a 2-year warranty covering manufacturing defects and performance standards.

Does it support remote monitoring?

Yes, it features a RJ12 port for a display panel and supports remote control and CANBUS communication for integrated system management.
