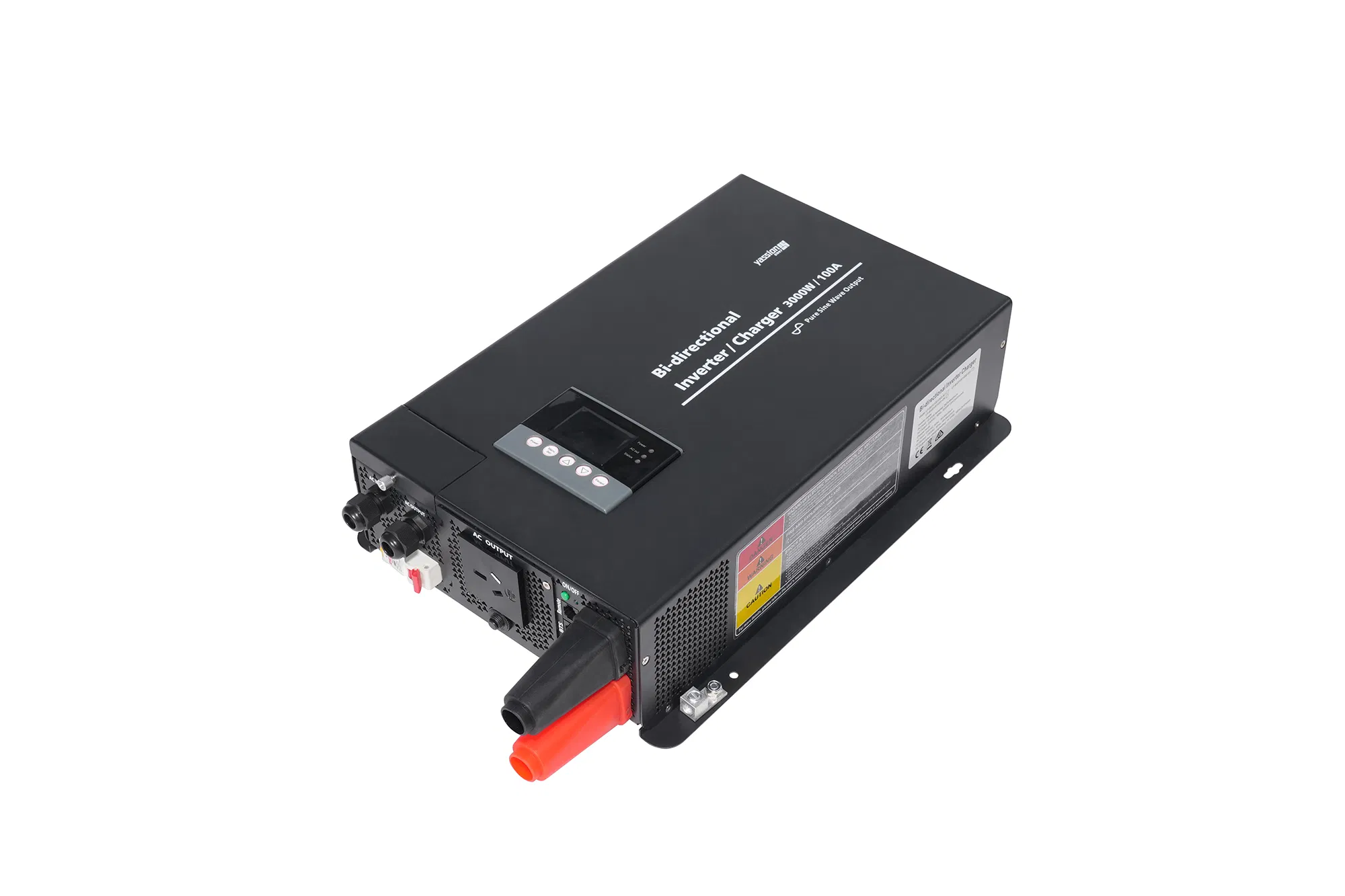

Factory Bi-Directional Inverter with Charger 3000W 12VDC to 230VAC 100A

Customization:	Available
Phase:	Single Phase
Application:	RV

Overview & Basic Info

Model NO.

LF-BIC01301002

Peak Power

6000W

Weight

7.4kg

Max Charging Current

100A

Output Frequency

50/60Hz

Warranty

2 Years

Efficiency

90%

Output Waveform

Pure Sine Wave

Battery Type

Gel, Flooded, AGM, Lithium, Use, Power Supply

Dimensions

432.9mm X 287mm X 110mm

Product Description

The Sinewave Inverter-Charger is a high-performance solution designed for reliable power conversion. This unit seamlessly integrates an inverter and a charger for versatile energy management.

Inverter-Charger base unit included
Comprehensive Owner's manual
Bi-Directional power flow technology
Pure Sine Wave output for sensitive electronics

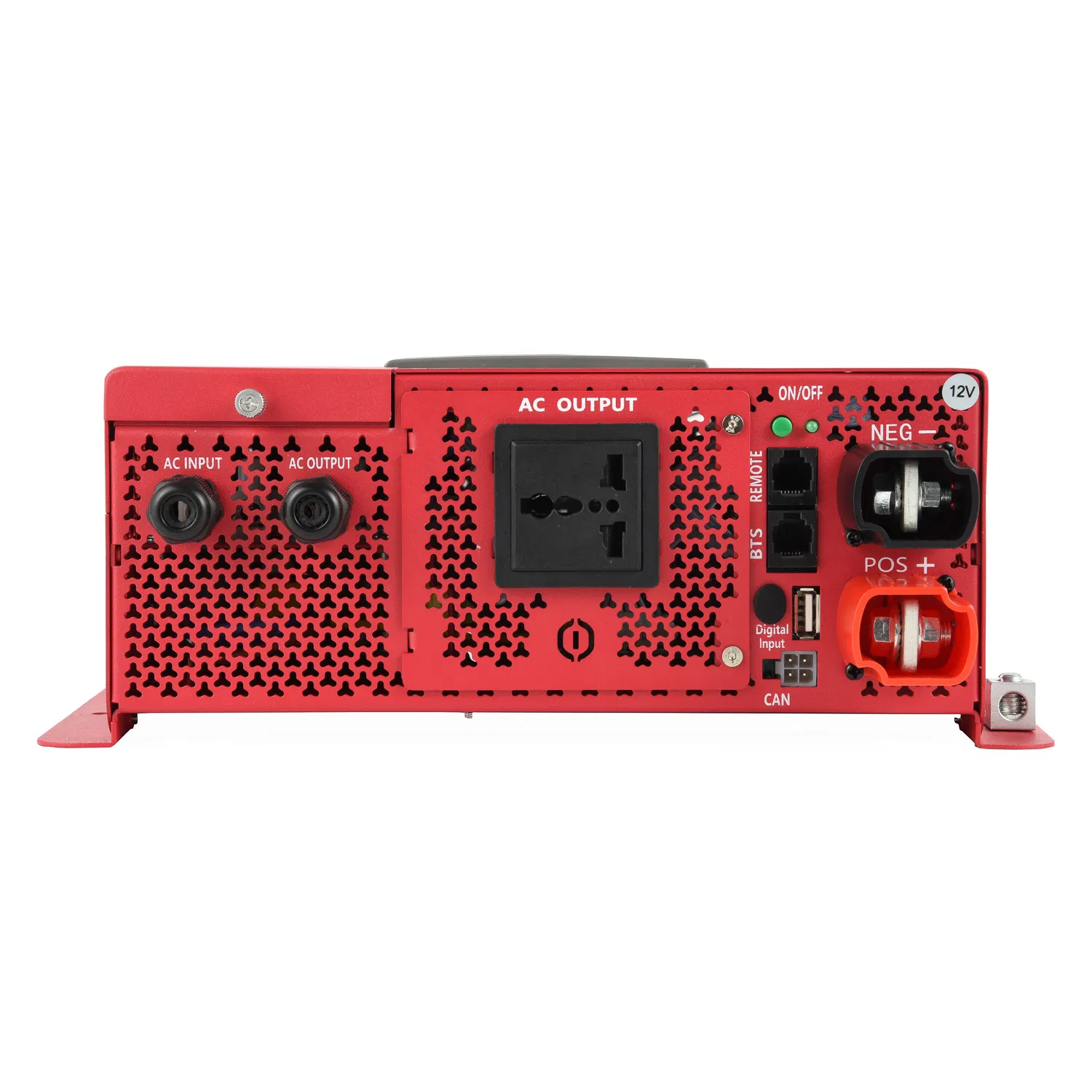

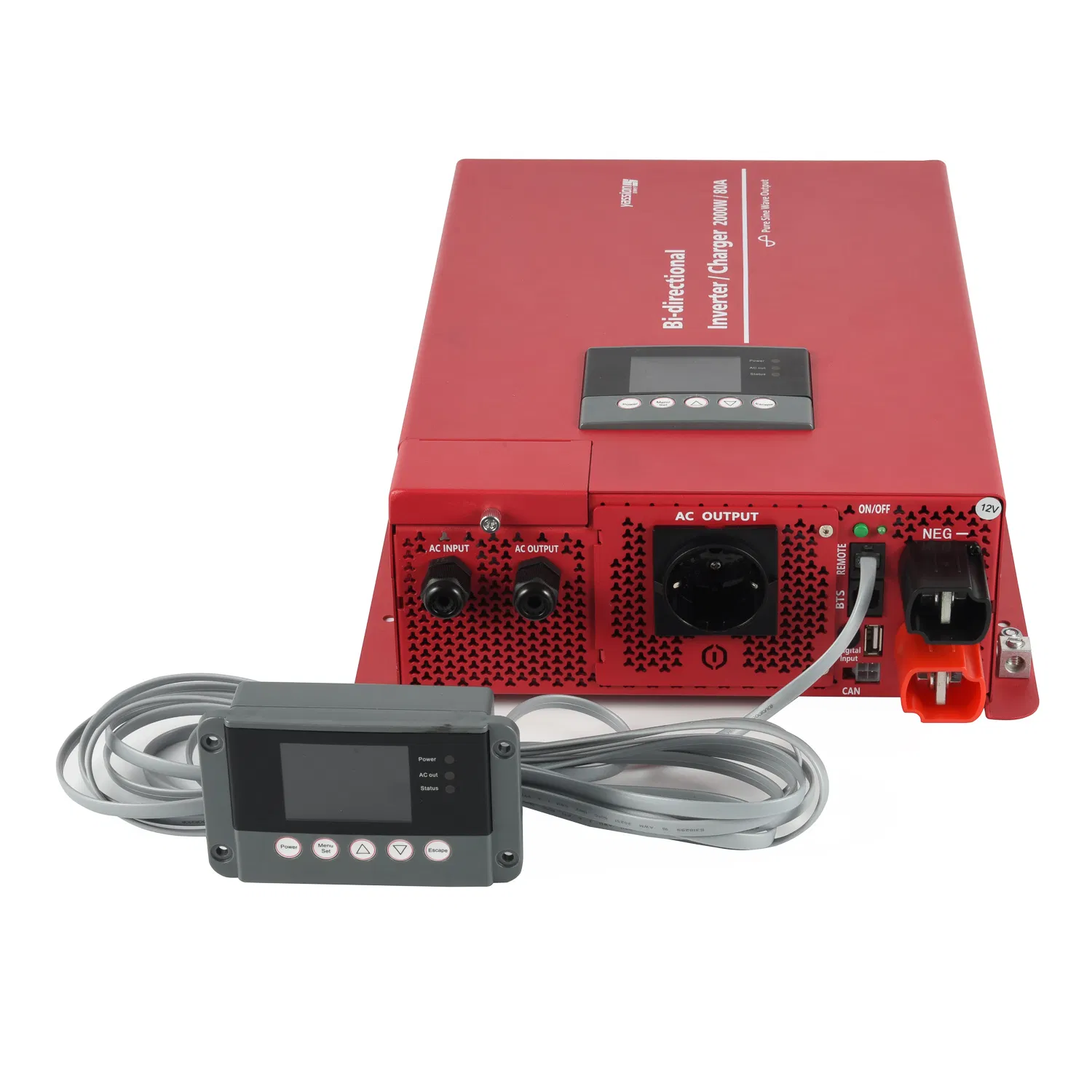

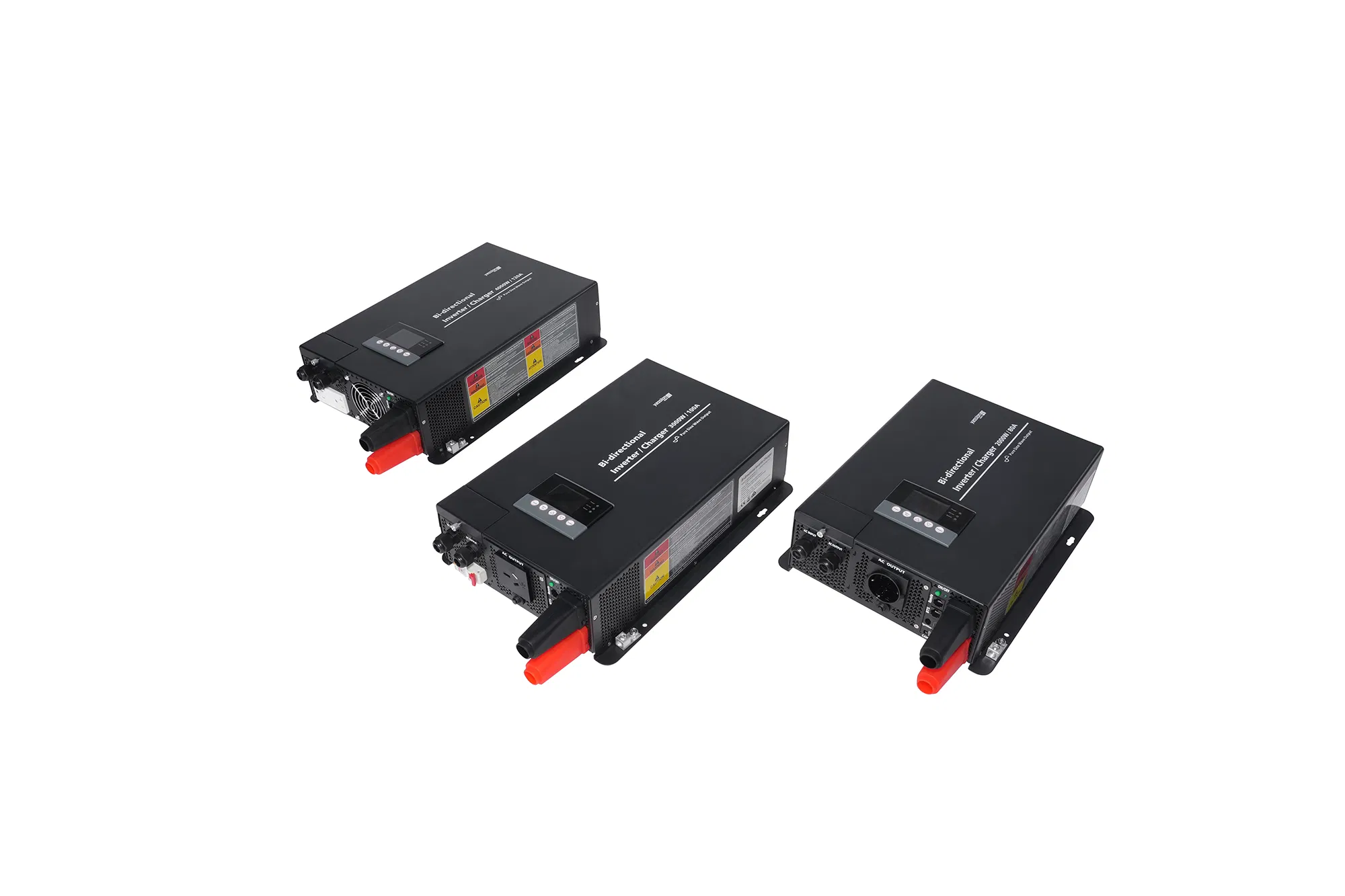

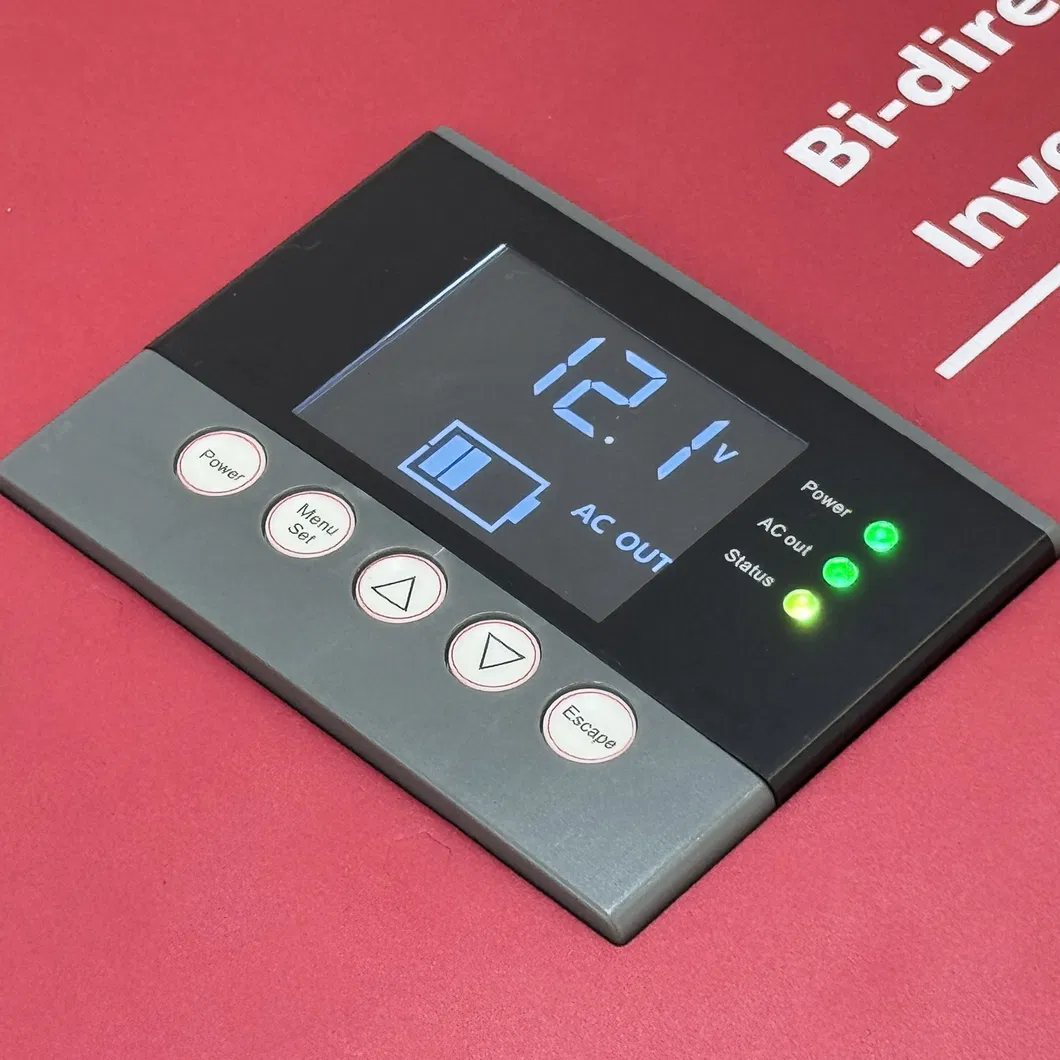

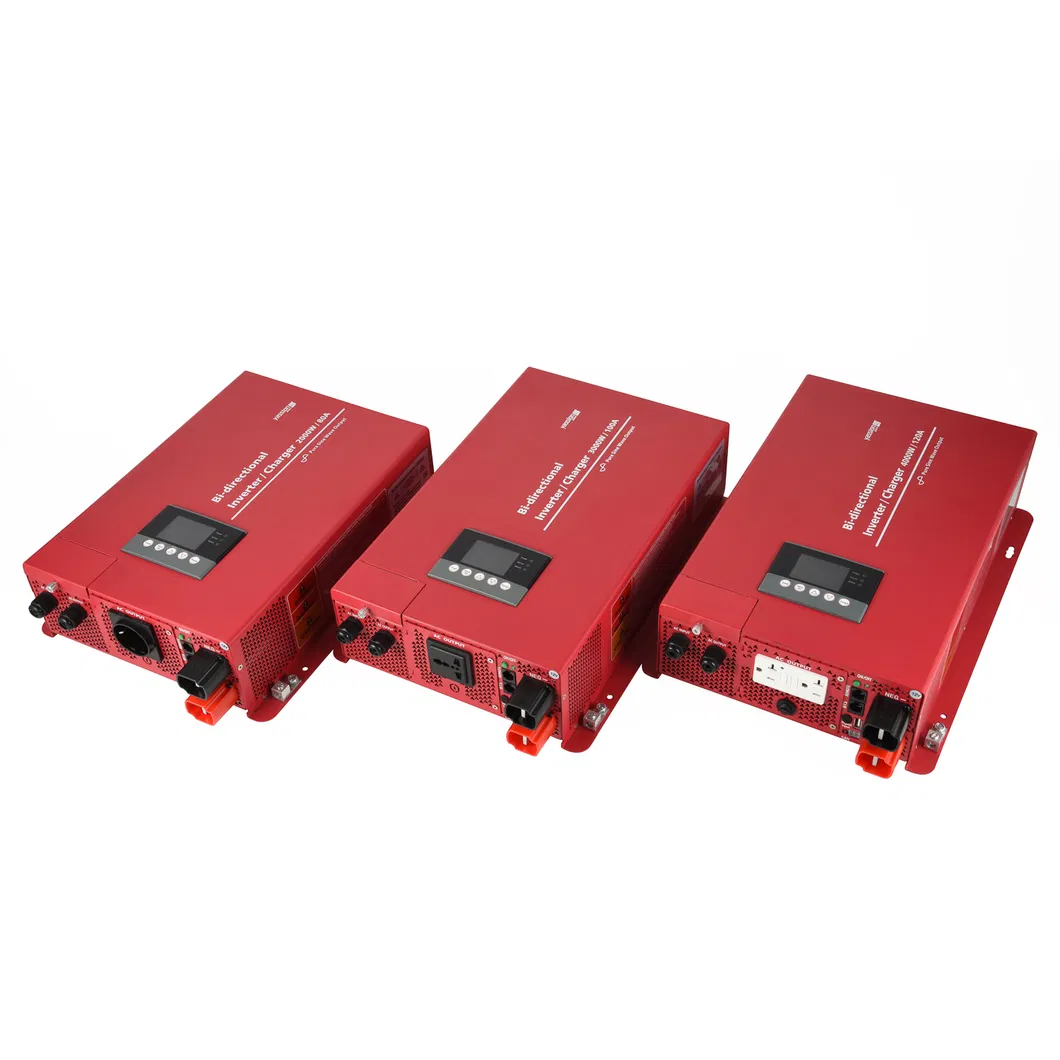

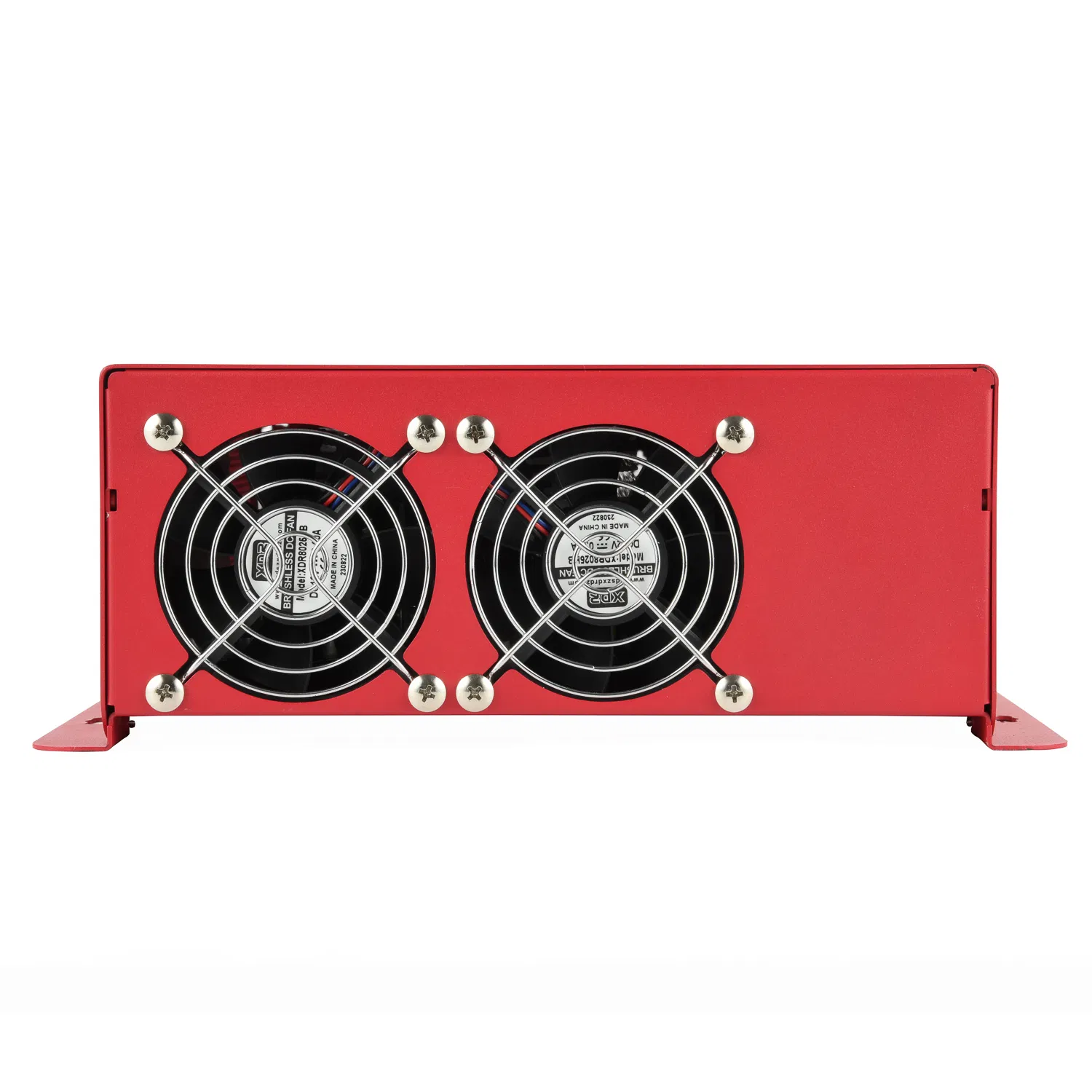

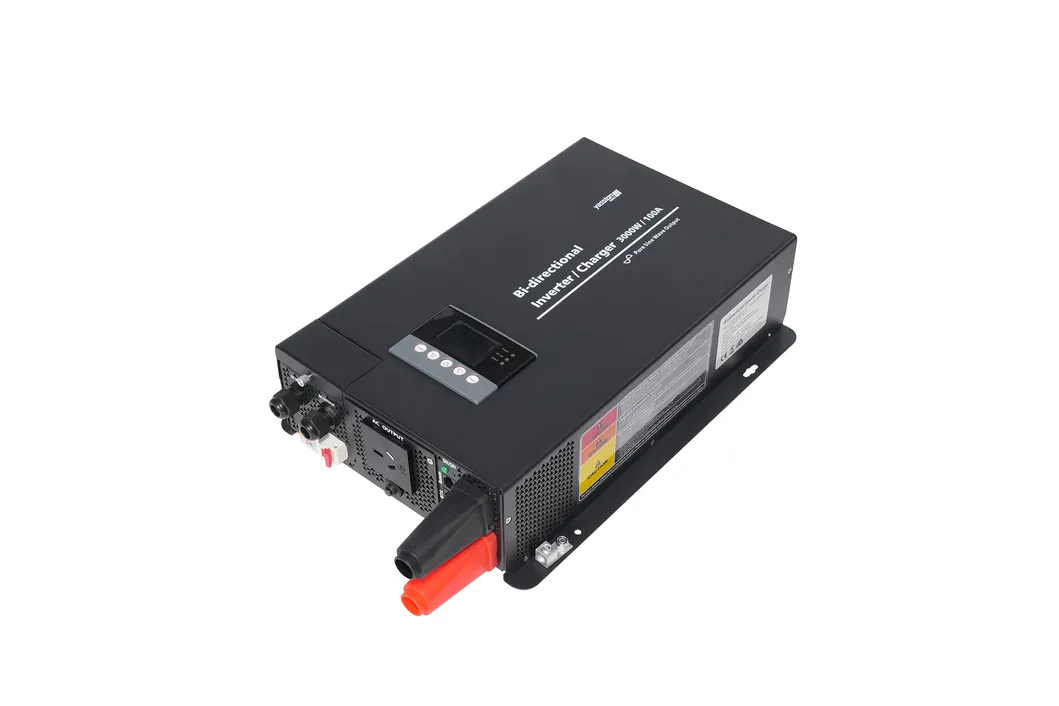

Detailed Photos

Product Parameters

SPECIFICATIONS	12V Model (120V)	24V Model (120V)	48V Model (120V)	12V Model (230V)	24V Model (230V)	48V Model (230V)
Continuous Power	3000W
Surge Power (Peak)	6000W
Output Voltage	100/110/120 VAC (Set by user)			220/230/240 VAC (Set by user)
DC Input Range	10.5-16.0V	21-32V	42-63V	10.5-16.0V	21-32V	42-63V
Transfer Time	Utility to Inverter: <30ms \| Inverter to Utility: <20ms
Charger Current	100A	50A	40A	100A	50A	40A

Certifications

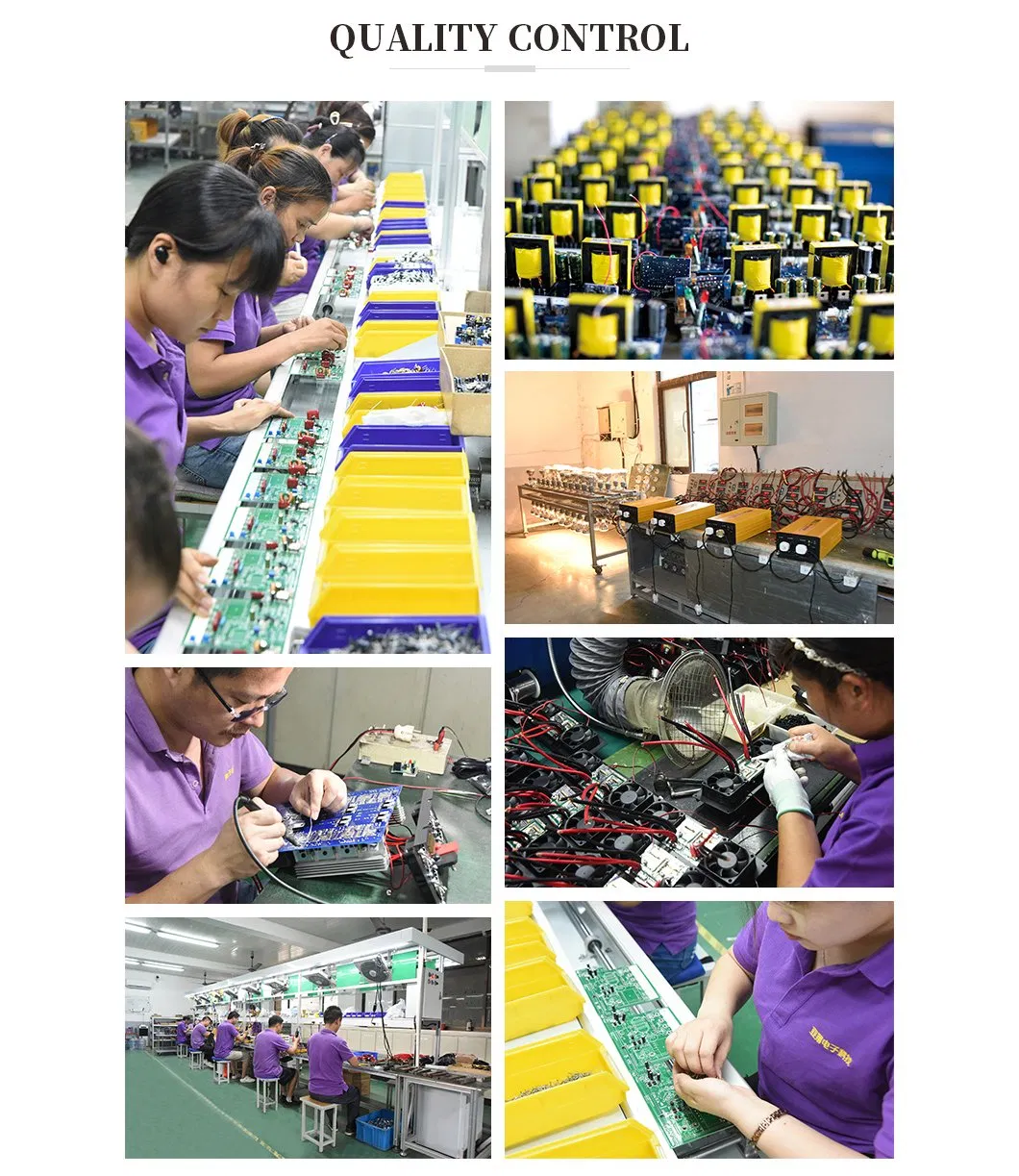

Quality & Advantages

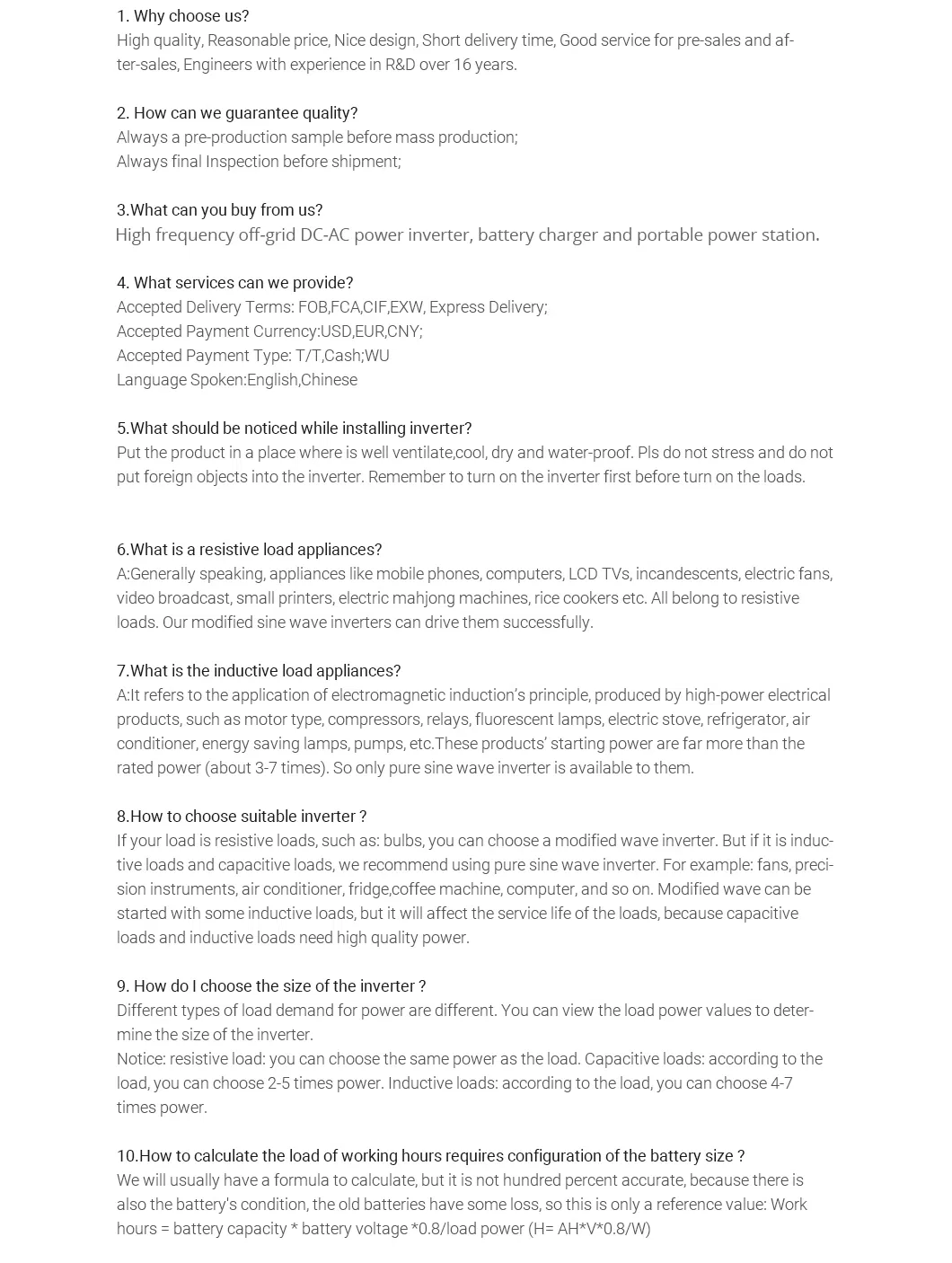

Frequently Asked Questions

Is this inverter compatible with Lithium batteries?

Yes, it supports multiple battery types including Lithium, Gel, Flooded, and AGM. You can also customize the settings for specific battery requirements.

What is the peak power capacity of the 3000W model?

The 3000W unit features a surge power peak of up to 6000W, allowing it to handle high-startup current loads safely.

How fast is the transfer switch between AC utility and battery?

The transfer time from utility to inverter is less than 30ms, and from inverter back to utility is less than 20ms, ensuring minimal interruption to your loads.

Can I adjust the charging current?

Yes, the charger current is adjustable. For the 12V 100A model, the setting range is between 20A and 100A.

Does the output provide a Pure Sine Wave?

Yes, it produces a Pure Sine Wave with a THD of less than 5% (typically 2.5%), making it safe for sensitive medical equipment and high-end electronics.

What safety certifications does this product hold?

The product is designed to meet rigorous standards, including CE for European markets and cETLus (UL 458/CSA C22.2) for North American markets.
