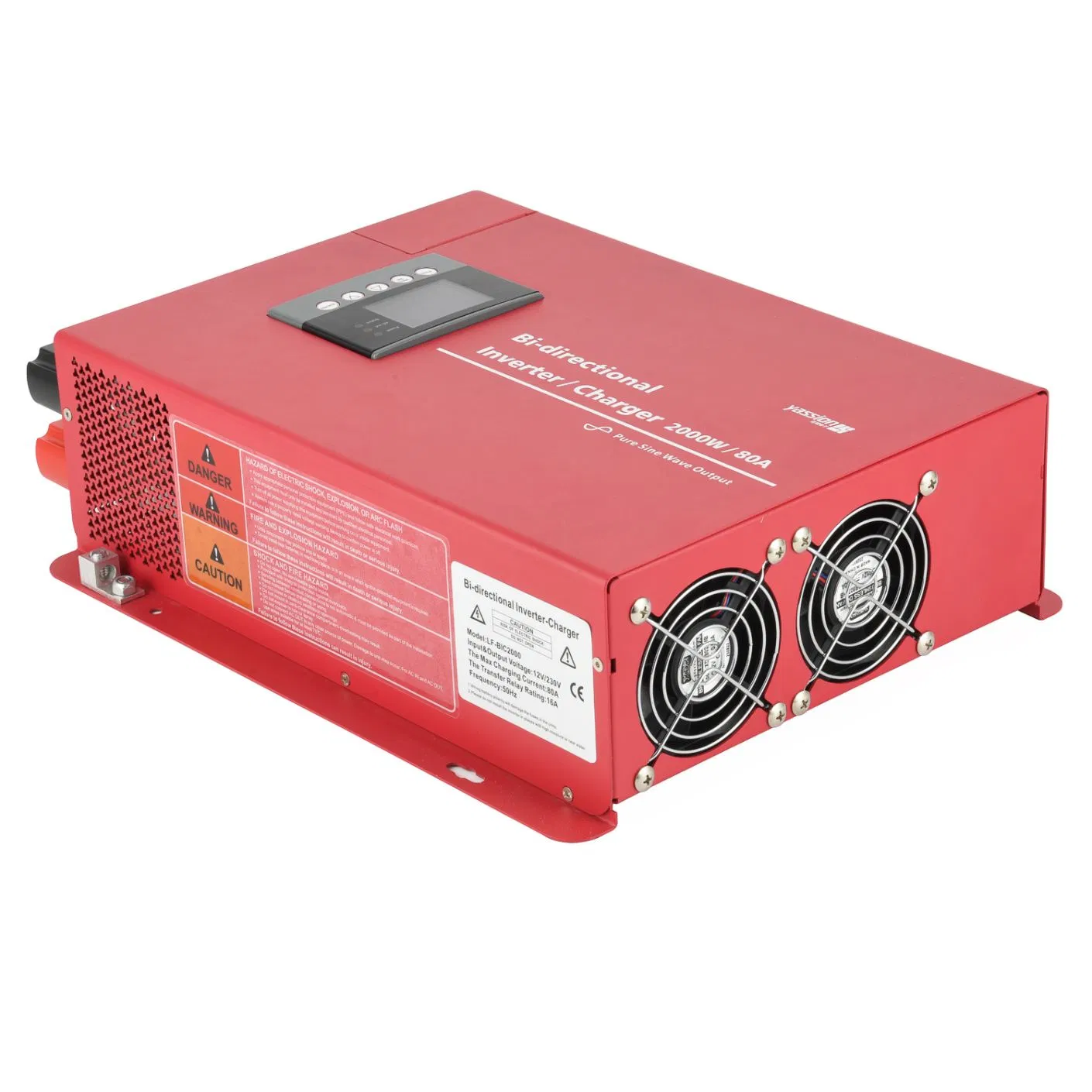

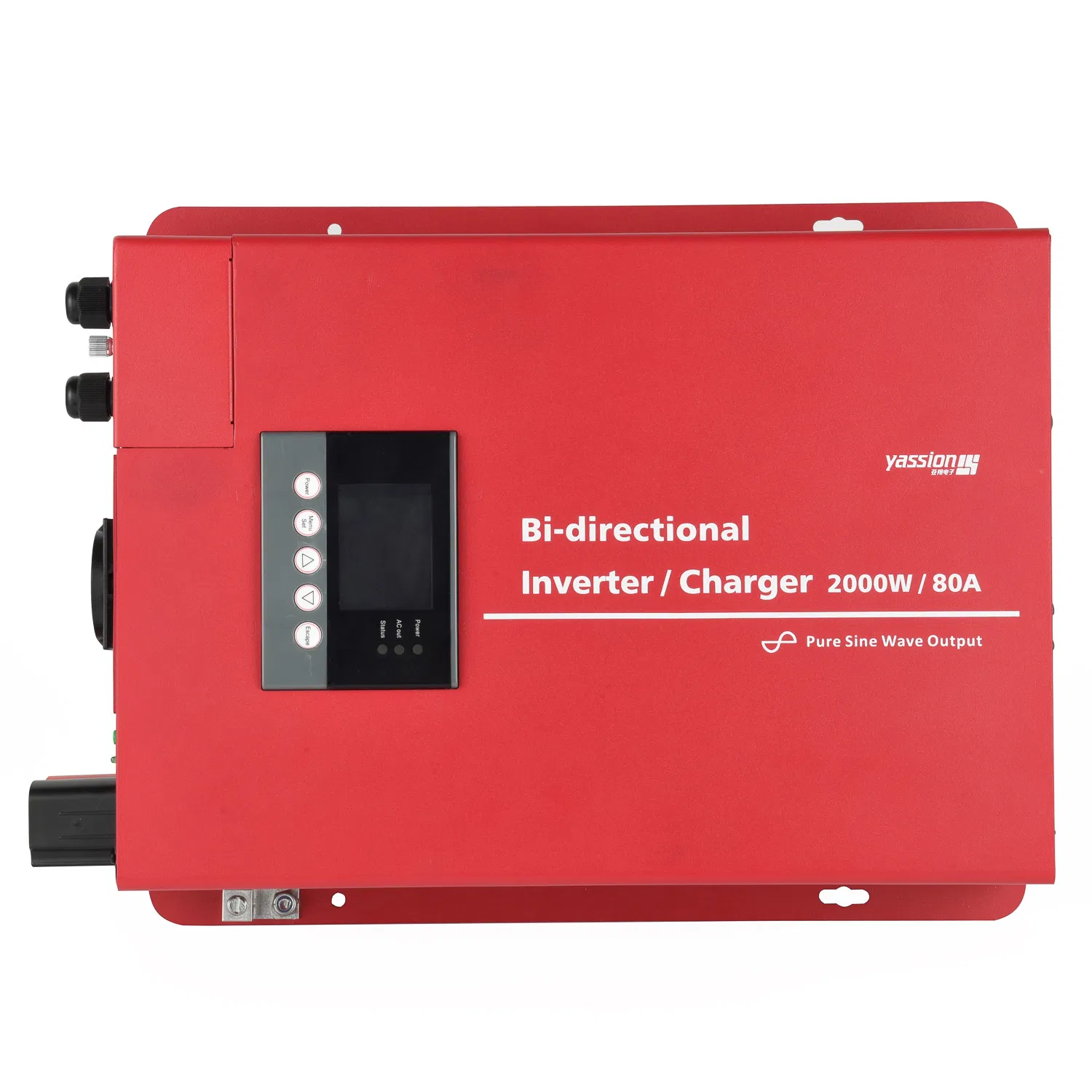

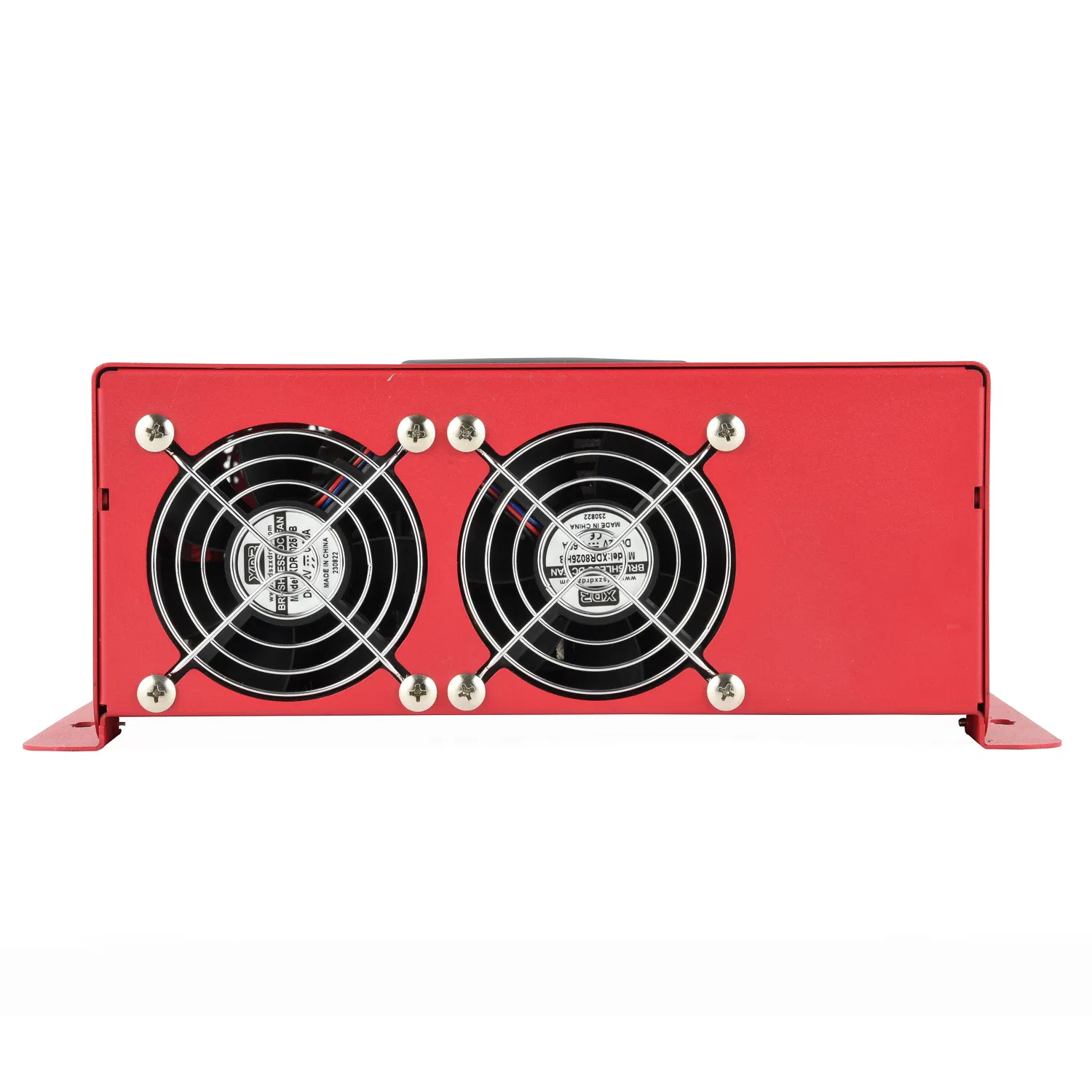

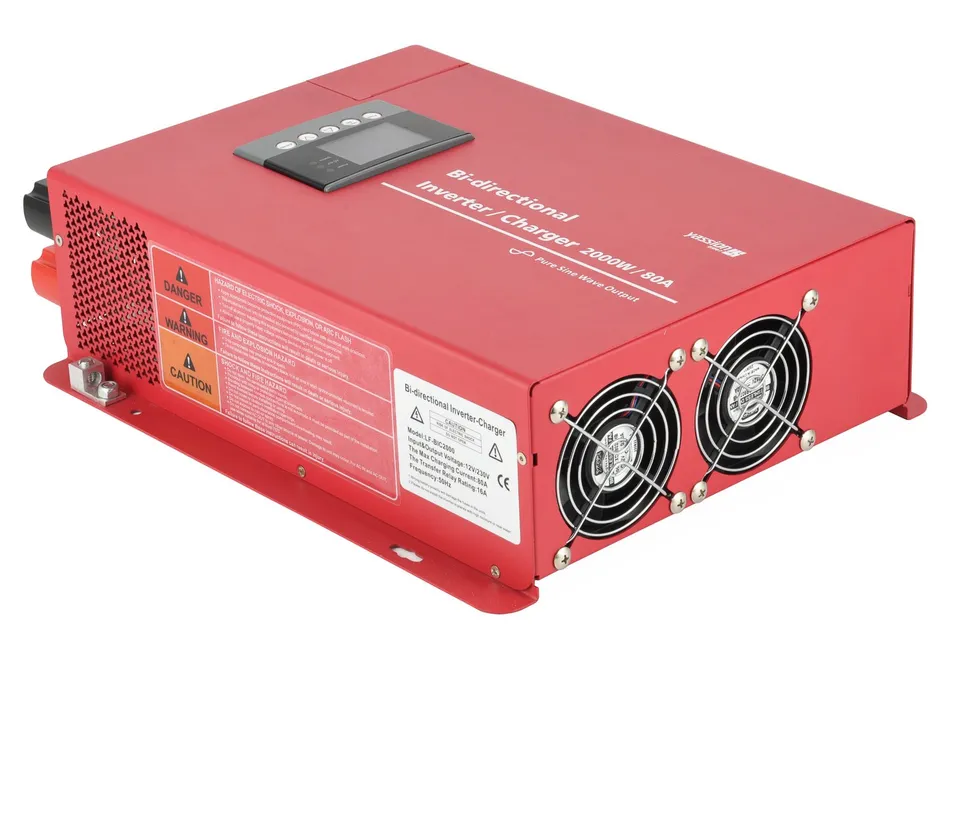

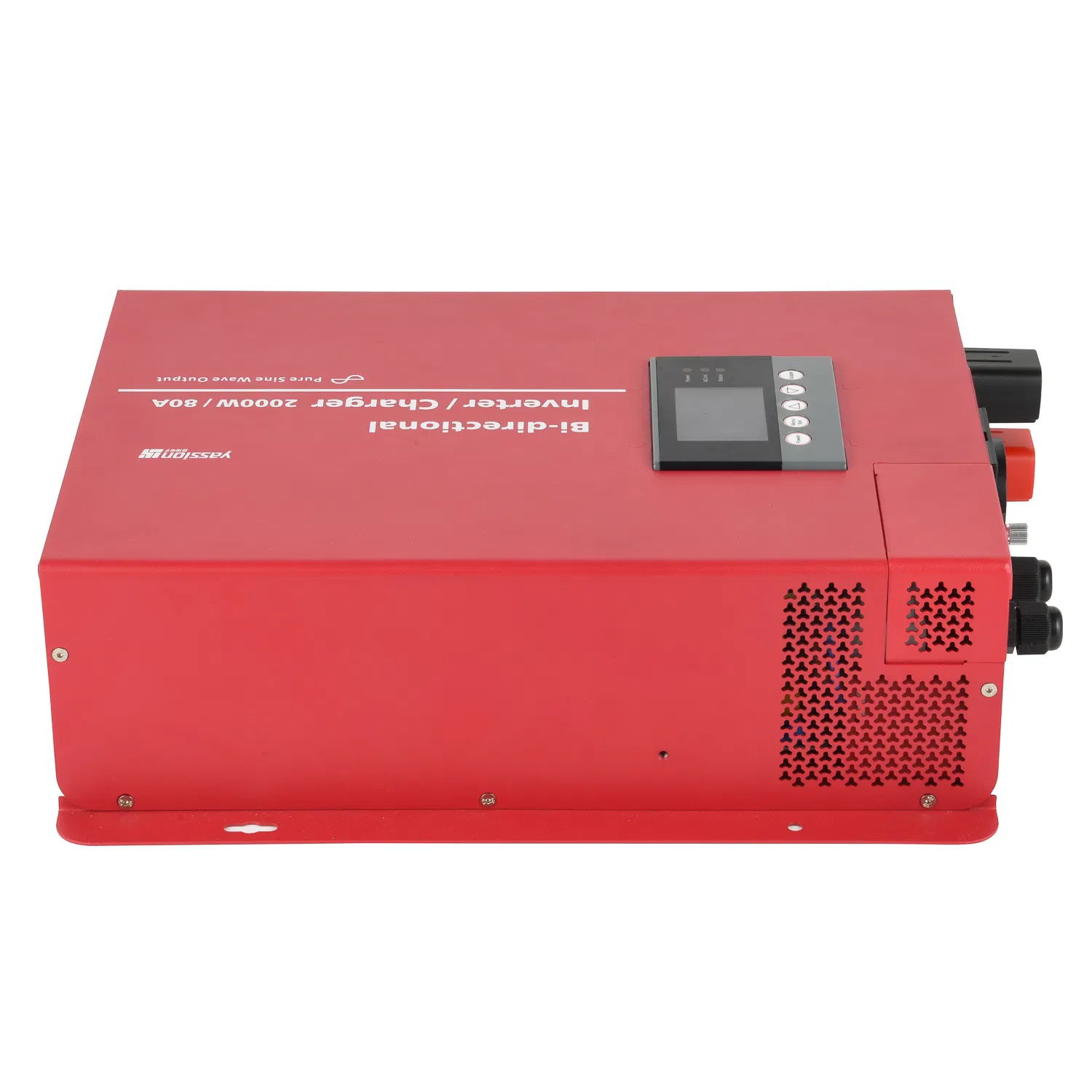

Factory Direct Sale 50Hz/60Hz Bi-Directional Inverter with Battery Charger

1 / 5

Factory Direct Sale 50Hz/60Hz Bi-Directional Inverter with Battery Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Product Information

Model NO.

LF-BIC

Output Power

>1000W

Peak Power

4000W

Grid Type

Off-Grid Inverter

Nature of Wave

Sine Wave Inverter

Efficiency

90%

Battery Type

Gel, Flooded, AGM, Lithium

Max Charging Current

80A

Warranty

2 Years

Dimensions

388mm X 287mm X 110mm

Product Highlights

✔

Dual Operation: Charge and use the battery at the same time.

✔

UPS Function: Dual power supply with ultra-fast 0.03S switching.

✔

Smart Management: 5 adjustable charging current levels and remote display info.

✔

Comprehensive Protection: Six types of safety protections for secure electricity use.

✔

Voltage Selectable: Flexible output settings (220V/230V/240V) and 50Hz/60Hz.

Technical Specifications

Specifications	12V Model	24V Model	48V Model
Continuous AC Power	2000W
AC Surge Power (Peak)	4000W
AC Output Waveform	Pure Sine Wave (THD < 5%)
DC Input Range (12V)	10.5 - 16.0 VDC	21 - 32 VDC	42 - 63 VDC
AC Transfer Time	Utility to Inverter <30ms \| Inverter to Utility <20ms
Max Charger Current	80A	40A	30A
Operating Temp	0°C to 50°C

Production & Quality Showcase

Frequently Asked Questions

Q1: What is an inverter-UPS and how does it work?

An inverter-UPS converts DC power (from batteries) into standard AC power for household appliances. It includes an automatic switch-over feature that kicks in during power outages, ensuring uninterruptible power supply.

Q2: What is the benefit of a Pure Sine Wave output?

Pure sine wave mimics the clean power provided by the grid. It is essential for sensitive electronics, motors, and audio/video equipment to prevent noise, heat, or potential damage.

Q3: How do I choose the correct inverter wattage?

Calculate the continuous power of all devices you'll run at once. Also, account for "surge power" (start-up power) for motors or compressors. We recommend choosing an inverter with 20-30% more capacity than your estimated load.

Q4: What batteries are compatible with this system?

Deep cycle batteries are recommended (Gel, AGM, Flooded, or Lithium). Ensure the battery voltage (12V, 24V, or 48V) matches the DC input requirement of your specific inverter model.

Q5: What safety protections are included?

Our units feature multiple safety protocols: overload, short-circuit, over-temperature, under-voltage, and over-voltage protections, often accompanied by cooling fans and status displays.

Q6: Can this be used for RVs or off-grid solar?

Yes, these models are specifically designed for mobile and off-grid applications like RVs, boats, and solar systems, provided there is proper ventilation and battery capacity.
