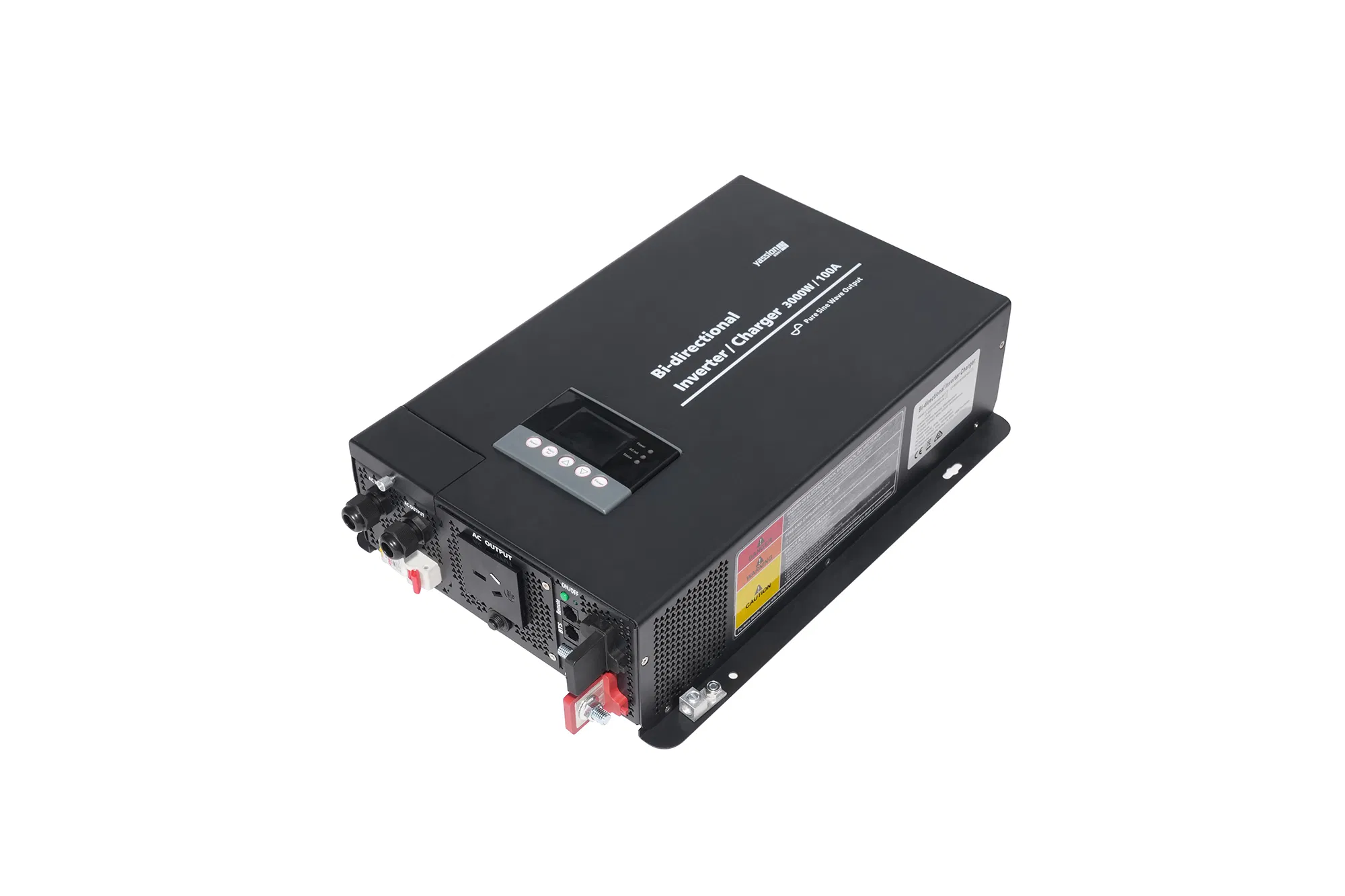

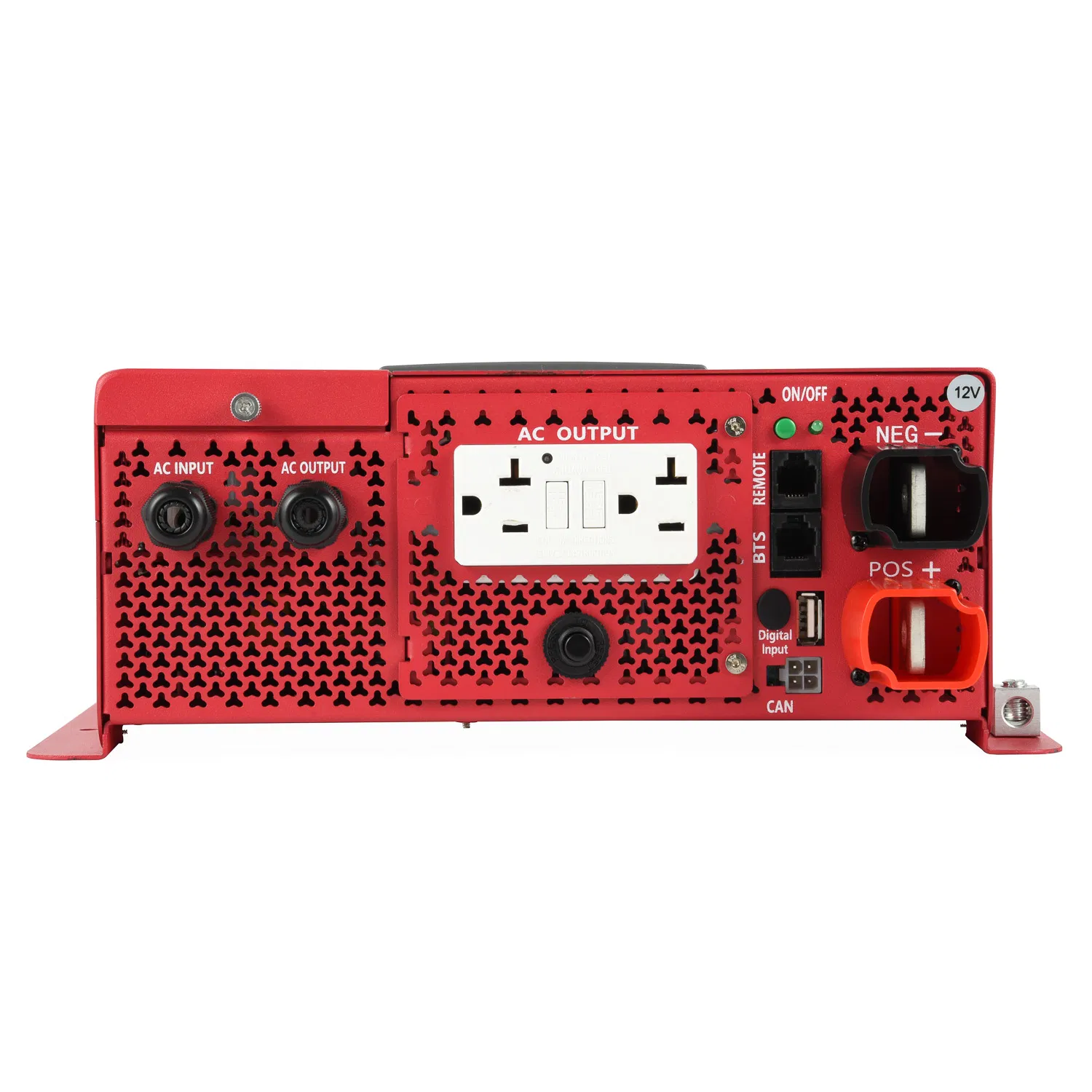

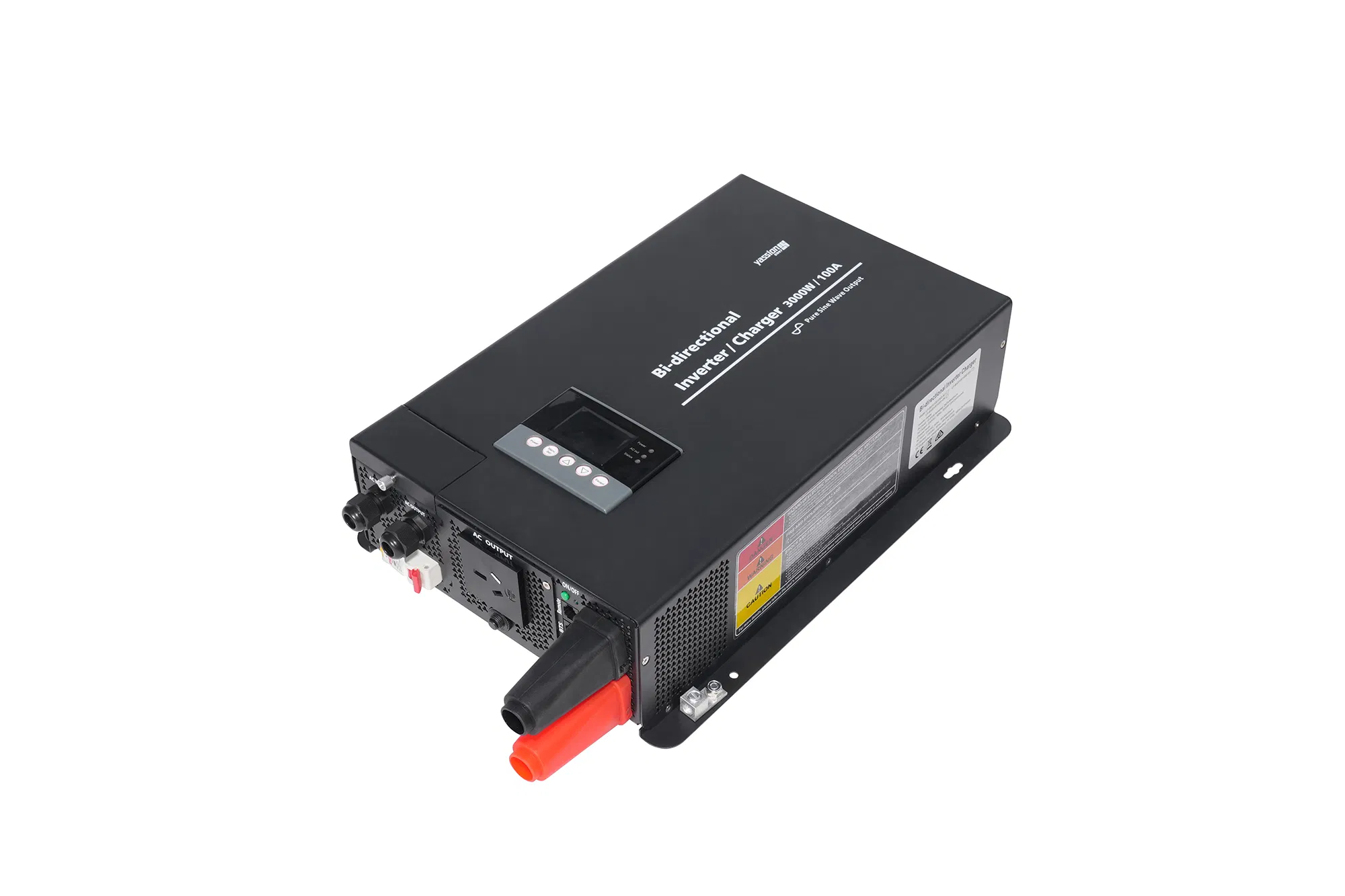

Bi-Directional Power Inverter with Charger 3000W 12VDC to 110 VAC Charging Current 100A

Customization:	Available
Phase:	Single Phase
Application:	RV

Basic Information

Model NO.

LF-BIC01301001

Peak Power

6000W

Max Charging Current

100A

Output Frequency

50/60Hz

Efficiency

90%

Output Waveform

Pure Sine Wave

Battery Type

Gel, Flooded, AGM, Lithium

Weight

7.4kg

Specification

432.9mm X 287mm X 110mm

Warranty

2 Years

Product Description

The Sinewave Inverter-Charger includes the items listed below:

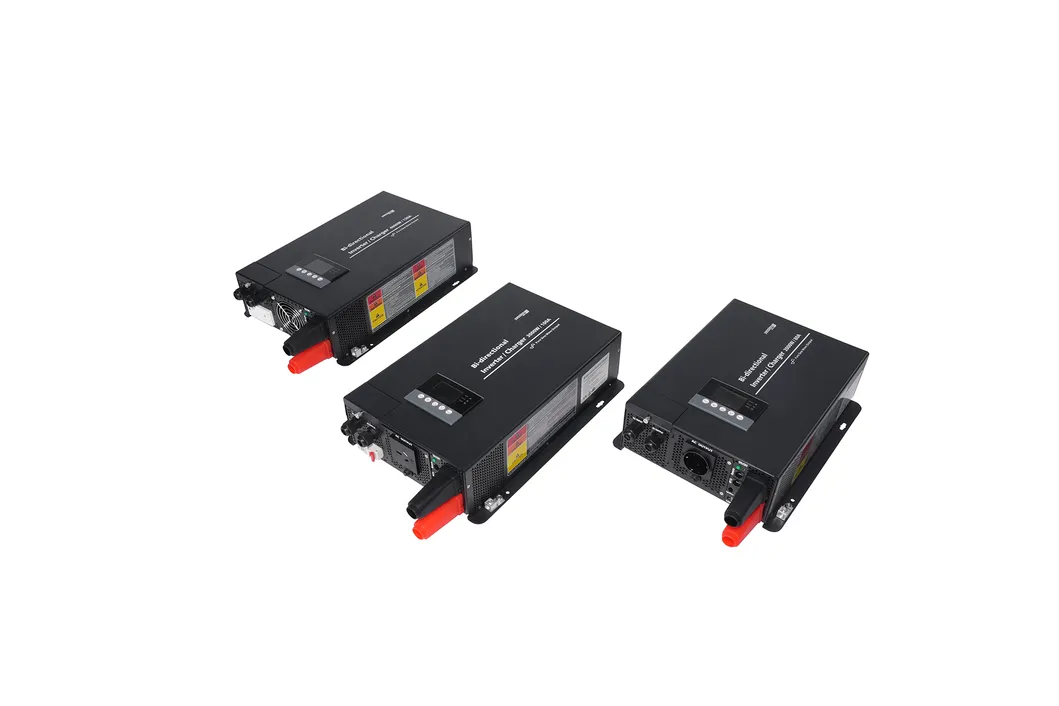

Inverter-Charger base unit
Owner's manual

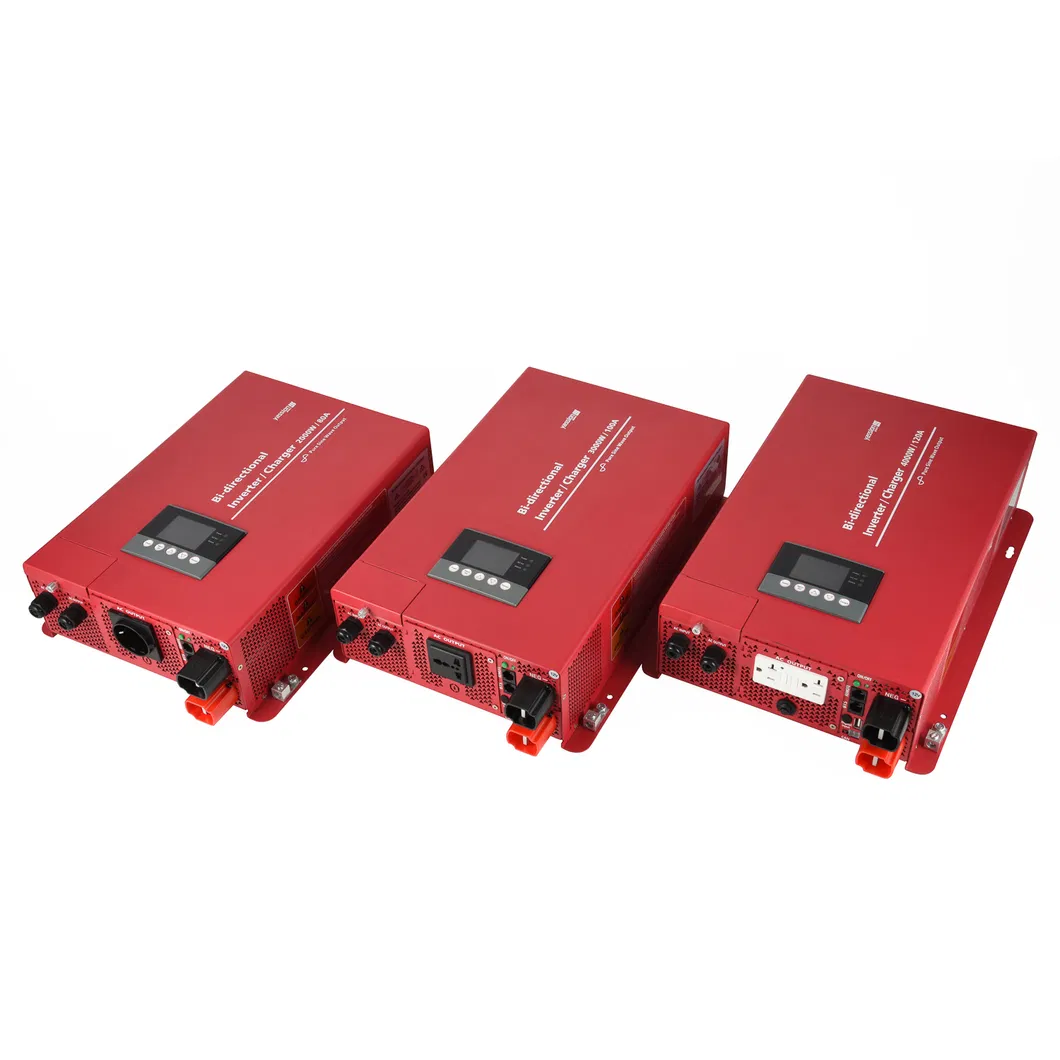

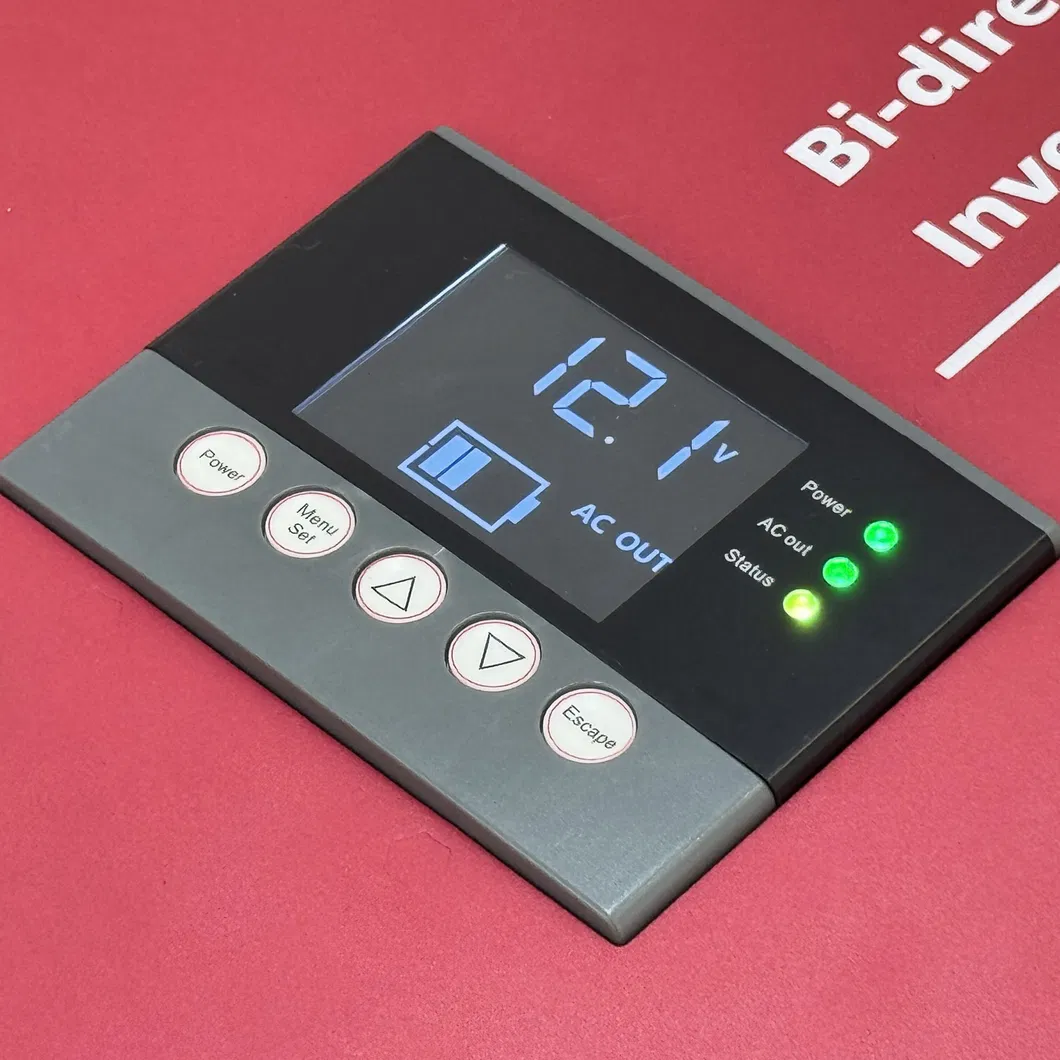

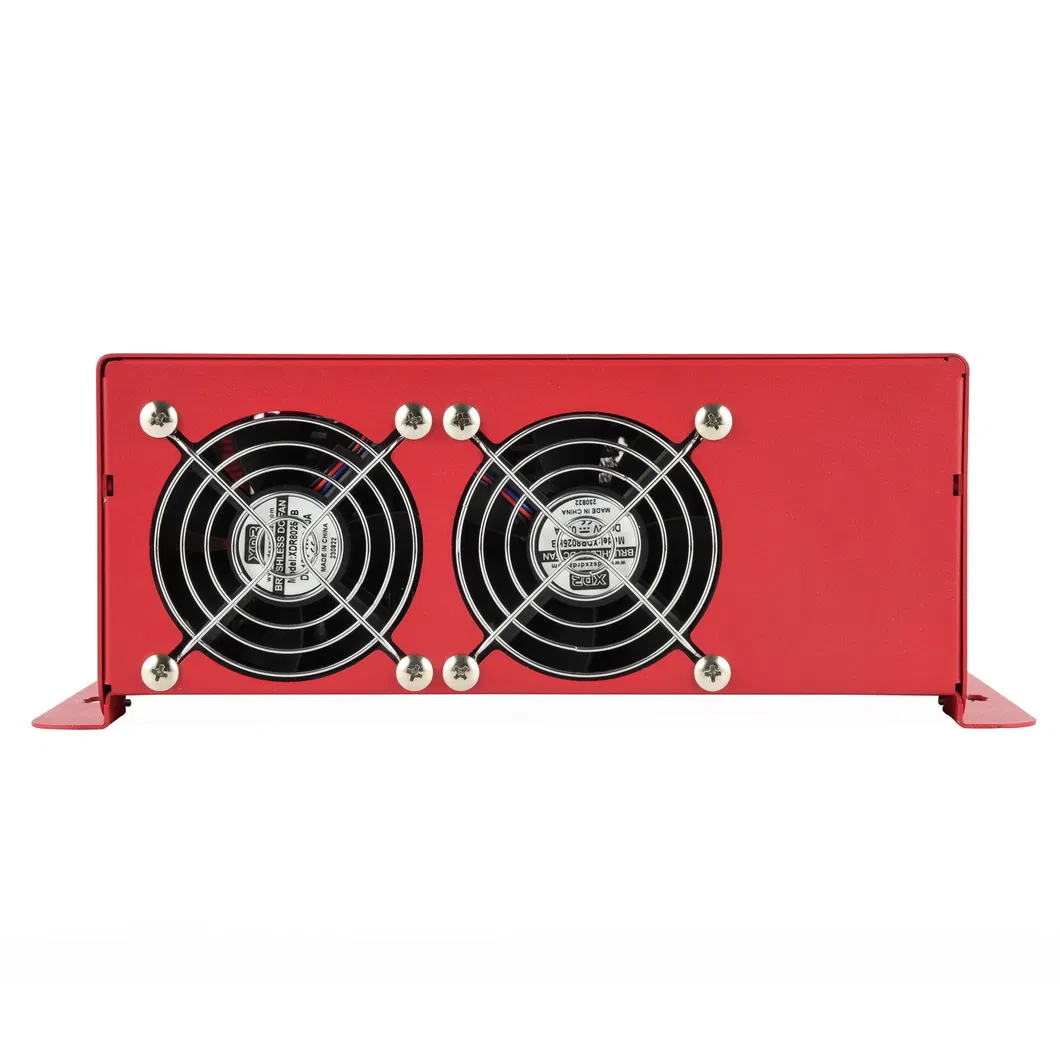

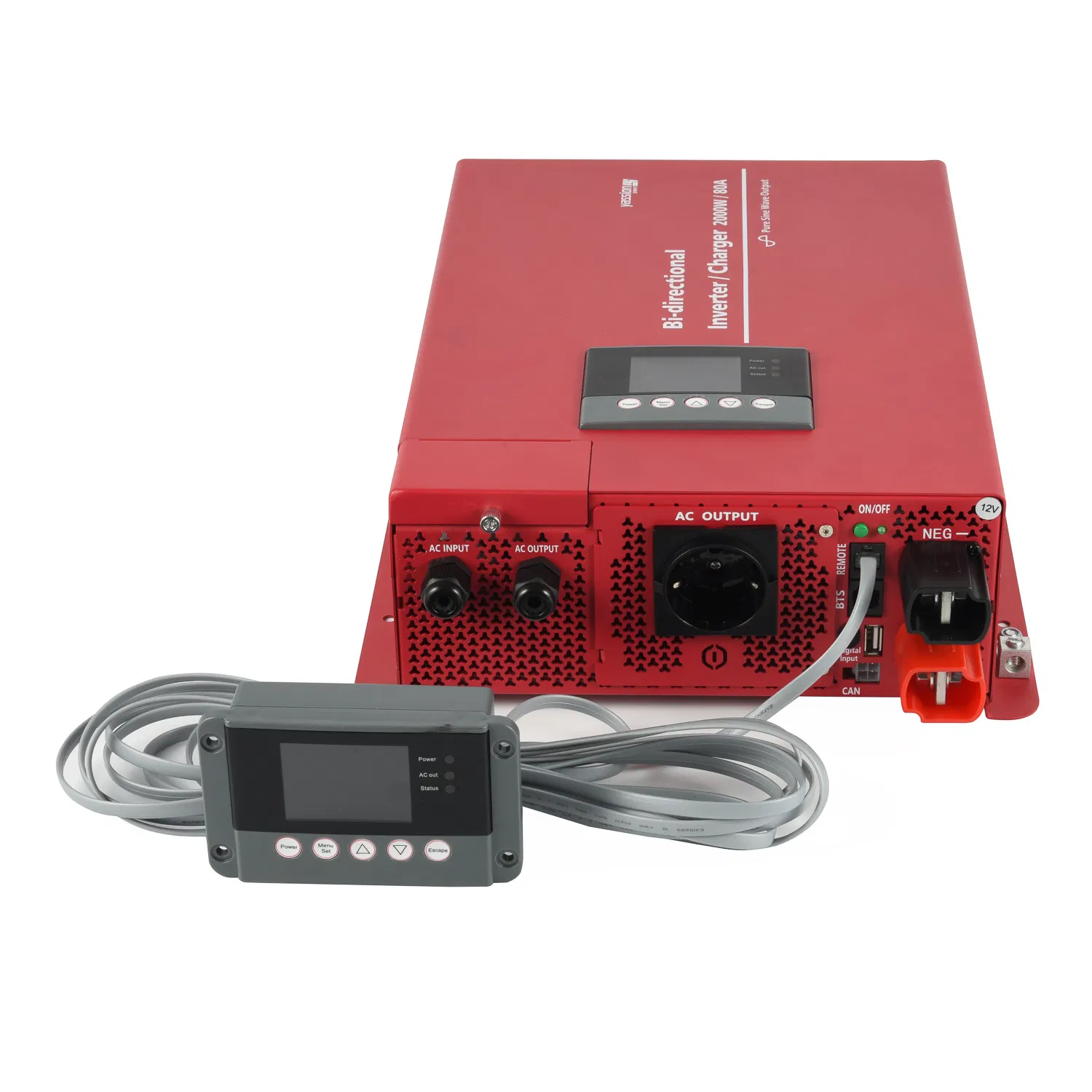

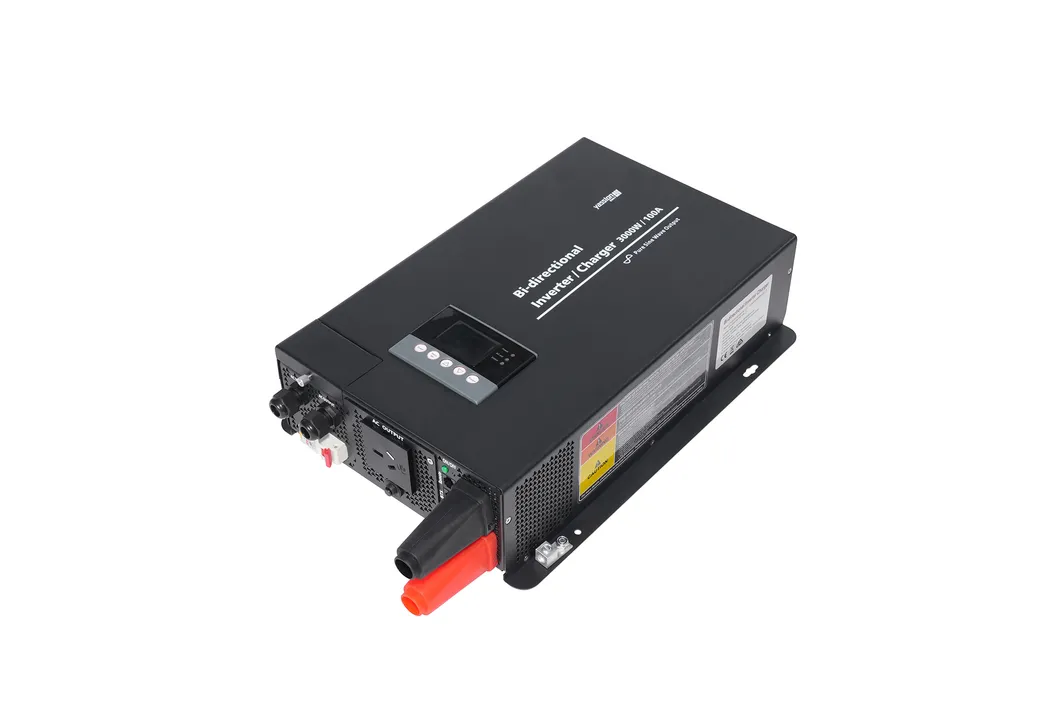

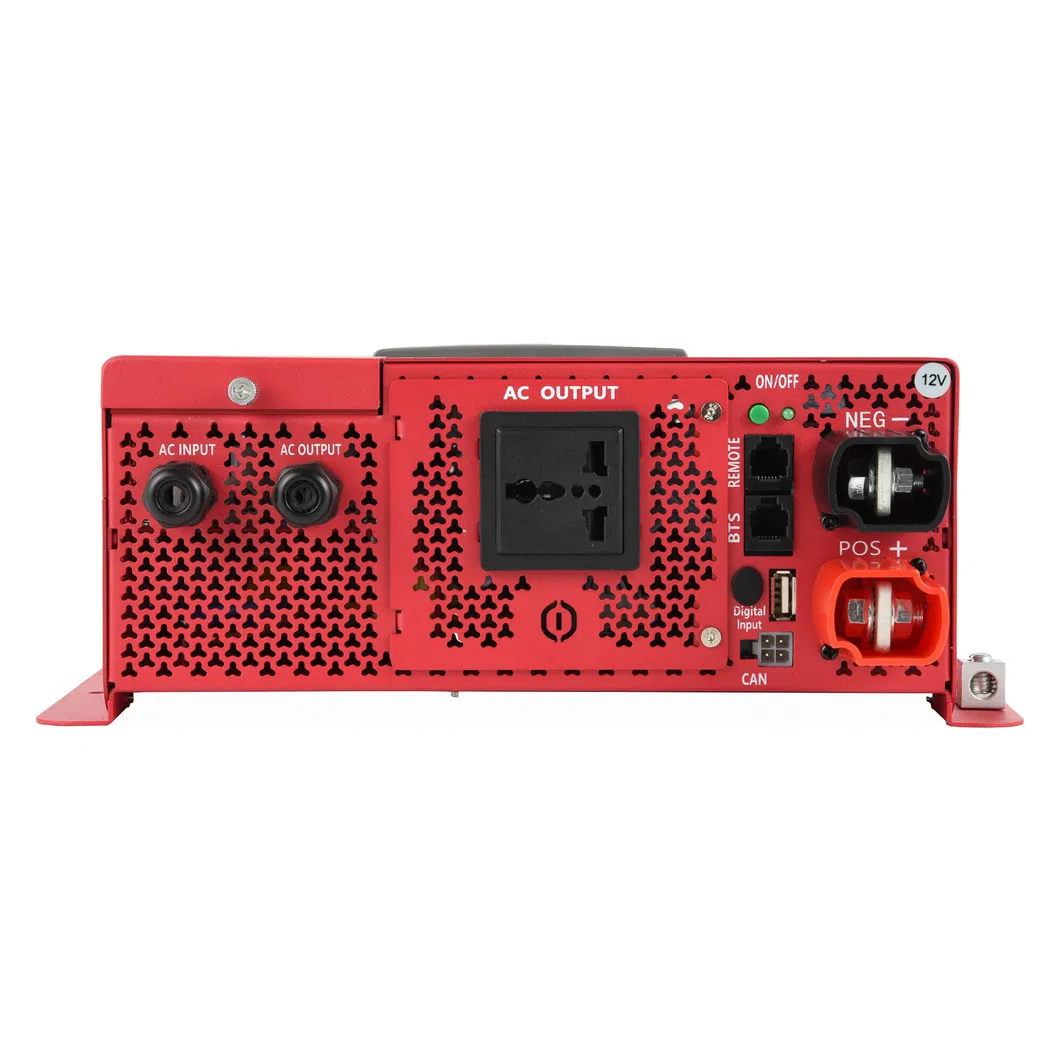

Detailed Photos

Product Parameters

SPECIFICATIONS	12V Model (120V)	24V Model (120V)	48V Model (120V)	12V Model (230V)	24V Model (230V)	48V Model (230V)
Continuous AC Power	3000W
AC Surge Power	6000W
Output Waveform	Pure Sine Wave (THD < 5%)
Nominal DC Input	12.5 VDC	25 VDC	50 VDC	12.5 VDC	25 VDC	50 VDC
Efficiency (Typical)	90%	90%	94%	90%	90%	94%
Transfer Time	< 30ms (Utility to Inverter) / < 20ms (Inverter to Utility)
Charging Current	100A	50A	25A	100A	50A	25A

Certifications

Company & Advantages

Frequently Asked Questions

What types of batteries are compatible with this inverter-charger?

This unit supports a wide range of battery types including Gel, Flooded, AGM, and Lithium batteries. It also features a customizable "Use" mode for specific battery requirements.

How long is the transfer time between utility power and inverter mode?

The nominal AC transfer time from utility to inverter is less than 30ms, and from inverter back to utility is less than 20ms, ensuring minimal interruption to your loads.

What is the peak power capacity of the 3000W model?

The 3000W model features a surge power capacity of up to 6000W, allowing it to handle high-startup currents from appliances like pumps or compressors.

Can the output voltage and frequency be adjusted?

Yes, the AC output voltage (100/110/120 VAC or 220/230/240 VAC depending on the model) and frequency (50/60 Hz) can be set by the user to match local requirements.

What safety protections are built into the device?

The inverter-charger is designed to meet UL 458, CSA C22.2, and CE standards. It includes protections against over-temperature, overload, and short circuits, with a high-efficiency pure sine wave output.

What is included in the standard package?

The standard package includes the Inverter-Charger base unit and a comprehensive owner's manual for installation and operation guidance.
