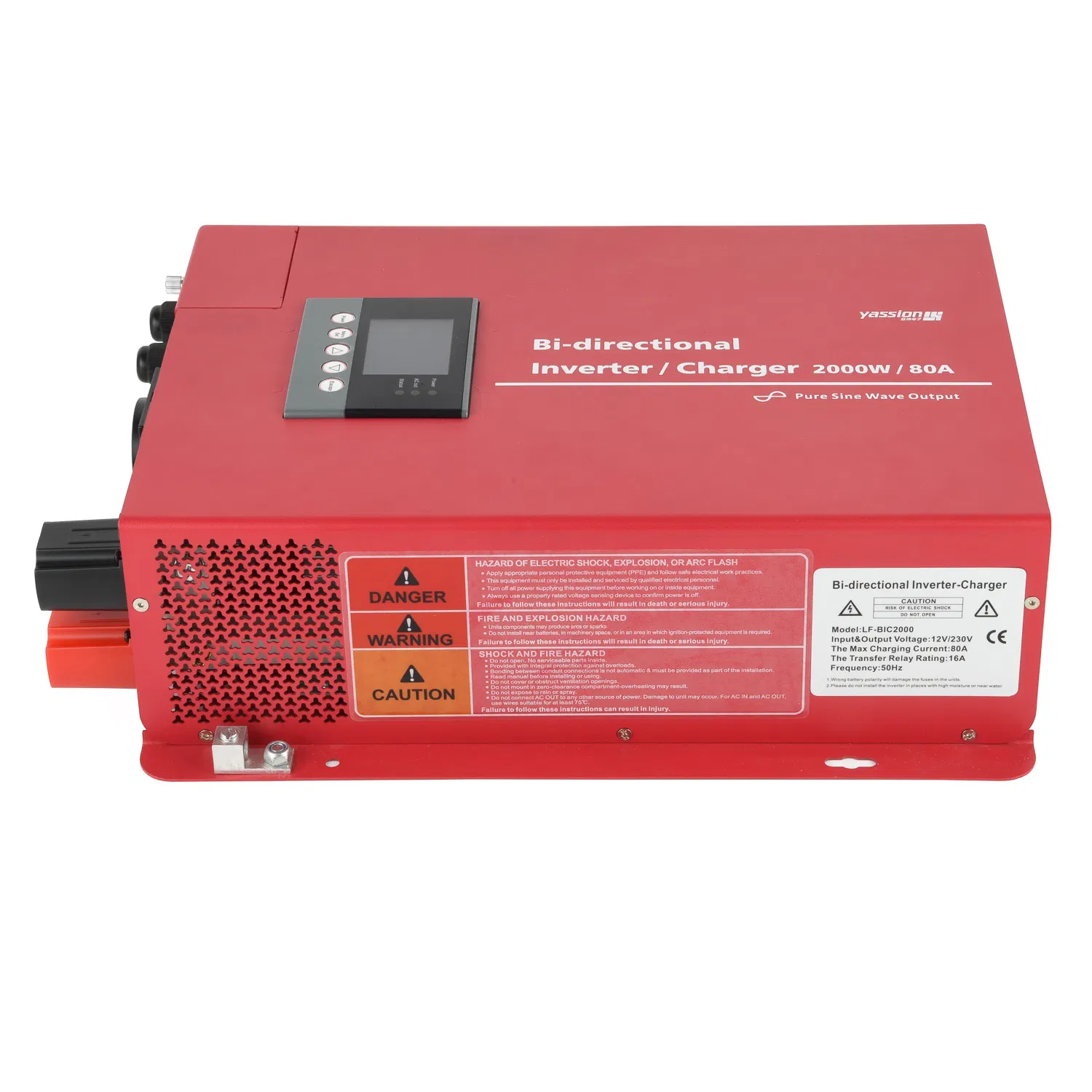

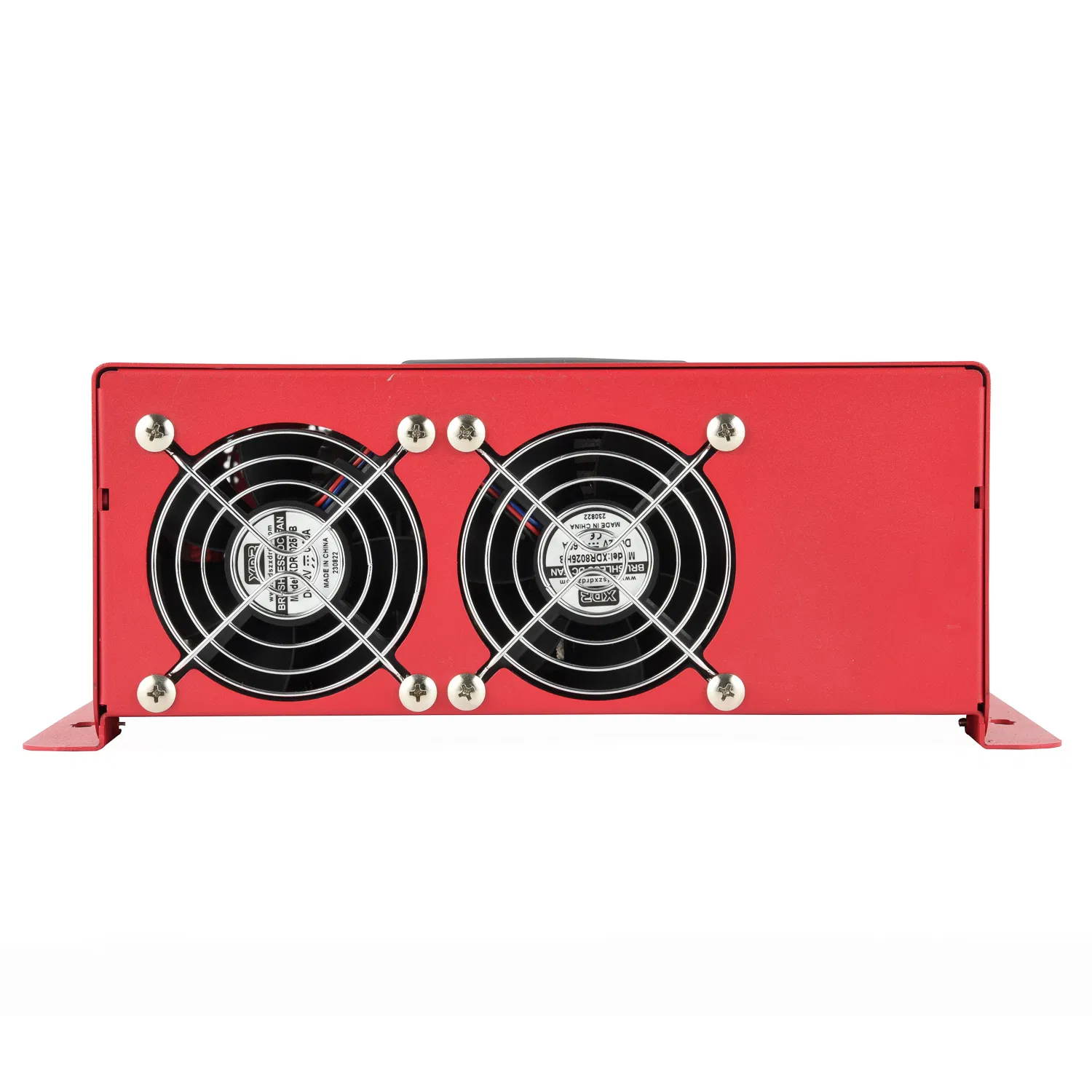

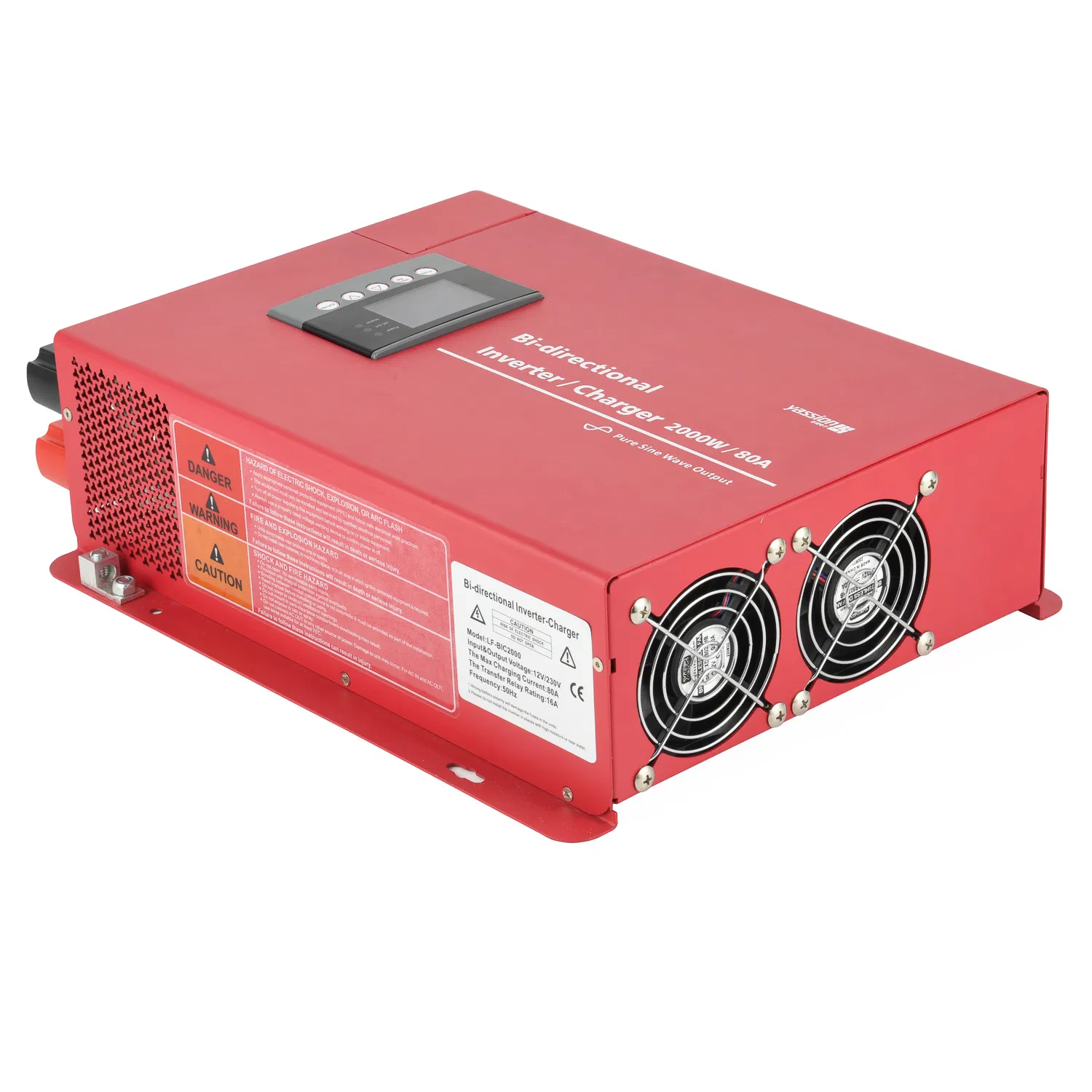

China Factory Bi-Directional Inverter Charger 2kw 12V/230V for RV

Customization:	Available
Nature of Source Flow:	Passive inverter
Certification:	ISO9001, RoHS, CE, FCC and E-MARK

Send Inquiry

Product Description

Basic Overview

Model NO.

LF-BIC01200802

Output Power

2000W

Grid Type

Off-Grid Inverter

Output Type

Single

Peak Power

4000W

Output Waveform

Pure Sine Wave

Efficiency

90%

Battery Type

Gel, Flooded, AGM, Lithium

Weight

5.9kg

Dimensions

387.9mm X 287mm X 110mm

Product Description

The Sinewave Inverter-Charger is a high-performance bi-directional power solution designed specifically for RV and off-grid applications. This base unit provides seamless power conversion and reliable battery charging.

Inverter-Charger base unit included
Comprehensive Owner's manual

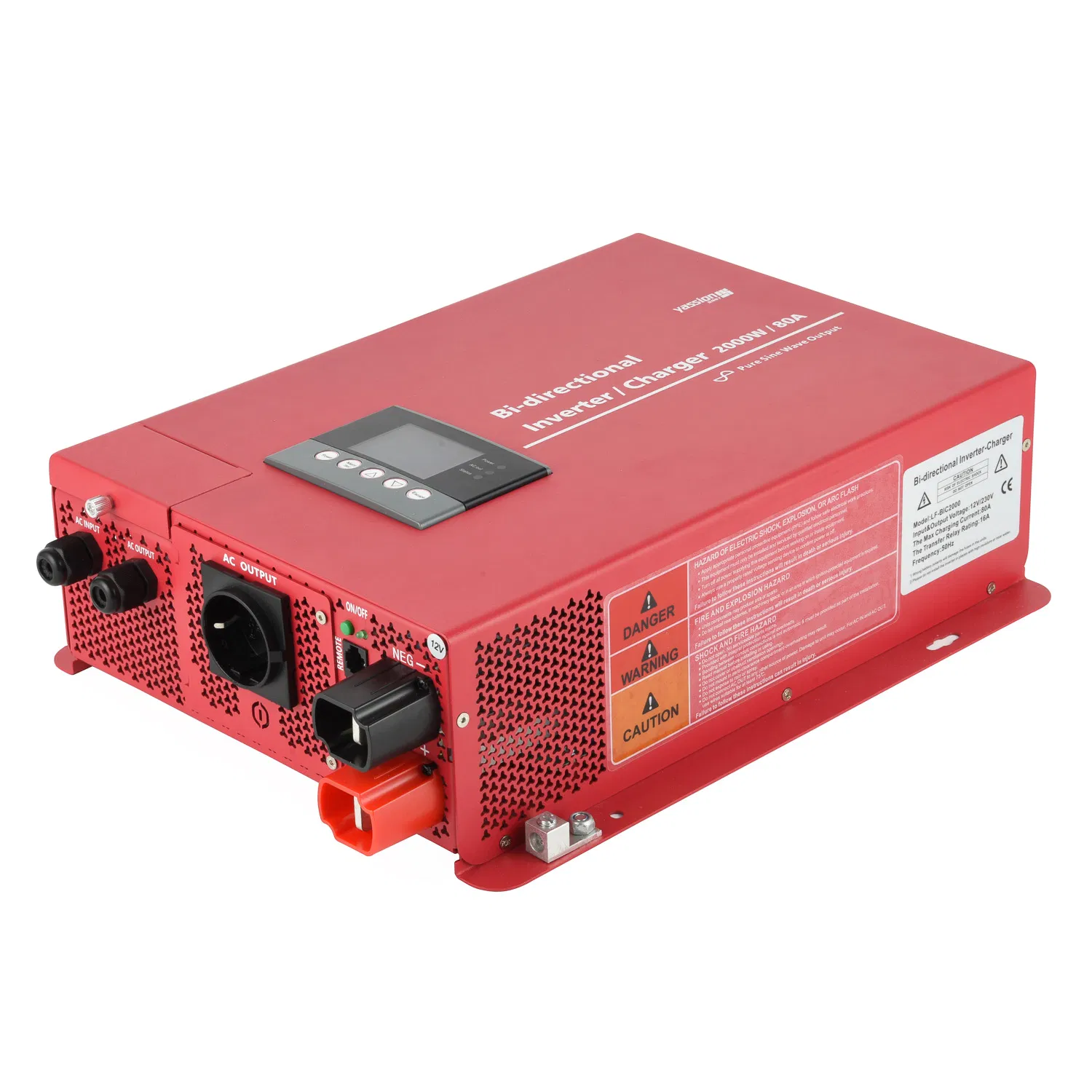

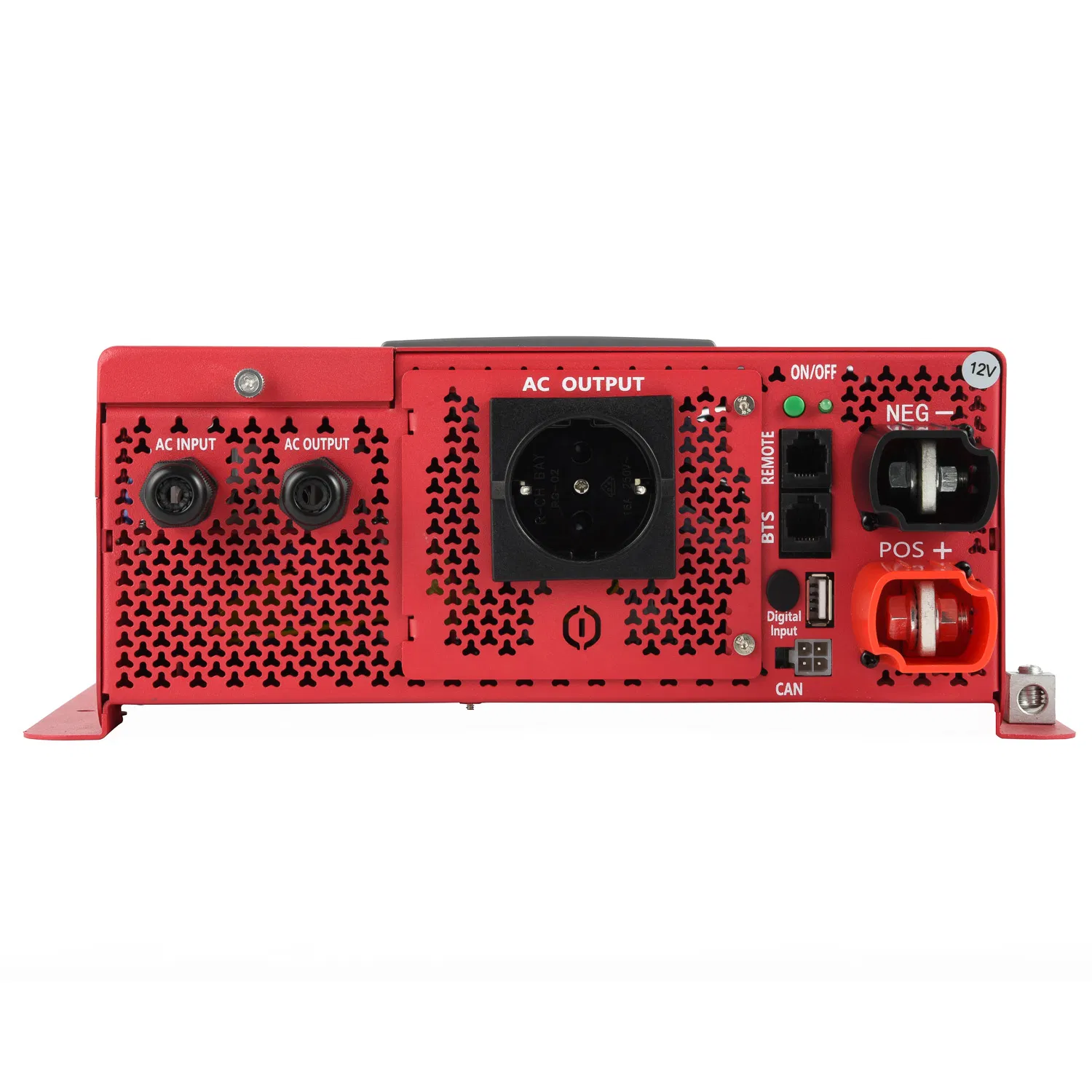

Detailed Photos

Product Parameters

Specifications	12V Model	24V Model	48V Model
Continuous AC Power	2000W
AC Surge Power (Peak)	4000W
Nominal DC Input	12.5 VDC	25 VDC	50 VDC
Efficiency	90% typical	90% typical	94% typical
Transfer Time	<30ms (Utility to Inverter) / <20ms (Inverter to Utility)
Charging Current (Max)	80A	40A	30A

Certifications & Quality

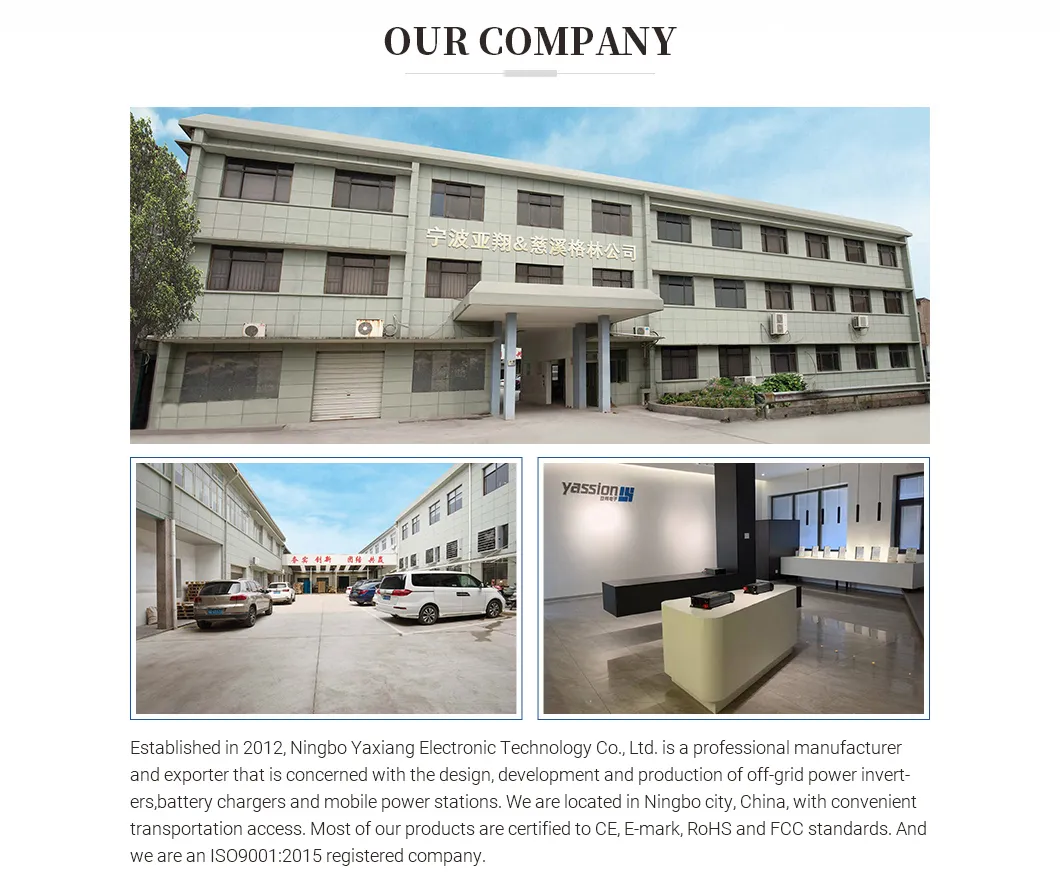

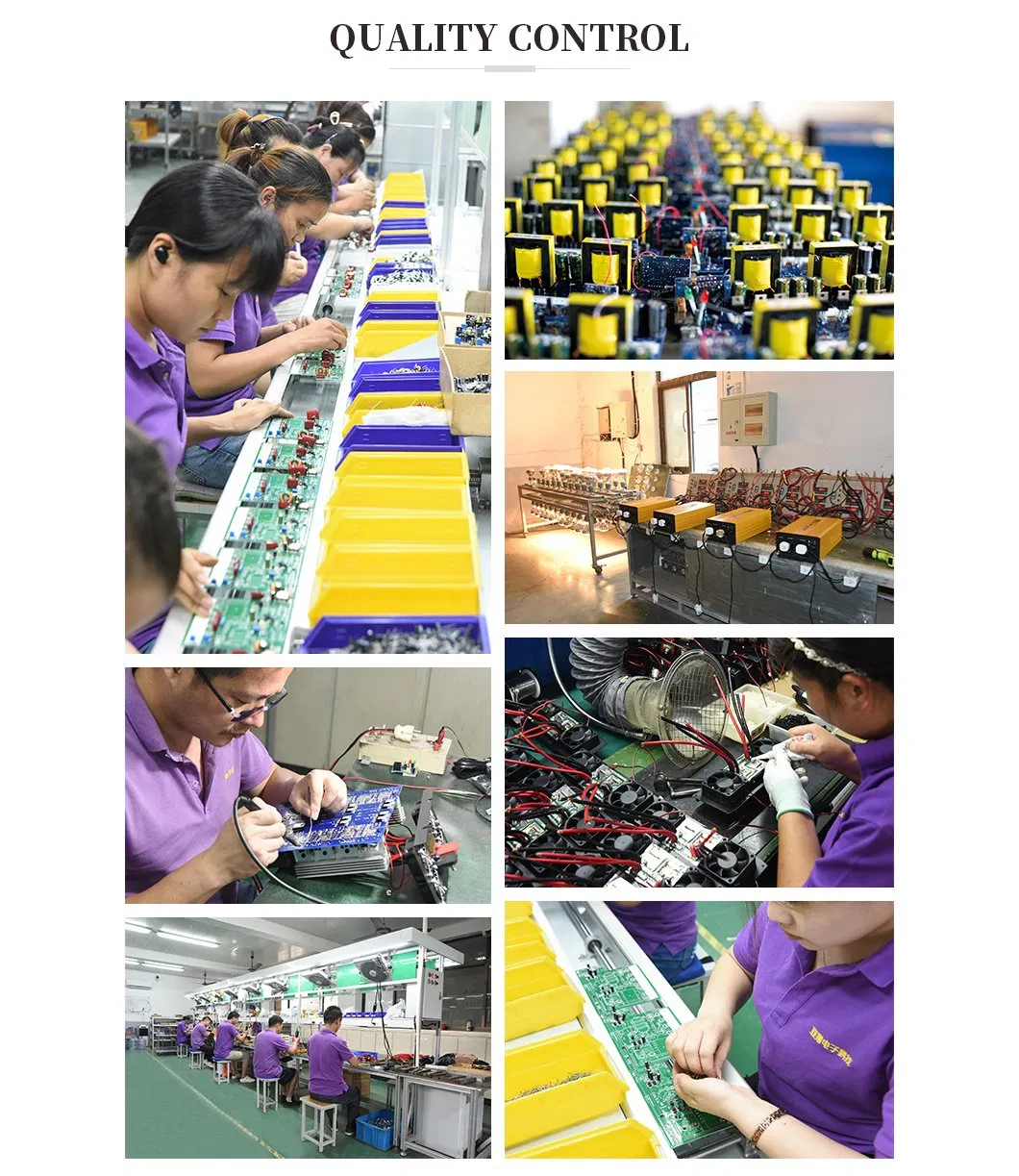

Production & Advantages

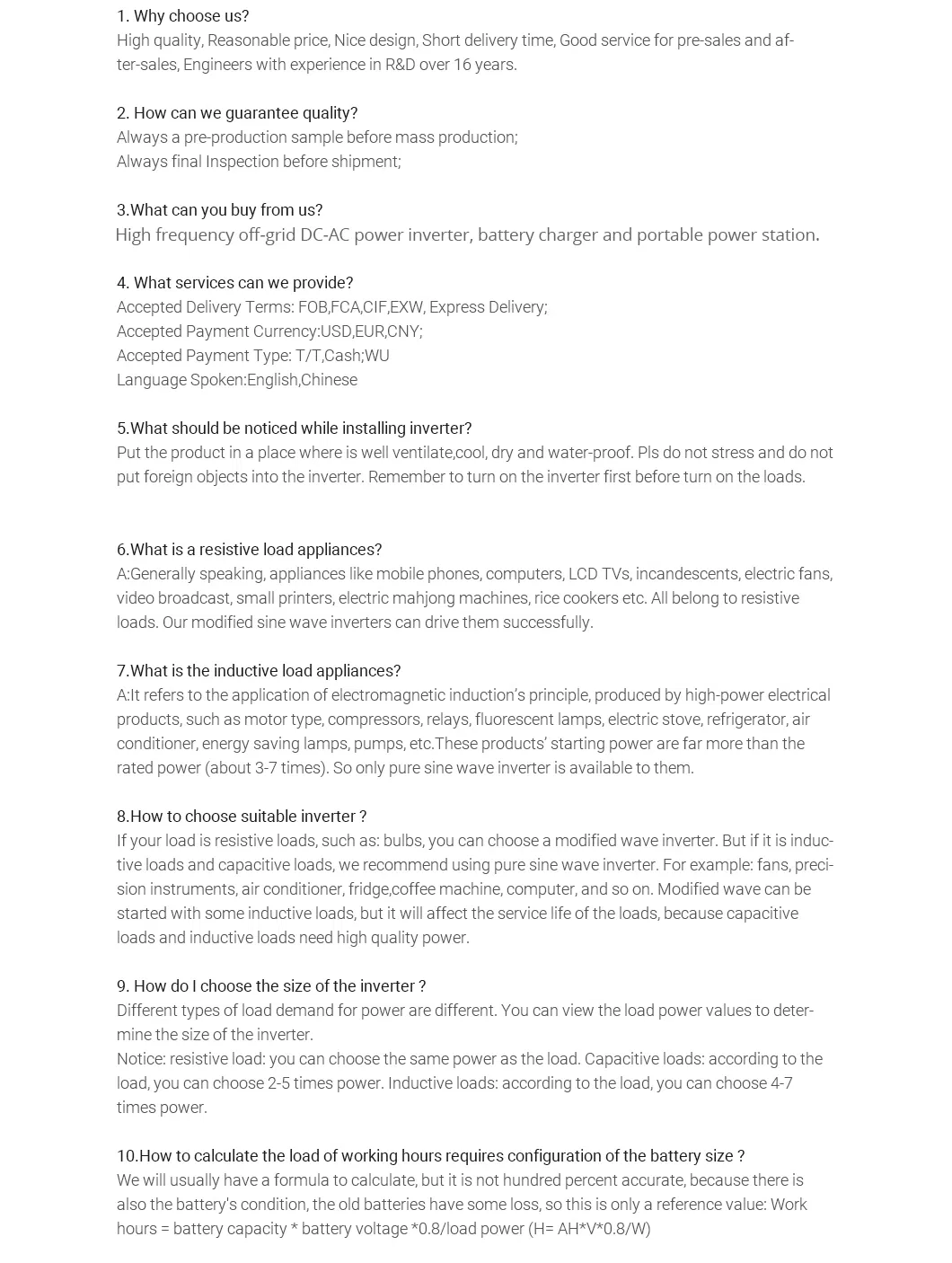

Frequently Asked Questions

What types of batteries are compatible with this inverter charger?

The system supports multiple battery chemistry types including Gel, Flooded, AGM, and Lithium batteries. It also features a customizable "Use" setting for specific power supply needs.

What is the peak power capacity for handling surges?

While the continuous output is 2000W, the unit can handle a peak surge of up to 4000W, making it suitable for starting inductive loads like small air conditioners or power tools.

How fast is the transfer between utility power and battery mode?

The nominal AC transfer time from utility to inverter is less than 30ms, and from inverter back to utility is less than 20ms, ensuring minimal interruption to your connected devices.

Is this unit suitable for outdoor use?

The operating temperature range is 0°C to 50°C. It should be installed in a ventilated, dry environment (relative humidity 5-90% non-condensing) to ensure longevity and performance.

What safety certifications does the product hold?

The unit is compliant with major international standards including cETLus (UL 458, CSA C22.2) and CE (EN 60204-1, IEC 61558-2-16) for safety and EMC requirements.

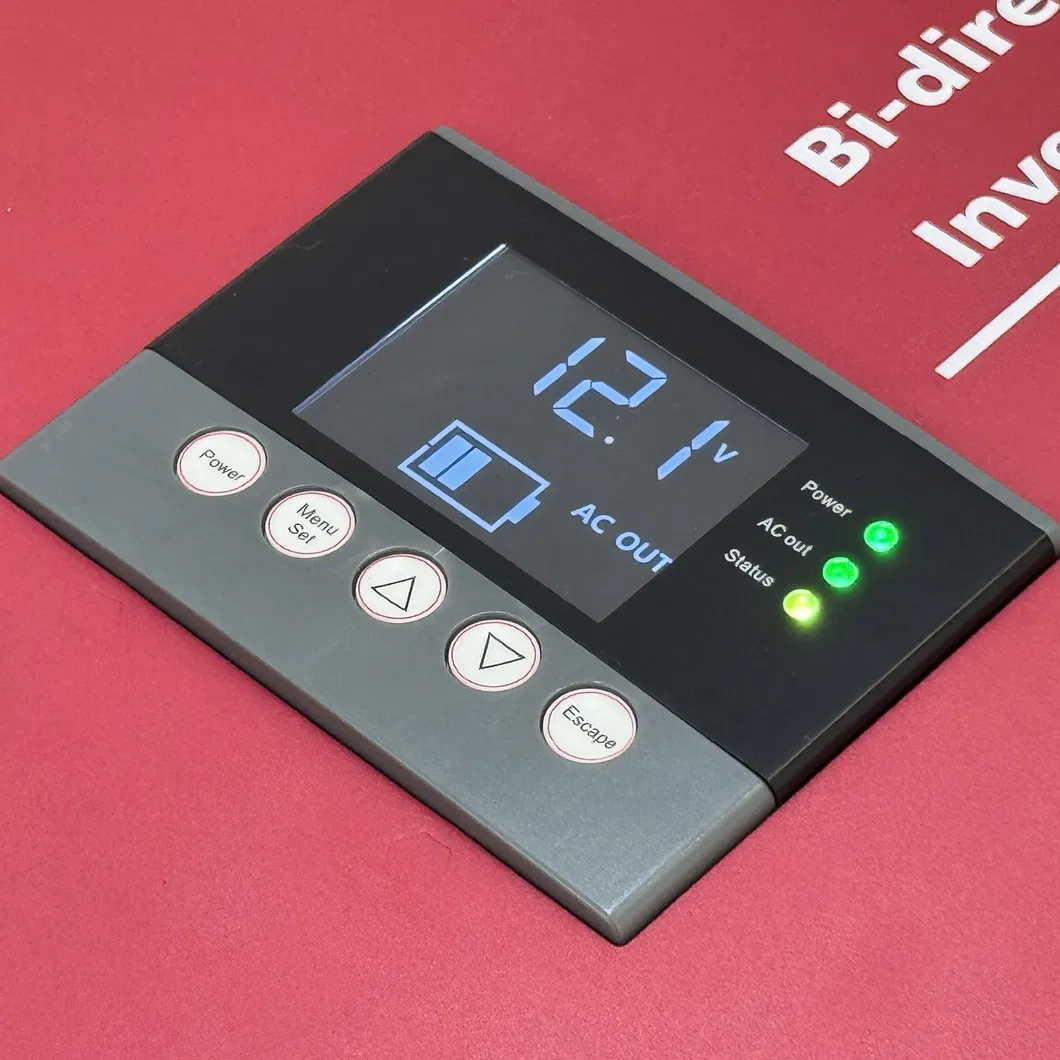

Does the display show real-time battery status?

Yes, the LED digital display provides real-time information on input voltage, output power, and output voltage in inverter mode, as well as status and battery voltage in charger mode.
