Product Description

Product Overview

Model NO.:LF-BIC3000

Output Power:>1000W

Grid Type:Off-Grid Inverter

Output Type:Single

Circuit Topologies:Full-Bridge Type

Nature of Wave String:Sine Wave Inverter

Type:DC/AC Inverters

Peak Power:6000W

Max Charging Current:100A/12V

Transfer Relay Rating:30A/120V

Frequency:50Hz or 60Hz

Warranty:18 Months

Nominal DC Input:25VDC

Specification:433x287x110mm

Product Description

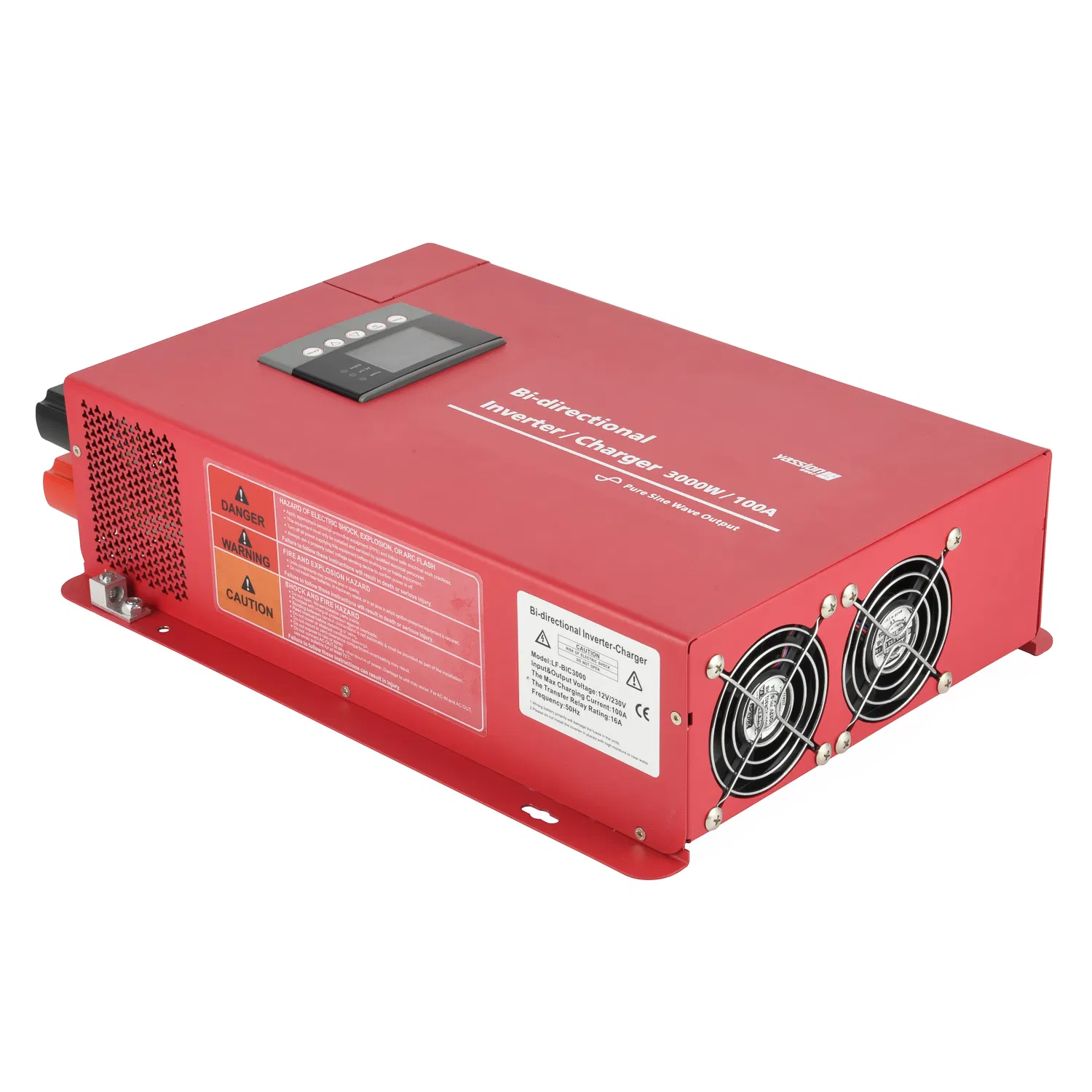

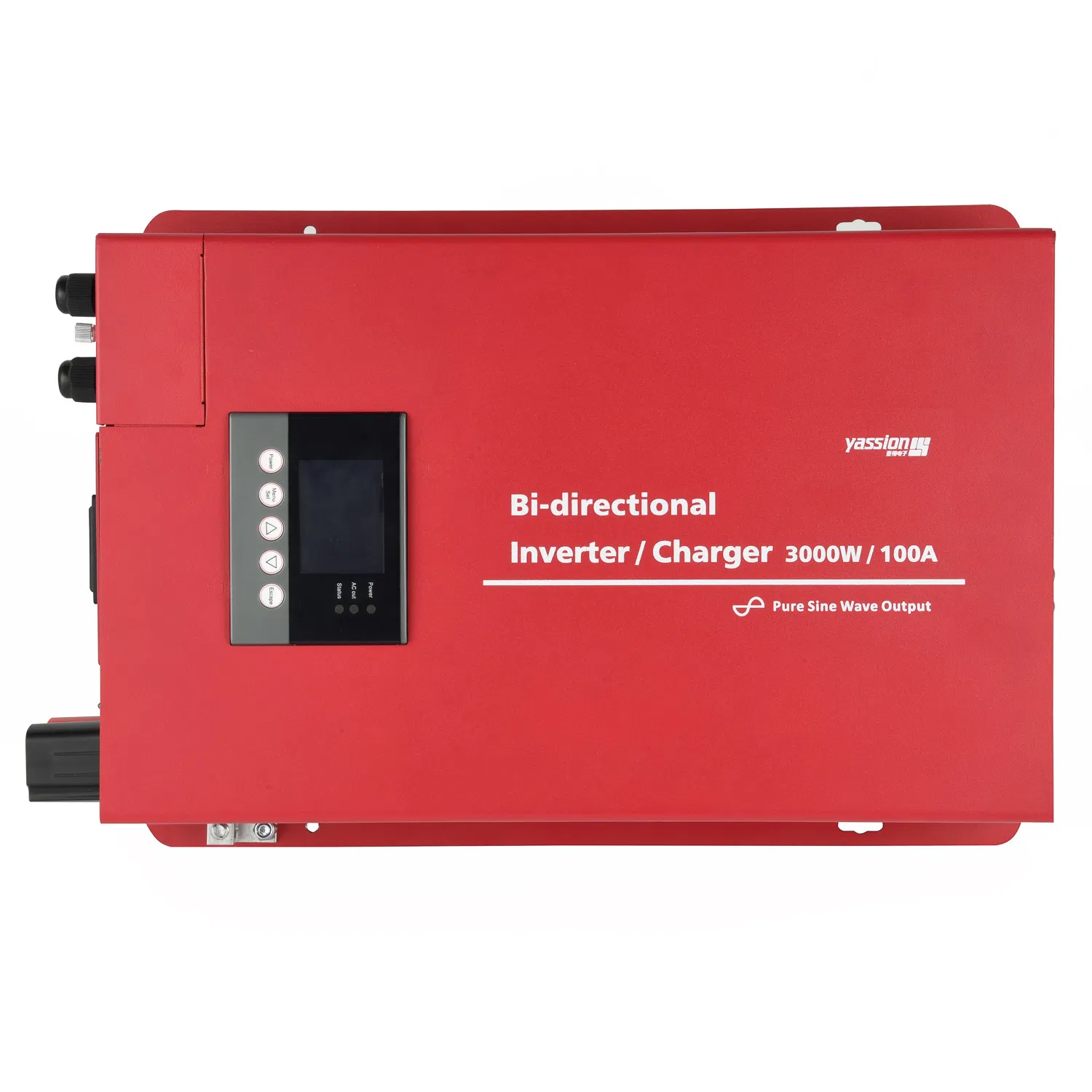

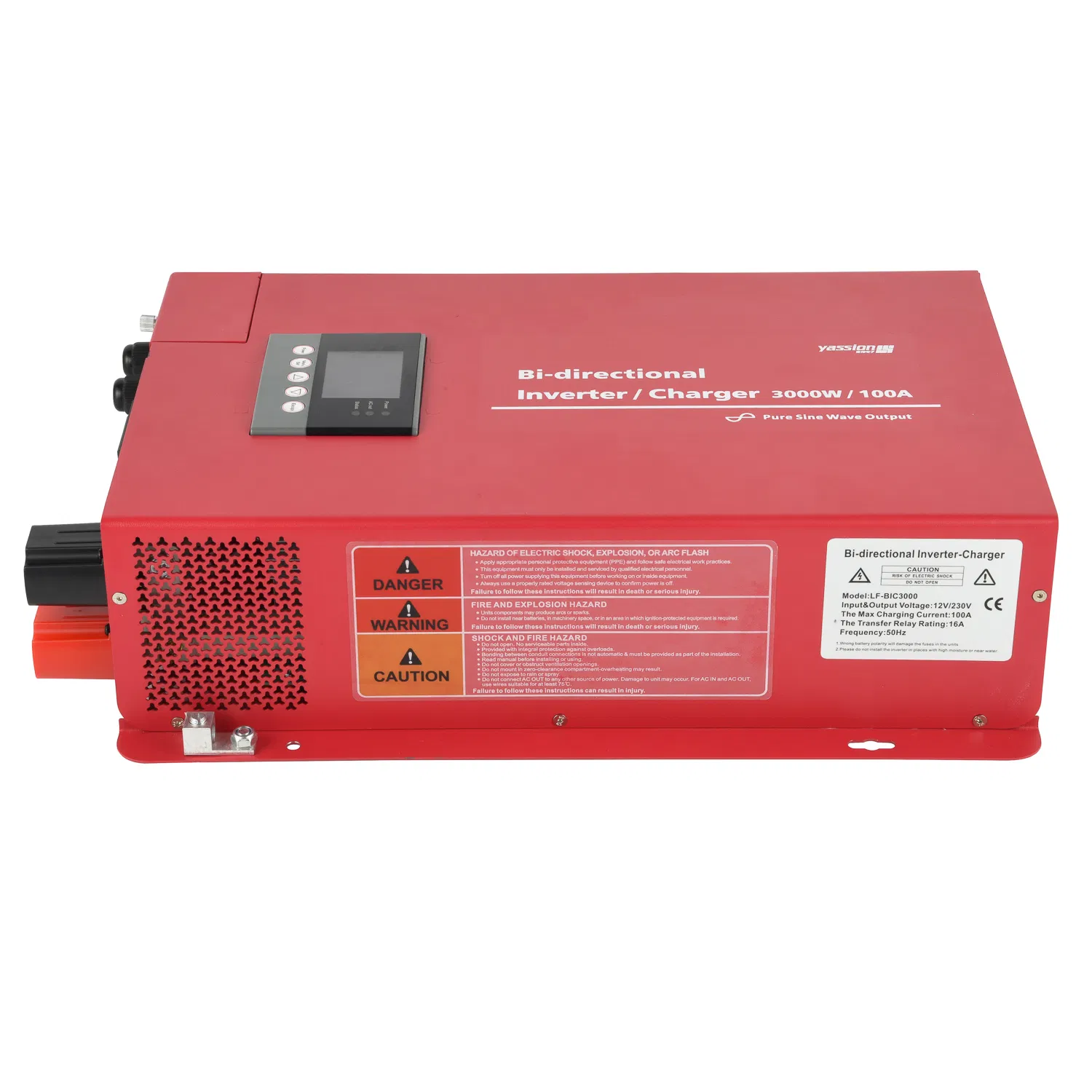

3000W Bi-directional Inverter Charger

⚡

3000W continuous pure sine wave power and 6000W surge power.

🔋

High performance charging: Max charging current of 12V 3000W is 100A.

⚙️

Automatic switching between city power and battery power.

📊

LED display for DC/AC voltage, output power, and protection codes.

🔌

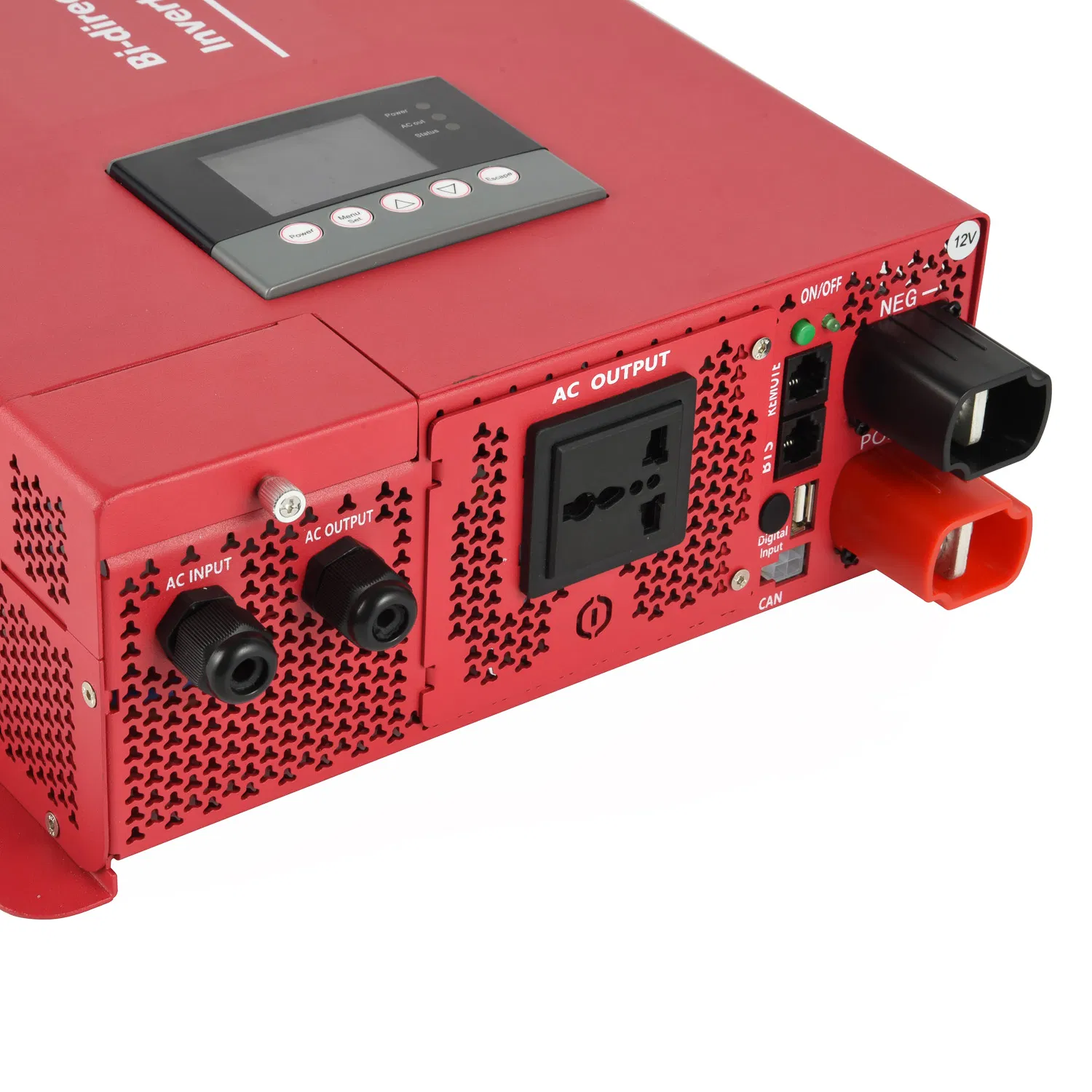

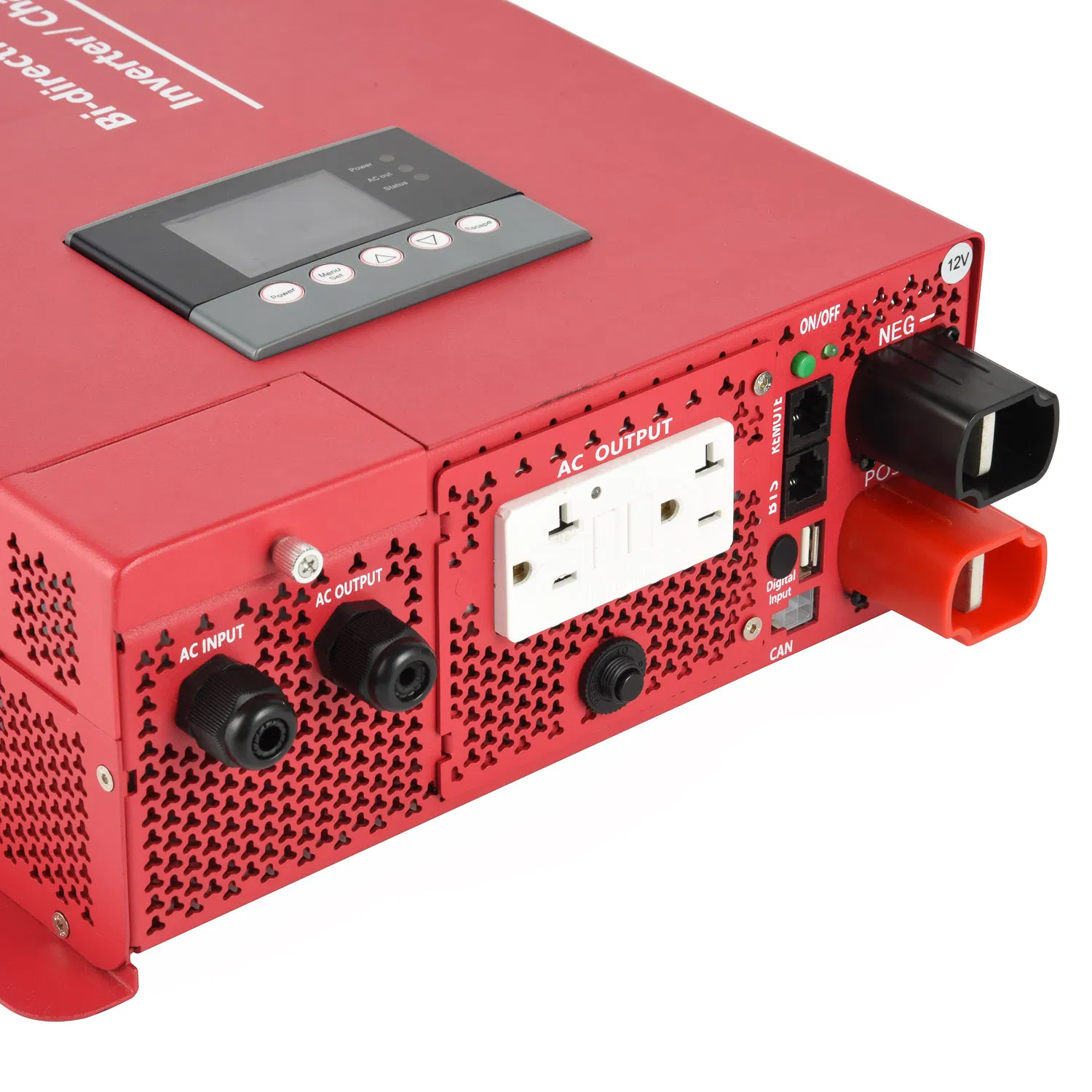

Multiple ports: CAN-BUS, BTS, USB Program, Ignition, and Remote ports.

🛡️

Ultra-clean power with less than 3% total harmonic distortion (THD).

Package Includes: 3000w Bi-directional inverter charger and a user manual.

Technical Specifications

SPECIFICATIONS	12V model	24V model	48V model	12V model	24V model	48V model
SPECIFICATIONS	120V model			230V model
Continuous AC Output	3000W
AC Surge Power (Peak)	6000W
AC Output Voltage	110-130 VAC / 60 Hz			220-240 VAC / 50 Hz
Efficiency (Typical)	90%		94%	90%		94%
AC Transfer Time	<30ms (Utility to Inverter) / <20ms (Inverter to Utility)
Charging Current (Max)	100A	50A	40A	100A	50A	40A
Operating Temp	0°C to 50°C
Dimensions (LxWxH)	433mm X 287mm X 110mm

Detailed Photos

Frequently Asked Questions

What is the difference between peak power and continuous power?

Continuous power (3000W) is the amount of power the inverter can handle indefinitely, while peak power (6000W) is what it can handle for a very short duration to start motorized appliances.

Can this inverter charge different types of batteries?

Yes, it supports multiple battery types including Gel, Flooded, AGM, and Lithium batteries via customizable settings.

How fast is the automatic transfer between grid and battery?

The transfer time from utility to inverter is less than 30ms, and from inverter back to utility is less than 20ms, ensuring minimal interruption.

Does the unit provide clean power for sensitive electronics?

Absolutely. It produces a Pure Sine Wave with less than 3% Total Harmonic Distortion (THD), making it safe for laptops, medical equipment, and other sensitive devices.

What protection features does the LED display show?

The LED display provides real-time data on DC/AC voltage and output power, and will display specific protection codes for issues like over-voltage, under-voltage, or overheating.
