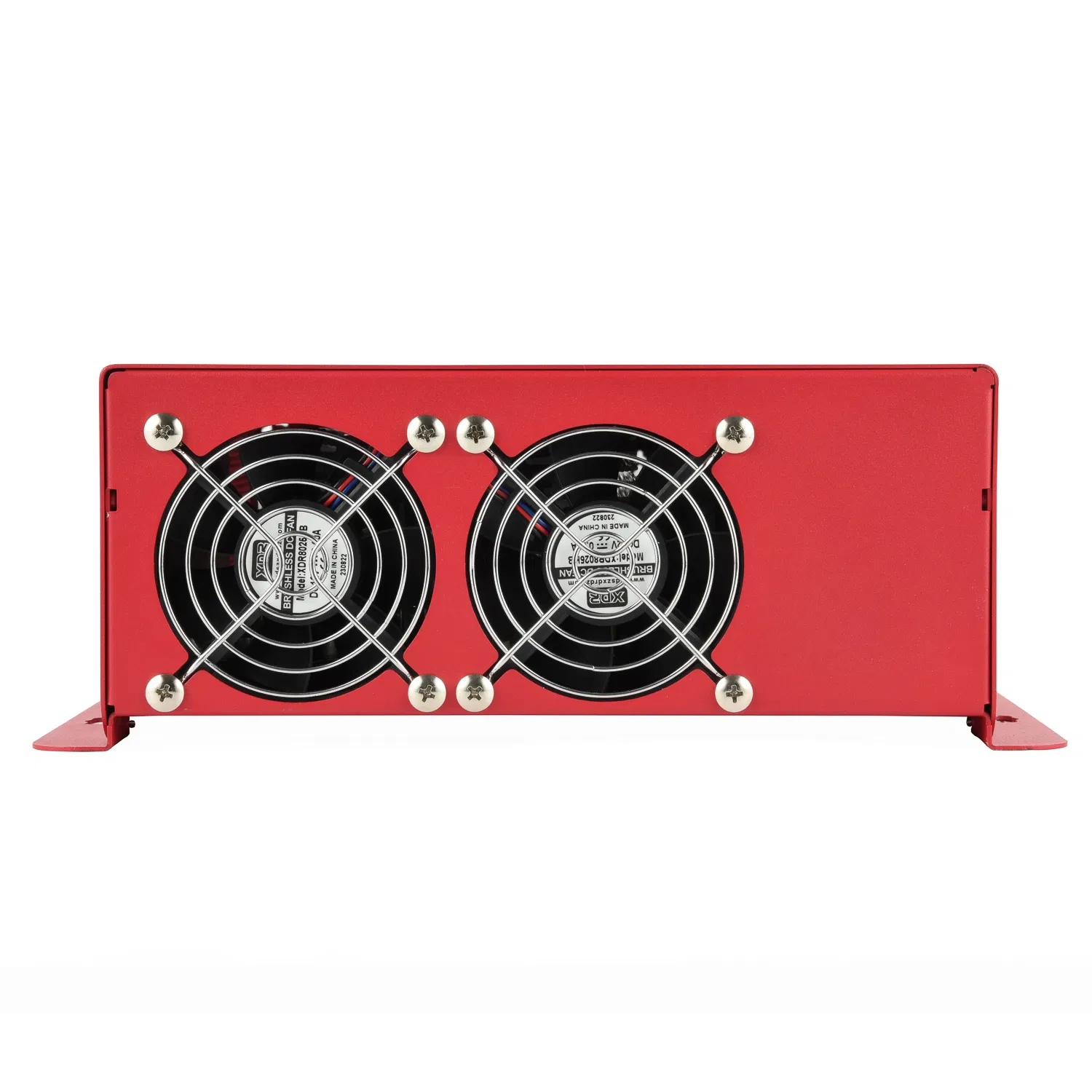

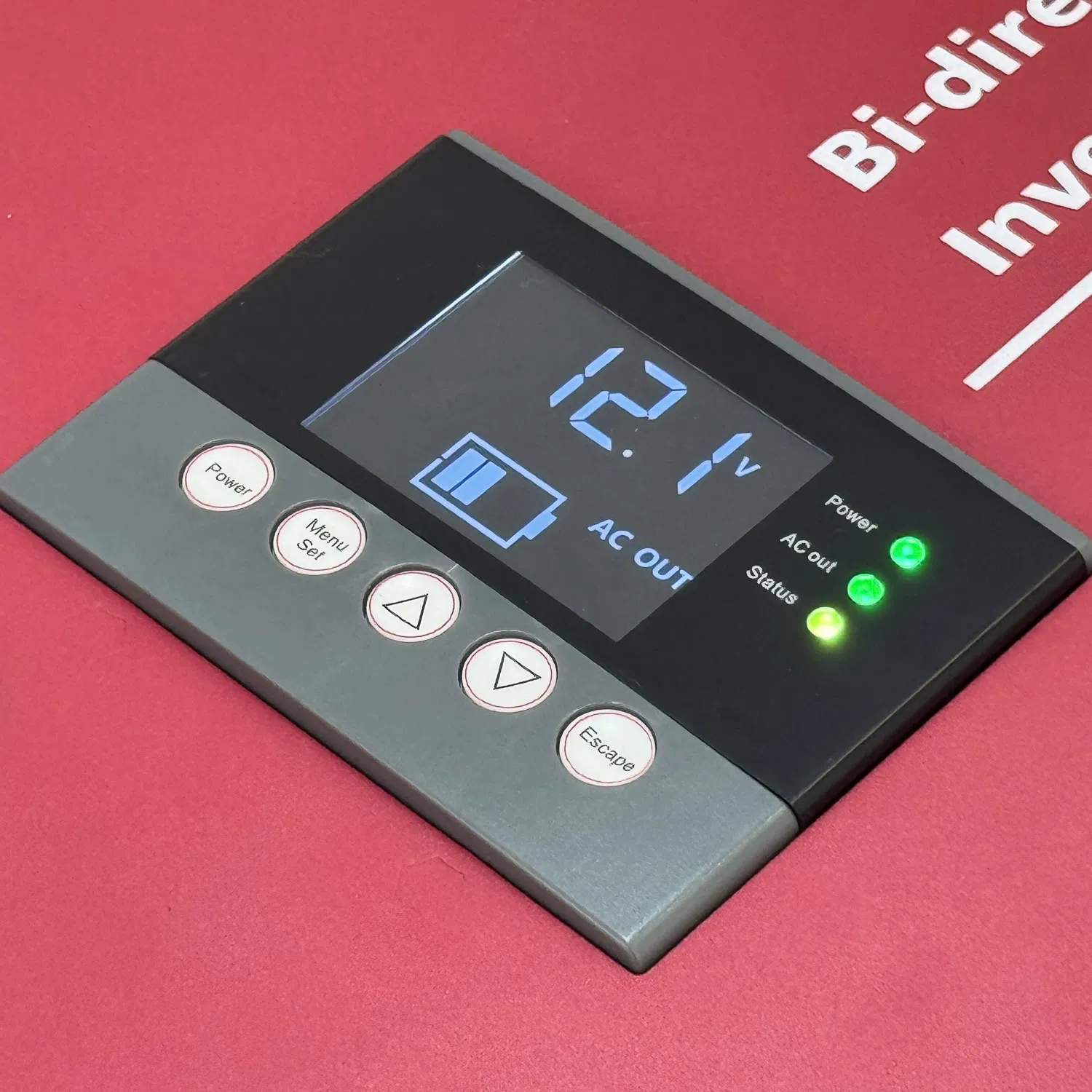

Pure Sine Wave Bi-Directional Inverter for Caravan Outdoor Travelling 3kw 12V/230V with Charger

1 / 5

Pure Sine Wave Bi-Directional Inverter for Caravan Outdoor Travelling 3kw 12V/230V with Charger

Customization:	Available
Weight:	7.4kg
Peak Power:	6000W

Send Inquiry

Product Description

📋 Overview & Basic Info

Model NO.

LF-BIC01301002

Max Charging Current

100A

Charger Current Setting

20-100A

Charging Control

Bulk / Absorption / Float / Recharge

Output Frequency

50/60Hz

Warranty

18 Months

Efficiency

90%

Output Waveform

Pure Sine Wave

Battery Type

Gel, Flooded, AGM, Lithium, Use, Power Supply

Operating Temp

0°c - 50°c

Dimensions

432.9mm X 287mm X 110mm

Production Capacity

6000 PCS / Month

📦 Product Description

The Sinewave Inverter-Charger package includes high-performance components designed for reliable power management:

Inverter-Charger base unit (Pure Sine Wave)
Comprehensive Owner's manual
Bi-Directional power conversion technology

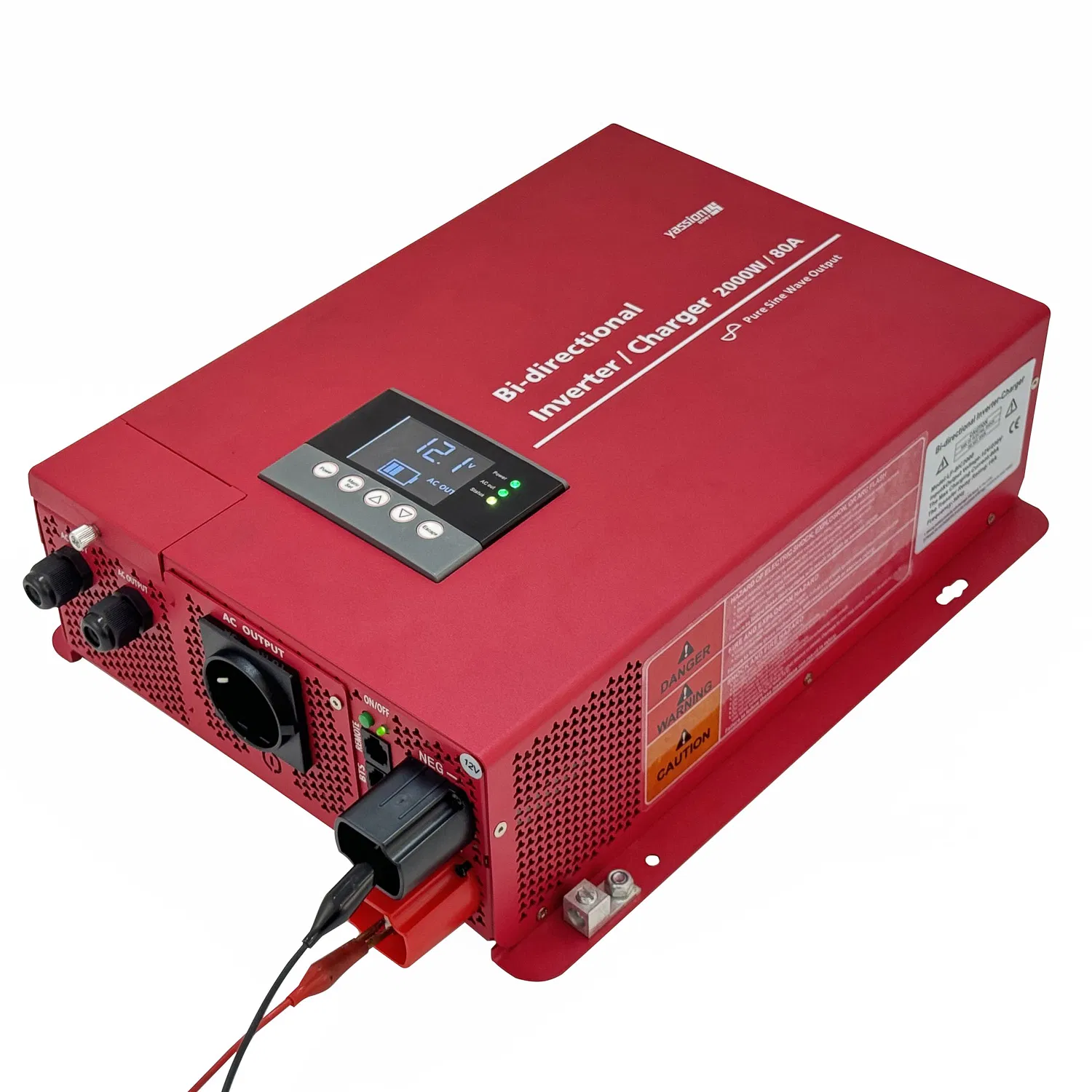

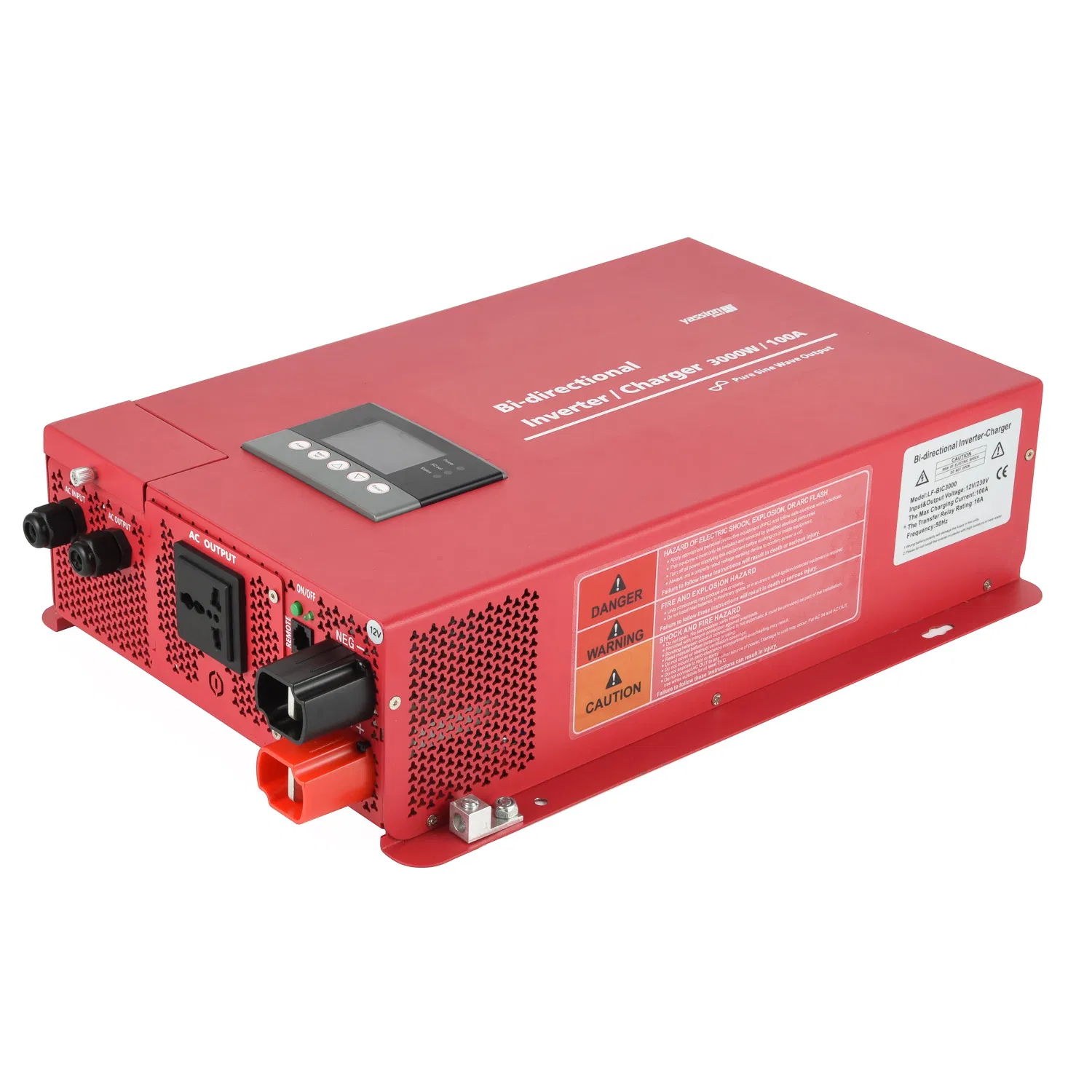

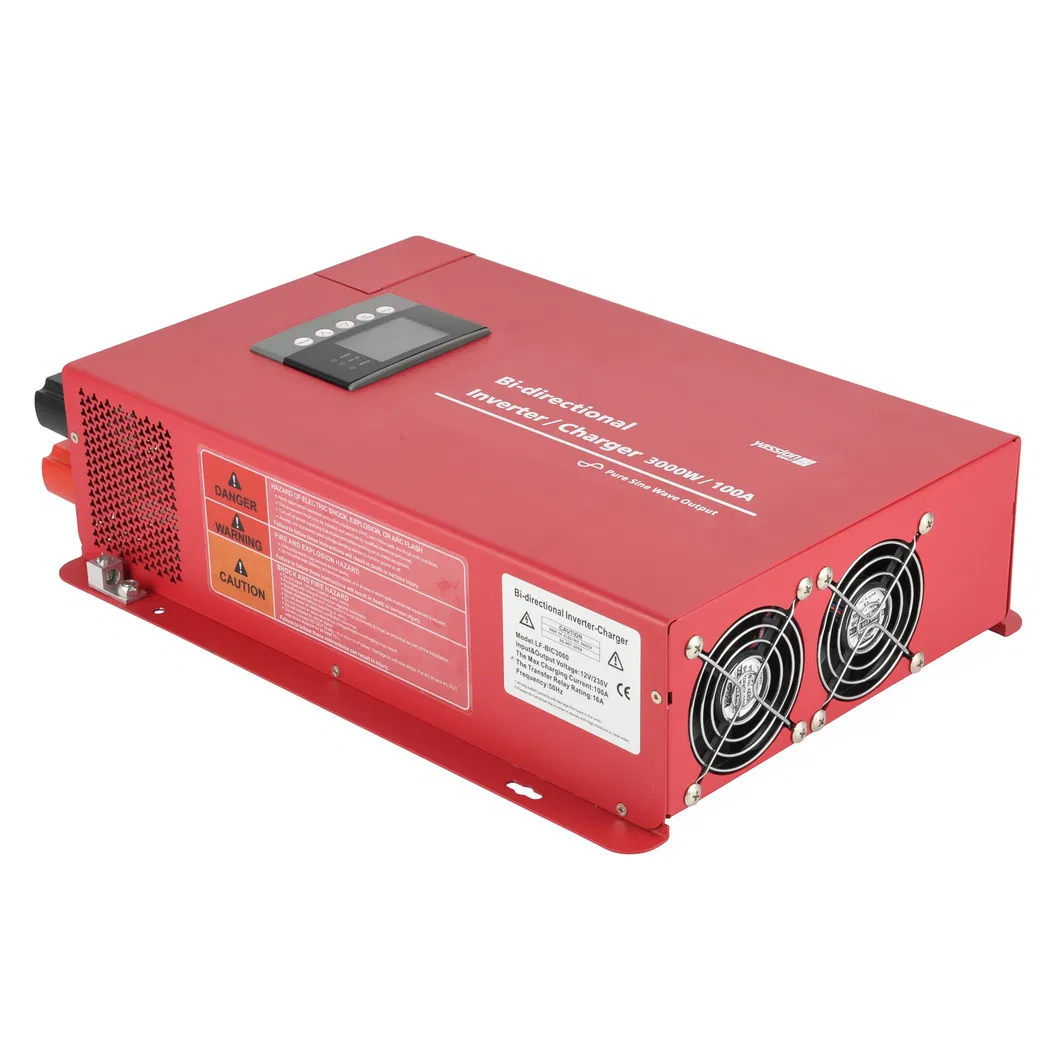

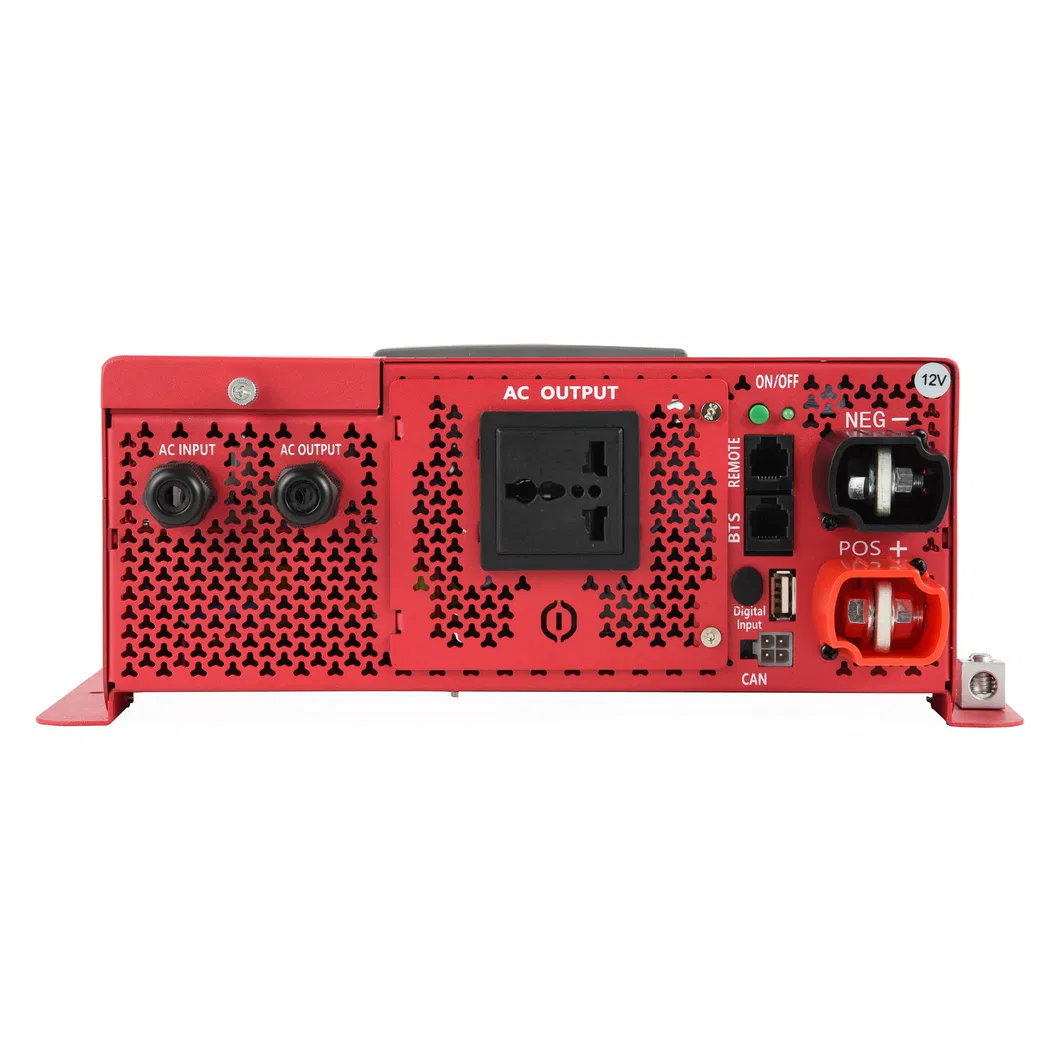

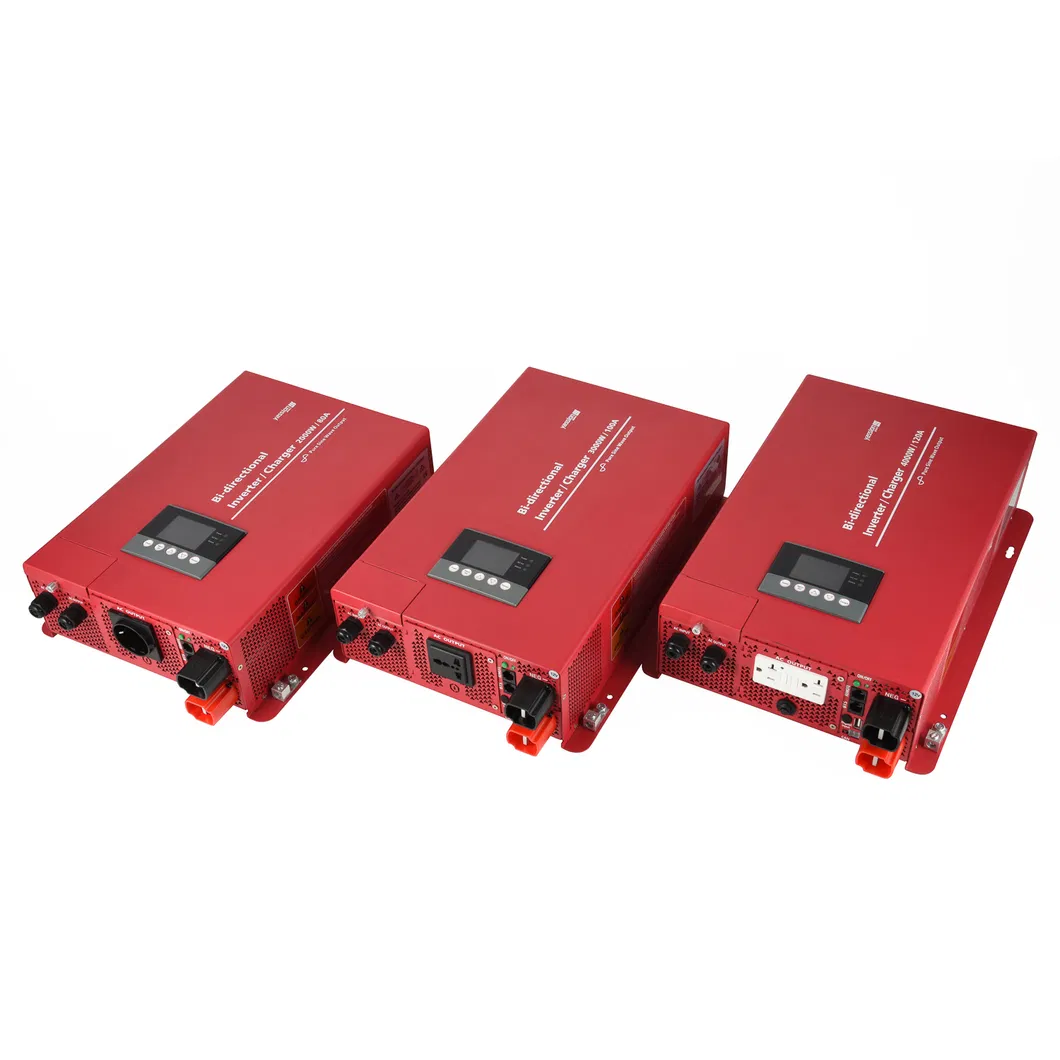

🖼️ Detailed Product Views

📊 Technical Parameters

SPECIFICATIONS	12V Model (120V)	24V Model (120V)	48V Model (120V)	12V Model (230V)	24V Model (230V)	48V Model (230V)
Continuous AC Output	3000W
AC Surge Power (Peak)	6000W
Output Voltage/Freq	110-130 VAC / 60 Hz			220-240 VAC / 50 Hz
Efficiency (Typical)	90%	90%	94%	90%	90%	94%
DC Input Voltage	12.5 VDC	25 VDC	50 VDC	12.5 VDC	25 VDC	50 VDC
AC Transfer Time	< 30ms (Utility to Inverter) / < 20ms (Inverter to Utility)
Charger Current (Max)	100A	50A	40A	100A	50A	40A
Safety Approval	cETLus (UL 458)			CE (EN 60204-1)

📜 Certifications & Quality Assurance

🚀 Production & Advantages

❓ Frequently Asked Questions

What is the continuous output power of this inverter?

This model provides a continuous AC output power of 3000W, with a peak surge capacity of up to 6000W to handle high-startup loads.

Which battery types are compatible with the charger?

The charger is highly versatile and supports Gel, Flooded, AGM, and Lithium batteries. It also features a customizable "Use" mode and can function as a direct Power Supply.

Does the inverter produce a Pure Sine Wave?

Yes, it outputs a Pure Sine Wave with a Total Harmonic Distortion (THD) of less than 5% (typically 2.5%), making it safe for sensitive electronic equipment.

What is the typical charging efficiency?

The unit operates with high efficiency, typically reaching 90% to 94% depending on the specific model and load conditions.

What safety certifications does the product hold?

The 120V models are cETLus approved (meeting UL 458 and CSA standards), while the 230V models carry the CE mark, complying with EN 60204-1 and IEC 61558-2-16 safety requirements.

What is the AC transfer time during power switching?

The nominal transfer time from utility power to inverter is less than 30ms, and from inverter back to utility is less than 20ms, ensuring minimal interruption to your connected devices.
