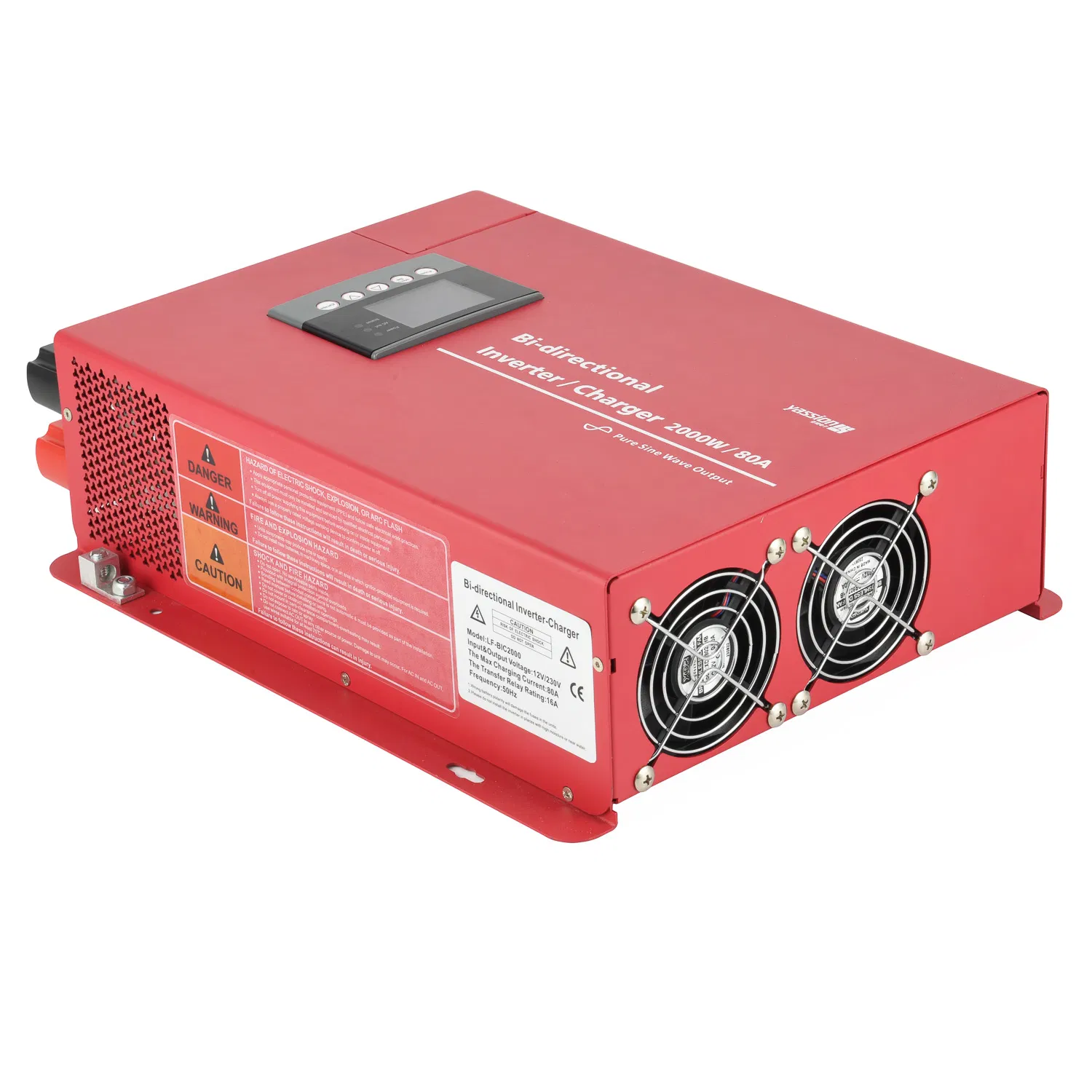

Yassion Bi-Directional Inverter Charger 2000W 24VDC 120VAC for Truck for RV

1 / 5

Yassion Bi-Directional Inverter Charger 2000W 24VDC 120VAC for Truck for RV

Customization:	Available
Nature of Source Flow:	Passive inverter
Certification:	ISO9001, RoHS, CE, FCC and E-MARK

Send Inquiry

Product Description

📦 Basic Information

Model NO.

LF-BIC02200401

Output Power

2000W

Grid Type

off-Grid Inverter

Output Type

Single

Circuit Topologies

Full-Bridge Type

Wave String

Pure Sine Wave

Weight

5.9kg

Peak Power

4000W

Charging Current

40A (adjustable 5-40A)

Warranty

18 Months

Efficiency

90%

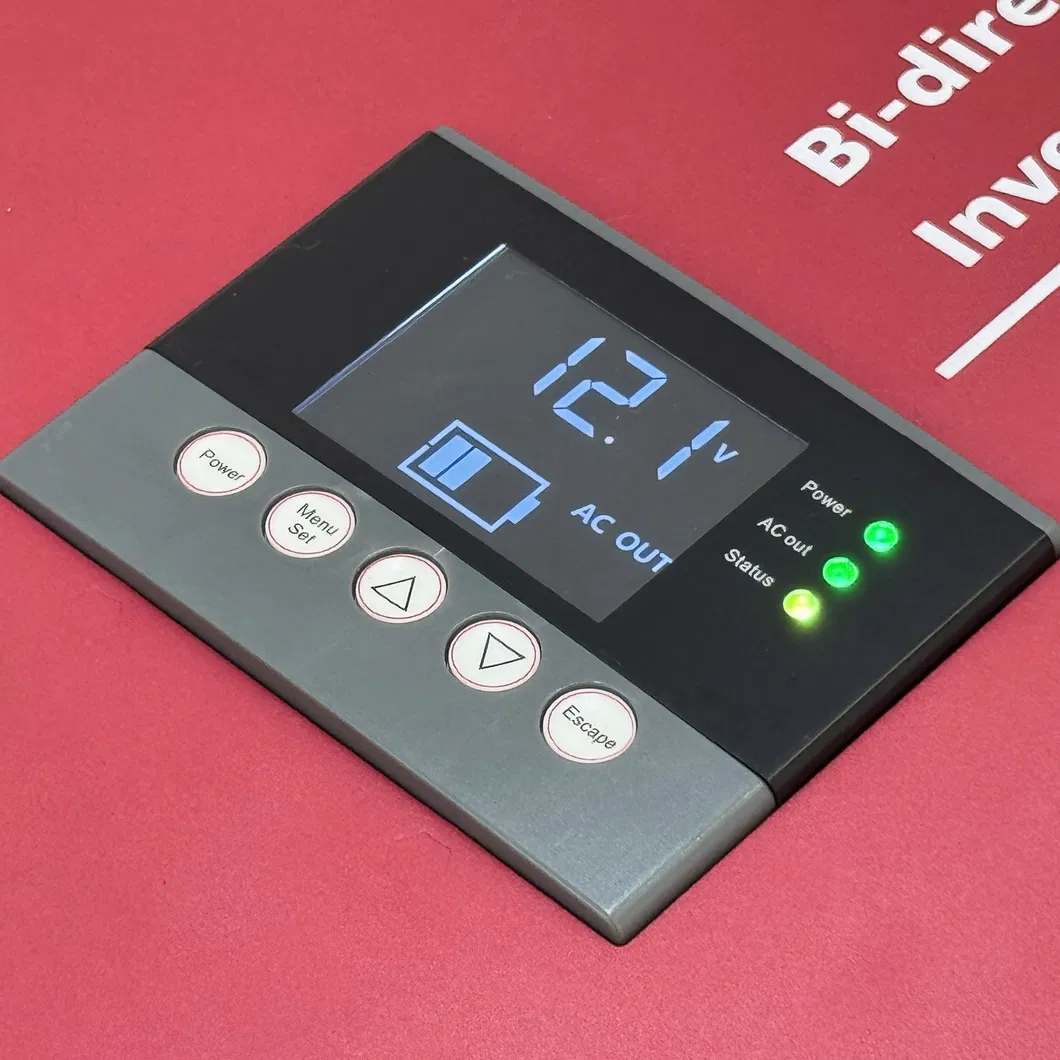

Display

LED Digital

Battery Compatibility

Gel, Flooded, AGM, Lithium

Dimensions

387.9mm X 287mm X 110mm

📝 Product Description

The Sinewave Inverter-Charger includes the following items for professional power management:

Inverter-Charger base unit
Comprehensive Owner's manual

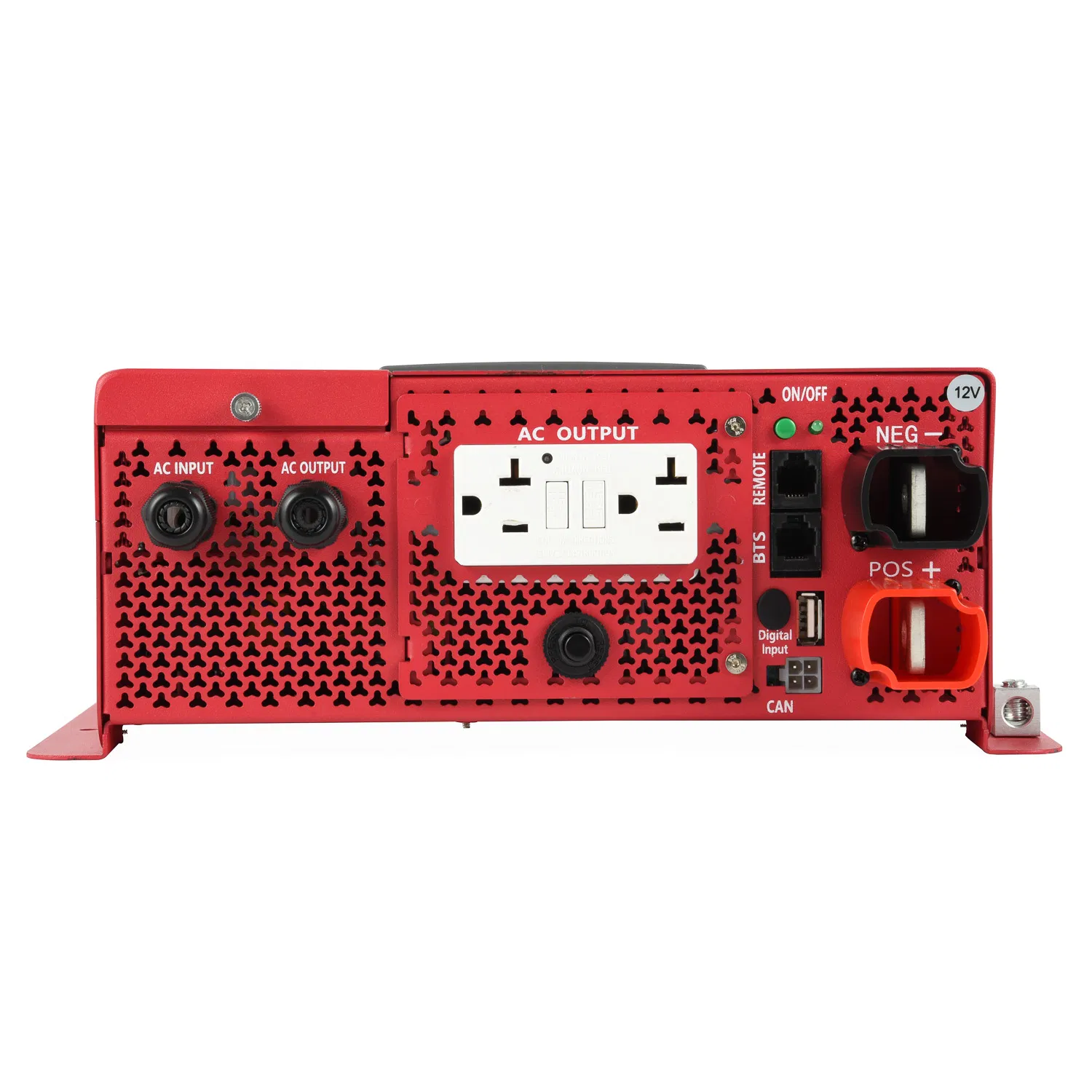

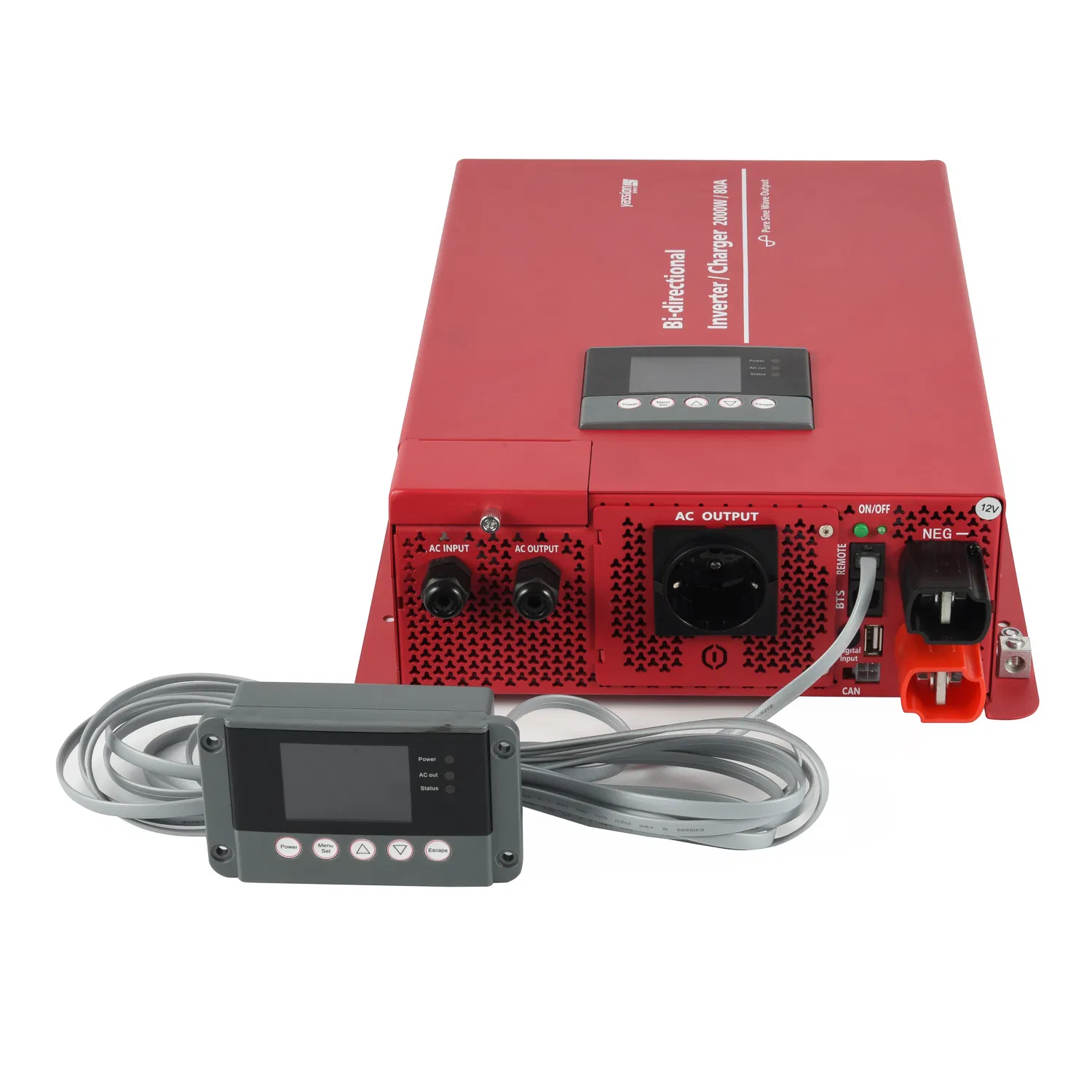

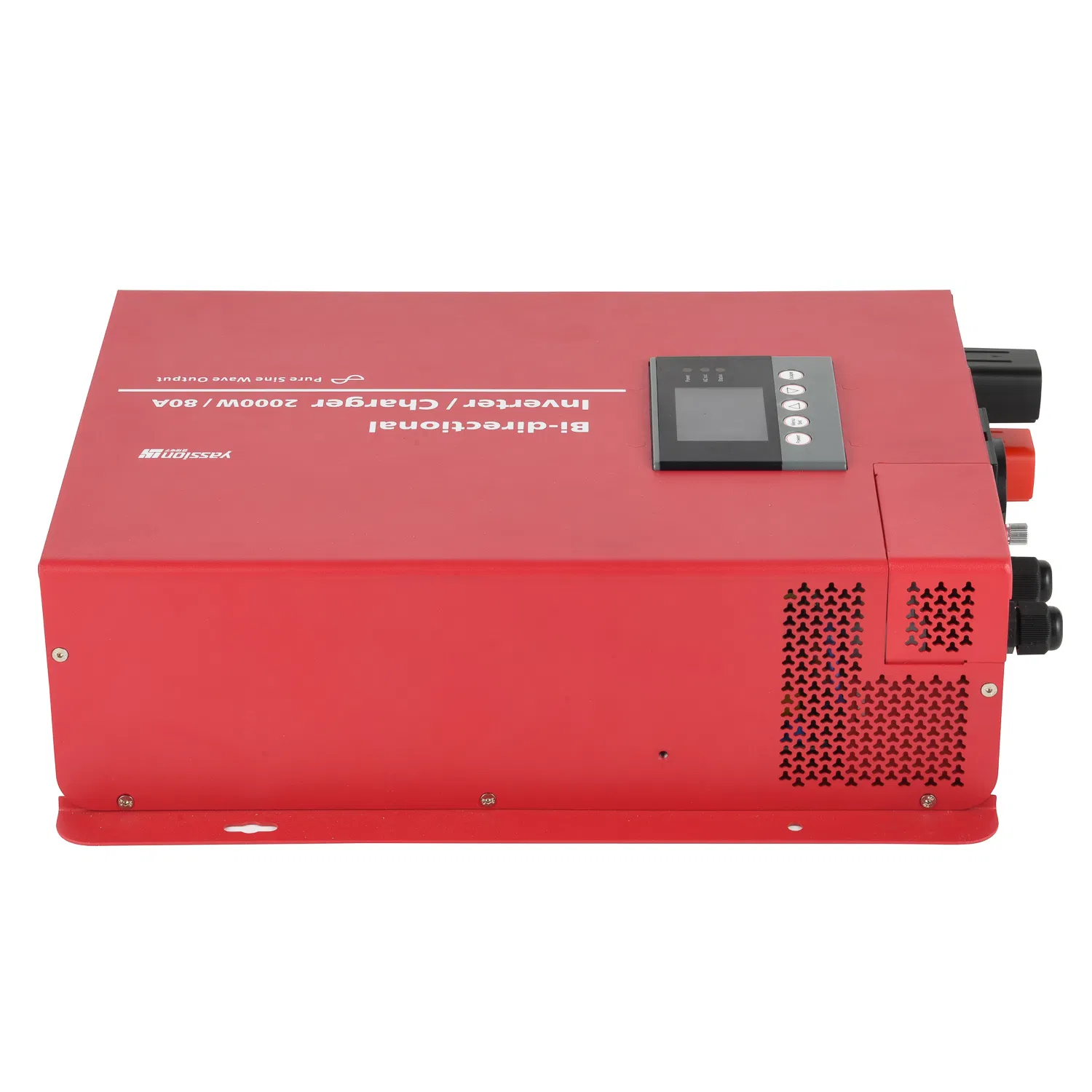

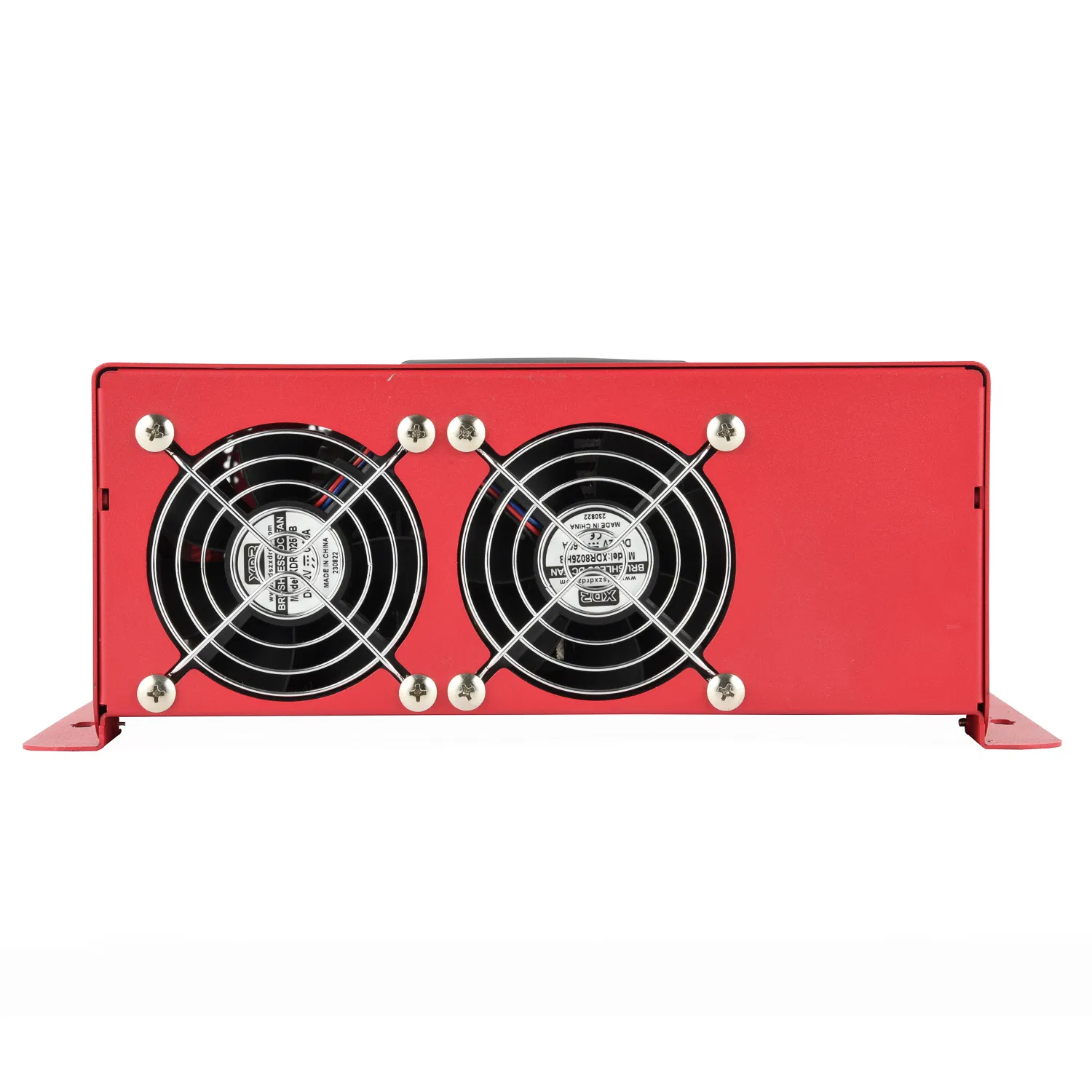

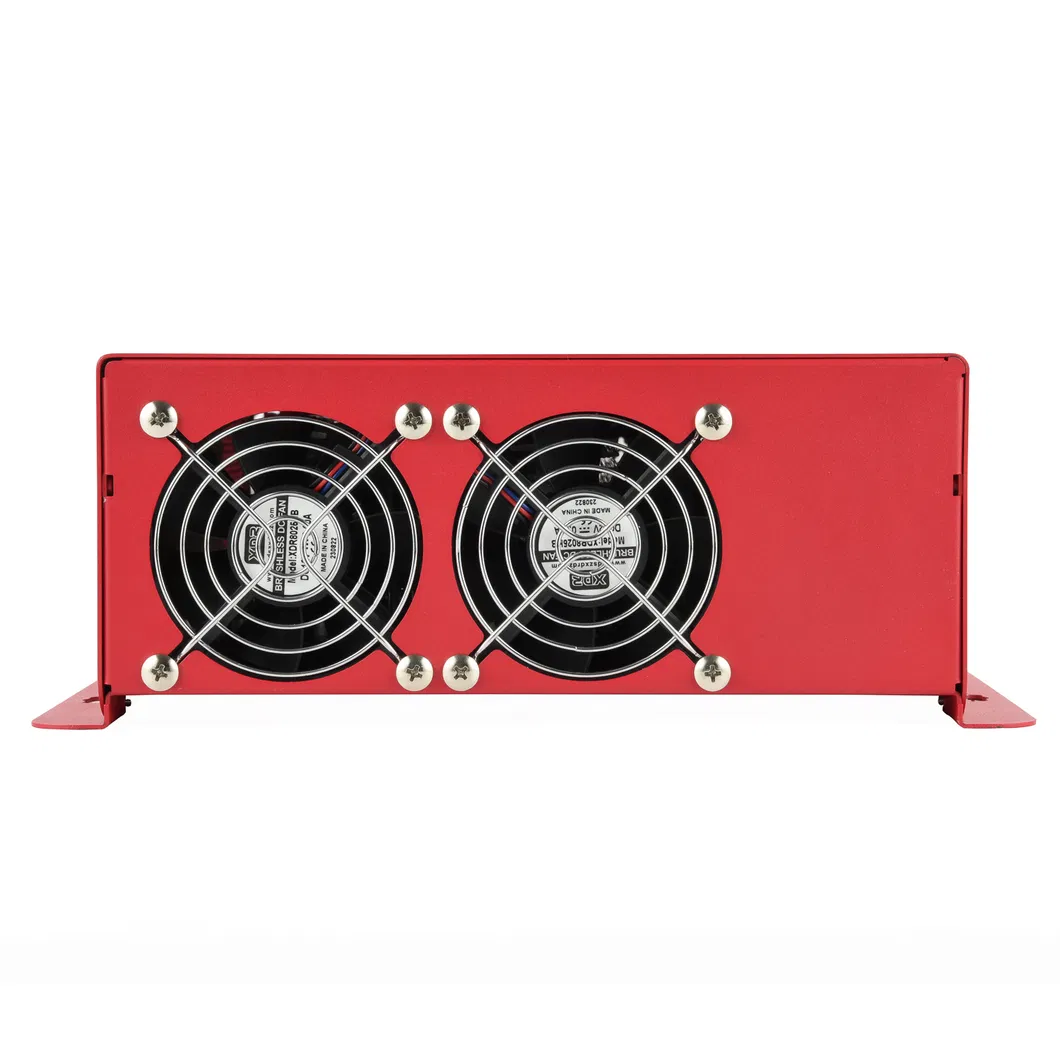

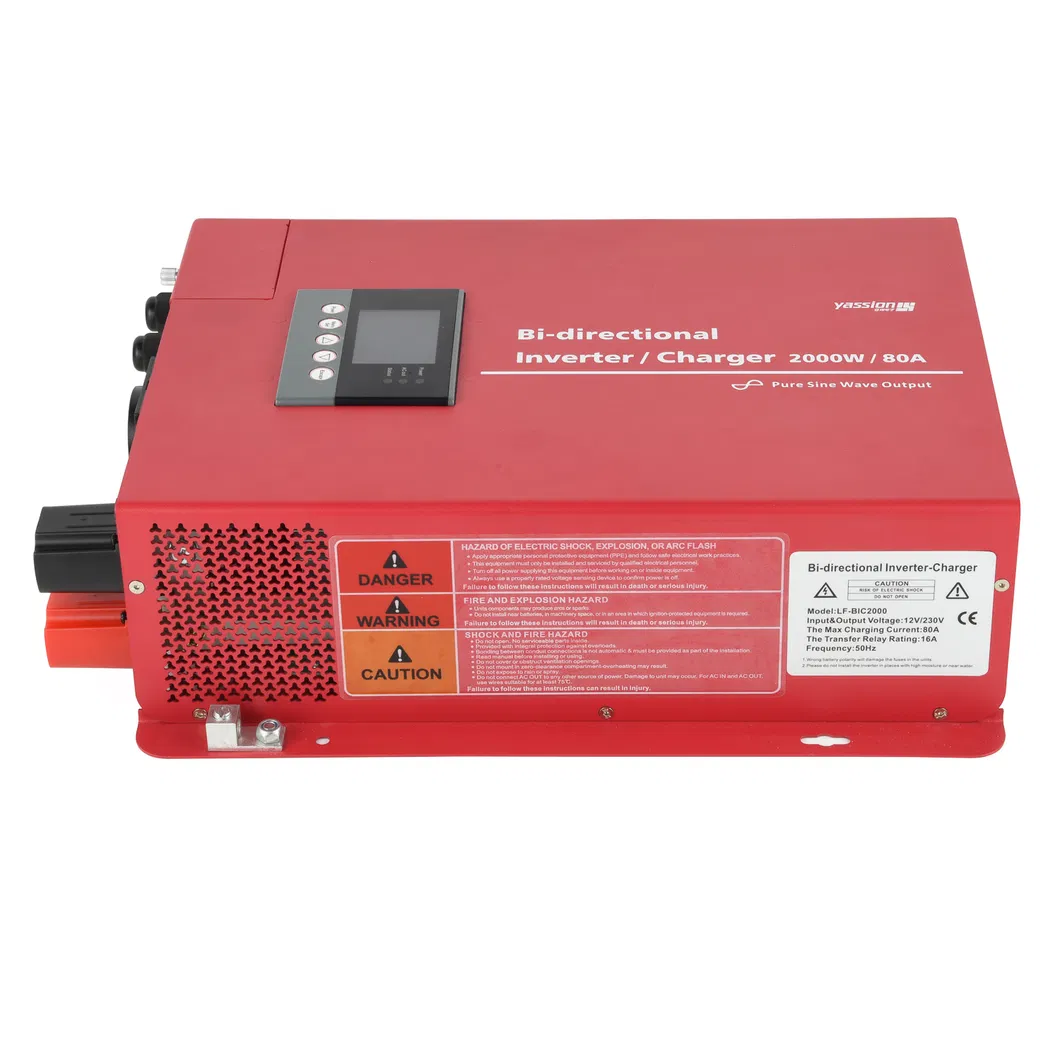

📷 Detailed Photos

📊 Technical Parameters

SPECIFICATIONS	12V Model	24V Model	48V Model
Continuous AC Power	2000W
AC Surge Power (Peak)	4000W
Nominal DC Input	12.5 VDC	25 VDC	50 VDC
DC Input Range	10.5 - 16.0 VDC	21 - 32 VDC	42 - 63 VDC
Efficiency	90% typical	90% typical	94% typical
Transfer Time	<30ms (Utility to Inverter) / <20ms (Inverter to Utility)
Charger Current (max)	80A	40A	30A
Operating Temp	0°C to 50°C

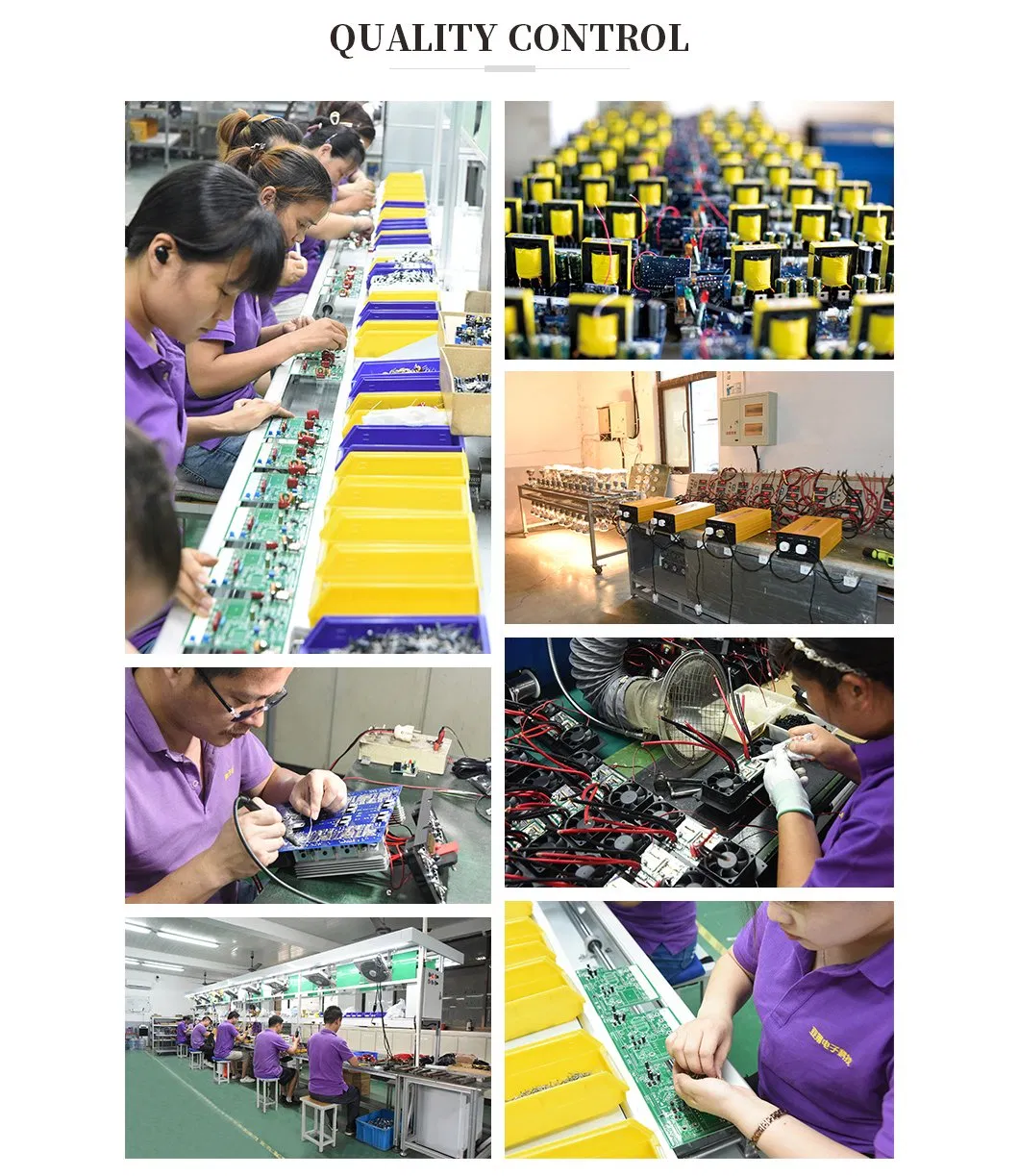

🏆 Certifications & Quality

🚀 Our Advantages

❓ Frequently Asked Questions

1. What battery types are compatible with this inverter charger?

This unit is compatible with various battery types including Gel, Flooded, AGM, and Lithium batteries. It also features a customizable "Use" setting for specific power supply requirements.

2. How fast is the transfer switch between utility power and battery?

The nominal AC transfer time from utility to inverter is less than 30ms, and from inverter to utility is less than 20ms, ensuring minimal interruption to your connected devices.

3. Can I adjust the charging current?

Yes, the charger current is adjustable. For the 24V model, it can be set between 5A and 40A, allowing you to tailor the charging speed to your battery bank's capacity.

4. What are the safety protections included?

The device is designed to meet UL 458 and CSA standards, featuring protections against over-temperature, low battery voltage, and electronic overload.

5. Is the output waveform suitable for sensitive electronics?

Yes, it provides a Pure Sine Wave output with a Total Harmonic Distortion (THD) of less than 5% (typically 2.5%), making it safe for sensitive medical equipment, laptops, and household appliances.

6. What is the peak surge capacity?

This 2000W continuous power inverter has a peak surge capacity of 4000W, allowing it to handle the initial startup load of motorized appliances like refrigerators or power tools.
