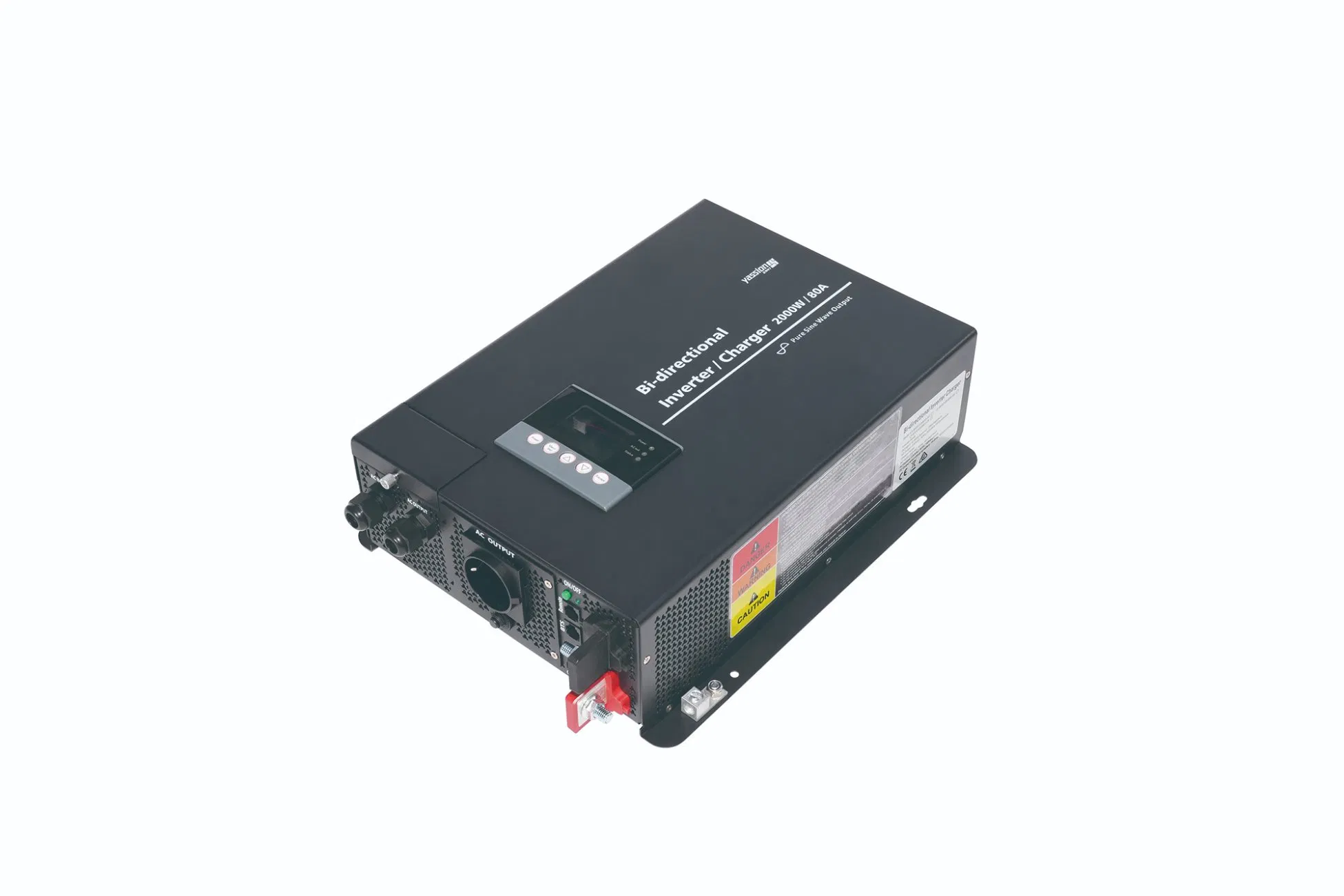

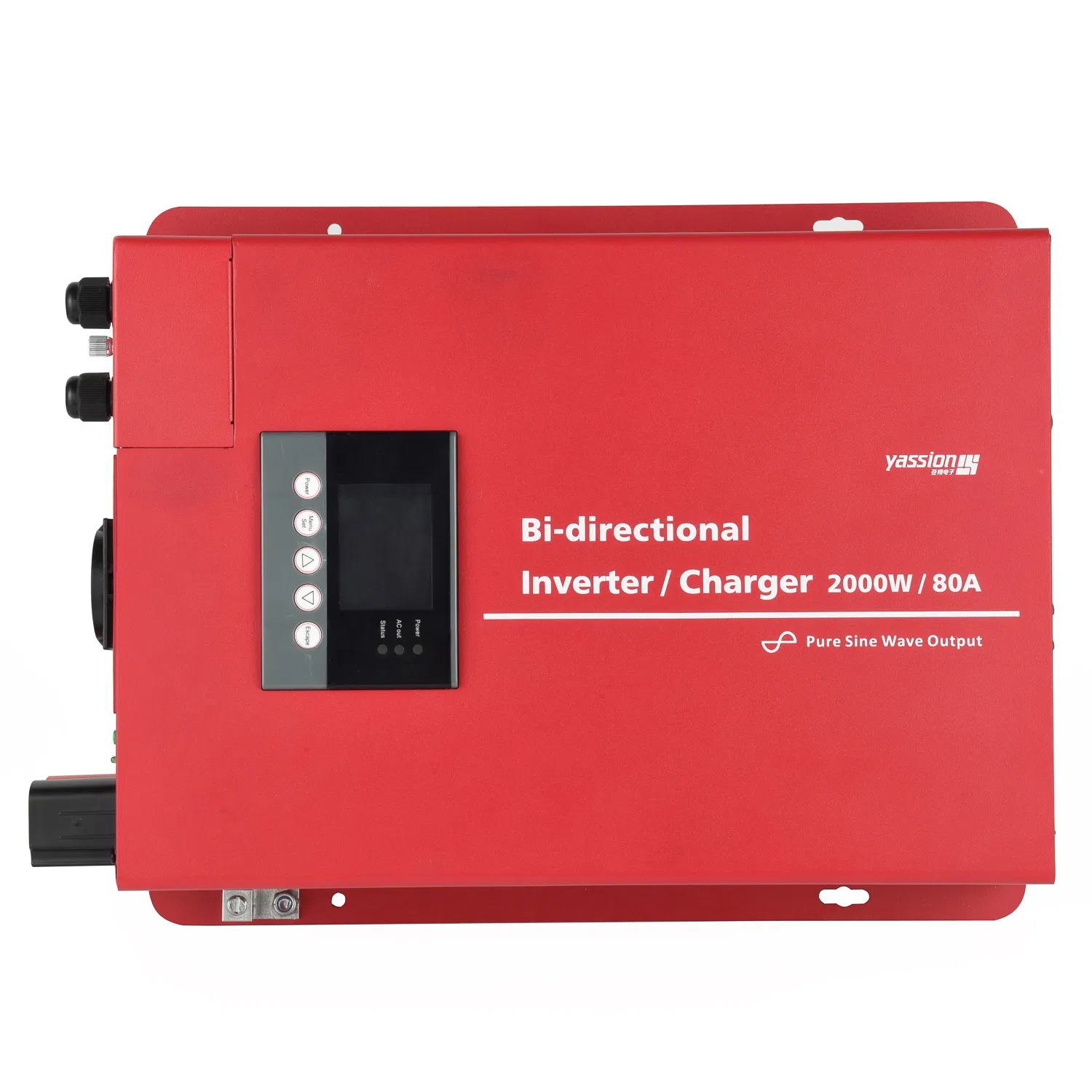

Yassion Bi-Directional Power Inverter with Charger 2000W 12V/120V RV Inverter Charging Current 80A

Basic Specifications

Model NO.

LF-BIC01200801

Output Power

2000W

Grid Type

Off-Grid Inverter

Output Type

Single

Circuit Topologies

Full-Bridge Type

Wave String

Sine Wave Inverter

Type

DC/AC Inverters

Peak Power

4000W

Efficiency

90%

Output Waveform

Pure Sine Wave

Battery Type

Gel, Flooded, AGM, Lithium, Power Supply

Operating Temp

0°C - 50°C

Product Description

The Sinewave Inverter-Charger package includes:

Inverter-Charger base unit
Owner's manual

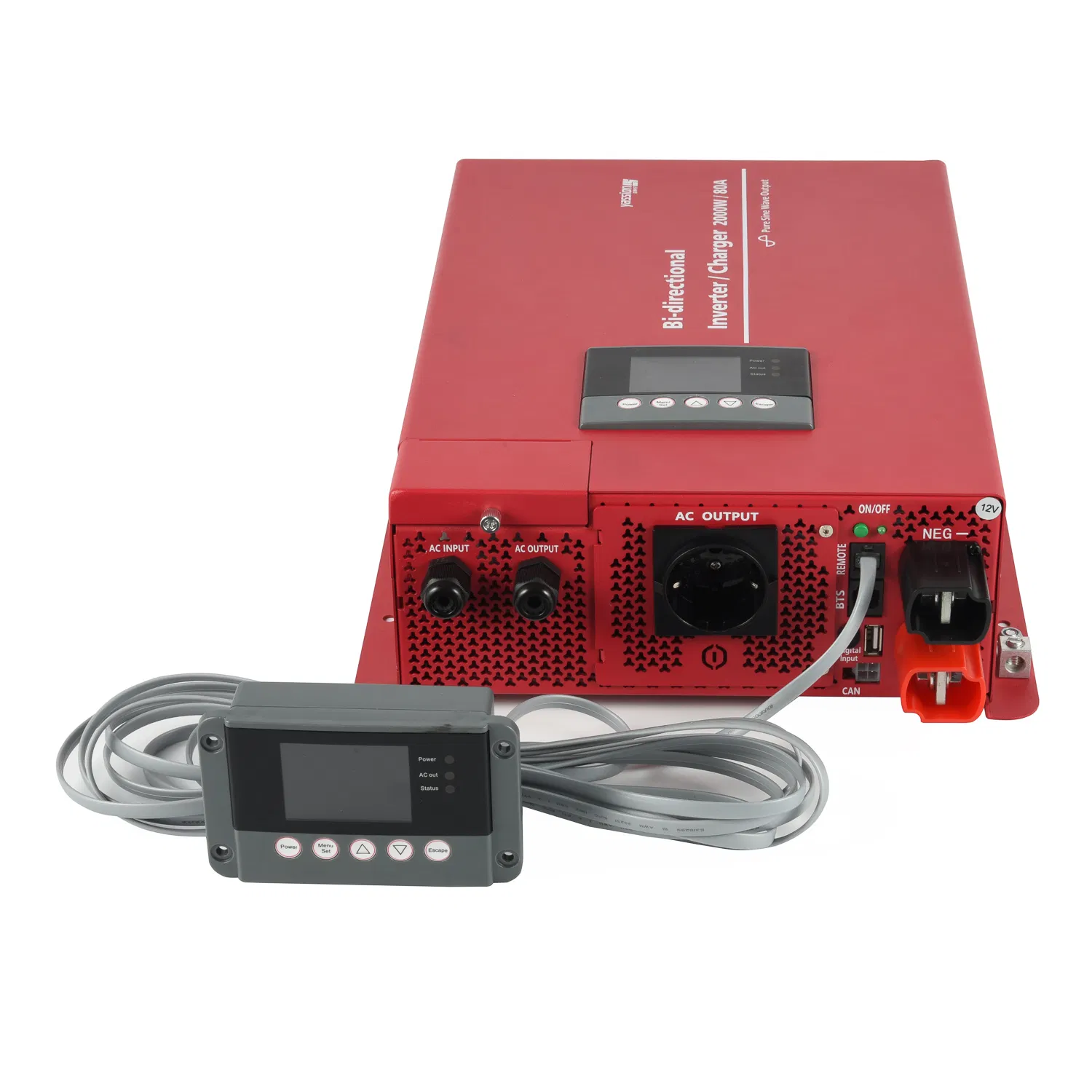

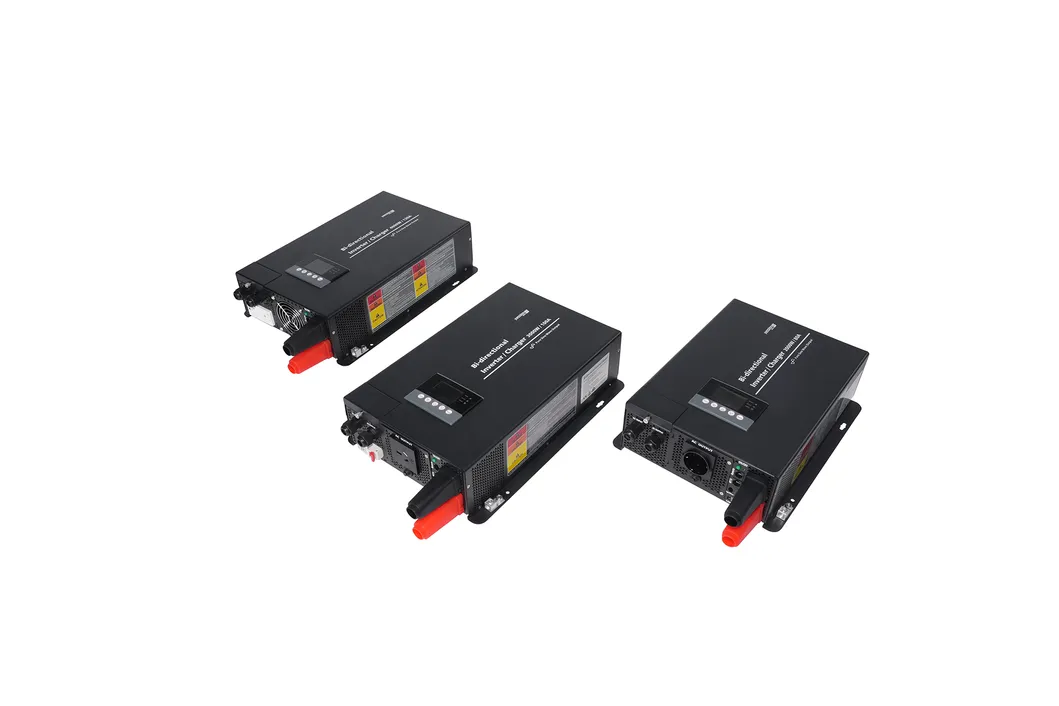

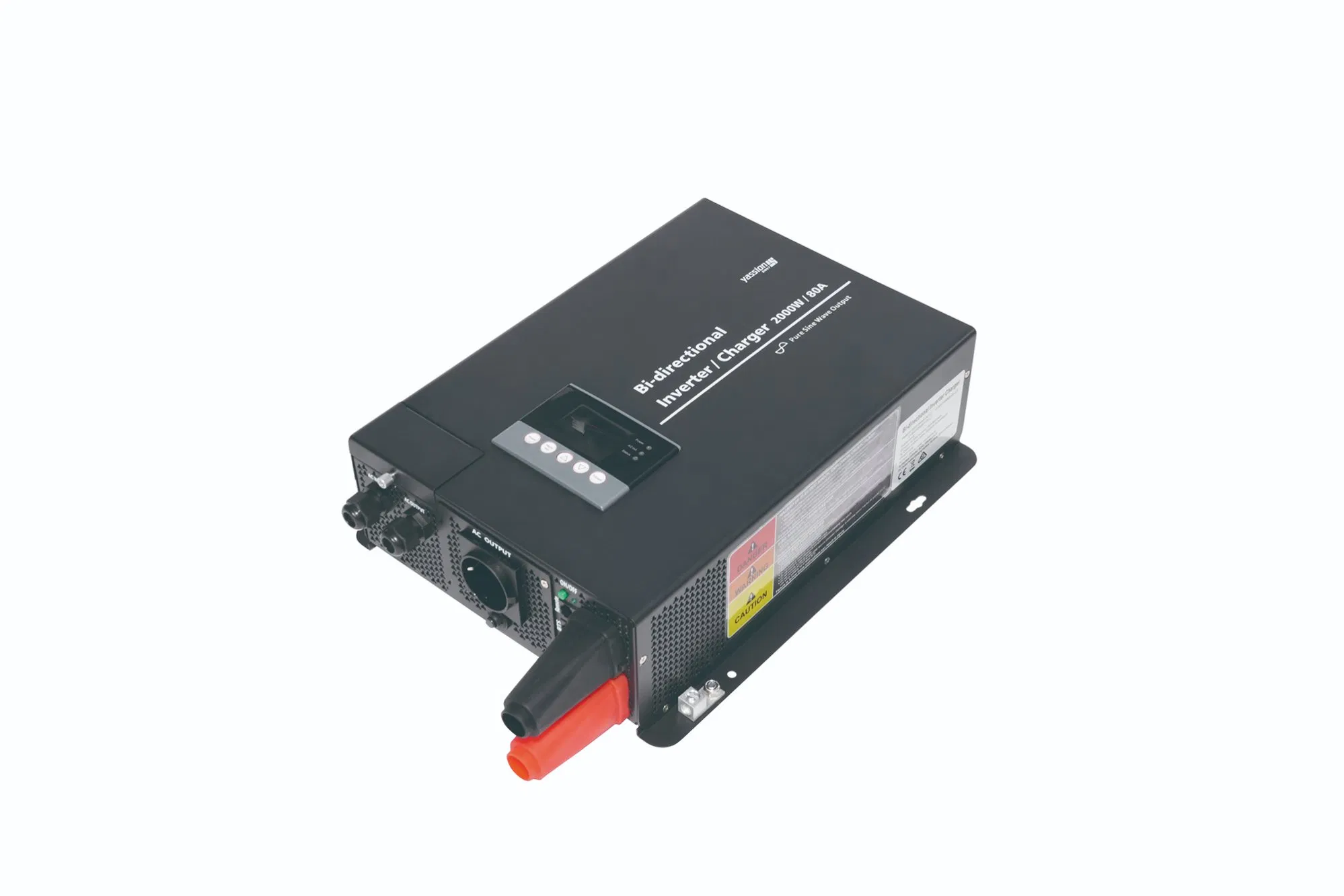

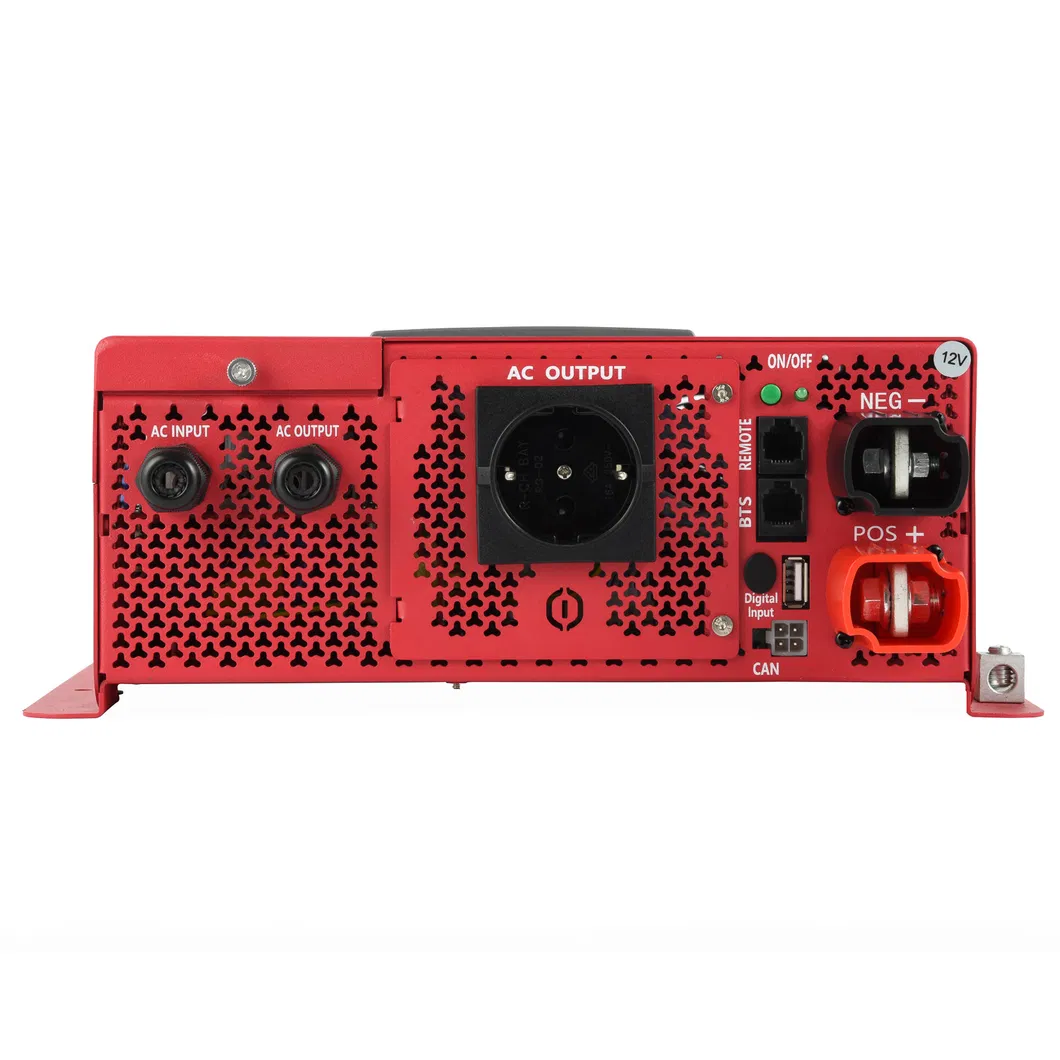

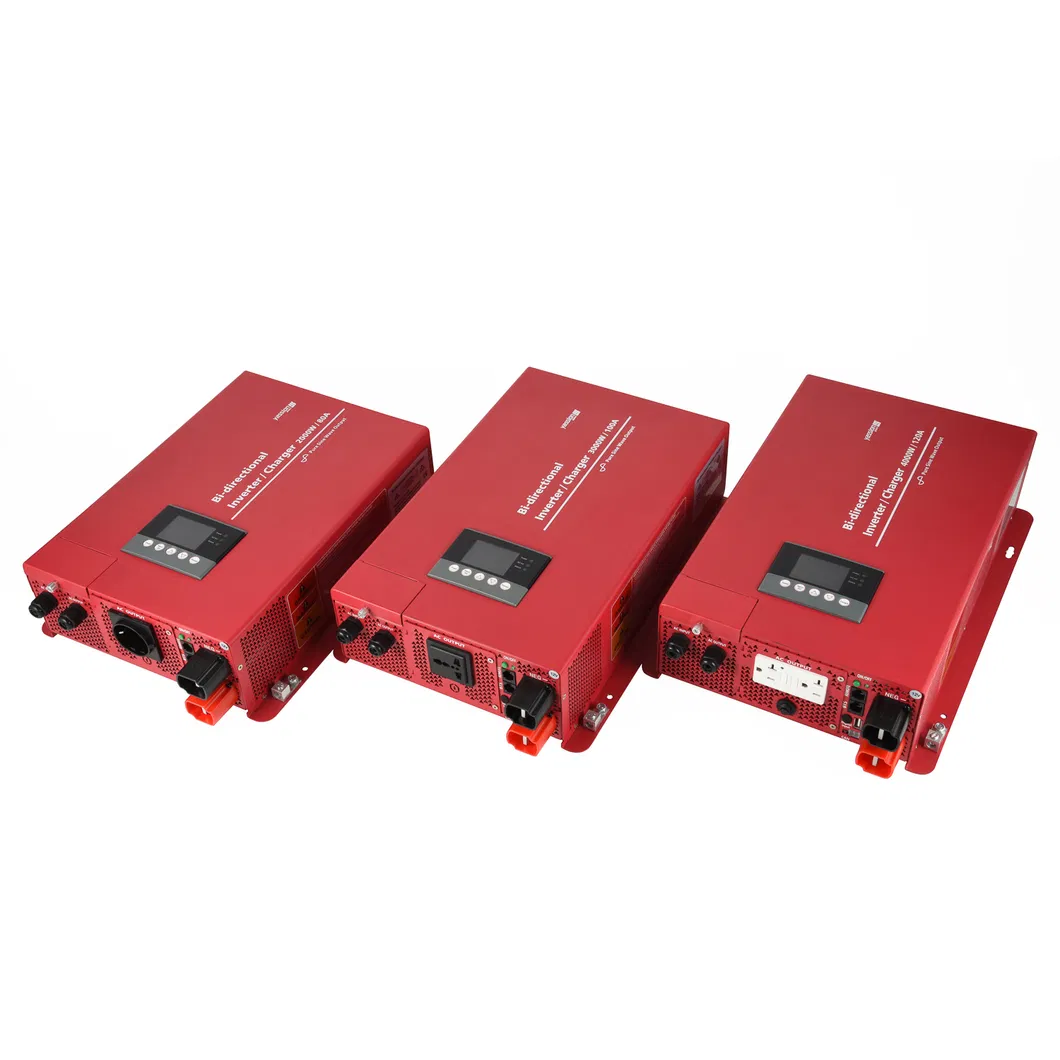

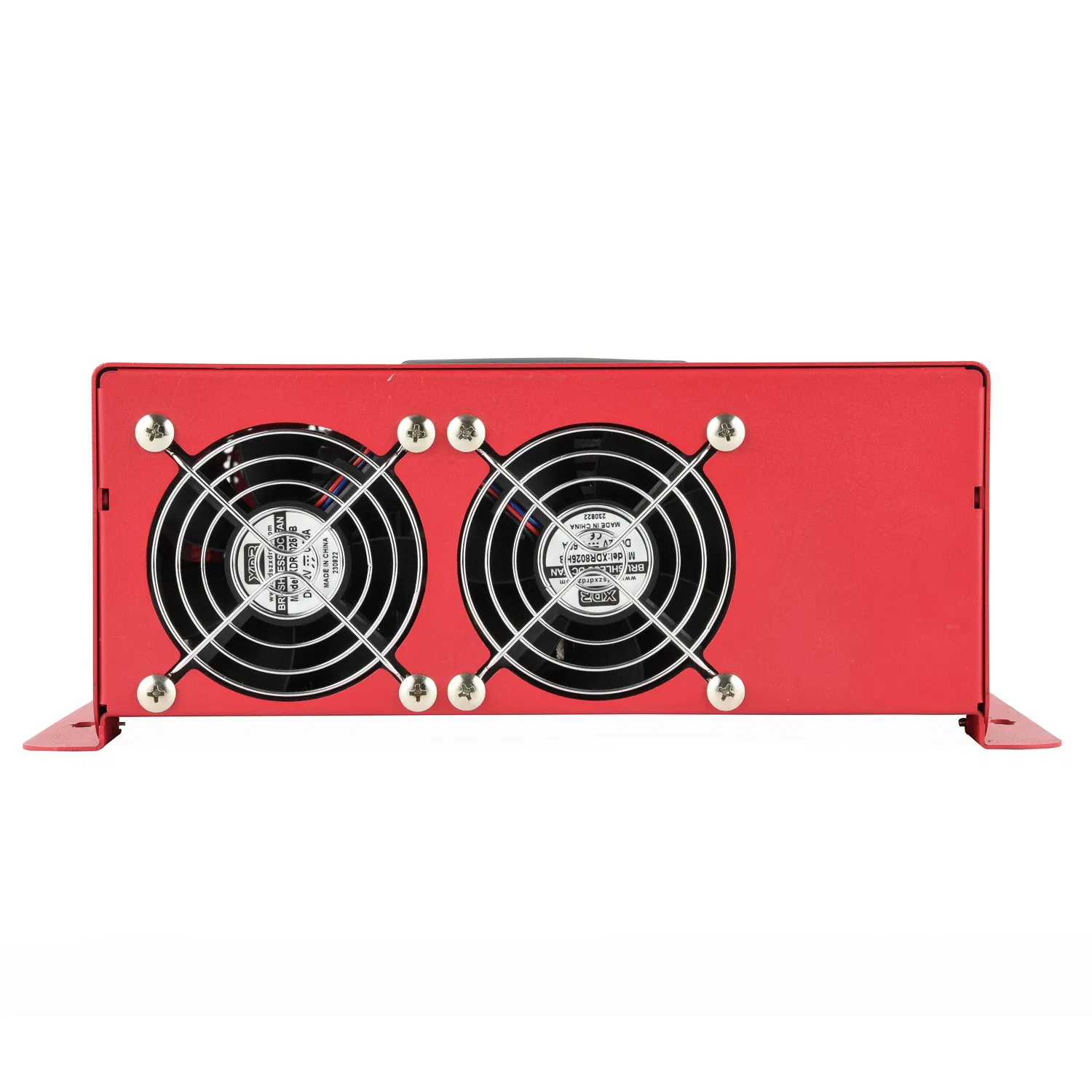

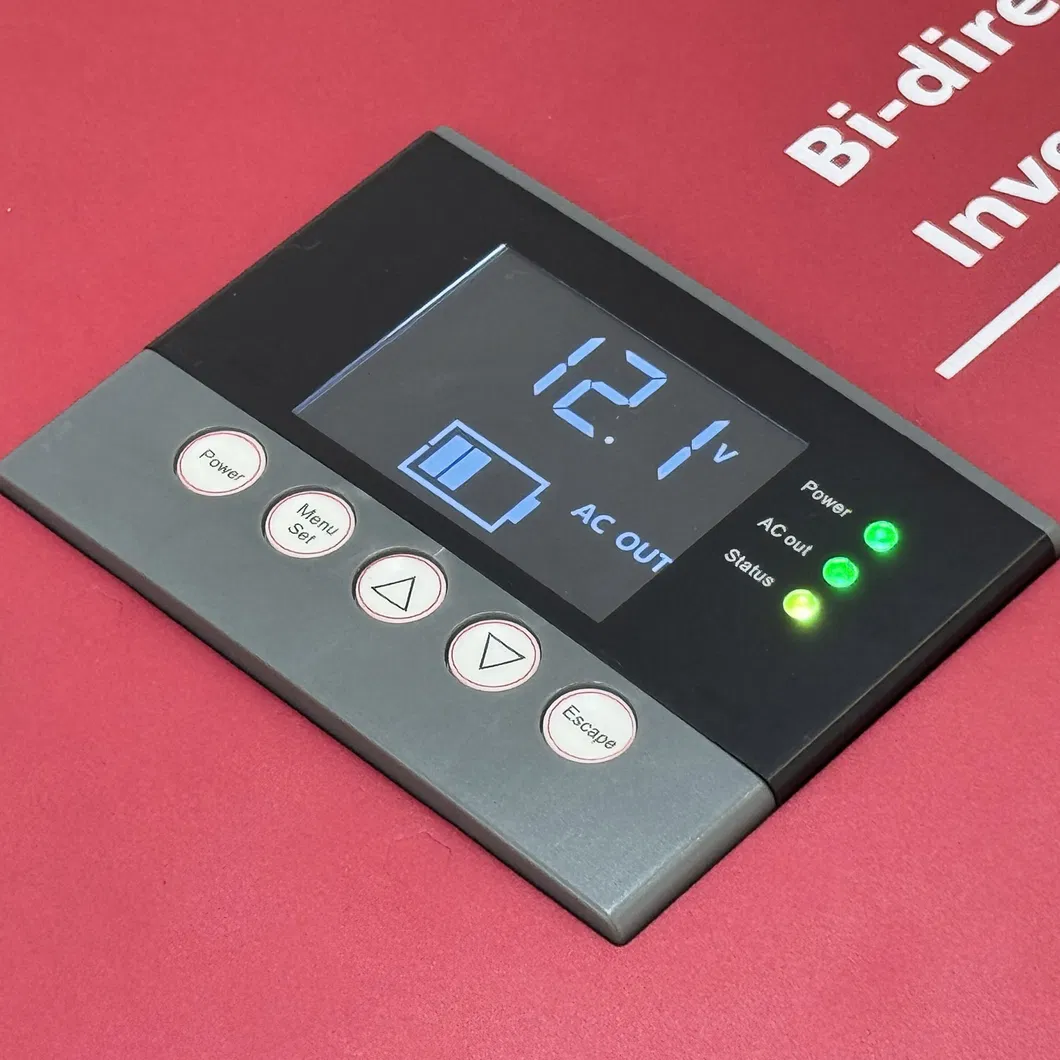

Detailed Photos

Technical Parameters

SPECIFICATIONS	12V model (120V)	24V model (120V)	48V model (120V)	12V model (230V)	24V model (230V)
Inverter
Continuous Output Power	2000W
AC Surge Power (Peak)	4000W
Output Voltage/Freq	100/110/120VAC \| 50/60Hz			220/230/240VAC \| 50/60Hz
Nominal DC Input	12.5 VDC	25 VDC	50 VDC	12.5 VDC	25 VDC
Charger
Charger Current (max)	80A	40A	30A	80A	40A
Charging Voltage Range	13.5 - 14.8V	27 - 29.6V	54 - 59.2V	13.5 - 14.8V	27 - 29.6V

Certifications & Standards

Our Advantages

Frequently Asked Questions

What is the peak power capacity of this 2000W inverter?

The inverter features a surge power (peak) capacity of up to 4000W, allowing it to handle high-start loads efficiently.

Does this unit support different types of batteries?

Yes, it is compatible with a wide range of batteries, including Gel, Flooded, AGM, and Lithium batteries, and can also function as a power supply.

What is the typical transfer time from utility to inverter mode?

The nominal AC transfer time from utility to inverter is less than 30ms, ensuring minimal interruption to your connected devices.

Can I adjust the output frequency and voltage?

Yes, the AC output voltage (100/110/120V or 220/230/240V) and frequency (50Hz/60Hz) can be set by the user based on requirements.

Is the output waveform a pure sine wave?

Yes, this unit provides a Pure Sine Wave output with a Total Harmonic Distortion (THD) of less than 5%, which is safe for sensitive electronics.

What certifications does the product have?

The product meets high safety standards and carries certifications including CE, cETLus (UL 458), and FCC Part 15 Class B compliance.
