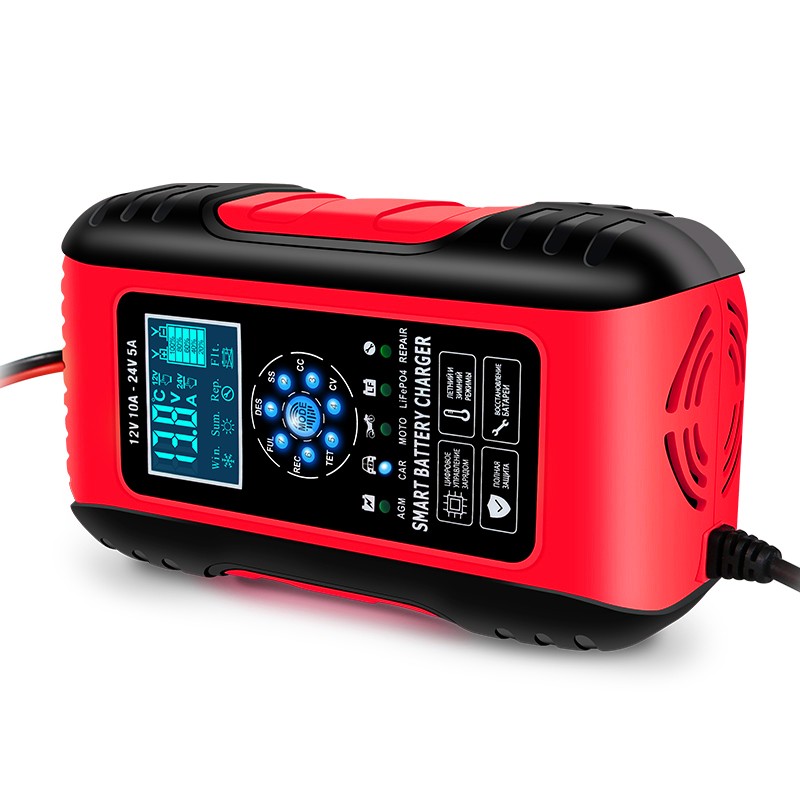

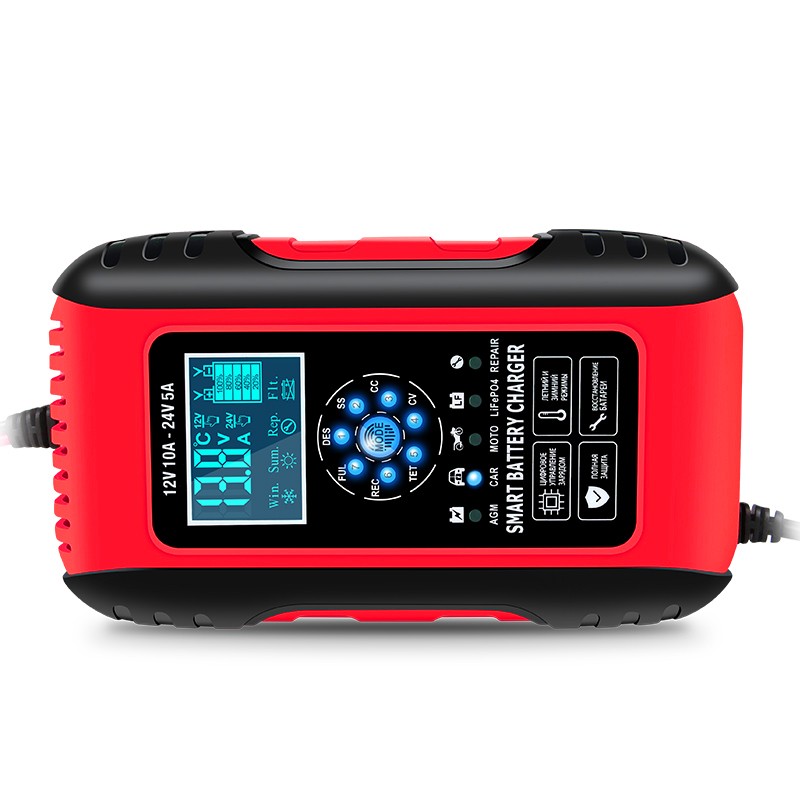

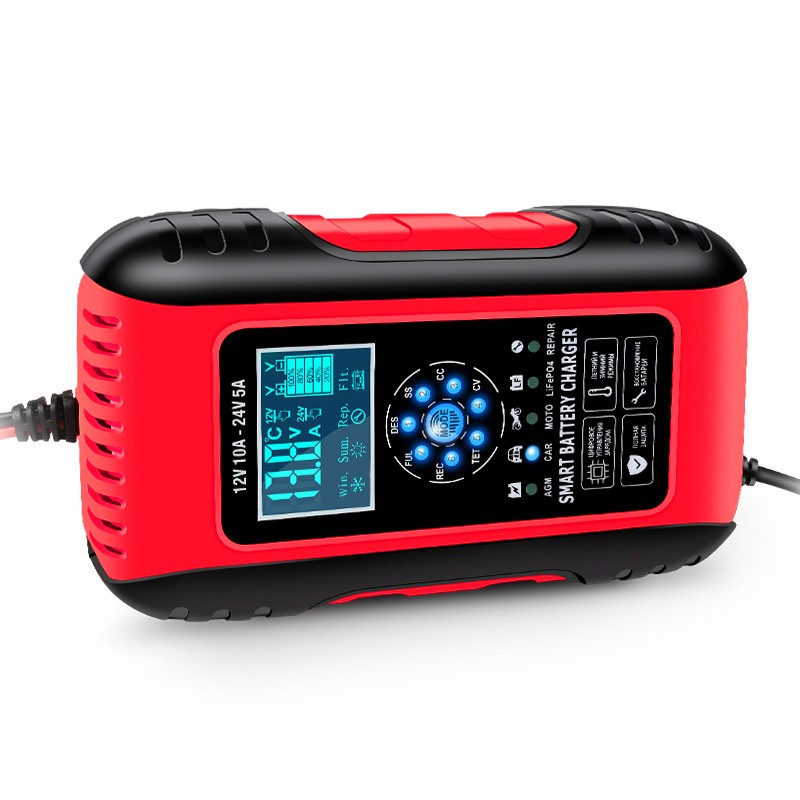

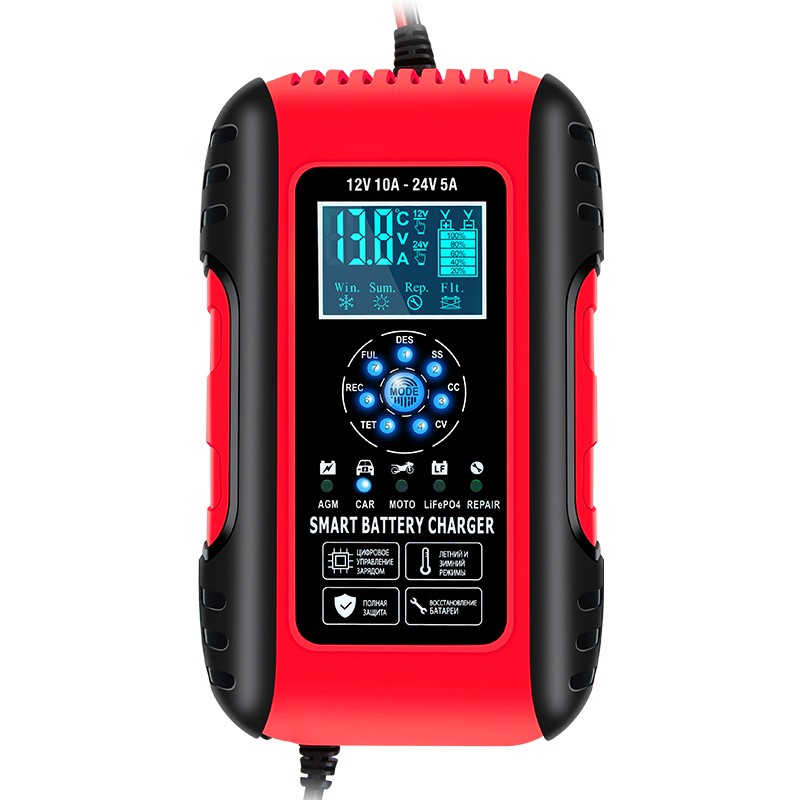

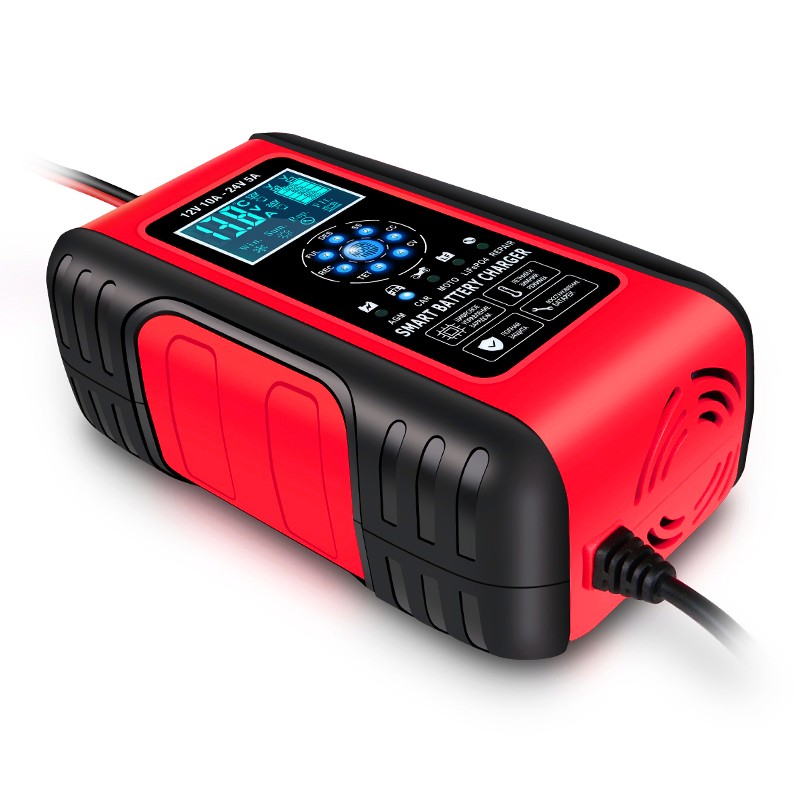

J50 Intelligent Battery Charger

The intelligent Battery Charger. Manufactured by STARWELL, it is 12V10A-24v5a 7-Stage automatic smart battery charger. Used for Lead-Acid, Lifepo4 Battery.

The ZYX-J50 intelligent battery charger is designed for 12V and 24V Lead-Acid, LiFePO4 batteries with capacity from 6AH - 180AH(12V), 6AH - 90Ah(24V). AGM, Car, Motorcycle, LiFePo4 battery type can be selectable.
The 7-stage microprocessor controlled charging process provides the best possible application and enables efficient battery charging.
Charging voltage adapts to temperature, that can prevent over- or under-Ocharging of battery. Capable of recharging severely discharged or heavily sulfated battery.
Reverse polarity protection, short circuit protection, over-charge protection sparks free contact.
LCD display: voltage, current, temperature etc,
Ease of use. Clear charging status display.
Full microprocessor controlled.
Do not over-charge your battery even it is kept connecting in any mode

Product Details

Features:

(1) output short circuit, anti-reverse connection: the J50 intelligent battery charger has an output short circuit, reverse battery prompt (reverse connection 1-2S detection, detection of reverse connection reverse connection or short circuit when the LCD display "ERO", the detection process will not cause damage to the product because of reverse connection or short circuit), and reverse connection, after the microprocessor program processing, there will be no reverse connection sparking phenomenon occurs.

(2) battery power detection: no access to AC input voltage, battery clamps clamped on the positive and negative ends of the battery (red positive and black negative), you can display the battery current and voltage parameters in time (digital tube display data: voltage and ambient temperature cycle display, power grid according to the detected data in the form of a percentage display, the first power 6S self-test waiting, 6S not to show the temperature, 6S to reach the temperature and voltage cycle display)

(3) winter and summer mode: during the charging process, detect the ambient temperature, timely adjustment of the product charging state to ensure battery life and charging safety, winter mode: LCD display snowflakes, summer mode: LCD display sun

(4) over-temperature protection: the J50 intelligent battery charger has over-temperature protection function, the product detects the temperature is too high, will start the over-temperature protection program, when the temperature returns to normal values, restore the initial charging state

(5) Overcharge protection: the J50 intelligent battery charger has an overcharge protection function to avoid overcharging resulting in a decline in battery life and to enhance the reliability of charging safety (maximum charging time default 15.5-16.0H)

(6) Charging voltage self-test: automatic self-test after the battery is charged, without artificial switching, the self-test passes into the floating charge, and vice versa into the compensation charge, the compensation charge is completed into the floating charge

(7) LCD display status.

a: full state: LCD display "FUL", power grid "100%"

e: charging status: LCD cycle display voltage, current, temperature, power grid "charging special effects display"

f: repair mode: LCD display "PUL", power grid "repair effect display", repair icon flashing

g: no-load battery detection: LCD cycle display voltage, temperature, power grid according to the battery power in the form of percentage display.

Specification:

Name:	fully aotumatic lead acid lifepo4 12V10A 24V5A J50 intelligent Battery Charger for Vehicles motorcycle scooter
Mode:	zyx-J50
Input Voltage:	100-240VAC(50/60Hz)
Output Voltage:	12V10A/24V5A
Battery Type:	lifepo4 battery，lead-acid battery
Place of Origin:	China，Anhui
Protection:	-Polarity protection -Output short protection -Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection
Apply to:	cars, motorcycles, van.truck,scooter
weight:	0.580KG
Dismension:	L170H110W65mm
