Product Details

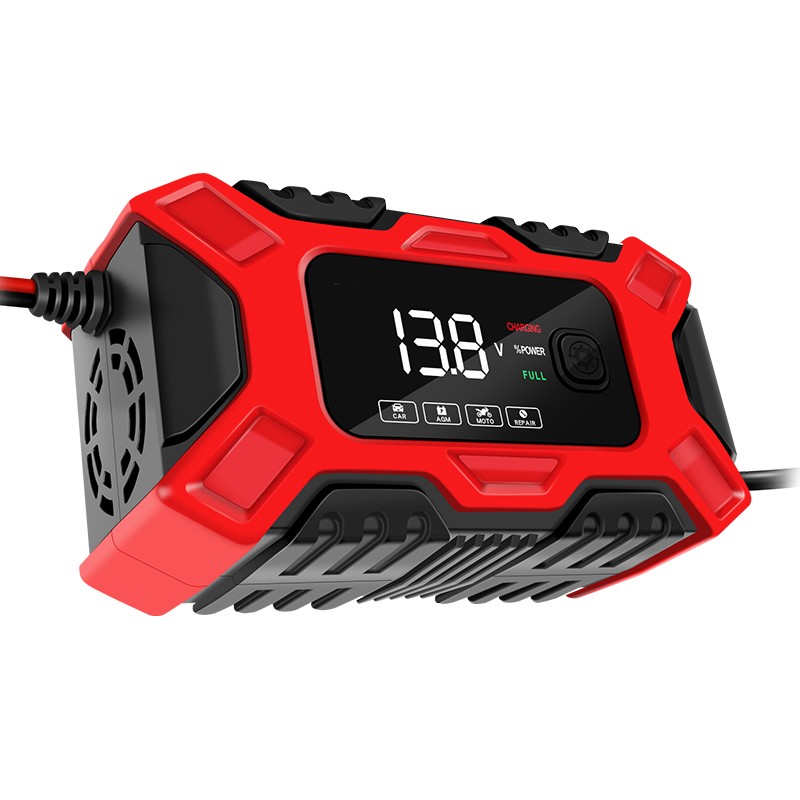

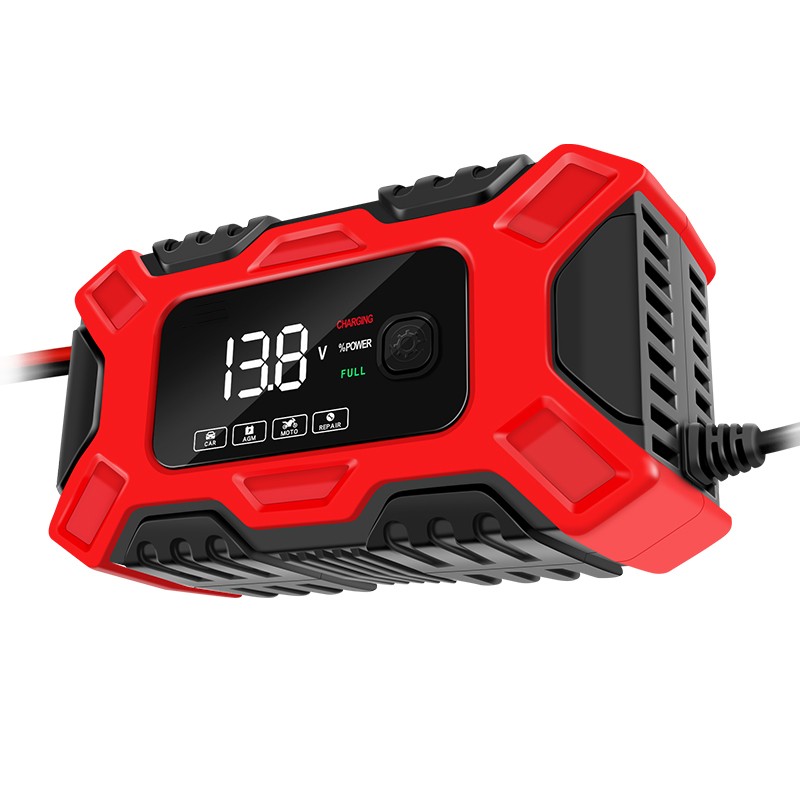

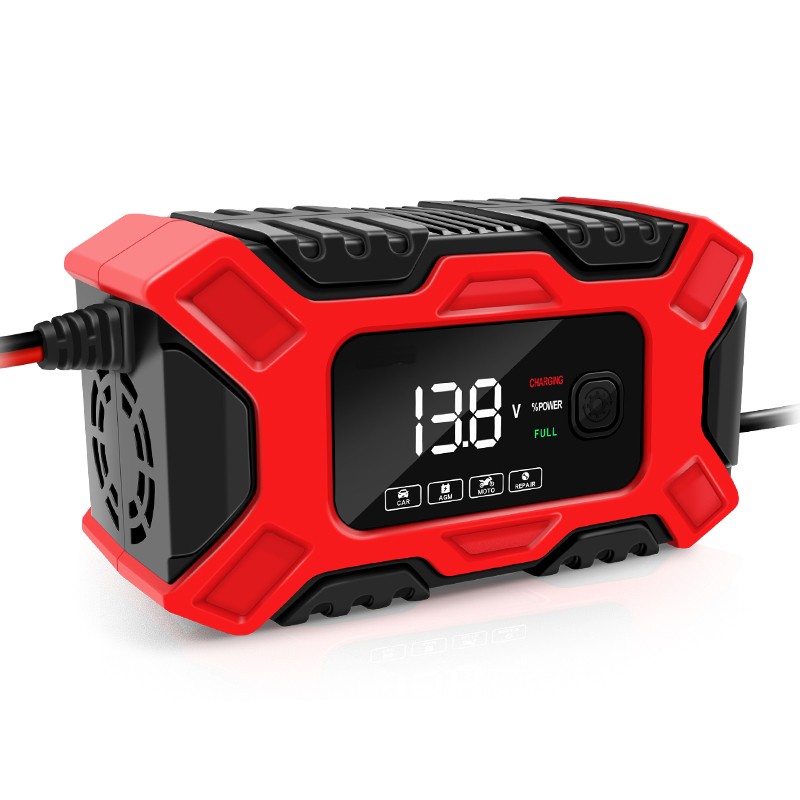

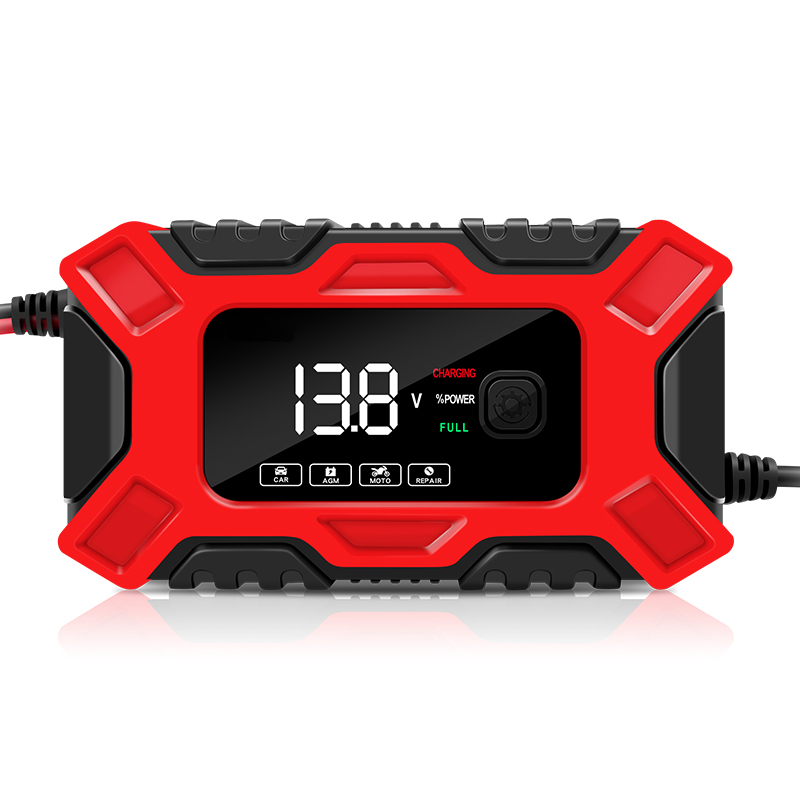

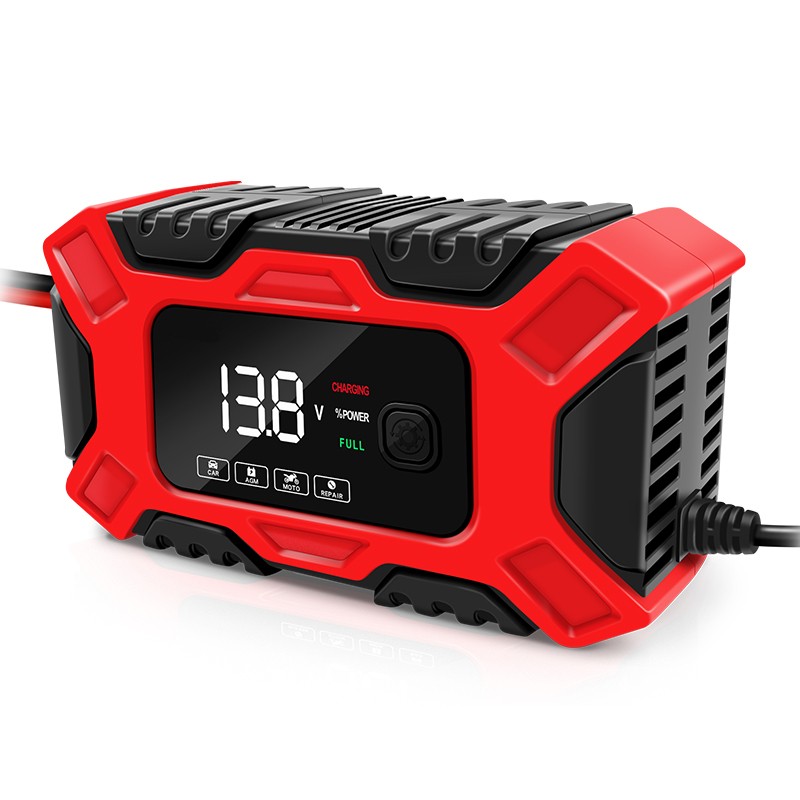

TK300 intelligent battery charger is mainly developed for DC12V lead-acid batteries with integrated charging control system. The self-developed battery charging management system has more optimized charging and discharging curves and multiple battery mode settings, which makes the battery charging more full. When charging, as long as the battery and charger plug-in are connected and the power is turned on, the machine can automatically detect the existing power and ambient temperature of the battery to be charged and charge it according to the different discharge amounts of the battery to be charged and the real-time ambient temperature, and automatically turn off the charging system after the battery is sufficient.

The product integrates a variety of protection functions, such as reverse connection, short circuit, overcharge, over temperature, over current and other intelligent settings, which can effectively ensure the safety of the charging equipment and its charger; at the same time, it adds humanized settings such as charger memory, battery power detection and touch button, which makes charging more convenient and fast.

The TK300 intelligent battery charger has pulse repair function, for the lead-acid battery that can't be charged due to light sulfation, it can adopt pulse repair mode to repair and activate the battery, which can reduce the sulfation phenomenon to a certain extent and make the battery charge normally.

12V battery charger 12V 6A automatic smart 12 volt Motorcycle car battery charger

The 12V battery charger 12V 6A automatic smart 12 volt Motorcycle car battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 100-240Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage: 14.4V Float charge 13.8V

C:Charging Mode 12V battery charger 12V 6A automatic smart 12 volt Motorcycle car battery charger

3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance: The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection The battery charger will be auto recovered when faults remove

Over Current Protection Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:12V battery charger 12V 6A automatic smart 12 volt Motorcycle car battery charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

Specification:

Product Name	LCD display battery charger automatic intelligent lead-acid portable car battery charger
Model	TK-300
Input Voltage and current	100-240V AC,50/60Hz
Output Voltage and current	12V/6A
Port	DC,AC
Battery Type	DC12V lead-acid Battery
Output Power	96W
Material	ABS
Place of Origin	China，Anhui
Protection	-Polarity protection -Output short protection -Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection
Apply to	car,motorcycle,vans
color	Red,Yellow
weight	0.68KG
Dismension	(L)150(W)82(H)63MM
Efficiency	85%
Certification	CE FCC ROHS PSE
