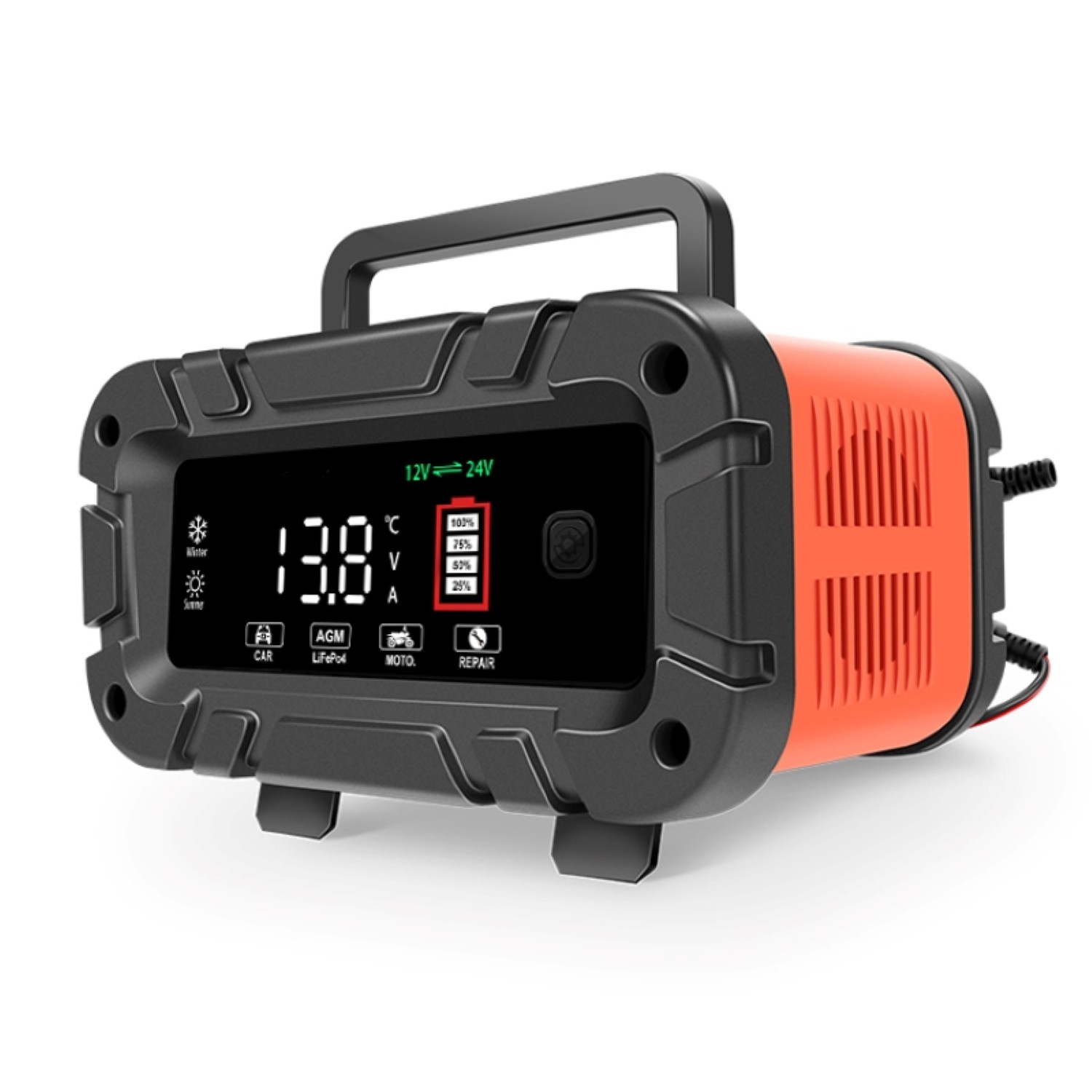

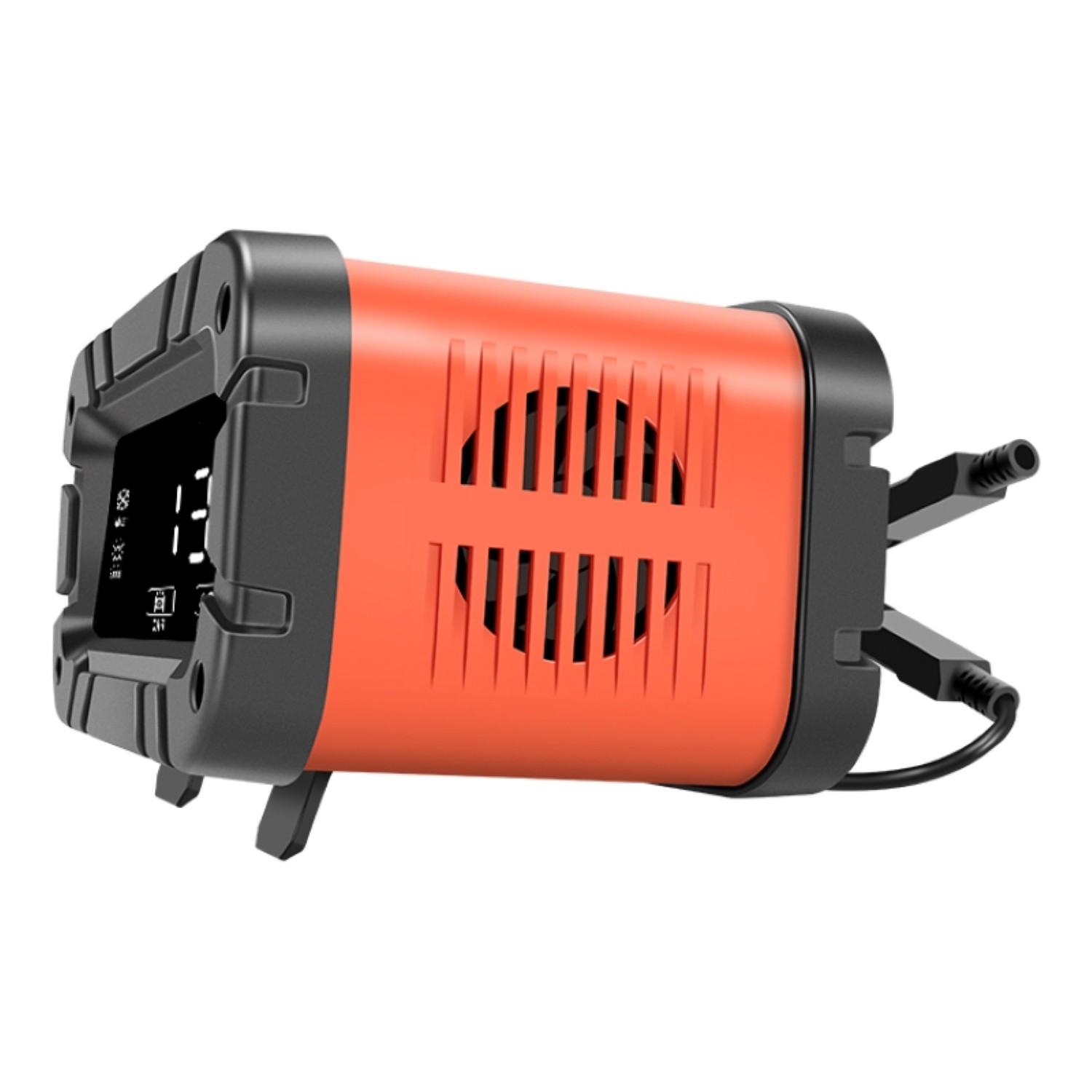

China TK700 Intelligent Battery Charger - Direct Factory Price from STARWELL

Product Details

Parameter of TK700 Intelligent Battery Charger:

Input: 100-240VAC 50/60Hz

output: DC 13.8V-27.6V

Output current: DC 12V10A/ DC 24V 5A

Scope of application: 12V/24V 2AH-150AH lead-acid battery/start stop battery usage

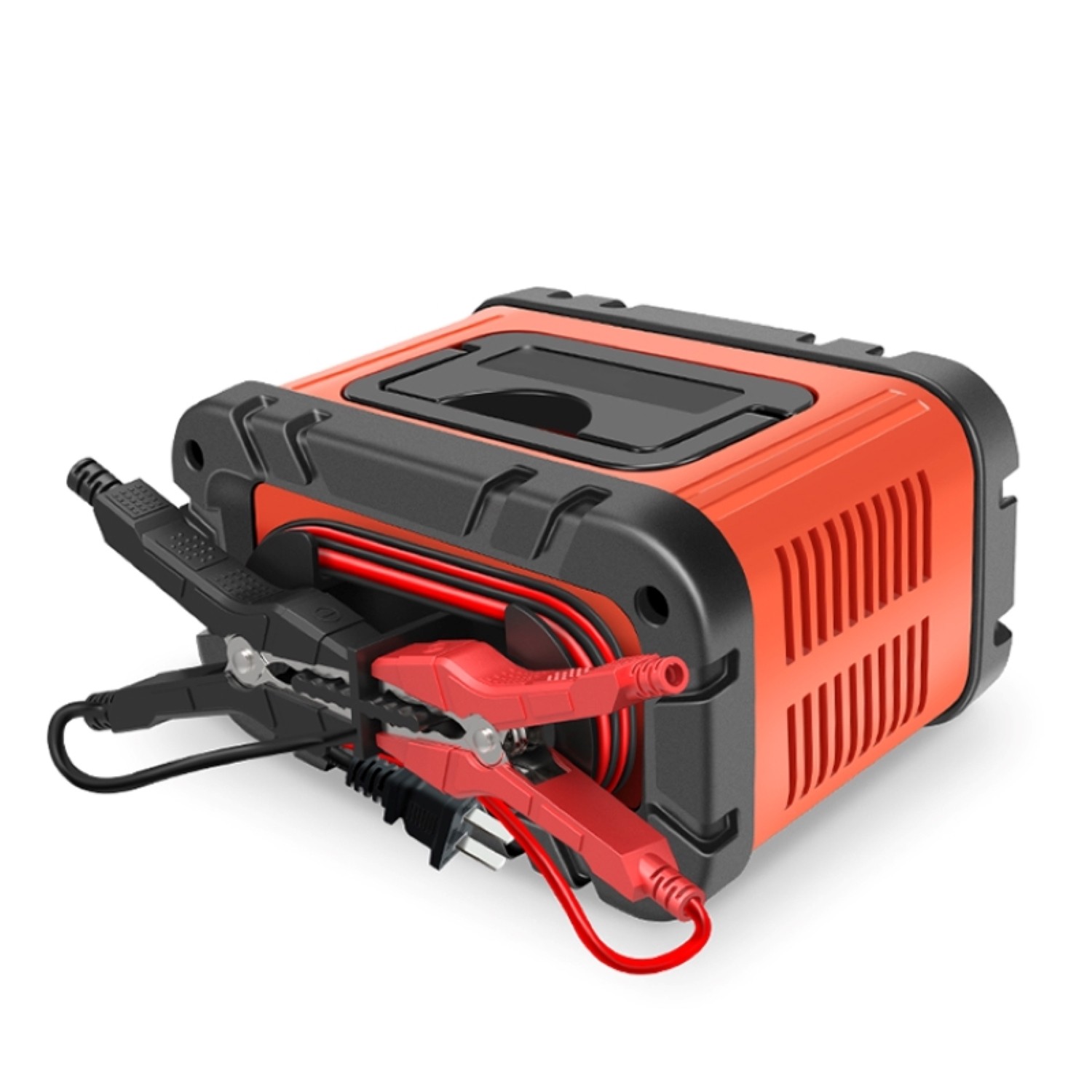

Input cable length: 105cm

output cable length: 85cm

Note: lithium battieres forbidden to use for this charger.

Charging

1. Check whether your battery parameters match the charger;

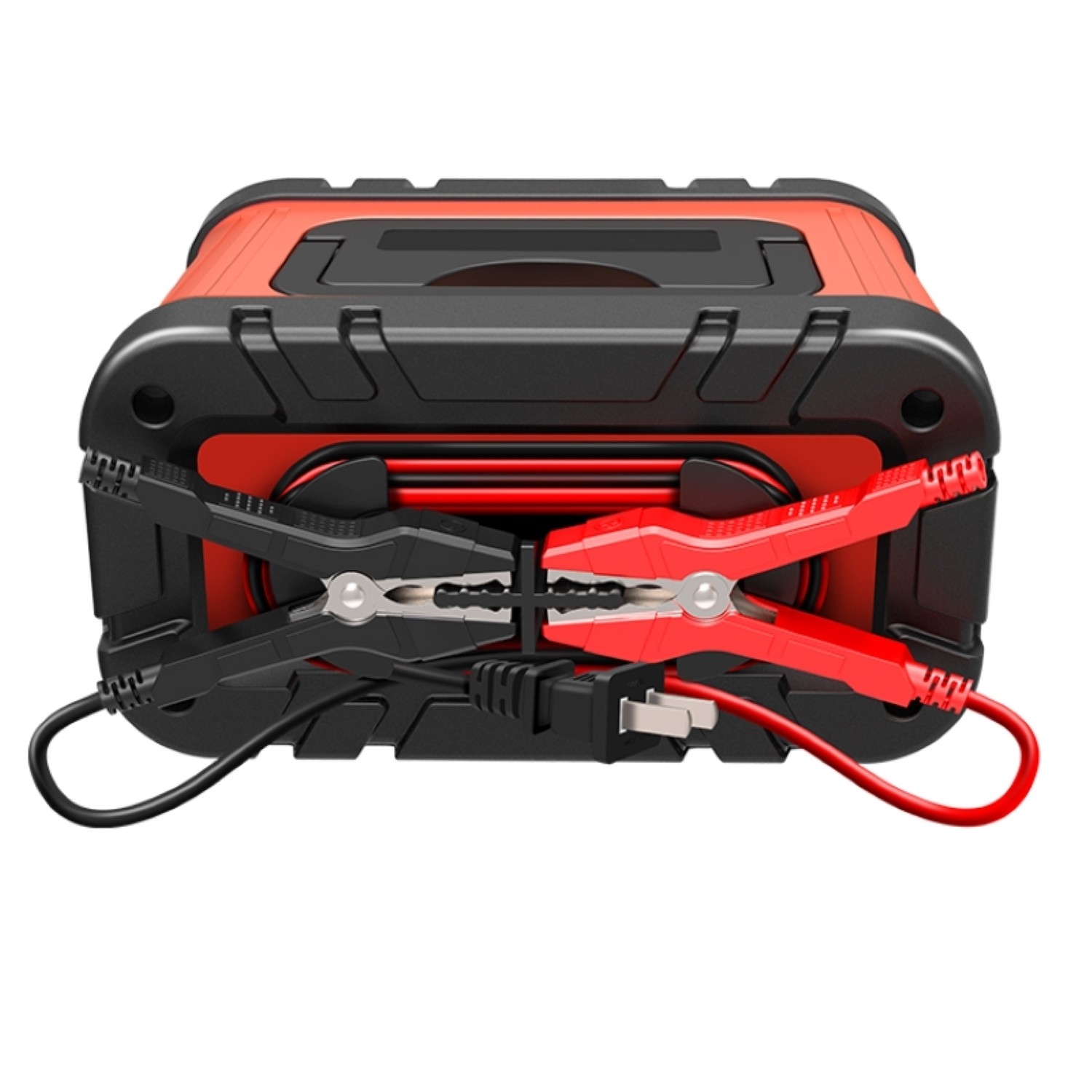

2. Clip the output crocodile clips at both ends of the battery, red positive and black negative

3. Insert the charger AC input line into the socket, and then turn on the socket switch

4. Select the mode and select the corresponding charging mode, such as "Car Mode" for car battery,"Motorcycle Mode" for motorcycle battery, "Start-Stop Mode" for starting and stopping power bottle, and then charge.

5. When the charger displays "FUL", it means that the charging mode has ended. Disconnect the AC input.After 10S, observe the battery capacity status (the panel circularly displays the voltage and the batterypower). After confirming that it is full, take off the crocodile clip.

Repair

1. Clip the output crocodile clips at both ends of the battery, red positive and black negative

2. Insert the charger AC input line into the socket, and then turn on the socket switch

3. Press the key to switch to repair mode, and then repair it

4. lt is recommended to repair motorcycle batteries for about 5 hours and automobile batteries for about 8hours! The charger is repaired by default for about 20 hours at a time, and the arrival time will show "FUL'to indicate that the repar mode has ended! Pay attention to the battery temperature when repairing, and stop repairing if the battery overheats!

5 After the repair, disconnect the AC input at this time, and switch the mode key to enter the charging modeat this time to see if it can be charged normally, lf it can't be charged after 1-2 cycles of repair, please replace the battery.

TK700 Intelligent Battery Charger Functions

(1) Output short circuit and anti-reverse connection: the product has the prompt of output short circuit and reverse connection battery (reverse connection 1-2$ detection, when reverse connection or short circuit is detected, the panel displays "ERO", and the product will not be damaged due to reverse connection or short circuit during detection), and when reverse connection is processed by microprocessor program, there will be no reverse connection spark phenomenon;

(2) Battery power detection: No AC input voltage is connected, the battery is clamped at both ends of the positive and negative poles of the battery (red, positive, black and negative), which can display the currentand voltage parameters of the battery (panel display data: voltage and ambient temperature cycle display, electric grid display in percentage form according to the detected data, self-check waiting for the firstpower-on for 6S, only display temperature before 6S, and display temperature and voltage cycle display after 6S arrival)

(3) Over-temperature protection: The product has the function of over-temperature protection. lf the product detects that the temperature is too high, it starts the over-temperature protection program automatically. When the temperature returns to the normal value, it resumes the initial charging state

(4) Overcharge protection: The product has overcharge protection function, which can avoid the battery life decline caused by overcharge and enhance the reliability of charging safety (the maximum charging time defaults to 15.5-16.0 H)

(5) Battery full charge grid: During the charging process of the product, the battery grid displays thecharging progress and the current battery charge, which is displayed at 20%, 50%, 75% and 100%.

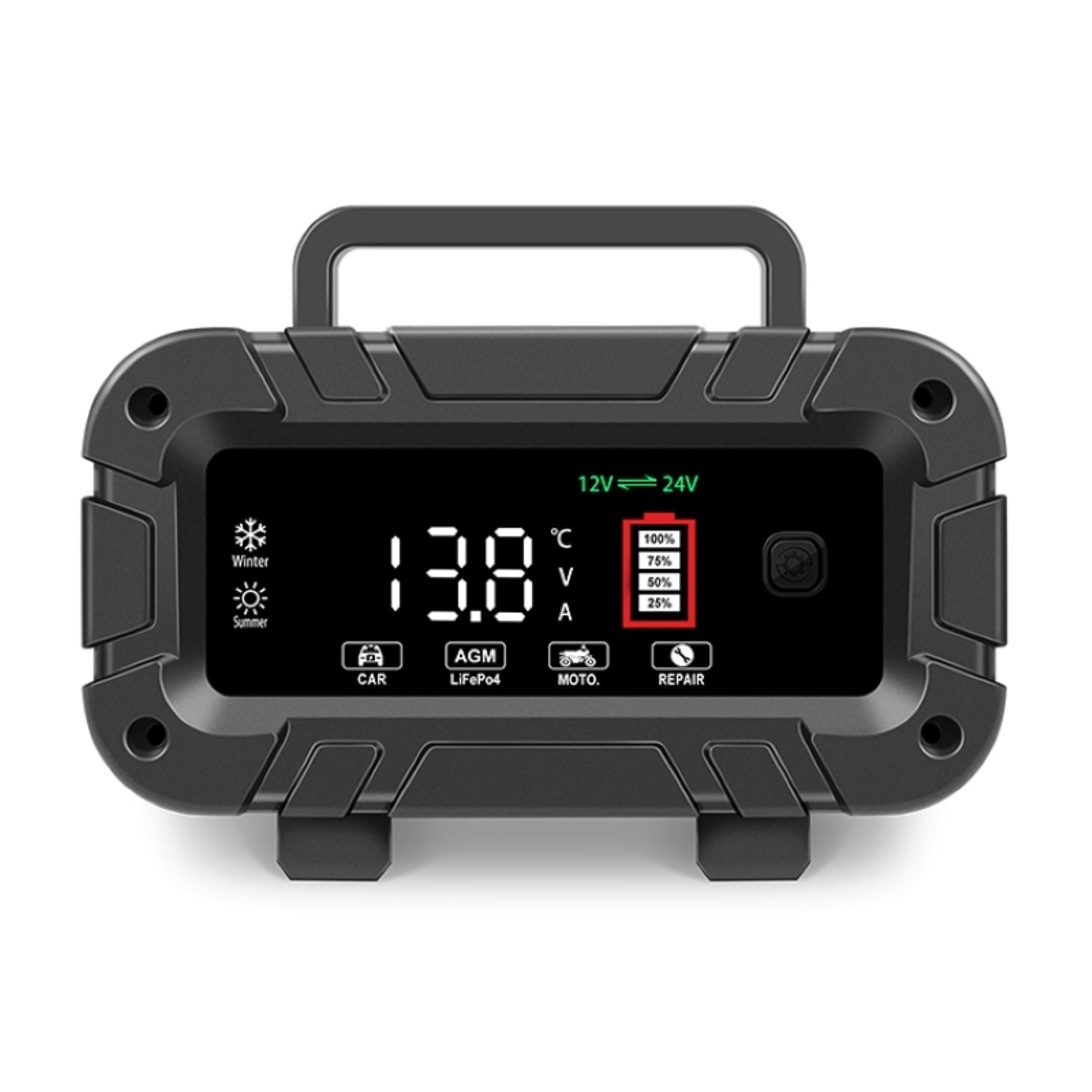

(6)LCD display status:

A: Full status: Display panel shows "FUL"

B: Clip disconnect mode: Display panel shows "OFF"

C: Failure mode: The display panel shows "ERO"

E: Charging status: The display panel displays voltage, current and temperature cyclically

F: Repair mode: "PUL" is displayed on the display panel, and the repair icon flashes H: Repair End: The display panel shows that the "End" repair icon is always on

G: Detecting battery charge: The display panel displays the voltage cyclically, and the battery charge is displayed in percentage form

Specification:

item name	Newest Hot Sale TK-700 fully automatic 7-stage charging 12V10A 24V5A lead acid battery charger for car scooter motorcycle
Brand	STARWELL
Model	TK-700
Type	Plug-In Charger
Use	scooter, PROFESSIONAL, electr bike, car, Motorcycle
Output	12V10A/24V5A
Input	100-240V AC 50-60Hz
Battery type	Intelligent Pulse Repair Charger
Product name	battery charger
Feature	3 Stage Charging Process
Weight	0.82KG
