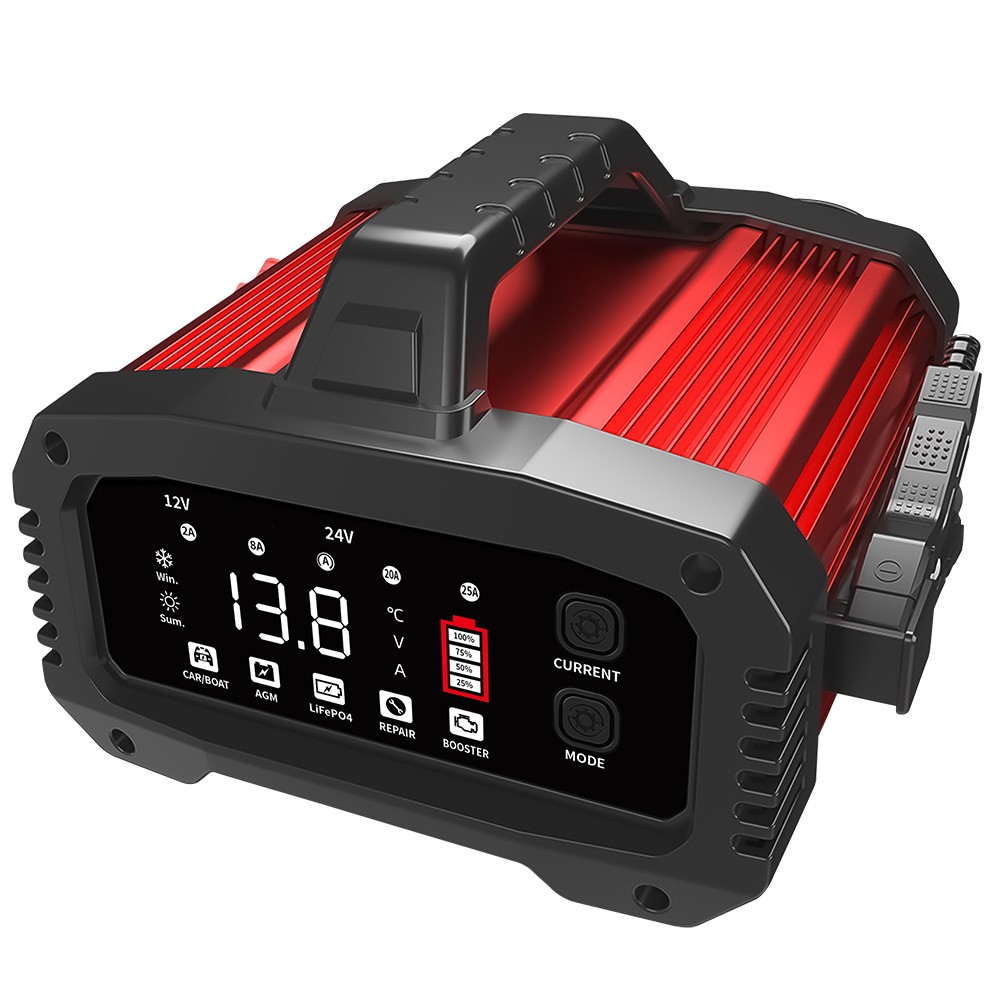

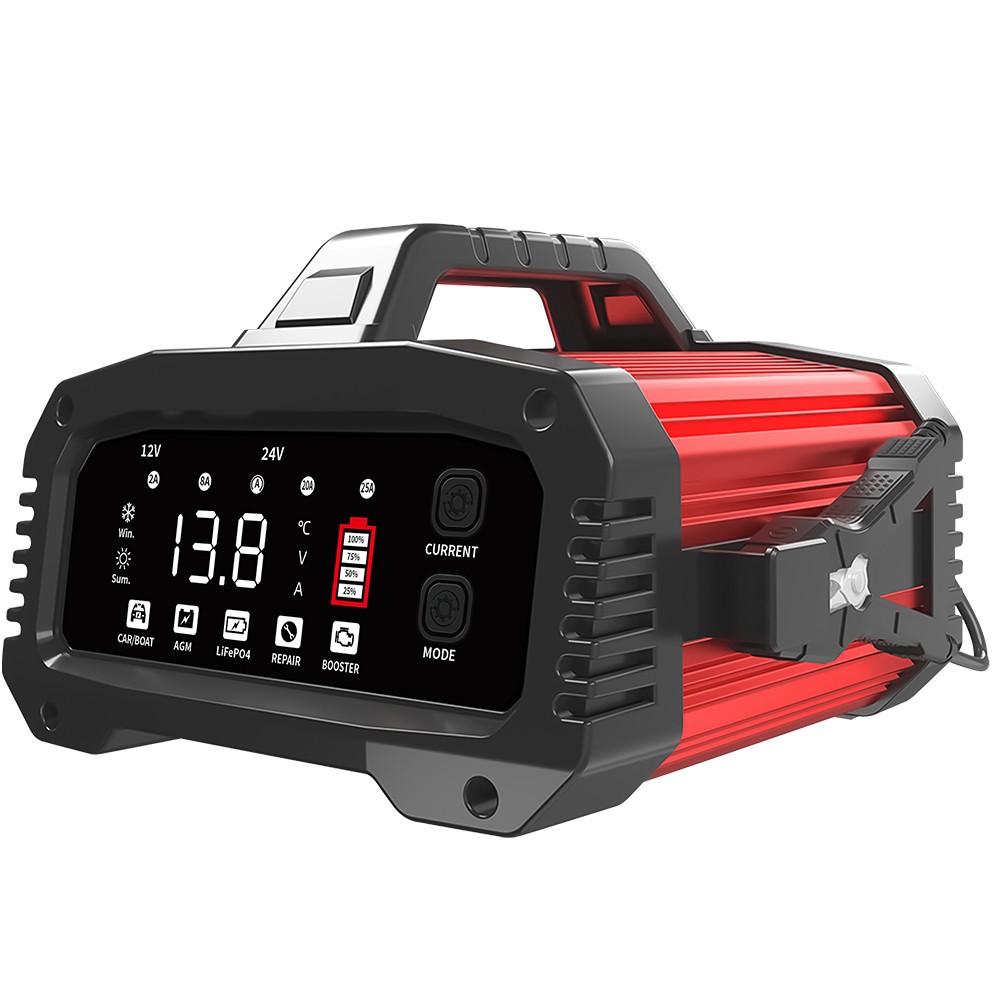

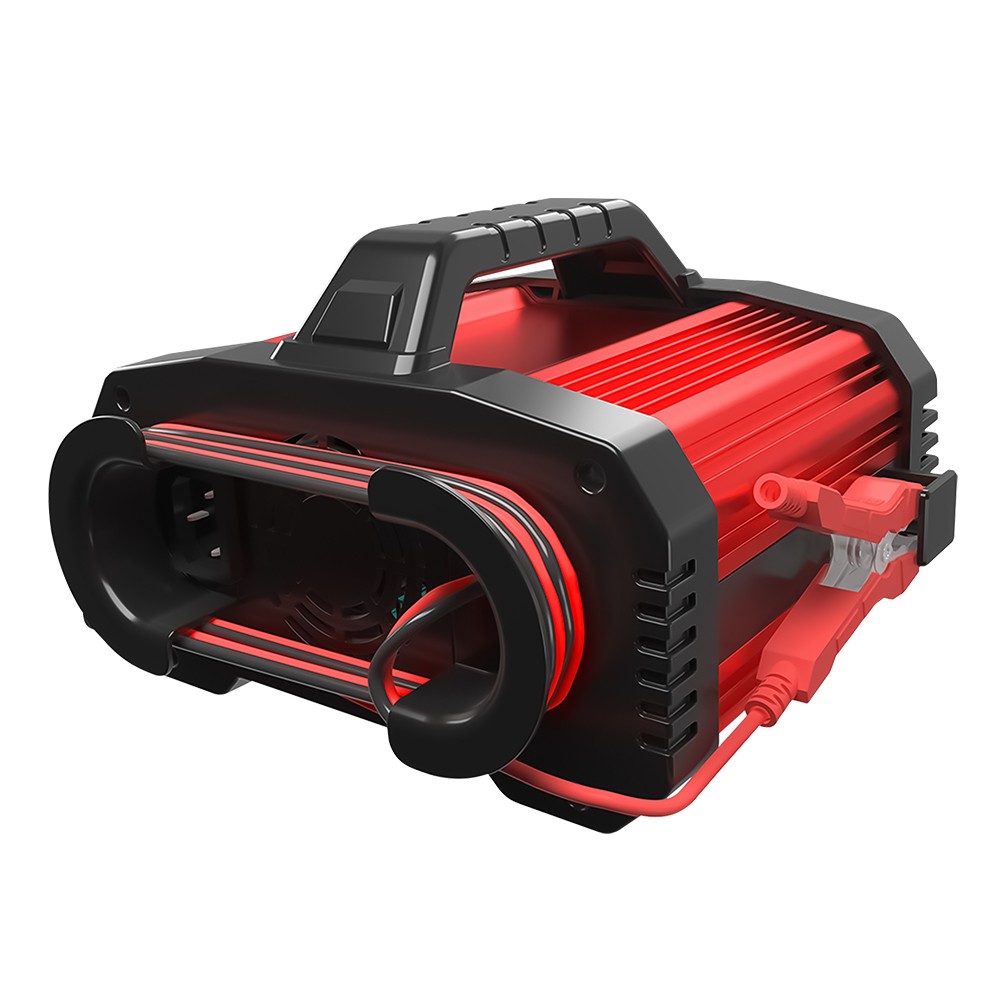

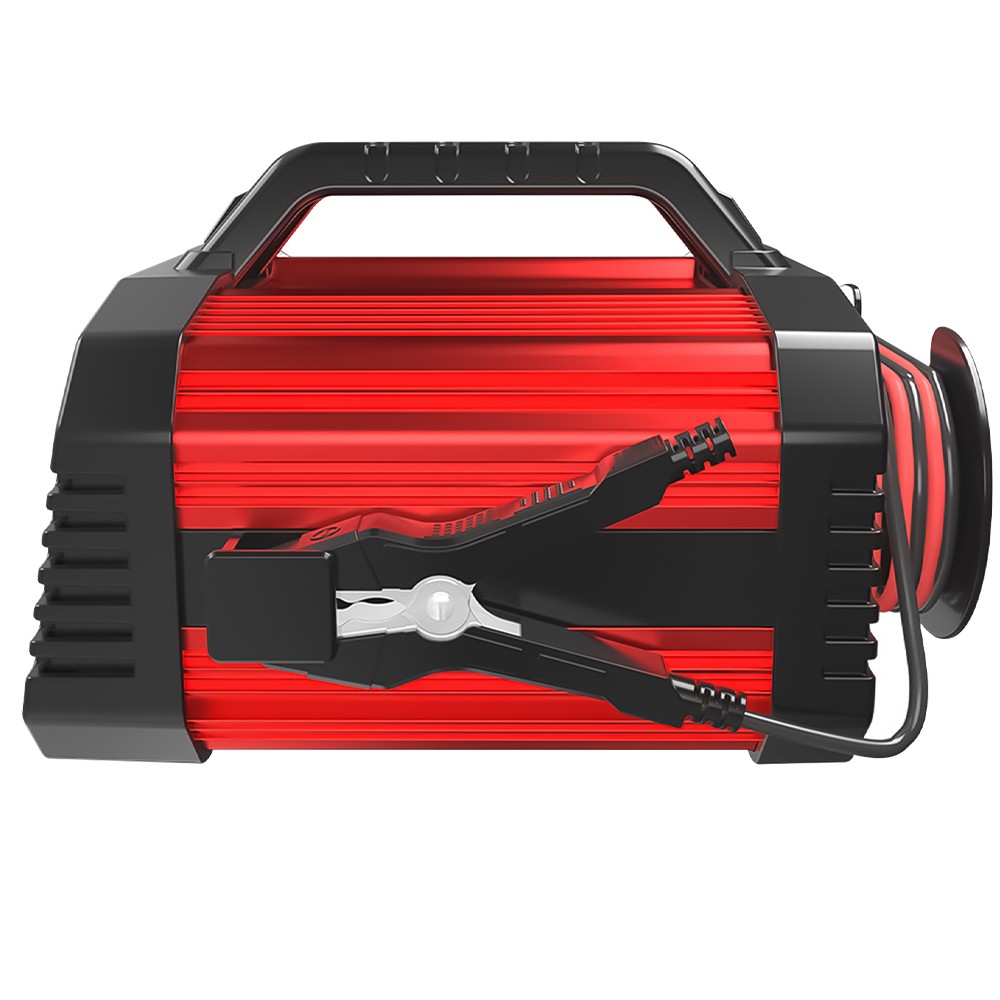

TK2500 Intelligent Battery Charger

Product Details

Parameter of TK2500 Intelligent Battery Charger:

MODEL: TK-2500

Input: 100-240VAC 50/60Hz

Output voltage: DC 13.8-29.6V

Charging current: 12V25A/ 24V15A

Input cable length: 120cm

Output cable length: 150cm

Size: 216*192*125cm

Net weight: 1.5KG

Application: 12V/24V 2Ah-400Ah lead-acid Lifepo4 batteries.

Features:

(1) output short circuit, anti-reverse connection: the TK2500 Intelligent Battery Charger has an output short circuit, reverse battery prompt (reverse connection 1-2S detection, detection of reverse connection reverse connection or short circuit when the LCD display "ERO", the detection process will not cause damage to the product because of reverse connection or short circuit), and reverse connection, after the microprocessor program processing, there will be no reverse connection sparking phenomenon occurs.

(2) battery power detection: no access to AC input voltage, battery clamps clamped on the positive and negative ends of the battery (red positive and black negative), you can display the battery current and voltage parameters in time (digital tube display data: voltage and ambient temperature cycle display, power grid according to the detected data in the form of a percentage display, the first power 6S self-test waiting, 6S not to show the temperature, 6S to reach the temperature and voltage cycle display)

(3) winter and summer mode: during the charging process, detect the ambient temperature, timely adjustment of the product charging state to ensure battery life and charging safety, winter mode: LCD display snowflakes, summer mode: LCD display sun

(4) over-temperature protection: the TK2500 Intelligent Battery Charger has over-temperature protection function, the product detects the temperature is too high, will start the over-temperature protection program, when the temperature returns to normal values, restore the initial charging state

(5) Overcharge protection: the product has an overcharge protection function to avoid overcharging resulting in a decline in battery life and to enhance the reliability of charging safety (maximum charging time default 15.5-16.0H)

(6) Charging voltage self-test: automatic self-test after the battery is charged, without artificial switching, the self-test passes into the floating charge, and vice versa into the compensation charge, the compensation charge is completed into the floating charge

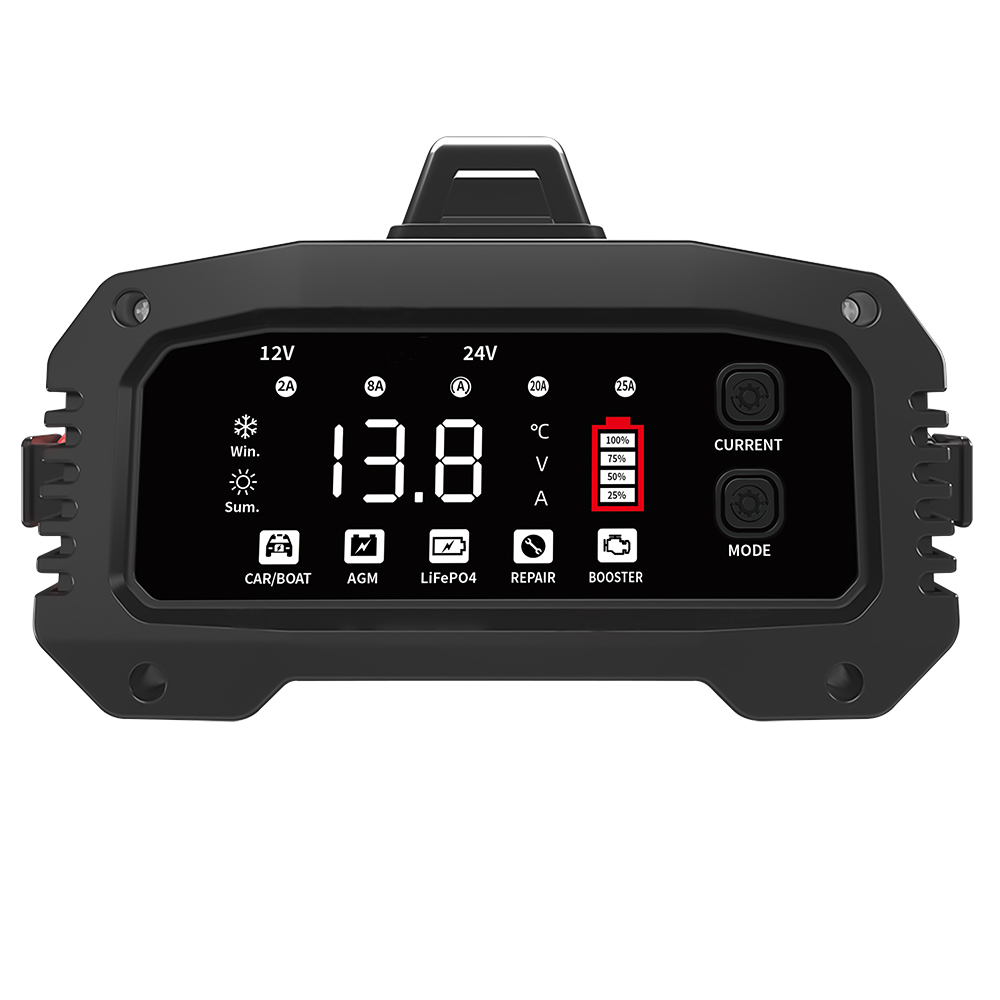

(7) LCD display status. a: full state: LCD display "FUL", power grid "100%" e: charging status: LCD cycle display voltage, current, temperature, power grid "charging special effects display" f: repair mode: LCD display "PUL", power grid "repair effect display", repair icon flashing g: no-load battery detection: LCD cycle display voltage, temperature, power grid according to the battery power in the form of percentage display.

Specification:

item name	200 second auxiliary start mode TK-2500 fully automatic lead acid lifepo4 battery charger 12V25A 24V15A for car motorcycle van
Brand	STARWELL
Model	TK-2500
Type	Plug-In Charger
Use	scooter, PROFESSIONAL, electr bike, car, Motorcycle
Output	12V25A,24V15A
Output Power	300W
Input	100-240V AC 50-60Hz
Battery type	Intelligent Pulse Repair Charger
Feature	3 Stage Charging Process
Use For	Motorcycle Car
Weight	1.5KG
Function	Charging Power
SIZE	216(L)*192(W126(H)mm
