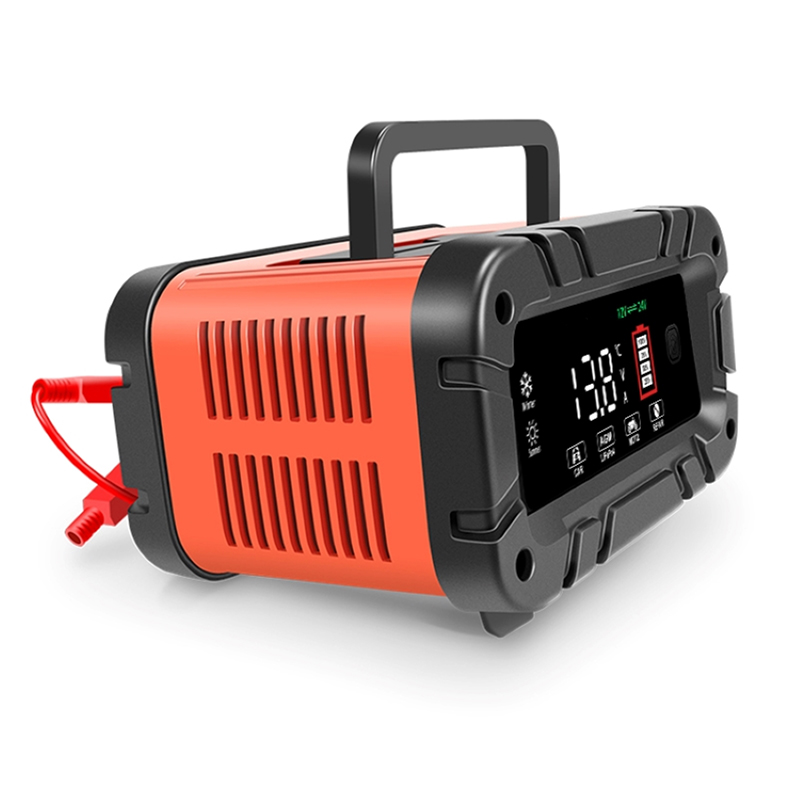

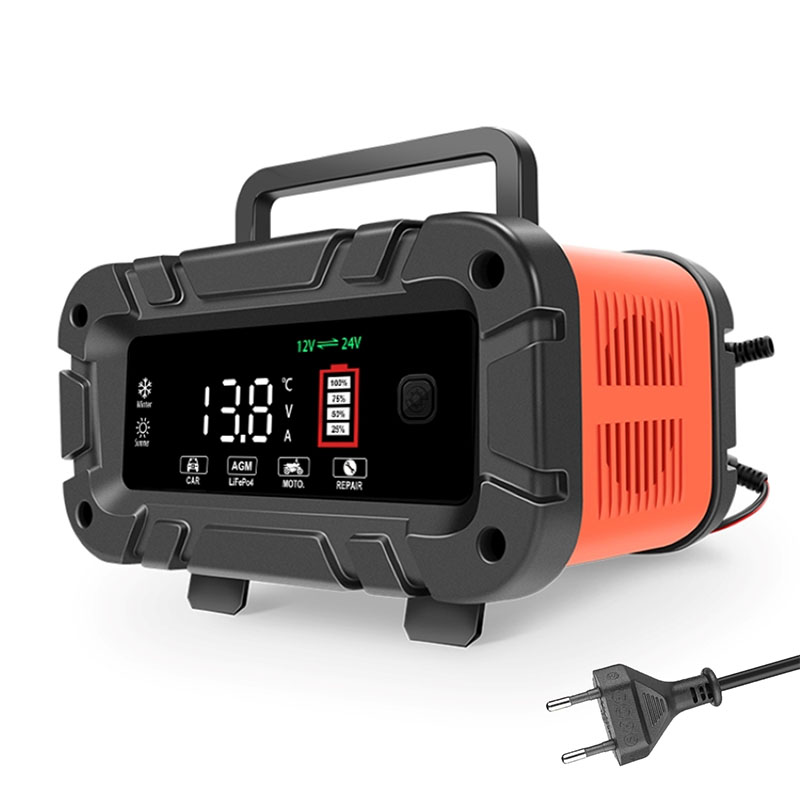

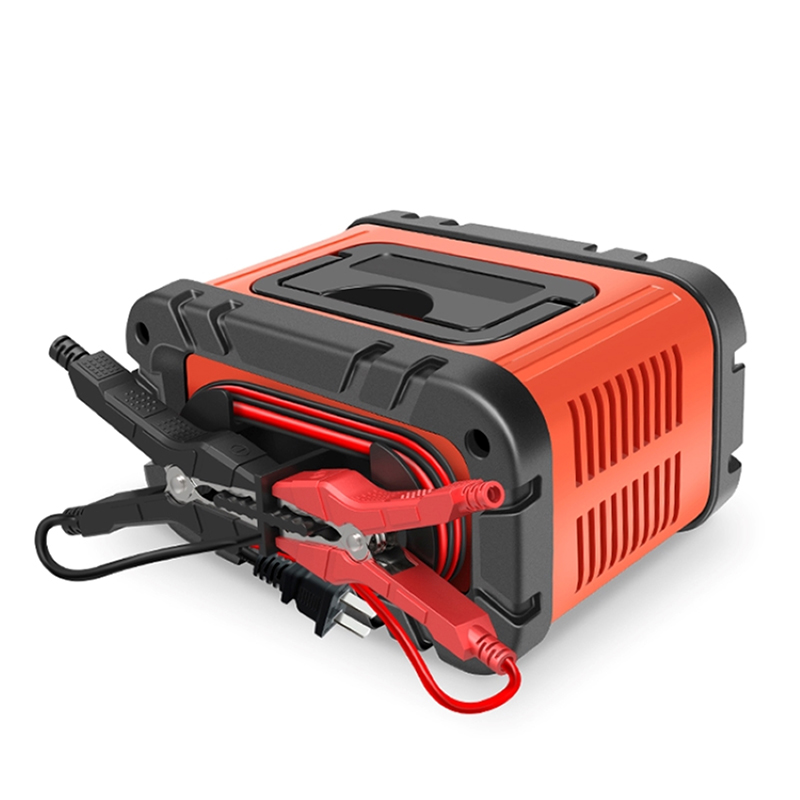

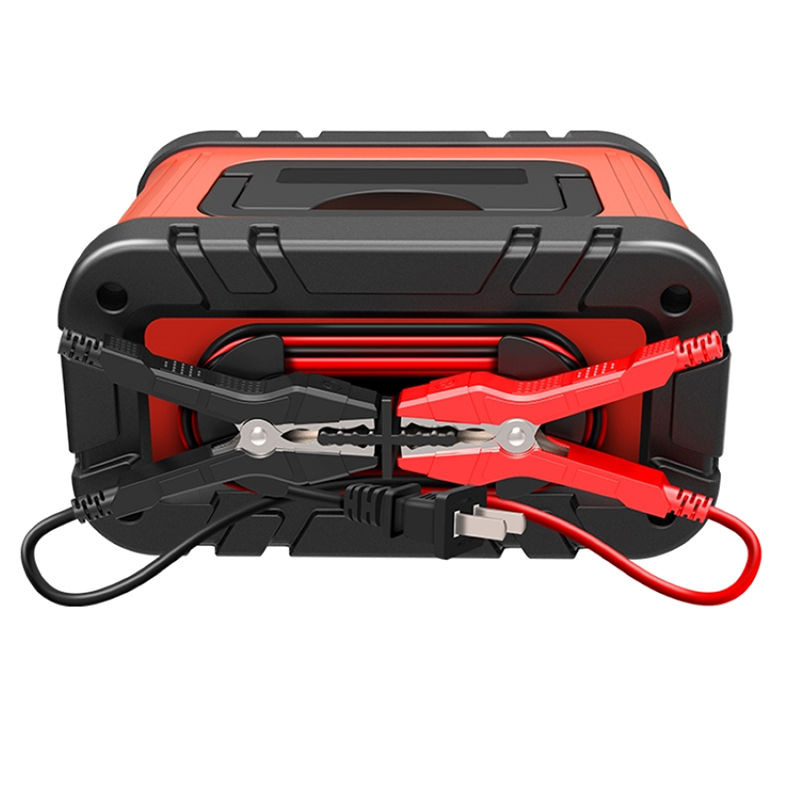

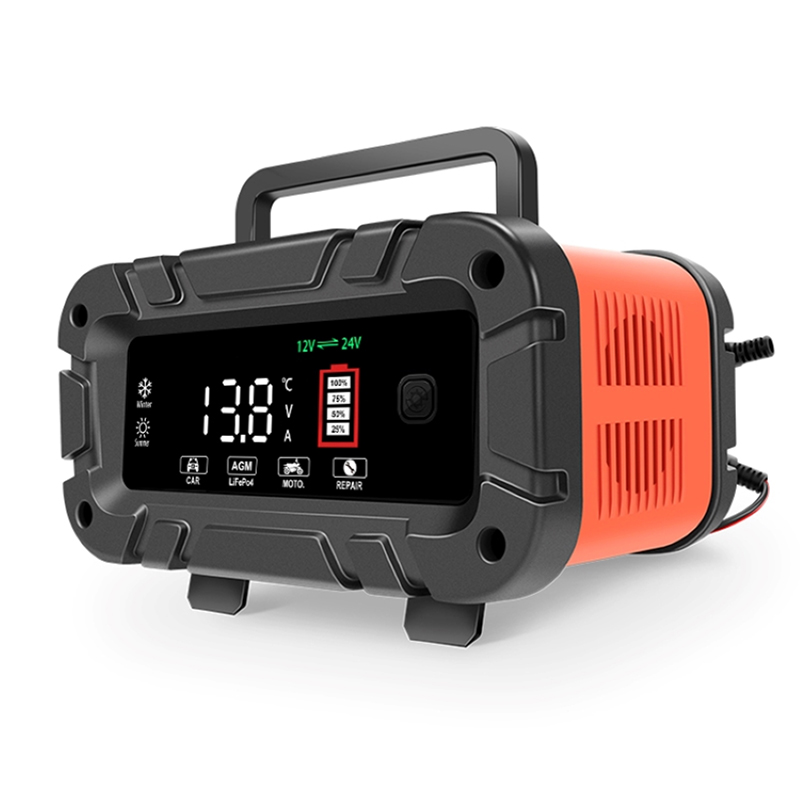

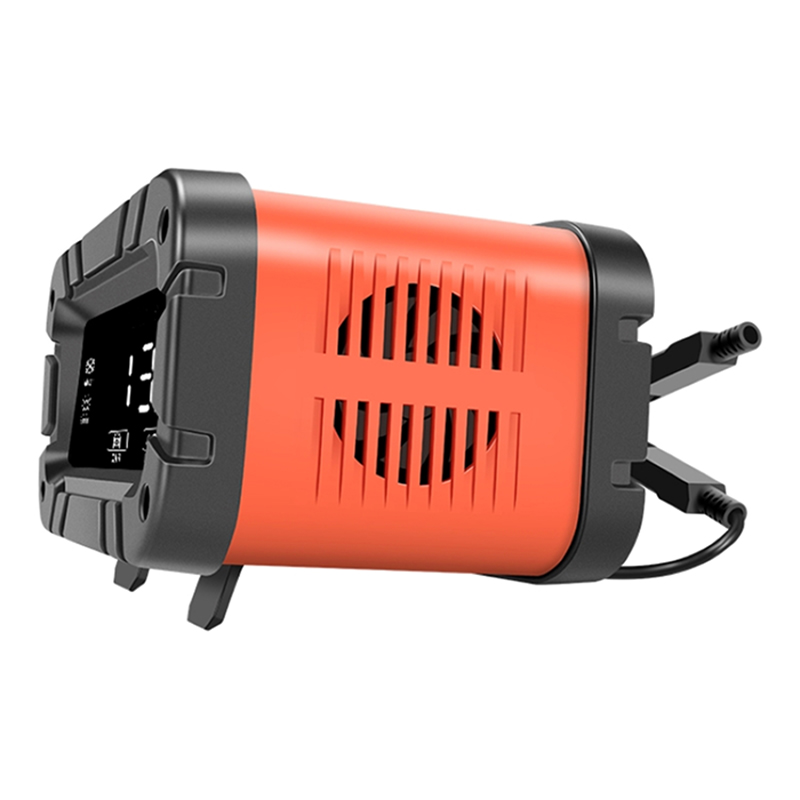

China STARWELL TK1200 Intelligent Battery Charger at Factory Direct Price

Product Details

parameter:

Product model: TK-1200

input voltage: 100-240VAC 50/60Hz

output Voltage: DC 13.8-27.6V

output Current: DC 12V20A - 24V10A

Input cable length: 100cm

Output cable length: 85cm

Application: 12V/24V 2AH-300AH lead-acid battery, Start/stop battery, Lifepo4 battery

(1) output short circuit, anti-reverse connection: the TK1200 Intelligent Battery Charger has an output short circuit, reverse battery prompt (reverse connection 1-2S detection, detection of reverse connection reverse connection or short circuit when the LCD display "ERO", the detection process will not cause damage to the product because of reverse connection or short circuit), and reverse connection, after the microprocessor program processing, there will be no reverse connection sparking phenomenon occurs.

(2) battery power detection: no access to AC input voltage, battery clamps clamped on the positive and negative ends of the battery (red positive and black negative), you can display the battery current and voltage parameters in time (digital tube display data: voltage and ambient temperature cycle display, power grid according to the detected data in the form of a percentage display, the first power 6S self-test waiting, 6S not to show the temperature, 6S to reach the temperature and voltage cycle display)

(3) winter and summer mode: during the charging process, detect the ambient temperature, timely adjustment of the product charging state to ensure battery life and charging safety, winter mode: LCD display snowflakes, summer mode: LCD display sun

(4) over-temperature protection: the product has over-temperature protection function, the TK1200 Intelligent Battery Charger detects the temperature is too high, will start the over-temperature protection program, when the temperature returns to normal values, restore the initial charging state

(5) Overcharge protection: the product has an overcharge protection function to avoid overcharging resulting in a decline in battery life and to enhance the reliability of charging safety (maximum charging time default 15.5-16.0H)

(6) Charging voltage self-test: automatic self-test after the battery is charged, without artificial switching, the self-test passes into the floating charge, and vice versa into the compensation charge, the compensation charge is completed into the floating charge

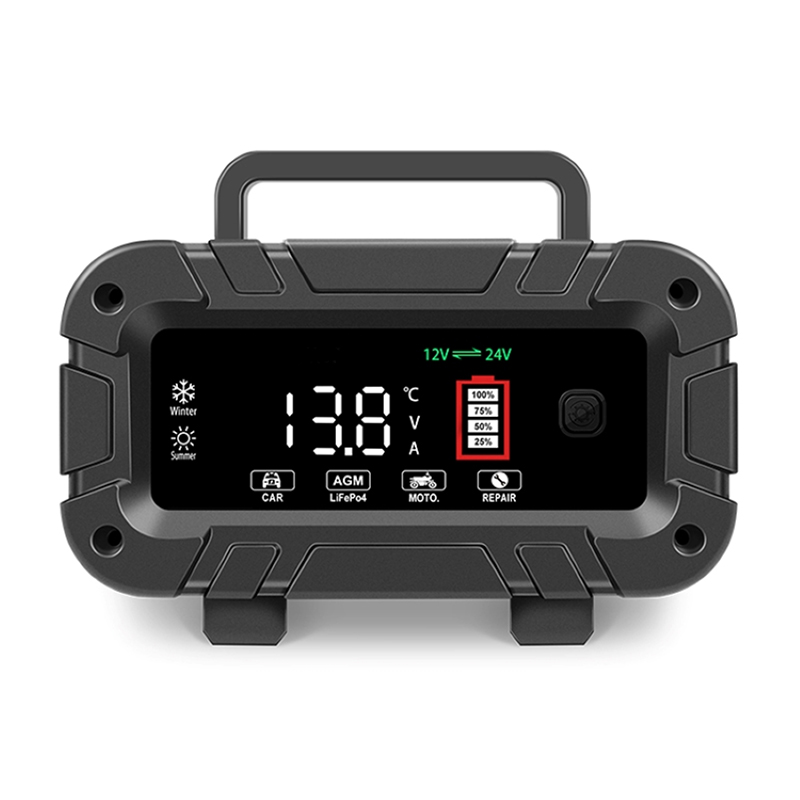

(7) LCD display status. a: full state: LCD display "FUL", power grid "100%" e: charging status: LCD cycle display voltage, current, temperature, power grid "charging special effects display" f: repair mode: LCD display "PUL", power grid "repair effect display", repair icon flashing g: no-load battery detection: LCD cycle display voltage, temperature, power grid according to the battery power in the form of percentage display.

Specification:

Name	2024 New Product TK-1200 fully automatic lead acid 12V20A 24V10A Battery Charger for Vehicles motorcycle scooter golf carts
Type	CAR CHARGER, Fast Charger
Material	ABS
Protection	Short Circuit Protection, Over-charging, Overcurrent, Overvoltage
Model Number	TK-1200
Port	DC, AC
Input voltage and current	100-240V AC ,50-60Hz
output voltage and current	12V20A/24V10A
Output Power	140W
Place of Origin	China
Product name	Car battery regulations charger
Battery Type	Lead-acid batteries
Charging time	10(h)
Efficiency	85%
Size	190(L)125(W)95(H)mm
Certification	CE FCC ROHS PSE
